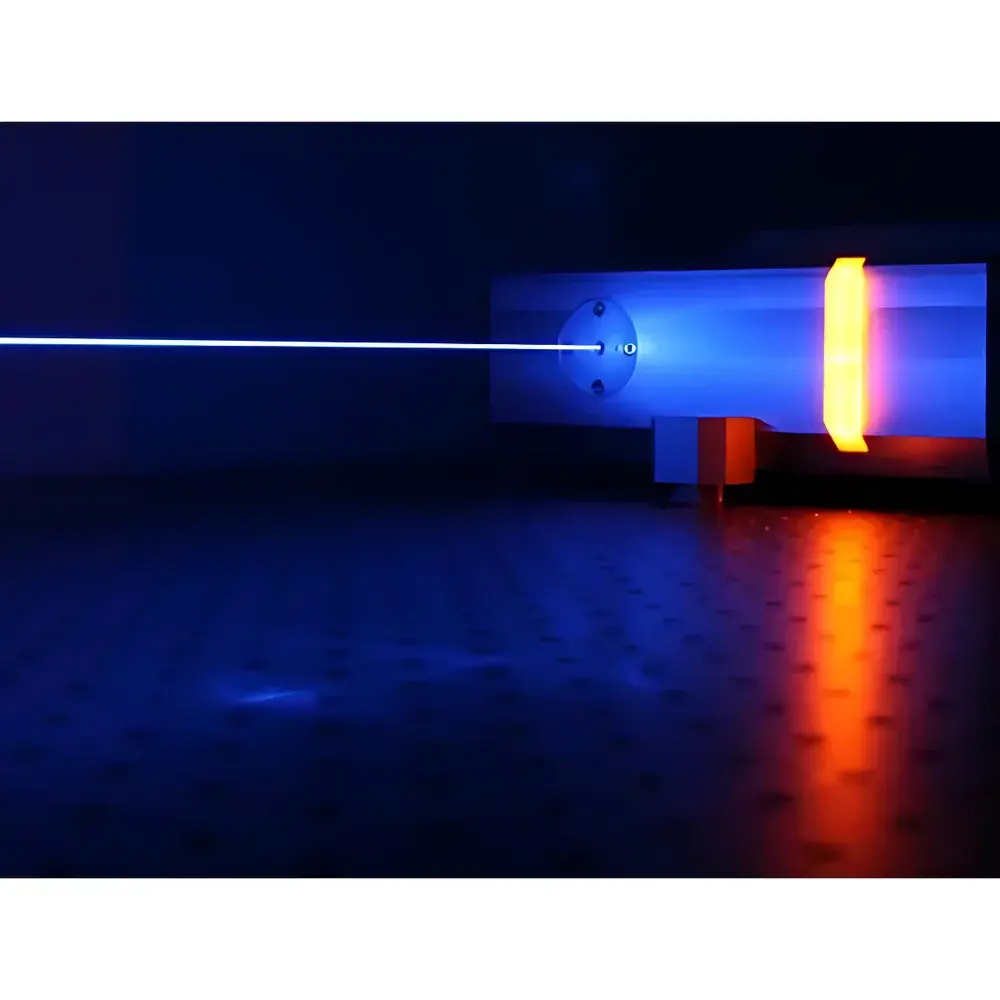

Auniontech IXION SLM 355 nm UV Single-Longitudinal-Mode Pulsed Solid-State Laser
| Brand | Auniontech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | IXION SLM Solid-State Laser System |
| Wavelength | 355 nm |
| Average Power | 2 W |
| Pulse Duration | 10–12 ns (typ.) |
| Pulse Energy | 200 µJ |
| Repetition Rate | 1–15 kHz |
| Beam Quality (M²) | < 1.3 |
| Spectral Bandwidth | < 60 MHz |
| Coherence Length | > 2.5 m |
Overview
The Auniontech IXION SLM 355 nm UV Single-Longitudinal-Mode Pulsed Solid-State Laser is a high-stability, narrow-linewidth diode-pumped solid-state (DPSS) laser system engineered for precision optical metrology and advanced photonic applications requiring deep-ultraviolet coherence and temporal fidelity. Based on intracavity frequency-tripling of a Nd:YAG or Nd:YVO₄ fundamental source (1064 nm → 355 nm), the system delivers transform-limited spectral output with bandwidth < 60 MHz—approaching the Fourier-transform limit for its pulse duration. Its single-longitudinal-mode (SLM) operation ensures unambiguous phase evolution over extended path lengths, enabling interferometric measurements with sub-nanometer resolution. Designed in collaboration with Xiton Photonics GmbH—a German developer with over two decades of expertise in nonlinear frequency conversion and deep-UV laser engineering—the IXION SLM integrates robust thermal management, active cavity stabilization, and hermetically sealed optics to sustain long-term pointing stability (< 5 µrad/°C) and power stability (< ±0.75% RMS over 8 h). This architecture makes it suitable for integration into vacuum-compatible optical benches and ISO Class 5 cleanroom environments common in semiconductor metrology and lithography tool calibration.
Key Features
- Single-longitudinal-mode (SLM) output at 355 nm with spectral bandwidth < 60 MHz, supporting coherence lengths exceeding 2.5 meters
- Diffraction-limited beam quality (M² < 1.3) enabling efficient coupling into single-mode fibers and high-NA interferometer arms
- Pulse duration of 10–12 ns (typical), optimized for time-resolved Raman spectroscopy and pump-probe configurations
- Adjustable repetition rate from 1 kHz to 15 kHz with jitter < 300 ps (RMS), facilitating synchronization with external detectors and delay generators
- Integrated real-time monitoring of output power, pulse energy, and cavity alignment status via RS-232/USB interface
- Passive and active thermal stabilization ensuring < ±0.05 nm wavelength drift over 24-hour operation
Sample Compatibility & Compliance
The IXION SLM 355 nm laser is compatible with standard optical mounts (e.g., Thorlabs KM100, Newport UH1), fiber-coupling adapters (FC/PC, SMA905), and vacuum feedthroughs (CF-35 compatible flanges). Its UV-grade fused silica optics and AR-coated coatings (R < 0.2% @ 355 nm) minimize nonlinear absorption and surface damage risk under sustained operation. The system complies with IEC 60825-1:2014 Class 4 laser safety requirements and includes interlock-ready connectors (DIN 41612) for integration into OEM metrology platforms. For regulated environments—including GMP-compliant wafer inspection lines and GLP-certified Raman laboratories—the laser supports optional audit-trail-enabled firmware (21 CFR Part 11 compliant logging via Auniontech ControlSuite™ v3.2).
Software & Data Management
Control and diagnostics are managed through Auniontech’s cross-platform LaserControl Studio™ software (Windows/macOS/Linux), providing GUI- and script-based (Python SDK included) access to all operational parameters. Real-time oscilloscope-style pulse train visualization, automated power stabilization loops, and timestamped event logging enable traceable calibration records per ISO/IEC 17025 requirements. Export formats include CSV, HDF5, and XML metadata containers compatible with LabVIEW, MATLAB, and Python-based analysis pipelines (e.g., SciPy, LMFIT). Firmware updates are delivered via signed binary packages with SHA-256 verification to ensure integrity in secure lab networks.
Applications
- Calibration of UV spectrometers and monochromators (NIST-traceable line references at 355 nm)
- Interferometric displacement measurement in laser heterodyne interferometers (e.g., ZMI, Keysight 5530 series)
- Photolithography stepper and scanner alignment verification in 193 nm and 248 nm exposure tools
- High-resolution wafer defect inspection using UV dark-field scattering and phase contrast imaging
- Holographic interferometry for microstrain mapping in MEMS and thin-film substrates
- Time-resolved photoluminescence (TRPL) and stimulated Raman scattering (SRS) excitation in wide-bandgap semiconductors (GaN, SiC, AlN)
FAQ
Is the 355 nm output TEM₀₀ mode guaranteed across the full repetition rate range?
Yes—M² < 1.3 is maintained from 1 kHz to 15 kHz due to thermally compensated resonator design and adaptive mode-matching optics.
Can this laser be integrated into a vacuum chamber for in-situ metrology?
Yes—optional vacuum-compatible housing (CF-35 flange, bakeable to 80°C) and UV-transmissive viewport options are available upon request.
Does the system support external triggering with TTL sync input?
Yes—standard BNC-trigger input accepts 3.3 V / 5 V TTL signals with programmable delay (0–100 ms, 10 ns resolution) and trigger jitter < 150 ps.
What maintenance intervals are recommended for long-term reliability?
No routine optical alignment required; preventive maintenance includes quarterly inspection of cooling fluid conductivity (for water-cooled variants) and annual recalibration of internal power sensor against NIST-traceable reference detectors.
Is FDA 21 CFR Part 11 compliance available for pharmaceutical QA/QC use?
Yes—audit trail, electronic signature, and role-based access control modules are enabled via optional Compliance Pack firmware license.
