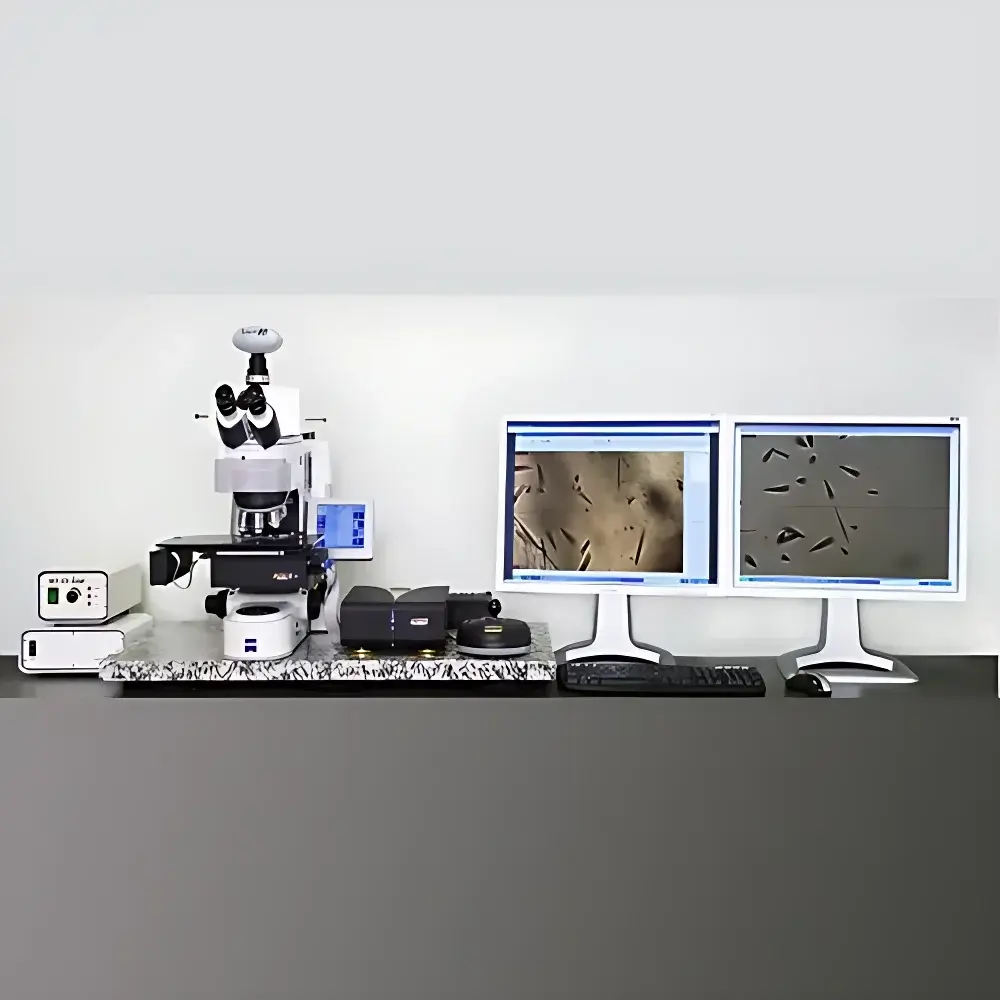

Autoscan Autoscan-1 Fission Track Dating and Analysis System

Overview

The Autoscans Autoscan-1 Fission Track Dating and Analysis System is a fully integrated, research-grade platform engineered for high-precision apatite and zircon fission track (FT) thermochronology. It operates on the fundamental principle of neutron-induced fission track formation in uranium-bearing accessory minerals, followed by controlled chemical etching and optical quantification under transmitted light microscopy. The system enables dual-parameter analysis: (1) spontaneous fission track density measurement for age calculation using the external detector method (EDM), and (2) length distribution analysis—including mean track length, standard deviation, and orientation relative to crystallographic axes (e.g., c-axis angle)—to reconstruct time–temperature (t–T) histories via kinetic annealing models such as the Laslett et al. (1987) or Gallagher (2012) approaches. Designed for geological laboratories requiring ISO/IEC 17025-compliant workflows, the Autoscan-1 supports both conventional FT dating and more advanced thermal history inversion protocols.

Key Features

• Automated, motorized research-grade upright microscope with 7-position encoded, centerable nosepiece—ensuring precise, repeatable objective alignment across magnifications (including 20×, 40×, 63× oil immersion, and 100× oil objectives).
• Integrated 1.6× intermediate magnification changer—expanding effective magnification range without compromising resolution or depth of field.
• Industrial-grade high-resolution color CCD/CMOS camera with real-time streaming capability—delivering lag-free, continuous image acquisition at full sensor resolution (≥5.0 MP) for accurate track delineation and length measurement.
• Full Z-axis motorization with sub-micron step precision—enabling automated focal plane scanning for multi-depth track profiling within polished grain mounts.
• Hardware-synchronized illumination control—optimized for differential interference contrast (DIC) and phase contrast imaging of etched fission tracks in anisotropic minerals.
• Robust mechanical architecture with vibration-damped base and temperature-stabilized stage—minimizing drift during extended automated acquisitions.

Sample Compatibility & Compliance

The Autoscan-1 accommodates standard 25 mm × 75 mm petrographic thin sections and polished grain mounts (e.g., epoxy-embedded apatite/zircon separates). It is validated for use with common etchants (e.g., 5.5N HNO₃ for apatite; HF/HNO₃ mixtures for zircon) and compatible with ASTM D7252-22 (Standard Guide for Fission Track Dating of Apatite) and ISO 14687:2021 (Geological materials — Determination of fission track ages). All software modules support audit trail logging per FDA 21 CFR Part 11 requirements when deployed in GLP/GMP-regulated environments. Data files are stored in vendor-neutral TIFF and CSV formats, ensuring long-term archival integrity and third-party interoperability.

Software & Data Management

The proprietary Autoscan FT Analysis Suite provides end-to-end workflow automation—from autofocus-assisted track detection and length measurement to statistical filtering (e.g., track orientation, aspect ratio, contrast thresholding) and histogram-based thermal history modeling. The software implements standardized counting protocols (e.g., IUGS-recommended minimum track counts per grain), calculates central ages with ±1σ uncertainties (using Poisson error propagation), and exports raw track coordinates, lengths, and angles in structured tabular format. Integrated calibration tools allow user-defined stage micrometer verification and objective-specific pixel-size mapping. All processing steps are timestamped, user-logged, and exportable as PDF reports compliant with laboratory quality management systems.

Applications

• Determination of low-temperature (<120 °C) thermal histories in sedimentary basins, fold-thrust belts, and cratonic margins.
• Integration with (U–Th)/He and Ar–Ar datasets for multi-system thermochronologic modeling.
• Provenance analysis through detrital FT age spectra deconvolution using mixture modeling algorithms.
• Calibration of basin burial and exhumation rates in petroleum system modeling.
• Assessment of radiation damage accumulation in nuclear waste repository analog minerals.

FAQ

What mineral types are supported for fission track analysis?
Apatite and zircon are the primary targets; the system is also compatible with titanite, sphene, and monazite upon method validation.
Does the Autoscan-1 support automatic track orientation measurement relative to crystallographic axes?
Yes—the software calculates angular deviation from the c-axis for each measured track using calibrated stage rotation and crystal orientation maps.
Can the system perform depth-resolved track length measurements?
Yes—Z-axis motorization enables sequential focusing through the etch pit depth, allowing statistical sampling of track populations at defined optical depths.
Is the software compliant with regulatory data integrity standards?
Yes—audit trails, electronic signatures, and secure user access controls meet FDA 21 CFR Part 11 and EU Annex 11 requirements when configured accordingly.
What file formats are generated during data export?
Raw images (TIFF), track metadata tables (CSV), and processed reports (PDF) are natively supported; no proprietary binary lock-in is enforced.
