AZ-HSS Manual Soil Sampling Kit

Overview

The AZ-HSS Manual Soil Sampling Kit is a field-deployable, hand-operated soil coring system engineered for high-reproducibility collection of undisturbed and disturbed soil samples across diverse geological and land-use settings. Based on the principle of direct mechanical penetration and controlled core extraction, the kit employs a rigid stainless-steel sampling cylinder (standard 60 mm internal diameter) driven vertically into the ground via percussive impact—enabling stratigraphically resolved sampling without significant compression or shearing artifacts. Designed for compliance with standard soil investigation protocols—including ASTM D1586 (Standard Test Method for Penetration Resistance and Classification of Soils), ISO 22475-1 (Geotechnical Investigation and Testing — Sampling Methods), and GB/T 22103–2008 (Chinese Standard for Soil Sampling)—the AZ-HSS supports routine monitoring in environmental site assessments, agricultural soil health surveys, geotechnical pre-construction investigations, and ecological restoration projects.

Key Features

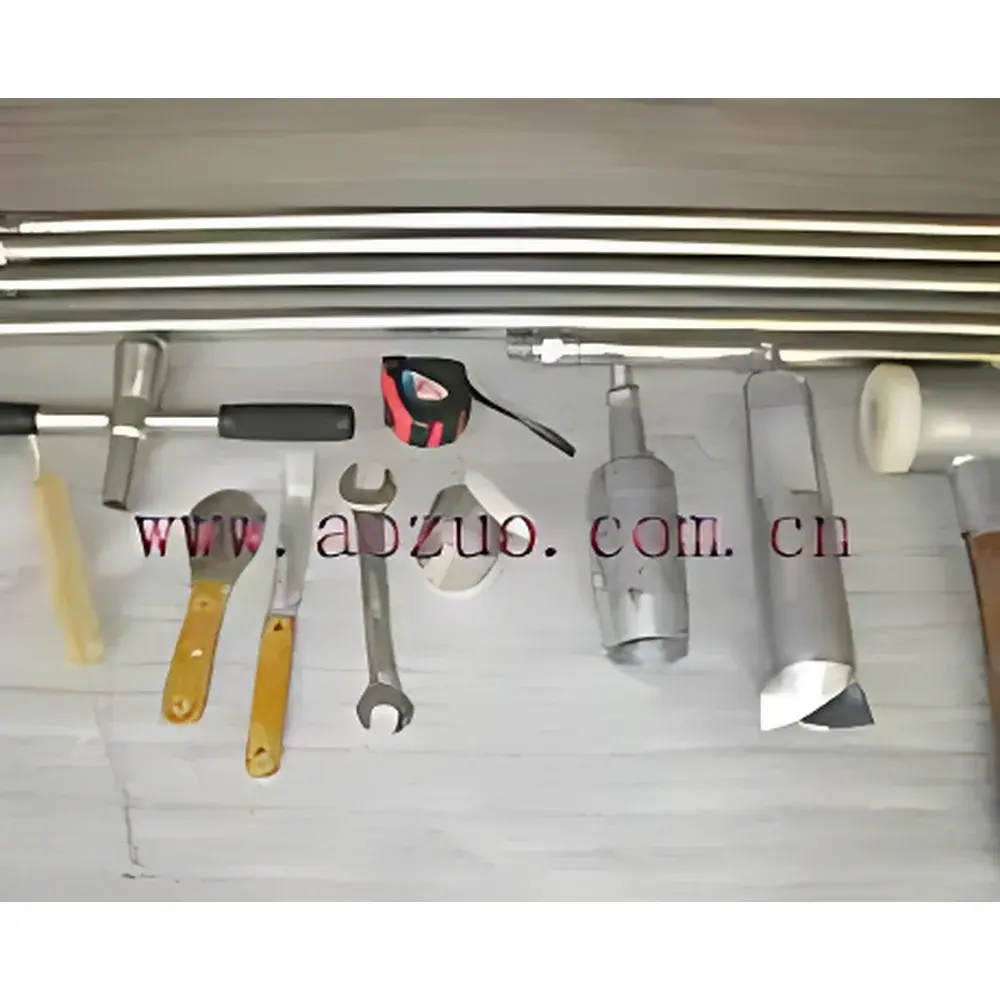

• Modular, extendable probe assembly comprising four 100 cm steel extension rods and one 50 cm rod—enabling configurable total sampling depths up to 4.5 m (custom lengths available upon specification)
• Dual-mode sampling capability: integrated undisturbed soil sampler (ring knife-type core barrel) for structural integrity preservation, plus optional use with pre-augered pilot holes using the included pilot bit
• Ergonomic percussion system: includes energy-absorbing hammer and precision-fitted striking handle to minimize operator fatigue and ensure consistent impact force transmission
• Complete field-ready toolkit housed in a durable, lightweight anodized aluminum case—designed for rugged outdoor transport and rapid deployment in remote or off-grid locations
• Toolset includes calibrated measuring tape (metric), dual-size wrenches for rod coupling, stainless steel soil scraper and cleaning brush for core extrusion and equipment maintenance, and dedicated ring knife removal aid

Sample Compatibility & Compliance

The AZ-HSS accommodates a broad spectrum of soil textures—from loose sands and silts to cohesive clays and moderately gravelly loams—provided particle size remains below 25 mm (per ASTM D2488 grain size classification). The 60 mm nominal core diameter meets common requirements for laboratory analysis including bulk density, moisture content (ASTM D2216), organic matter determination (Walkley-Black or loss-on-ignition), and nutrient profiling (e.g., Mehlich-3 extraction). Custom diameters (e.g., 50 mm or 75 mm) are available to align with specific analytical workflows or regional regulatory sampling mandates. All metallic components conform to ISO 9001-certified manufacturing practices; aluminum case complies with IP54 ingress protection standards for dust and splash resistance during field handling.

Software & Data Management

As a fully manual, non-electronic sampling system, the AZ-HSS does not incorporate embedded sensors, firmware, or digital connectivity. However, it is fully compatible with standardized digital field data capture workflows: sample metadata (depth interval, GPS coordinates, horizon description, time stamp) may be recorded using validated mobile applications compliant with ISO/IEC 17025 documentation requirements. When used in GLP- or GMP-regulated environments (e.g., contaminated land remediation under EPA Region 9 guidance or EU Soil Thematic Strategy reporting), the kit supports full audit-trail documentation when paired with electronic lab notebooks (ELNs) that meet FDA 21 CFR Part 11 electronic record and signature criteria.

Applications

• Environmental site characterization: delineation of contaminant plumes, landfill cover integrity verification, and vadose zone monitoring
• Agricultural soil mapping: spatial assessment of compaction layers, root-zone depth, carbon stock estimation, and fertilizer response trials
• Geotechnical reconnaissance: preliminary stratigraphy logging, bearing capacity estimation, and embankment stability evaluation prior to drilling campaigns
• Ecological research: soil seed bank quantification, mycorrhizal hyphal network sampling, and microhabitat profiling in conservation areas
• Construction QA/QC: verification of backfill compaction uniformity, subgrade preparation compliance, and engineered fill verification per ASTM D698/D1557

FAQ

What is the maximum recommended sampling depth for the standard AZ-HSS configuration?

The standard configuration achieves reliable undisturbed sampling to 4.5 meters; deeper penetrations require custom rod sets and may necessitate pilot augering in dense or rocky strata.
Can the AZ-HSS be used in frozen or highly compacted soils?

It is not recommended for use in frozen ground or soils with >15% gravel content (>25 mm particles); pre-augering or alternative hydraulic coring systems should be considered.
Is calibration or traceable certification provided with the kit?

No instrument calibration is required, as the system relies on mechanical geometry and dimensional consistency; however, dimensional verification reports for core diameter and wall thickness are available upon request.
Are replacement ring knives and spare parts available?

Yes—standard 60 mm stainless-steel ring knives, extension rods, and wear components (e.g., hammer faces, pilot bits) are stocked and supplied with serial-numbered traceability documentation.
