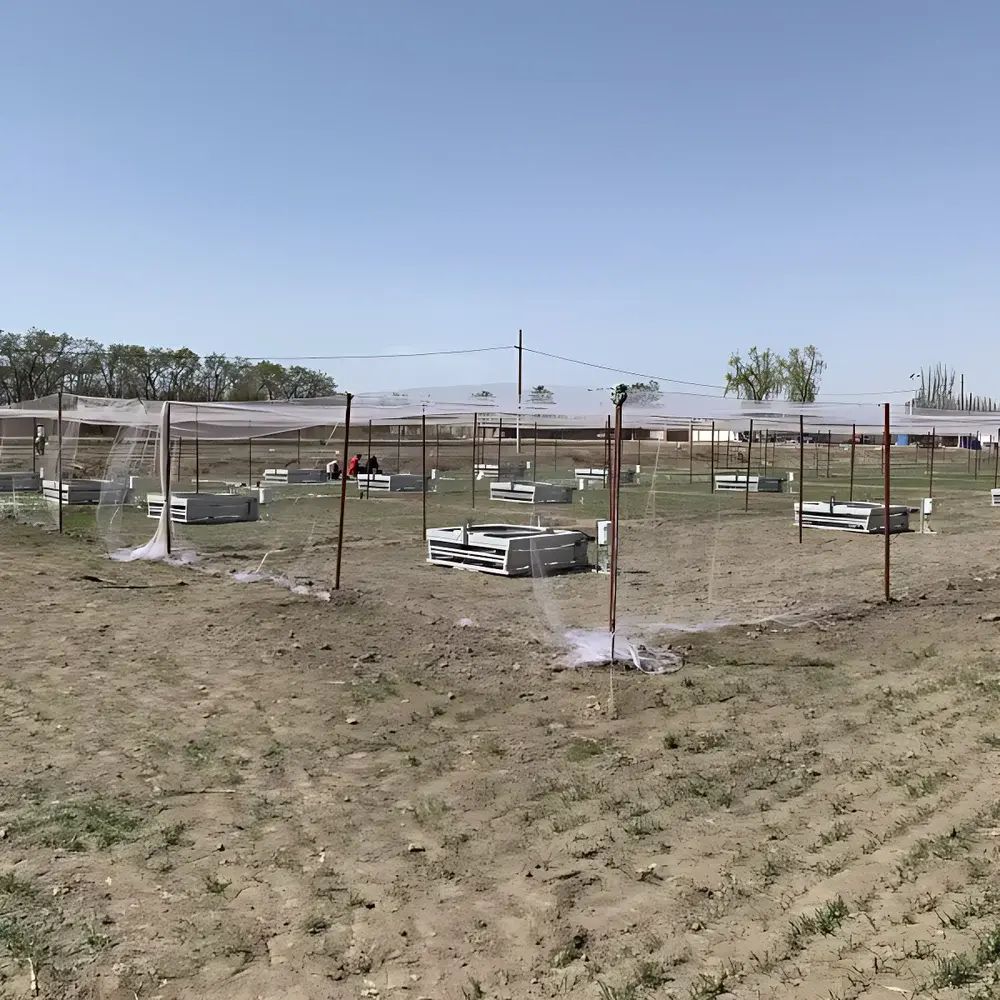

AZ LysiCosm-SPAC Soil-Plant-Atmosphere Continuum Ecosystem Process Monitoring System

Overview

The AZ LysiCosm-SPAC Soil-Plant-Atmosphere Continuum Ecosystem Process Monitoring System is an integrated, in-situ, real-time observational platform engineered for high-temporal-resolution quantification of coupled carbon, nitrogen, and water fluxes across the soil–plant–atmosphere continuum (SPAC). Unlike conventional intermittent chamber-based or eddy-covariance systems, LysiCosm-SPAC combines controlled lysimetric soil columns with fully adjustable, frameless canopy chambers (iChamber), enabling continuous, non-intrusive measurement of net ecosystem exchange (NEE), gross primary production (GPP), ecosystem respiration (R_eco), and trace gas dynamics—including CO₂, CH₄, N₂O, and H₂O—under both ambient and experimentally manipulated conditions. Its core architecture integrates laser absorption spectroscopy for gas analysis, precision boundary-layer control (water table/water potential, temperature, light, CO₂, rainfall), high-resolution root imaging (RhizoCam), and subsurface gas profiling (iChamber-G probes), all synchronized at second-level temporal resolution. Designed for ecological process validation, climate response modeling, and mechanistic biogeochemical research, the system supports GLP-aligned experimental workflows and provides traceable, audit-ready data streams compatible with ISO 17025–informed metadata frameworks.

Key Features

• Frameless, height-adjustable iChamber canopy enclosures (S35/S62/S120 models) with vertical travel up to 2.3 m and footprint up to 1 m²—enabling true whole-canopy, non-disturbing measurement of grassland, cropland, shrubland, and wetland ecosystems.
• Laser-based multi-gas analyzer with simultaneous, second-resolution detection of CO₂ (0–10,000 ppm; ±0.1 ppm @ 10 s), CH₄ (0–100 ppm; ±7 ppb @ 10 s), N₂O (0–100 ppm; ±0.12 ppb @ 10 s), and H₂O (0–5% v/v; ±6 ppm @ 10 s); optional ¹³C-CO₂, ¹⁸O-CO₂, and ¹⁵N/¹⁸O isotopic capability.
• Boundary-layer control module supporting dual-mode hydrological regulation: water-table control (0–1500 mm depth; ±5 mm accuracy) for shallow-aquifer systems and matric potential control (−750 to +1000 hPa; ±20 hPa accuracy) for deep-rooted or arid-zone applications.
• Integrated soil column system (0.08–4 m² surface area; 0.3–4 m height) with direct-load weighing (0–6000 kg; 0.01 kg resolution; 0.01 mm water-depth equivalent), enabling evapotranspiration partitioning and mass-balance closure.
• RhizoCam in-situ root imaging system with 4800 dpi macro-optics, automated time-lapse acquisition, and sub-minute temporal resolution for concurrent observation of root architecture, phenology, mortality, and soil fauna (e.g., Collembola, earthworms, ants) within undisturbed rhizosphere microcosms.
• iChamber-G subsurface gas profiling probes with porous ceramic membranes and depth-specific sampling ports (configurable from 0–100 cm), enabling vertical concentration gradients of greenhouse gases under controlled moisture/temperature regimes.

Sample Compatibility & Compliance

LysiCosm-SPAC accommodates intact, field-collected monoliths or reconstructed soil–vegetation units—including native grasslands, winter wheat stands, wetland mesocosms, and shrub–soil microcosms—with minimal disturbance during installation. The system’s modular design permits adaptation to diverse rooting depths, canopy architectures, and hydrological regimes. All hardware components comply with IEC 61000-6-2 (EMC immunity) and IP65 environmental protection standards. Data acquisition firmware supports timestamped, UTC-synchronized logging with configurable metadata tagging (e.g., treatment ID, operator, sensor calibration status), fulfilling foundational requirements for GLP-compliant environmental monitoring and ISO/IEC 17025 traceability. While not pre-certified for FDA 21 CFR Part 11, the system’s audit trail functionality—including immutable event logs, user-access controls, and electronic signature readiness—enables laboratory-level implementation of Part 11–aligned data governance protocols.

Software & Data Management

The LysiCosm-SPAC Control Suite (v4.x) provides unified configuration, real-time visualization, and post-processing via a browser-based interface. It supports automated calibration scheduling, sensor health diagnostics, and raw spectral data export in NetCDF4 format compliant with CF Metadata Conventions. Flux calculations follow standardized algorithms (e.g., HMR, R script-based EddyPro-style partitioning) and integrate meteorological inputs (PAR, air T/RH, wind speed) from co-located sensors. Exported datasets include full uncertainty propagation (based on manufacturer-specified precision limits and signal-to-noise ratios) and are structured for direct ingestion into ecosystem models (e.g., Biome-BGC, LPJ-GUESS). All data files are SHA-256 hashed upon generation, and system logs record user actions, configuration changes, and instrument state transitions with millisecond timestamps—ensuring reproducibility and regulatory defensibility.

Applications

• Quantifying diel and seasonal dynamics of NEE, GPP, and R_eco in managed and natural ecosystems under ambient and climate-manipulation scenarios (e.g., warming, drought, elevated CO₂).
• Resolving co-variation between carbon and nitrogen cycling via simultaneous CH₄/N₂O/CO₂ fluxes and isotopic signatures, supporting mechanistic interpretation of denitrification, methanogenesis, and nitrification pathways.
• Evaluating root–microbe–fauna interactions under controlled rhizosphere hydraulics and thermal regimes, including drought-stress root plasticity and anaerobic metabolism in flooded soils.
• Validating land surface model parameterizations using high-frequency, closed-system SPAC observations—particularly for evapotranspiration partitioning, soil moisture–flux hysteresis, and root-zone water uptake efficiency.
• Supporting long-term ecological research (LTER) network protocols requiring standardized, open-data-compatible instrumentation for cross-site synthesis of biogeochemical process rates.

FAQ

Can LysiCosm-SPAC operate autonomously for unattended deployments lasting several months?
Yes—the system supports solar/battery hybrid power management, onboard data storage (≥1 TB SSD), and remote telemetry via LTE or satellite uplink. All modules (chamber actuation, gas analysis, weighing, imaging) are scheduled and fault-monitored by the embedded real-time OS.
Is it possible to integrate third-party sensors (e.g., PAR quantum sensors, soil matric potential probes) into the control suite?
Yes—the system provides analog/digital I/O expansion ports and Modbus RTU/TCP support for seamless integration of external environmental sensors with synchronized timestamping and metadata embedding.
How does the iChamber achieve representative whole-canopy measurements without altering microclimate?
Its frameless, low-inertia design minimizes aerodynamic disruption; transparent acrylic walls maintain photosynthetically active radiation transmission (>92% at 400–700 nm); and active ventilation ensures internal CO₂/H₂O equilibration with ambient air during non-measurement periods.
What level of technical support and calibration services does AZ provide internationally?
AZ offers remote diagnostic support, annual on-site calibration verification (with NIST-traceable reference gases and certified weights), and application-specific training delivered by field ecologists and biogeochemical engineers fluent in English.
Are raw spectral data and intermediate processing steps accessible for custom algorithm development?
Yes—all raw laser absorption spectra, detector voltage traces, and intermediate concentration time series are logged and exportable, enabling user-defined flux computation, spectral fitting, or machine-learning–based anomaly detection.
