BCFR-2 Horizontal Fire Resistance Furnace (EN 1363-1/ISO 834 Compliant)

Overview

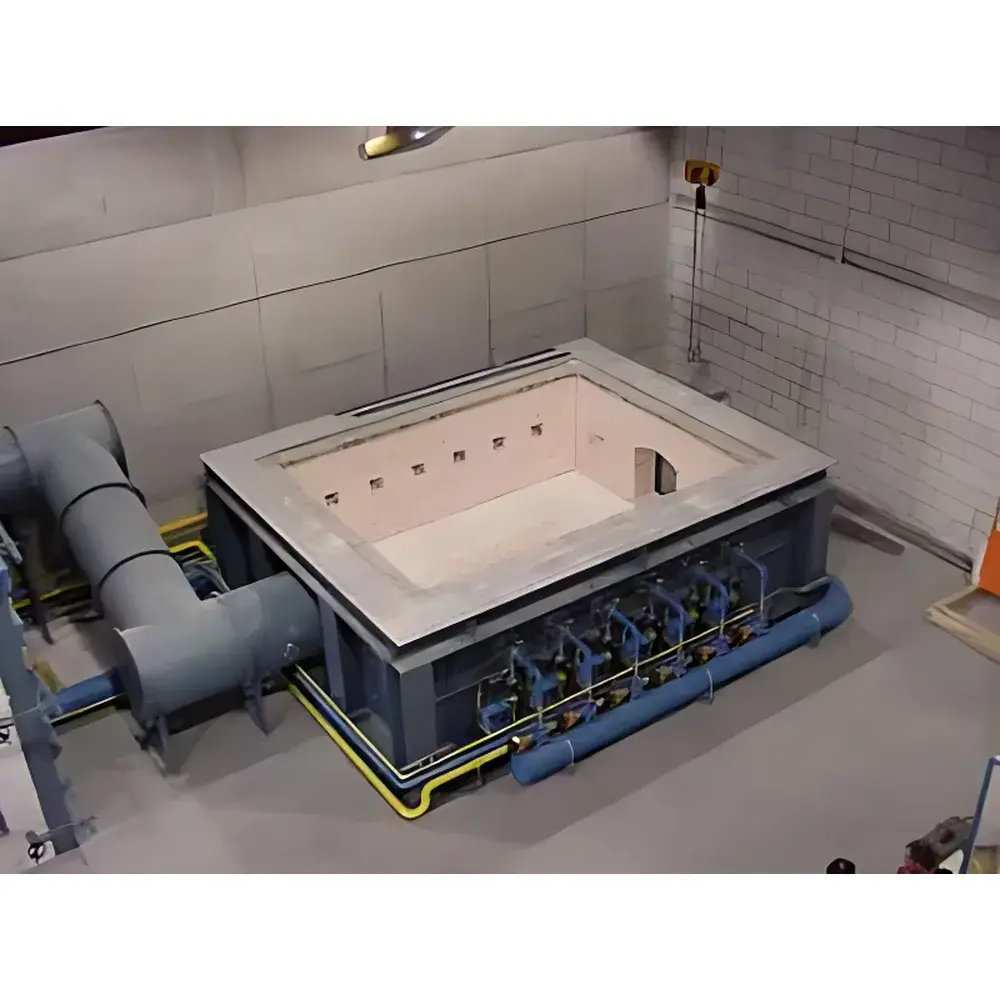

The BCFR-2 Horizontal Fire Resistance Furnace is a fully engineered, EN 1363-1 and ISO 834–compliant test system designed for standardized fire resistance evaluation of structural building elements—including load-bearing walls, floor/ceiling assemblies, partitions, and façade components—under controlled hydrocarbon or standard time–temperature exposure conditions. Its operational principle is based on precise thermal and pressure regulation within a refractory-lined combustion chamber, enabling reproducible simulation of real-world fire scenarios as defined in harmonized European and international standards. The furnace integrates dual-loop combustion control, multi-zone burner management, and synchronized thermocouple and pressure monitoring to maintain strict compliance with the heating curve tolerances specified in EN 1363-1 (standard fire), EN 1363-2 (hydrocarbon fire), and ISO 834-1. Constructed and pre-tested at the UK manufacturing facility, the BCFR-2 is delivered in modular, field-assemblable sections—each pre-lined, pressure-tested, and marked for unambiguous reinstallation. All structural steelwork, refractory linings, and mechanical interfaces are designed to withstand repeated 6-hour thermal cycles at peak temperatures up to 1250 °C without degradation in dimensional stability or insulation performance.

Key Features

• Modular, site-installable architecture with factory-assembled refractory lining and full pre-commissioning validation.
• 16 independently controlled gas-air burners arranged across four horizontal zones (4 burners per zone), each equipped with UV flame detection, spark ignition, and redundant safety interlocks including high/low gas pressure switches, air differential pressure monitoring, and furnace overpressure protection.
• Dual motorized, water-cooled stainless-steel dampers for dynamic combustion chamber pressure regulation—fully integrated into the closed-loop control system and compliant with EN 1363-1 pressure tolerance requirements.
• Refractory system comprising 1400 °C-grade insulating firebrick, dense 42% alumina bricks in critical load-bearing and base regions, and bio-degradable ceramic fiber linings in flue ducts—engineered for thermal integrity over extended test durations.
• Four air-cooled viewing ports with heat-resistant quartz glass; optional integrated camera apertures with external mounting brackets for non-intrusive visual monitoring.
• IP65-rated industrial control cabinet housing microprocessor-based logic, DIN-rail-mounted 4-pole safety relays with status indicators, and galvanically isolated I/O modules (3000 V DC isolation between measurement inputs and host PC).
• RS485-based dual-redundant data acquisition network supporting up to 240 channels—including K/N/R-type thermocouples, pressure transducers, displacement sensors, strain gauges, and gas analyzers—with software-selectable input ranges (5 mV to 5 V DC), 21-bit resolution, and 0.005% FS accuracy.

Sample Compatibility & Compliance

The BCFR-2 accommodates full-scale construction specimens up to 4 m wide × 3 m high × 1.5 m deep, mounted within standardized restraining frames that replicate in-service boundary conditions. It supports testing per EN 1364-1 (non-loadbearing elements), EN 1365-1 (loadbearing walls/floors), EN 1366-1 (service penetrations), and EN 1634-1 (fire doors). All sensor placement—including thermocouple positions per EN 1363-1 Annex A and pressure tap locations per EN 1363-1 Clause 6.2—is pre-engineered and certified to meet latest revision requirements. The system’s data logging architecture satisfies auditability requirements under GLP, ISO/IEC 17025, and FDA 21 CFR Part 11 when configured with electronic signature and audit trail functionality. Calibration certificates for all primary sensors (thermocouples, pressure transducers, flow meters) are supplied traceable to UKAS-accredited laboratories.

Software & Data Management

The furnace is supplied with a dedicated Windows-based control and data acquisition platform featuring real-time visualization of temperature profiles, pressure differentials, burner status, valve positions, and specimen deflection data. The dual-logging architecture records all 240 channels at user-defined intervals (1 ms to 3 s), storing synchronized datasets locally and redundantly on a secondary networked workstation. Data export conforms to ASTM E1492 and ISO/IEC 17025-compliant formats (CSV, XML, HDF5). The system supports remote monitoring via standard TCP/IP networks, enabling secure access for third-party observers or accreditation bodies. All control actions, alarm events, and calibration interventions are timestamped and logged with operator ID—ensuring full traceability for regulatory audits. Optional integration with LIMS platforms is supported through OPC UA or RESTful API interfaces.

Applications

The BCFR-2 serves accredited fire testing laboratories, national certification bodies (e.g., Warrington Fire, Chiltern International, PSB Singapore), and R&D departments evaluating passive fire protection systems. Typical applications include:

• Fire resistance classification of concrete, steel, timber, and composite structural assemblies.
• Validation of intumescent coatings, fire-stopping materials, and cavity barriers under standard and hydrocarbon fire curves.
• Development and verification of fire-rated glazing systems (e.g., AGC Flatglass, Vetrotech Saint-Gobain products).
• Third-party conformity assessment for CE marking under EU Construction Products Regulation (CPR) and UKCA marking.
• Research into thermal barrier performance, charring rates, and structural collapse thresholds under sustained radiant and convective heating.

FAQ

What standards does the BCFR-2 furnace comply with?
The furnace meets the mechanical, thermal, and instrumentation requirements of EN 1363-1, EN 1363-2, ISO 834-1, and ASTM E119 for fire resistance testing of building elements.
Is the furnace supplied with calibration documentation?
Yes—traceable calibration certificates for all primary sensors (thermocouples, pressure transducers, flow meters) are included, issued by UKAS-accredited calibration laboratories.
Can the system be integrated into an existing laboratory LIMS?
Yes—via optional OPC UA or RESTful API modules, enabling automated data ingestion, report generation, and certificate issuance.
What utilities are required for installation?
Natural gas supply (≥21 mbar, 315 m³/h), 15 mm domestic cold water feed for damper and burner cooling, 200–240 V AC / 40–70 Hz power for control systems, and a minimum 12.5-tonne overhead crane for assembly.
Does the control system support manual operation independent of the PC?
Yes—the ignition sequence, burner zone control, damper actuation, and safety interlocks operate fully autonomously via the IP65-rated control cabinet; the PC is used only for monitoring and data logging.
