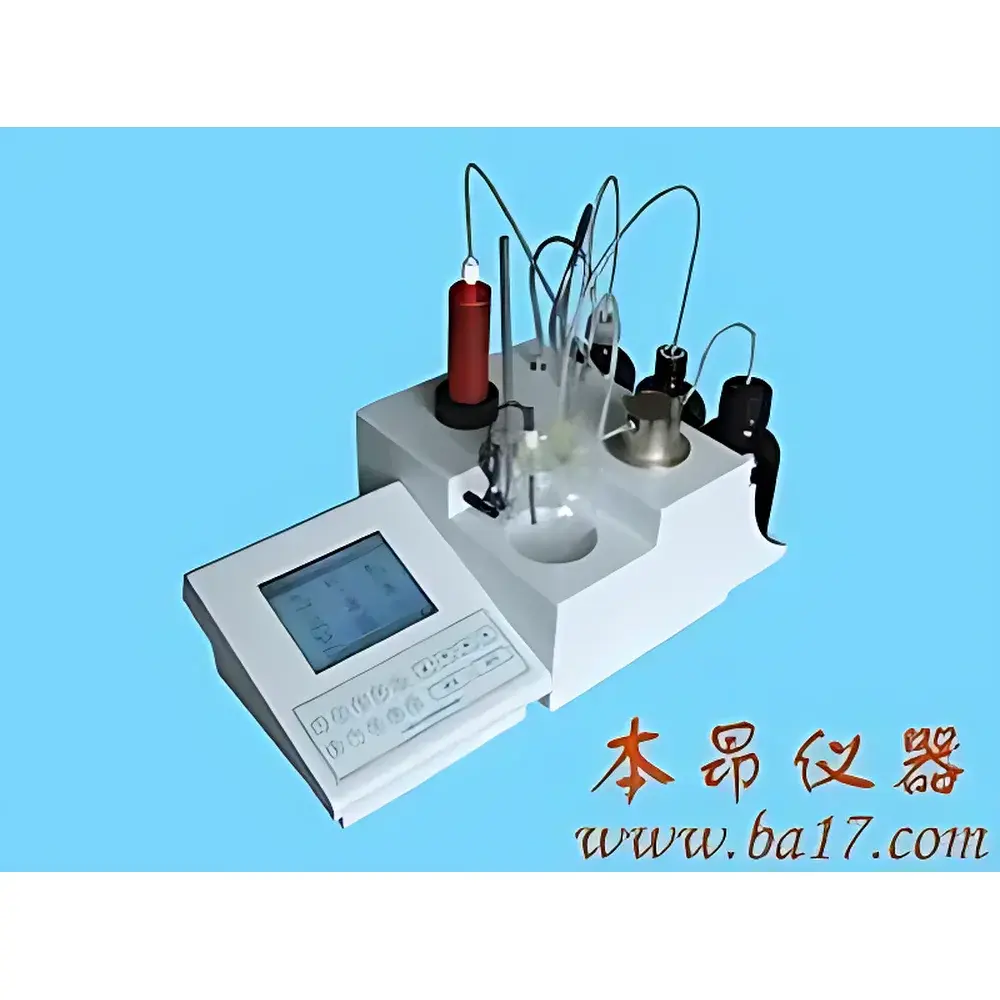

BenAng KF-3 Automated Karl Fischer Coulometric Moisture Analyzer

Overview

The BenAng KF-3 Automated Karl Fischer Moisture Analyzer is a precision volumetric titration system engineered for quantitative determination of trace to macro-level water content in solid, liquid, and gaseous samples. It operates on the stoichiometric redox reaction between iodine, sulfur dioxide, methanol, and water—governed by the classical Karl Fischer chemistry—as standardized in ASTM E203, ISO 760, and USP . Unlike coulometric systems optimized for sub-100 µg water quantification, the KF-3 employs a high-accuracy syringe-driven burette with 0.005 mL minimum dispensing resolution to deliver reproducible titrant delivery across its full 0.1–500 mg H₂O measurement range. Its microprocessor-controlled architecture integrates real-time endpoint detection via dual-platinum electrode polarization, enabling rapid, drift-compensated titration termination with high inter-run repeatability (RSD ≤ 0.3% at ≥10 mg H₂O).

Key Features

• High-precision volumetric dosing system featuring a corrosion-resistant ceramic-coated precision metering pump and chemically inert three-way PTFE valve manifold
• Full automation sequence: auto-solvent aspiration, reagent delivery, sample injection (via optional syringe interface), titration, endpoint recognition, waste evacuation, and post-titration rinse
• Sealed fluidic path constructed from fluoropolymer tubing and perfluoroelastomer seals—compatible with KF reagents containing pyridine-free imidazole-based solvents and iodine-rich titrants
• Integrated 5.7-inch backlit LCD with intuitive icon-driven menu navigation, real-time titration curve visualization, and step-by-step operator guidance in English
• Robust all-plastic housing with IP20-rated enclosure—designed for stable operation in ambient laboratory environments (15–30 °C, 30–80% RH, non-condensing)
• Low maintenance design: no glass burettes or manual calibration steps; automatic zero-point correction and burette volume verification via gravimetric check routine

Sample Compatibility & Compliance

The KF-3 supports direct analysis of diverse matrices without derivatization, including hygroscopic powders (e.g., APIs, excipients), viscous liquids (lubricants, resins), volatile solvents (acetone, THF), and heterogeneous suspensions (wet catalysts, slurries). Sample introduction is compatible with standard 1–10 mL glass or polypropylene vials equipped with septum caps. The system meets essential regulatory requirements for QC laboratories operating under GLP and GMP frameworks: audit trail functionality (user ID logging, timestamped method changes, result modifications), electronic signature support (per FDA 21 CFR Part 11 readiness), and full traceability of reagent batch numbers, calibration records, and environmental logs. All firmware and method templates comply with ISO/IEC 17025 documentation standards for testing laboratories.

Software & Data Management

The embedded firmware provides native data handling without external PC dependency. Each analysis generates a structured report containing sample ID, date/time stamp, titrant consumption (mL), calculated water mass (mg), water concentration (% w/w or ppm), relative standard deviation (RSD), and raw electrode potential vs. time profile. Data export is supported via USB 2.0 to FAT32-formatted flash drives in CSV and PDF formats. Optional BenAng KF-Link PC software (Windows 10/11) enables centralized instrument fleet management, statistical process control (SPC) charting, multi-method library deployment, and integration with LIMS via configurable ODBC drivers. All stored results retain immutable metadata—including operator credentials, environmental sensor readings (optional external temp/RH probe), and hardware diagnostic flags—for full forensic traceability.

Applications

The KF-3 delivers validated performance across regulated and industrial sectors requiring accurate moisture specification control. In pharmaceutical manufacturing, it verifies residual solvent levels in lyophilized antibiotics (e.g., amoxicillin trihydrate), monitors hydration states in crystalline active ingredients (e.g., metformin HCl), and ensures compliance with ICH Q5C stability protocols. For petrochemical QA, it quantifies water in jet fuel per ASTM D6304 and detects free water ingress in transformer oils (IEC 60814). In food science, it measures moisture in low-water-activity products (e.g., infant formula, dried yeast) per AOAC 992.11, and validates desiccant efficacy in packaging integrity studies. Additional validated use cases include moisture mapping in lithium-ion battery cathode precursors (NiCoMn oxides), hydrolysis monitoring in silicone sealants, and quality release testing of agrochemical granules (e.g., chlorpyrifos formulations).

FAQ

What types of Karl Fischer reagents are compatible with the KF-3?
The KF-3 is optimized for one-component and two-component volumetric reagents based on methanol or ethanol solvents, including pyridine-free formulations (e.g., imidazole-buffered iodine solutions). Chlorinated solvents (e.g., chloroform) and highly acidic/basic samples require pre-neutralization or specialized anhydrous solvent kits.
Can the KF-3 be used for solid samples with low solubility?
Yes—using the optional KF-3 Solid Sample Kit (glass homogenizer + sealed reaction vessel), insoluble solids such as polymers, ceramics, or metal oxides can be quantitatively analyzed via controlled thermal release or solvent-assisted dissolution prior to titration.
Is method validation support available?
BenAng provides IQ/OQ documentation templates aligned with ASTM E2911 and EU GMP Annex 15, plus application notes for common matrices (APIs, lubricants, food powders) including linearity, accuracy, precision, LOD/LOQ, and robustness data.
How often does the system require recalibration?
Burette volume verification is recommended every 200 titrations or quarterly—whichever occurs first—using certified 10.00 mg water standards (traceable to NIST SRM 2890). Electrode cleaning and conditioning are performed automatically during each shutdown cycle.
Does the KF-3 support remote diagnostics?
Via optional Ethernet module (KF-3-ETH), firmware updates, error log retrieval, and real-time status monitoring are enabled through secure HTTPS interface—compatible with enterprise IT security policies and VLAN segmentation.
