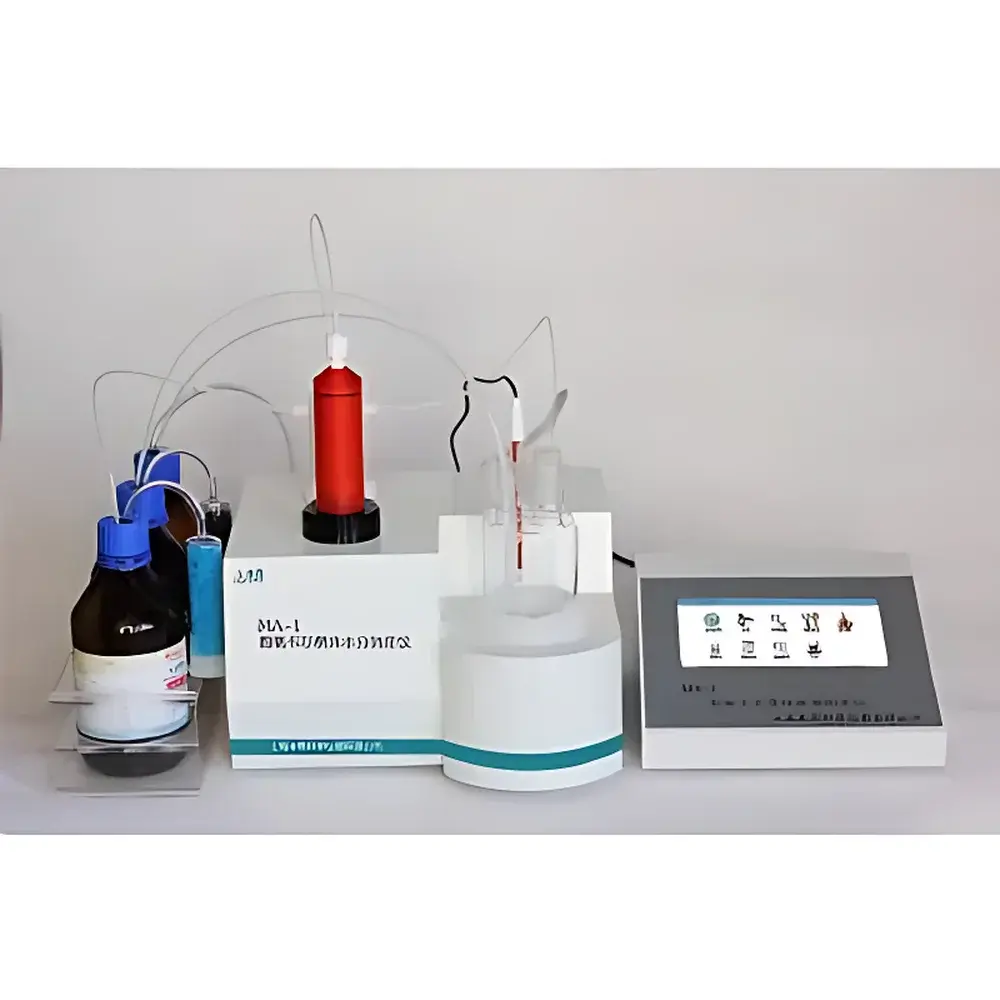

BenAng MA-1 Intelligent Karl Fischer Volumetric Moisture Titrator

Overview

The BenAng MA-1 Intelligent Karl Fischer Volumetric Moisture Titrator is a precision-engineered analytical system designed for quantitative determination of trace to bulk water content in diverse liquid and solid matrices using the volumetric Karl Fischer (KF) titration principle. Based on the stoichiometric reaction between iodine, sulfur dioxide, methanol, and water—governed by the I₂ + SO₂ + CH₃OH + H₂O → 2HI + CH₃OSO₂H equilibrium—the MA-1 delivers high reproducibility and metrological integrity across demanding industrial and regulatory environments. Developed jointly by BenAng Scientific Instruments Co., Ltd. and the 53rd Research Institute of China Ordnance Industry Group, the instrument integrates a robust electromechanical architecture with an embedded touchscreen-based control interface, enabling full automation of reagent delivery, endpoint detection, solvent management, and data handling without manual intervention at critical steps.

Key Features

• Full volumetric KF titration platform compliant with ISO 8533 and ASTM E203, featuring dual-phase endpoint detection via polarized current monitoring and dynamic slope evaluation.
• High-precision German-sourced borosilicate glass burette assembly, diamond-cut in Antwerp, Belgium, ensuring volumetric accuracy ≤ ±0.0002 mL per dispensing cycle.
• Patented electronically actuated three-way valve (ZL201420101357.4) with corrosion-resistant ceramic sealing surfaces, eliminating leakage and cross-contamination during aspiration/injection cycles.
• Integrated closed-loop solvent exchange system: automatic methanol replenishment and waste removal via built-in peristaltic pump—no opening of the reaction vessel required.
• Intelligent titration control logic allows real-time adjustment of stirring speed, titrant addition rate, endpoint delay, and sensitivity thresholds—optimized per sample matrix and KF reagent type (e.g., aldehyde/ketone-specific formulations).
• Dynamic color-coded titration curve display with real-time derivative overlay, supporting early identification of side reactions (e.g., aldehyde oxidation, alcohol esterification) and adaptive endpoint validation.
• Preloaded calculation modules for moisture % (w/w), ppm, absolute water mass (µg), and consumed KF reagent volume—all simultaneously displayed and auto-saved with timestamp, operator ID, and method parameters.

Sample Compatibility & Compliance

The MA-1 accommodates a broad spectrum of sample types—including volatile solvents (ethanol, diethyl ether), polar aprotic media (acetone, ethyl acetate), viscous liquids (coatings, adhesives), hygroscopic solids (freeze-dried powders, herbal extracts), and hydrocarbon streams (aviation turbine fuel)—with minimal sample preparation. For aldehydes and ketones, compatibility is ensured through optional specialized KF reagents that suppress enolization side reactions. The system supports full audit trail functionality in accordance with FDA 21 CFR Part 11 requirements when used with the optional PC-based data management software. All hardware components meet GLP/GMP design principles: reaction vessels feature ground-glass joints with PTFE-sealed stirrer shafts; drip-tips are machined from monolithic optical-grade glass to prevent chemical degradation; and the entire fluid path is inert to KF reagents and common organic solvents.

Software & Data Management

The MA-1 runs proprietary firmware (State Copyright Registration No. 2014SR046610), offering intuitive Chinese/English bilingual operation via a 7-inch capacitive touchscreen LCD. The embedded OS supports user-defined method templates, password-protected parameter locking, and automatic calibration verification logs. Up to 200 complete analysis records—including raw titration curves, calculated results, reagent batch IDs, and environmental conditions—are stored internally with non-volatile memory retention. Optional USB/VGA connectivity enables direct export to external PCs for integration into LIMS or ERP systems. The companion Windows application provides advanced reporting (PDF/CSV/XLSX), statistical trend analysis (RSD, linearity R² ≥ 0.999), electronic signature support, and long-term archival with version-controlled backups.

Applications

The MA-1 serves as a primary moisture quantification tool across regulated and research-intensive sectors: pharmaceutical QC laboratories verifying residual moisture in active pharmaceutical ingredients (APIs) and lyophilized formulations per USP ; chemical manufacturers validating solvent purity in synthesis intermediates; coating and adhesive producers controlling water-induced viscosity drift; battery electrolyte suppliers certifying ultra-low moisture in LiPF₆ solutions (<20 ppm); and food ingredient processors complying with Codex Alimentarius moisture limits in starches and dairy powders. Its validated performance extends to emerging materials—including graphene dispersions, MOF precursors, and solid-state electrolytes—where sub-10 ppm water levels critically impact electrochemical stability and shelf life.

FAQ

Is the MA-1 compliant with pharmacopeial standards for moisture testing?
Yes—the instrument meets USP , EP 2.5.12, and JP 2.07 requirements for volumetric KF titration when operated with certified reagents and calibrated according to documented SOPs.
Can the MA-1 handle samples containing aldehydes or ketones?
Yes—by selecting the optional aldehyde/ketone-compatible KF reagent kit and adjusting the titration parameters (e.g., increased endpoint delay, reduced titrant flow rate), accurate results are achievable without interference from side reactions.
How does the closed-loop solvent exchange system improve laboratory safety?
It eliminates manual handling of methanol and KF reagents, reducing inhalation exposure and skin contact risk while minimizing solvent vapor accumulation in the workspace.
What is the recommended maintenance interval for the burette and three-way valve?
Under normal usage (≤10 titrations/day), the glass burette requires cleaning every 3 months; the three-way valve should be inspected annually for seal integrity and actuator responsiveness.
Does the MA-1 support remote diagnostics or firmware updates?
Firmware updates are performed locally via USB drive; remote diagnostic access is not natively supported but can be enabled via optional Ethernet module (sold separately) under IT-controlled network policies.
