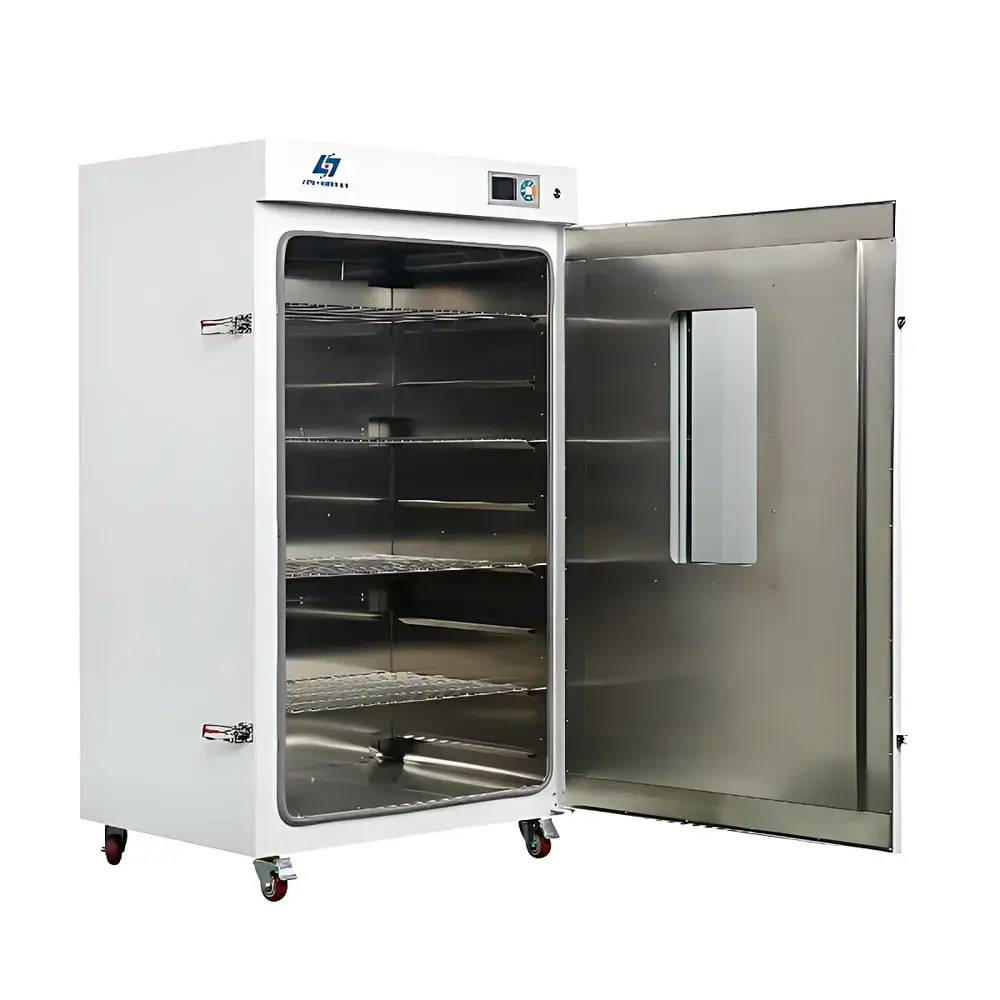

Yoyilab DHG-9420A Vertical Forced-Air Precision Drying Oven

Overview

The Yoyilab DHG-9420A is a vertically oriented, forced-air precision drying oven engineered for stable thermal processing in regulated laboratory and industrial quality control environments. It operates on the principle of convection-based heat transfer, utilizing a rear-mounted centrifugal blower and optimized air duct architecture to ensure uniform airflow distribution across the entire working chamber. The unit maintains precise temperature control within a range of RT+10°C to 250°C, with a certified temperature fluctuation of ±1°C and uniformity of ±2.5% (measured at 100°C under no-load conditions per GB/T 30435–2013). Designed for applications requiring repeatable thermal exposure—including moisture removal, pre-conditioning of polymeric samples, sterilization of glassware, thermal aging of electronic components, and residual solvent evaporation—the DHG-9420A integrates structural integrity, thermal fidelity, and operational traceability into a single platform.

Key Features

• Microprocessor-based PID temperature controller with intuitive LCD menu interface—displays setpoint, real-time chamber temperature, and remaining timer simultaneously
• Intelligent power-loss recovery function: automatically resumes operation with previously stored parameters after unexpected shutdown or mains interruption
• Dual-layer tempered glass observation window with large viewing area, enabling non-intrusive monitoring without thermal disturbance
• High-efficiency horizontal airflow system with rear-mounted intake and top/bottom exhaust ports—ensures rapid moisture evacuation and minimizes condensation buildup
• Robust chamber construction: interior lined with electropolished SUS304 stainless steel; exterior fabricated from cold-rolled steel with corrosion-resistant electrostatic powder coating
• High-temperature silicone door gasket ensures long-term sealing performance and thermal integrity up to 250°C
• Three adjustable stainless-steel shelving trays included as standard; load capacity optimized for uniform heat distribution
• Optional independent over-temperature cut-off circuit (UL-listed thermal fuse) provides redundant safety layer compliant with IEC 61000-4-5 surge immunity requirements

Sample Compatibility & Compliance

The DHG-9420A accommodates a broad spectrum of sample types—including Petri dishes, crucibles, beakers, vials, PCB assemblies, polymer films, ceramic substrates, and biological culture vessels—without compromising thermal homogeneity or process repeatability. Its 420 L chamber volume supports batch processing of medium-to-large sample sets typical in QC labs serving pharmaceutical, food safety, materials science, and electronics manufacturing sectors. The oven conforms to GB/T 30435–2013 (General Technical Requirements for Electrically Heated Drying Ovens), and its design principles align with ISO/IEC 17025:2017 clause 6.4.3 regarding environmental condition control for testing equipment. While not inherently FDA 21 CFR Part 11–compliant, optional RS485 communication and embedded printer interfaces enable integration into validated workflows supporting GLP/GMP documentation requirements when paired with appropriate data acquisition software.

Software & Data Management

The standard control system supports programmable timing (1–9999 minutes) and parameter logging via optional accessories. An RS485 serial interface (optional add-on) enables bidirectional communication with external SCADA systems or LabVIEW-based data loggers, permitting remote setpoint adjustment, real-time temperature streaming, and alarm status polling. When equipped with the embedded thermal printer (also optional), the unit generates time-stamped hardcopy records of temperature profiles, start/stop events, and deviation alerts—supporting audit-ready documentation for internal SOPs or third-party inspections. All configuration changes are timestamped and retained in non-volatile memory, satisfying basic ALCOA+ data integrity expectations for unclassified laboratory use.

Applications

• Moisture content determination per ASTM D2297 and ISO 3761 in polymer and composite material testing
• Drying and conditioning of filter papers, weighing boats, and analytical standards prior to gravimetric analysis
• Thermal stabilization of reference materials and calibration standards in metrology labs
• Pre-baking of printed circuit boards and semiconductor packaging substrates to eliminate latent moisture
• Heat treatment of metallographic specimens prior to mounting and polishing
• Residual solvent removal from coated substrates in R&D laboratories developing functional coatings or adhesives
• Bio-inert drying of surgical instruments and labware in biosafety Level 2 facilities (when operated at ≥160°C for ≥30 min)

FAQ

What is the maximum operating temperature of the DHG-9420A?
The DHG-9420A is rated for continuous operation up to 250°C. It is not designed for temperatures exceeding this limit.
Does the oven support multi-step temperature programming?
Standard firmware supports single-setpoint operation with timer-based hold. Multi-segment programming requires the optional “Multi-Stage Programmable Controller” accessory (part #YPC-MS-12), sold separately.
Can inert gas purging be integrated?
Yes—an optional inert gas inlet port with calibrated rotameter (0–10 L/min range) is available for nitrogen or argon blanketing during oxygen-sensitive drying protocols.
Is validation documentation provided with the unit?
Factory-installed calibration certificates (traceable to NIM, China) and IQ/OQ templates are available upon request. Full PQ support requires user-defined test protocols aligned with local regulatory expectations.
What maintenance is required for long-term reliability?
Routine cleaning of the air intake filter and visual inspection of the door seal every 3 months are recommended. Blower motor lubrication is not required—the unit employs sealed, maintenance-free bearings.
