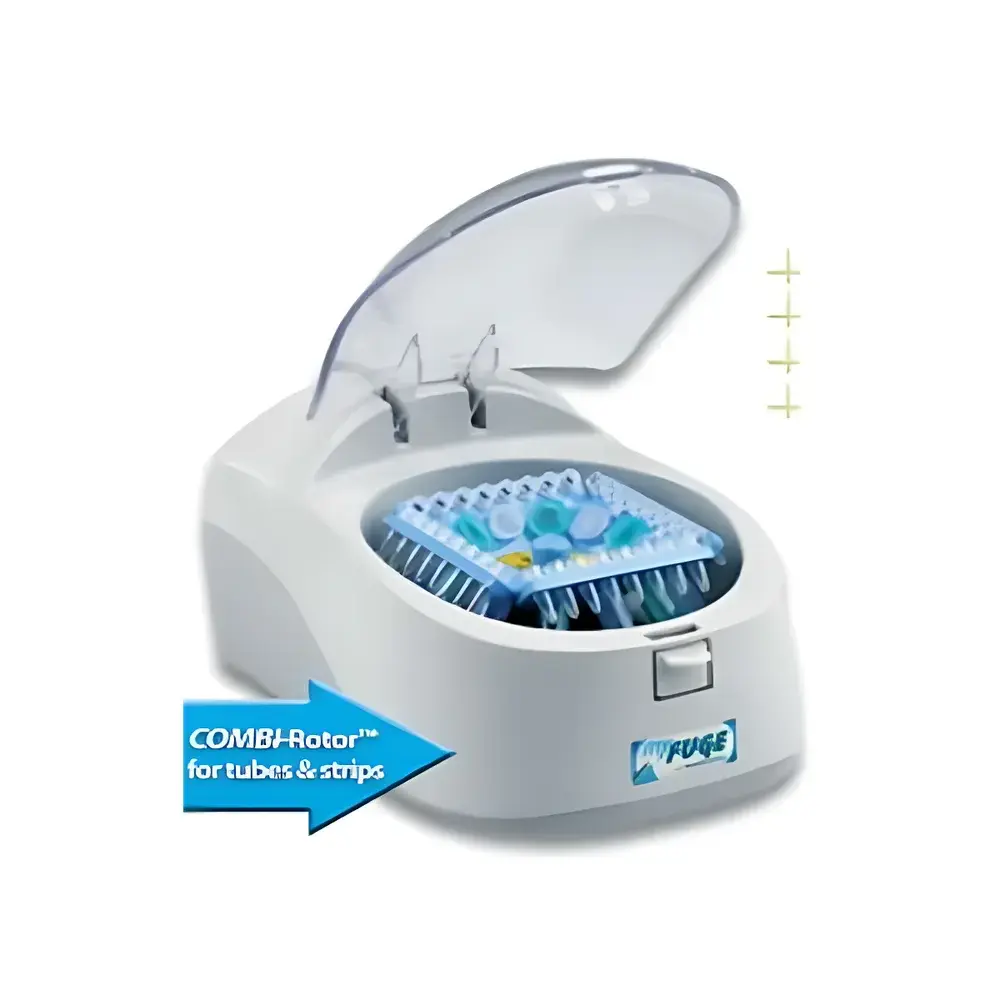

Benchmark MyFuge12 Compact Benchtop Centrifuge
| Brand | Benchmark |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MyFuge12 |
| Pricing | Available Upon Request |
Overview
The Benchmark MyFuge12 is a compact, high-efficiency benchtop centrifuge engineered for precision microcentrifugation in molecular biology, clinical diagnostics, and analytical chemistry laboratories. Utilizing fixed-angle rotor dynamics and brushless DC motor technology, it delivers consistent, reproducible centrifugal force generation without mechanical wear or speed drift. Its core design principle centers on operational simplicity and spatial efficiency—achieving full-speed acceleration and deceleration through intuitive lid-actuated control, eliminating manual start/stop buttons and reducing user error. Unlike conventional microcentrifuges requiring rotor swaps for different tube formats, the MyFuge12 integrates a proprietary COMBI-rotor system that simultaneously accommodates both 0.2–2.0 mL microtubes and 96-well PCR strip tubes—enabling seamless workflow continuity across nucleic acid purification, enzyme reaction termination, and sample concentration protocols.
Key Features
- COMBI-Rotor Architecture: Single integrated rotor supports concurrent processing of up to twelve 1.5/2.0 mL microcentrifuge tubes and four 8-well PCR strip tubes—eliminating rotor interchange and minimizing cross-contamination risk.
- Lid-Actuated Operation: Motor initiates acceleration immediately upon lid closure; automatic braking engages within seconds of lid opening—ensuring rapid cycle times and intrinsic safety compliance (IEC 61010-1).
- Ultra-Compact Footprint: Measures only 13.9 cm (W) × 11.4 cm (H) × 13.9 cm (D), optimizing bench space in crowded biosafety cabinets or shared core facilities.
- Low-Noise Performance: Acoustic output <45 dB(A) at maximum speed—suitable for open-plan labs and quiet environments without acoustic enclosures.
- Thermal Stability: Passive heat dissipation design prevents sample temperature rise during short-duration spins (<5 min), preserving integrity of temperature-sensitive biomolecules.
- Robust Construction: Housing fabricated from reinforced ABS polymer with stainless-steel rotor chamber; certified for continuous operation under ISO 9001 manufacturing controls.
Sample Compatibility & Compliance
The MyFuge12 accepts standard conical-bottom microcentrifuge tubes (0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL) and rigid 8-well PCR strip formats (0.2 mL per well). Rotor balance tolerance is ±0.1 g per position—compatible with typical pipetting variability in routine lab use. The device complies with international safety and electromagnetic compatibility standards including IEC 61010-1 (Laboratory Equipment Safety), IEC 61326-1 (EMC for Measurement Equipment), and RoHS 2011/65/EU. While not classified as a medical device under FDA 21 CFR Part 820, its performance consistency supports GLP-compliant documentation when paired with laboratory-specific SOPs and calibration logs.
Software & Data Management
The MyFuge12 operates as a standalone instrument with no embedded software, firmware, or data logging capability—intentionally designed to meet the needs of low-complexity, high-throughput workflows where audit trails are managed externally. This architecture avoids regulatory overhead associated with 21 CFR Part 11 compliance while maintaining full traceability via lab notebook entries or LIMS-integrated run records. For users requiring electronic record retention, integration is achieved through external time-stamped video monitoring or barcode-scanned run logs synchronized with institutional quality management systems.
Applications
- Routine pelleting of nucleic acids, proteins, and cellular debris during DNA/RNA extraction workflows
- Termination of enzymatic reactions (e.g., restriction digests, ligations, RT-PCR) by rapid phase separation
- Concentration of dilute samples prior to mass spectrometry or HPLC analysis
- Preparation of clarified lysates for ELISA, Western blotting, or immunoassays
- High-frequency spin-down of adhesive PCR strips in qPCR setup pipelines
- Point-of-care sample prep in field-deployable diagnostic kits requiring minimal infrastructure
FAQ
Does the MyFuge12 support variable speed control?
No—it operates at a single fixed rotational speed optimized for broad-spectrum microcentrifugation tasks (typically ~12,000 rpm, yielding ~12,000 × g in 1.5 mL tubes). Speed is factory-calibrated and non-adjustable to ensure mechanical longevity and regulatory simplicity.
Can the COMBI-rotor be autoclaved?
The rotor is constructed from aerospace-grade aluminum alloy and is compatible with standard laboratory autoclaving cycles (121°C, 15 psi, 20 min); however, repeated sterilization may affect anodized surface integrity over time—benchmark recommends periodic visual inspection for pitting or discoloration.
Is the MyFuge12 suitable for clinical diagnostic use under CLIA or CAP requirements?
Yes—its mechanical reliability, documented calibration history, and adherence to IEC 61010-1 make it appropriate for CLIA-waived and moderate-complexity testing environments, provided facility-specific validation and preventive maintenance schedules are maintained.
What is the expected service life under daily usage?
Rated for ≥20,000 operational cycles (lid actuations) with proper load balancing; brushless motor design ensures >50,000 hours MTBF under typical intermittent lab use patterns.
