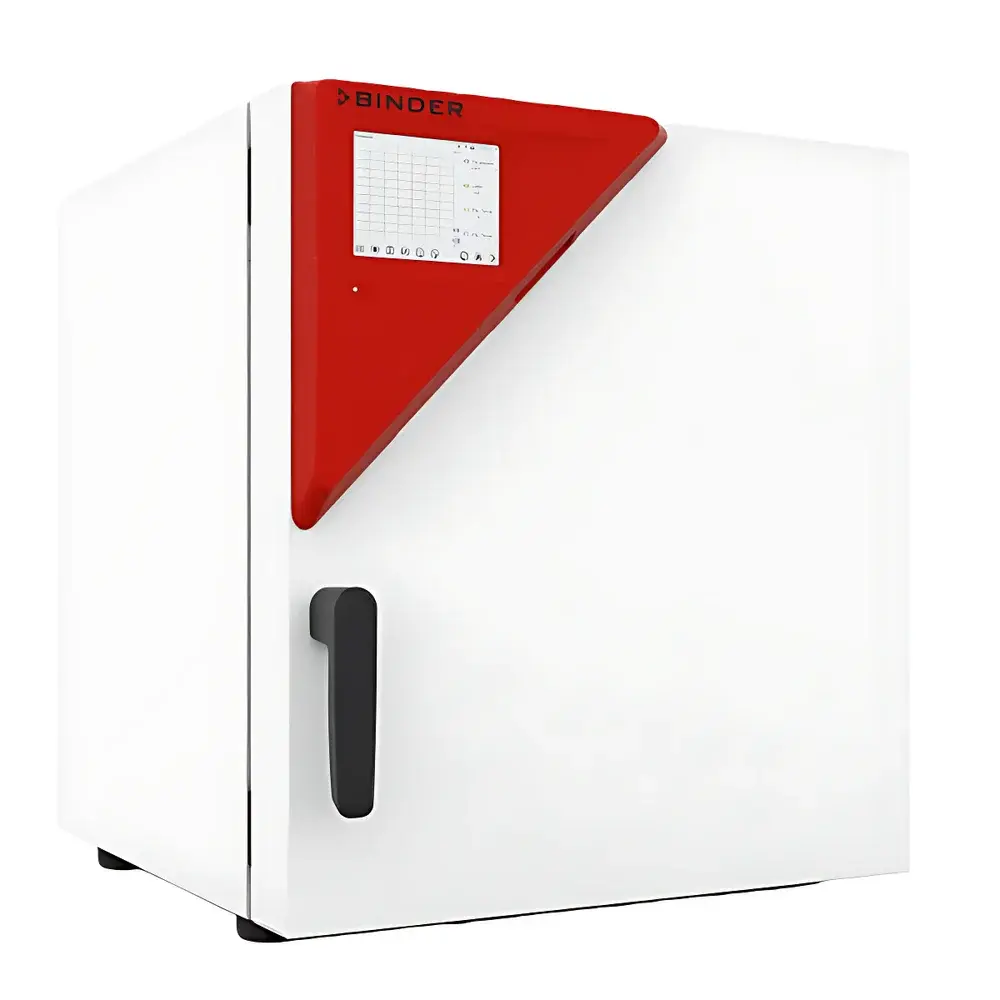

BINDER M 56 Forced-Convection Drying Oven with APT.line™ Preheating Chamber and Multi-Stage Programmable Controller

Overview

The BINDER M 56 Forced-Convection Drying Oven is an ISO/IEC 17025-aligned precision thermal environment system engineered for reproducible material conditioning, thermal aging, drying, curing, and stability testing in accredited laboratories and industrial QA/QC settings. Its core thermal architecture leverages BINDER’s proprietary APT.line™ preheating chamber technology—a thermally isolated air jacket surrounding the main chamber that actively preheats supply air prior to entry—ensuring exceptional temperature homogeneity (<±0.2 °C at 150 °C) across the entire 58.3 L usable volume, irrespective of load configuration or sample mass. Unlike conventional ovens relying on passive insulation or single-zone heating, the M 56 maintains strict spatial uniformity per DIN 12880 and ASTM E145 Class I requirements, making it suitable for applications demanding traceable, GLP-compliant thermal exposure protocols.

Key Features

• APT.line™ preheating chamber technology for superior temperature uniformity and minimized thermal gradients
• Adjustable high-capacity centrifugal fan with multi-step speed control to optimize airflow velocity and heat transfer efficiency for diverse sample types
• Intuitive 7-inch capacitive touchscreen controller supporting both time-segment programming (up to 10 segments) and real-time manual adjustment
• Dual independent overtemperature protection: Class 2 (adjustable limit) and Class 3.1 (fixed safety cutoff per DIN 12880), each with configurable visual and audible alarm outputs
• Redundant Pt100 resistance temperature detector (RTD) system—primary sensor for control, secondary for fault monitoring and automatic shutdown
• High-density mineral wool insulation combined with triple-sealed door gasket minimizes energy consumption and external surface temperature rise
• Two chrome-plated, height-adjustable stainless steel shelves included; additional shelving options available for specialized loading configurations
• Ethernet interface (TCP/IP) enables remote monitoring and integration into laboratory network infrastructure; USB port supports direct export of internal datalogger records in open CSV format

Sample Compatibility & Compliance

The M 56 accommodates a broad spectrum of sample formats—including Petri dishes, glassware, metal coupons, polymer specimens, pharmaceutical blister packs, and electronic components—within its 400 × 440 × 335 mm stainless steel (AISI 304) interior. The forced-air convection design ensures rapid thermal equilibration and consistent exposure, critical for standards-based tests such as ISO 4892-2 (plastics—UV exposure), ASTM D573 (rubber—heat aging), and IEC 60068-2-2 (environmental testing—dry heat). The oven complies with DIN 12880 for laboratory drying ovens, meets CE marking requirements under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU, and supports audit-ready documentation workflows required under FDA 21 CFR Part 11 when paired with validated data management software.

Software & Data Management

Internal logging captures temperature readings from both primary and backup Pt100 sensors at user-defined intervals (1 s to 60 min), storing up to 16,000 data points. Export via USB yields timestamped, comma-separated values (CSV) files compatible with Excel, MATLAB, Python pandas, and LIMS platforms. Optional BINDER CLOUD connectivity (via Ethernet) enables secure remote access to live chamber status, historical trends, and alarm logs through role-based web dashboards. For regulated environments, optional IQ/OQ documentation packages and electronic signature–enabled validation templates are available to support GxP compliance (GMP, GLP).

Applications

• Thermal aging of polymers, elastomers, and composites per ASTM D3045 and ISO 188
• Drying of moisture-sensitive powders, granules, and filter papers in pharmaceutical and food testing labs
• Curing of adhesives, coatings, and printed circuit board (PCB) substrates under controlled ramp/soak profiles
• Stability testing of active pharmaceutical ingredients (APIs) and finished dosage forms per ICH Q1A(R2)
• Residue determination (e.g., loss on drying) in accordance with USP <> and Ph. Eur. 2.2.32
• Preconditioning of test specimens prior to mechanical or electrical characterization

FAQ

What is the maximum permissible operating temperature, and how is temperature stability verified?
The M 56 achieves a maximum setpoint of 300 °C. Temperature stability is certified per DIN 12880: at 150 °C, spatial uniformity is ≤±0.2 °C across the working volume, confirmed by 9-point NIST-traceable probe mapping during factory calibration.
Does the M 56 support automated data export for regulatory submissions?
Yes—internal datalogging exports timestamped CSV files via USB. When integrated with BINDER’s validated software suite, full audit trails, electronic signatures, and 21 CFR Part 11 compliance features are enabled.
Can the fan speed be manually adjusted during operation?
Yes—the controller provides three discrete fan speed levels (low/medium/high), selectable in real time or embedded within time-segment programs to match thermal load dynamics.
Is the interior chamber fully accessible for cleaning and validation swabbing?
The smooth, welded AISI 304 stainless steel chamber features radius-free corners, seamless welds, and a removable door seal—designed to meet cleaning validation requirements per ISO 14644 and pharmaceutical equipment qualification guidelines.
What safety certifications does the M 56 hold for use in classified laboratory spaces?
It carries CE marking compliant with EN 61010-1 (electrical safety), EN 61326-1 (EMC), and EN 60529 (IP20 ingress protection); optional ATEX-certified variants are available for hazardous area deployment.
