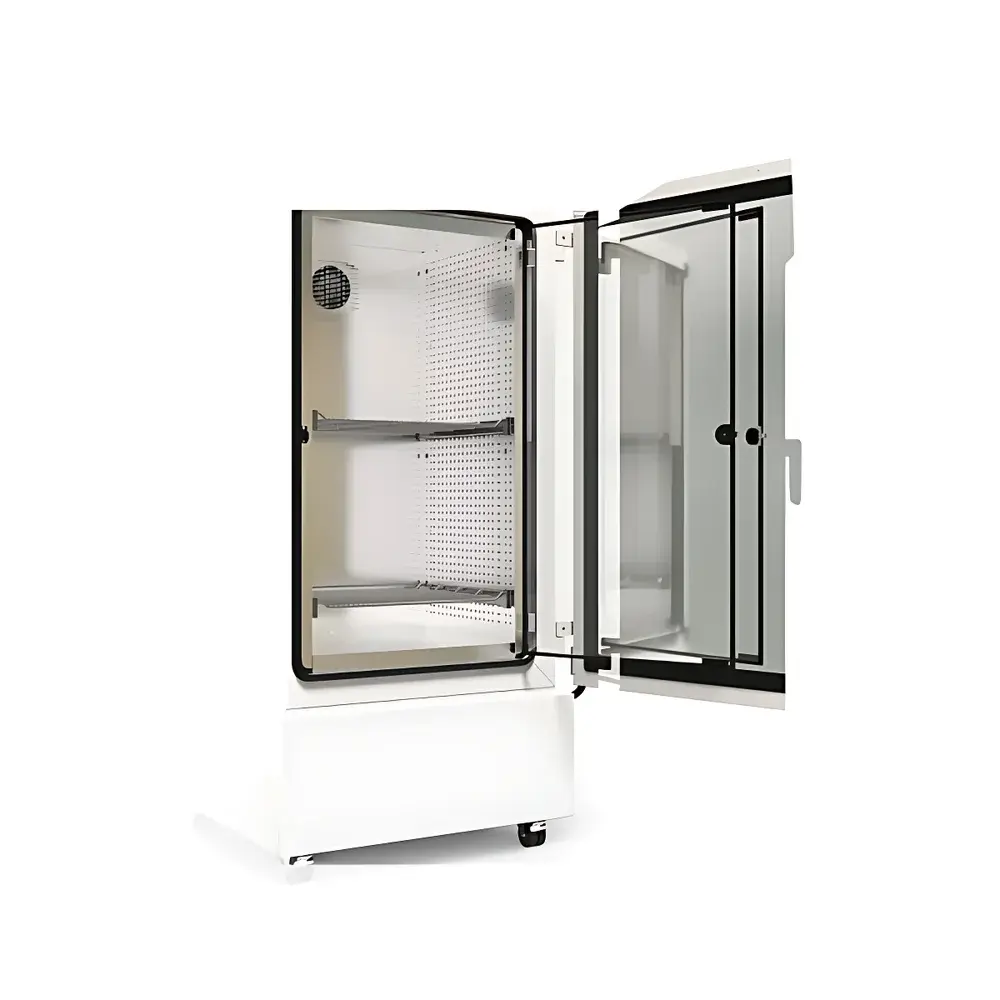

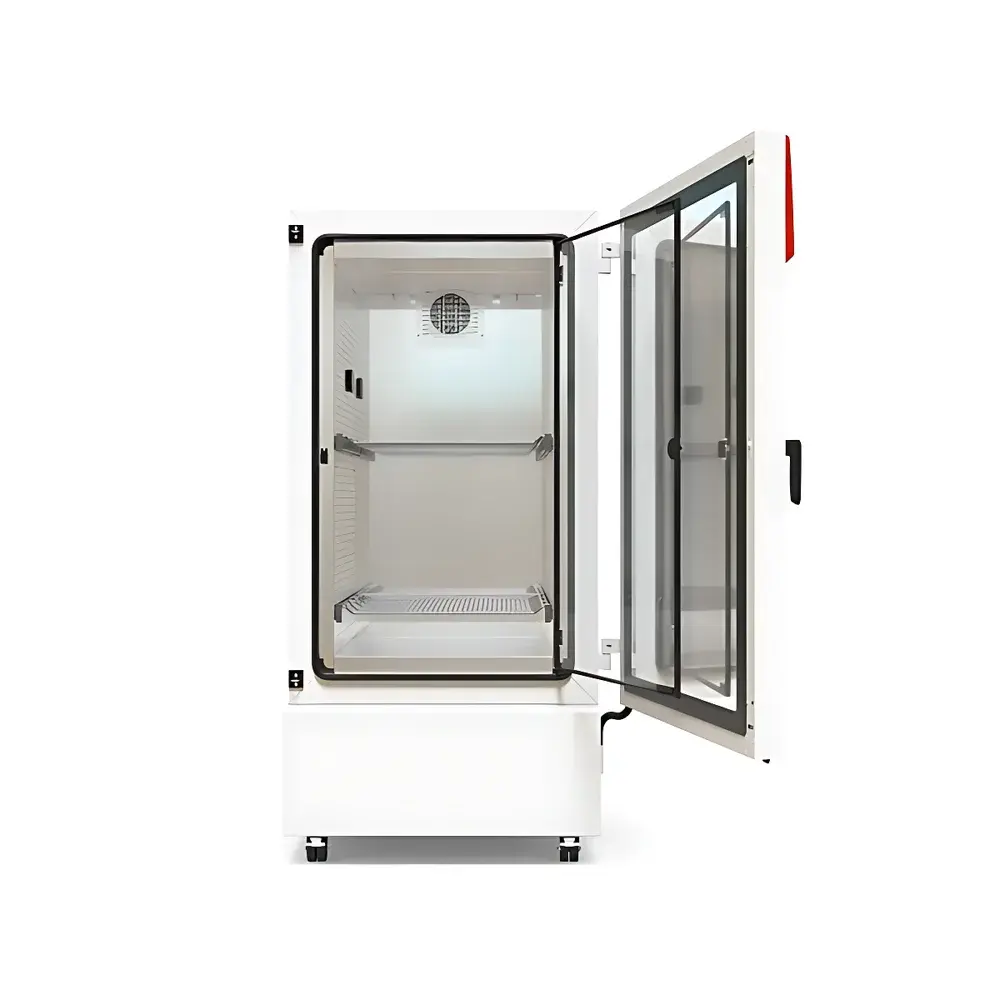

BINDER KB Pro 470 Low Temperature Incubator

Overview

The BINDER KB Pro 470 is a high-precision, compressor-cooled low-temperature incubator engineered for demanding life science and pharmaceutical applications requiring stable thermal environments across an exceptionally wide operational range (−20 °C to +100 °C). Unlike conventional incubators limited to ambient or mild sub-zero operation, the KB Pro 470 integrates advanced thermodynamic architecture—including APT.line™ preheating technology, HIT (High Integrity Technology) double-wall insulation, and inverter-driven refrigeration—to ensure exceptional temperature stability (±0.1 K) and uniformity (±0.2 K at 37 °C) under dynamic load conditions. Its stainless steel interior chamber, optically coated safety glass inner door, and corrosion-resistant construction support long-term reliability in GLP-compliant laboratories, cell culture facilities, and stability testing suites. Designed and manufactured in Germany to DIN EN ISO 9001 standards, the KB Pro 470 meets critical regulatory expectations for temperature-controlled storage and conditioning of biological samples, reference standards, and ICH-compliant stability studies.

Key Features

• APT.line™ preheating technology ensures rapid, homogeneous chamber warm-up and eliminates cold spots during temperature transitions
• Inverter-controlled compressor system with eco-friendly R-290 refrigerant reduces energy consumption by up to 30% compared to fixed-speed units
• HIT double-wall insulation with vacuum-enhanced perimeter sealing minimizes thermal bridging and improves energy efficiency
• Stainless steel interior chamber (AISI 304) with seamless welds and electropolished finish—resistant to cleaning agents and compatible with ISO 14644-1 Class 5 cleanroom protocols
• Touchscreen controller with ergonomic height adjustment (for KB Pro 470 and larger models), real-time multi-segment programming, and visual status indicator (red triangle with LED signaling)
• Two telescopic stainless steel shelves with load capacity up to 25 kg each; large-diameter access port (Ø80 mm) with silicone plug for sensor or tubing feedthrough
• Dual-purpose door heating prevents condensation during low-temperature operation and maintains optical clarity of the inner safety glass
• Independent triple-level temperature safety system (DIN 12880 Class 3.3) with optical/audible alarm, redundant sensor monitoring, and automatic self-diagnostic routines

Sample Compatibility & Compliance

The KB Pro 470 accommodates standard ISO/IEC 60068-2-1 (cold) and 60068-2-2 (dry heat) test profiles, and is validated for use in ICH Q1A–Q1E stability programs when equipped with optional light modules. Its chamber geometry and airflow design comply with ASTM E2876-13 for uniform temperature distribution verification. The unit supports 21 CFR Part 11–compliant data integrity workflows via integrated Ethernet and USB interfaces, enabling secure export of time-stamped, tamper-evident measurement logs in CSV or XML format. All firmware and controller software adhere to IEC 62304 Class B medical device software requirements. The stainless steel chamber satisfies USP analytical instrument qualification (AIQ) criteria for material compatibility and surface cleanability.

Software & Data Management

The included APT-COM™ Basic software provides local and remote configuration, real-time monitoring, and automated report generation. Logged data—including internal temperature, setpoint deviation, alarm events, and system diagnostics—is stored in non-volatile memory for ≥30 days (configurable). USB export supports open-format measurement files compatible with LIMS integration (e.g., LabWare, Thermo Fisher SampleManager). Optional APT-COM™ Advanced adds audit trail functionality with user-specific login, electronic signatures, and change history tracking aligned with FDA 21 CFR Part 11 Annex 11 requirements. Firmware updates are digitally signed and delivered via encrypted HTTPS channels.

Applications

• Long-term stability testing of pharmaceuticals per ICH Q1 guidelines (accelerated, intermediate, and long-term conditions)
• Cryopreservation workflow support: controlled-rate cooling preparation, post-thaw recovery incubation, and low-temperature storage simulation
• Microbial growth inhibition studies at sub-zero temperatures (e.g., psychrotolerant pathogen characterization)
• Enzyme activity profiling across broad thermal gradients, including cold-adapted isoforms
• Plant tissue culture and photoperiod-controlled growth when fitted with optional LED lighting modules (ICH Q5C-compliant spectral output)
• Reference material conditioning for metrology labs performing ISO/IEC 17025-accredited calibrations

FAQ

What is the maximum allowable load volume without compromising temperature uniformity?
The KB Pro 470 maintains ±0.2 K uniformity at 37 °C with up to 80% chamber loading (378 L net usable volume), verified per VDI/VDE 2655 Sheet 4.
Does the unit support validation documentation packages for GxP environments?
Yes—BINDER provides IQ/OQ documentation templates, factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt), and optional on-site PQ support through certified service partners.
Can the internal data logger be configured for continuous recording at 1-second intervals?
The default logging interval is 60 seconds; 1-second sampling is available via optional firmware upgrade and requires external PC-based acquisition using APT-COM™ Advanced.
Is the R-290 refrigerant compliant with F-Gas Regulation (EU) No 517/2014?
Yes—R-290 has a GWP of 3 and is explicitly permitted under Article 11 for hermetically sealed systems with charge ≤150 g, which applies to the KB Pro 470’s certified refrigerant mass.
How is door opening impact mitigated during low-temperature operation?
The combination of door heating, HIT insulation, and adaptive compressor response reduces temperature recovery time to <15 minutes after a 30-second door opening at −20 °C (per internal test protocol KB-TP-2023-07).
