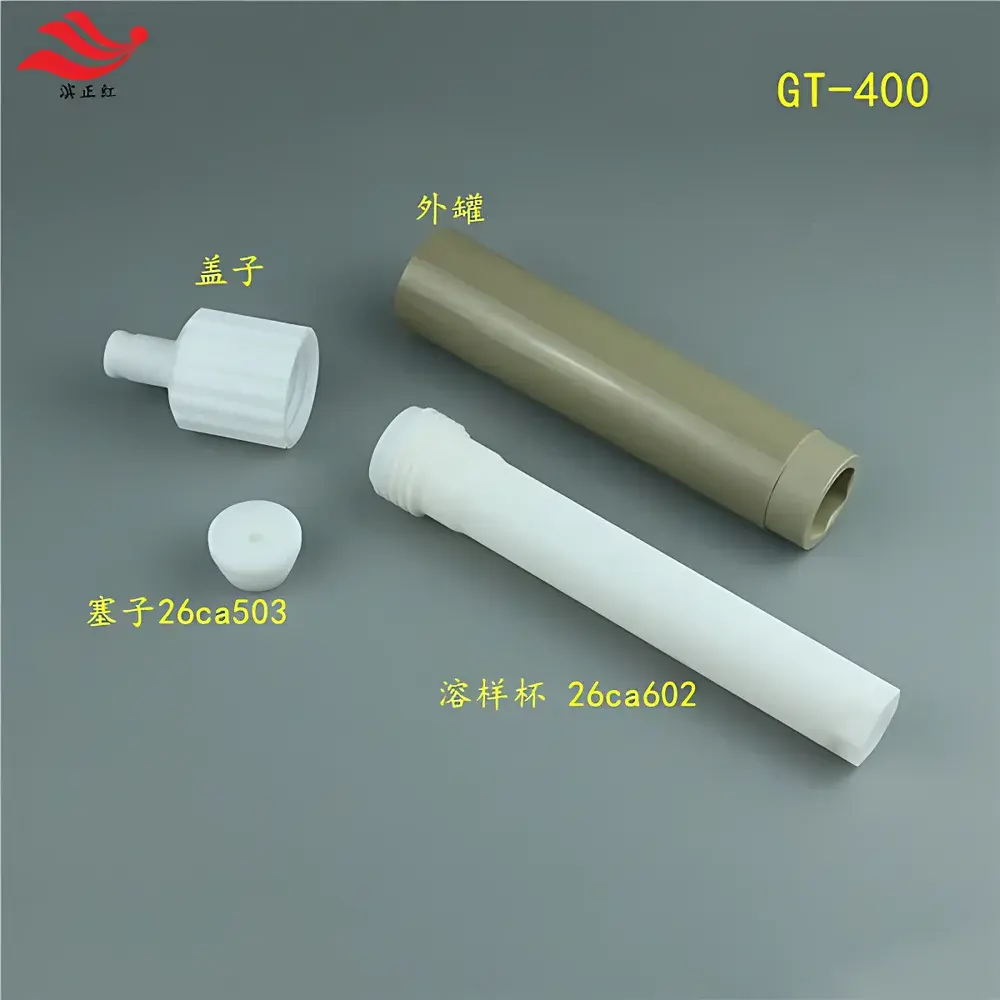

Binzhenghong GT400 Microwave Digestion Vessel with TFM Liner and TOPEX Sealing Cap
| Brand | Binzhenghong |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | GT400 |
| Pricing | Available Upon Request |
Overview
The Binzhenghong GT400 Microwave Digestion Vessel is a high-performance, chemically inert sample containment system engineered for closed-vessel microwave-assisted acid digestion in analytical laboratories. Designed to operate within modern microwave digestion systems—including the Cash Cow 1 platform—the GT400 vessel integrates a precision-machined TFM (modified polytetrafluoroethylene) inner liner with a robust TOPEX sealing cap to ensure reliable pressure containment, minimal analyte loss, and ultra-low background interference. Its operational principle relies on controlled microwave energy absorption by the acidic digestate, generating elevated temperature (up to 300 °C) and pressure (typically up to 100 bar) within the sealed TFM cavity—enabling complete mineralization of organic matrices while preserving volatile elements such as As, Hg, Se, and Sb. The vessel’s geometry and thermal mass are optimized for uniform heating and rapid thermal equilibration, supporting high-throughput workflows without compromising reproducibility or method robustness.
Key Features
- TFM inner liner fabricated from virgin-grade modified PTFE—no regrind or recycled material used—to guarantee trace-level purity and negligible elemental leaching.
- Operating temperature range: –200 °C to +260 °C continuous; short-term tolerance up to +300 °C under pressurized conditions.
- Exceptional chemical resistance to concentrated HNO₃, HF, HCl, H₂O₂, and aqua regia—even at elevated temperatures and pressures.
- Low extractables profile validated per ASTM D4975 and USP , ensuring compliance with trace metal analysis requirements (e.g., ICP-MS, ICP-OES).
- TOPEX sealing cap engineered with dual O-ring configuration and torque-limited engagement to maintain consistent sealing force across batches and operators.
- Compatible with standardized 40-position rotor configurations; full assembly achievable by a single operator in ≤10 minutes.
Sample Compatibility & Compliance
The GT400 vessel supports digestion of diverse sample types including biological tissues, environmental soils/sediments, foodstuffs, pharmaceutical excipients, and polymer composites. Its TFM liner exhibits negligible permeability to HF vapor and minimal adsorption of cationic species, enabling accurate quantification of low-Z elements. All materials comply with ISO 17025 laboratory quality management requirements for consumables used in accredited testing. Vessel performance aligns with EPA Method 3052, ASTM D5511, and ISO 11885 for heavy metal determination. Batch certification includes certificate of conformance (CoC) with traceable lot-specific blank data (measured via ICP-MS after procedural blank digestion), supporting GLP/GMP documentation needs.
Software & Data Management
While the GT400 vessel itself is a passive consumable, its use is fully integrated into instrument control software platforms such as CEM Discover SP, Milestone UltraWave, and Anton Paar Multiwave PRO. Each vessel batch is supplied with a QR-coded label linking to digital CoC, blank test reports, and compatibility matrices. Audit trails for vessel usage—including lot number, digestion run ID, and operator timestamp—can be logged directly into LIMS systems compliant with FDA 21 CFR Part 11 when paired with validated electronic record workflows.
Applications
- Multi-element trace metal analysis in clinical and environmental labs (e.g., Pb, Cd, Cr, Ni, Co, Mn in blood, urine, wastewater).
- Preparation of certified reference material (CRM) digests for method validation and instrument calibration.
- Routine QC/QA testing in food safety labs requiring AOAC 2013.06–compliant digestion protocols.
- Speciation sample prep where redox-sensitive elements (e.g., As(III)/As(V)) must be preserved prior to HPLC-ICP-MS separation.
- High-volume regulatory testing in contract laboratories serving pharmaceutical, agrochemical, and mining sectors.
FAQ
What is the maximum recommended pressure for GT400 vessels during microwave digestion?
The GT400 vessel is rated for continuous operation up to 100 bar; however, maximum allowable pressure depends on the host microwave system’s safety interlocks and rotor design. Always consult your instrument manufacturer’s operating manual.
Can GT400 vessels be reused?
TFM liners are intended for single-use in trace analysis applications to prevent cross-contamination and ensure consistent blank integrity. Reuse may be considered only for semi-quantitative screening under strict cleaning validation protocols.
Is HF digestion compatible with the TOPEX sealing cap?
Yes—the TOPEX cap incorporates fluoropolymer-coated stainless steel components and FFKM secondary seals, making it suitable for HF-containing mixtures when used within specified concentration and temperature limits.
How are blank values verified for each GT400 lot?
Each production lot undergoes triplicate procedural blank digestion using 10 mL HNO₃ + 1 mL HF, analyzed by sector-field ICP-MS. Reported blanks meet ≤0.5 pg/g for As, Cd, Pb, and ≤2 pg/g for Cr and Ni.
