Binzhenghong ZH-60ml Sealed High-Pressure Microwave-Assisted Digestion Vessel for Inorganic Elemental Analysis of Soil Heavy Metals

Overview

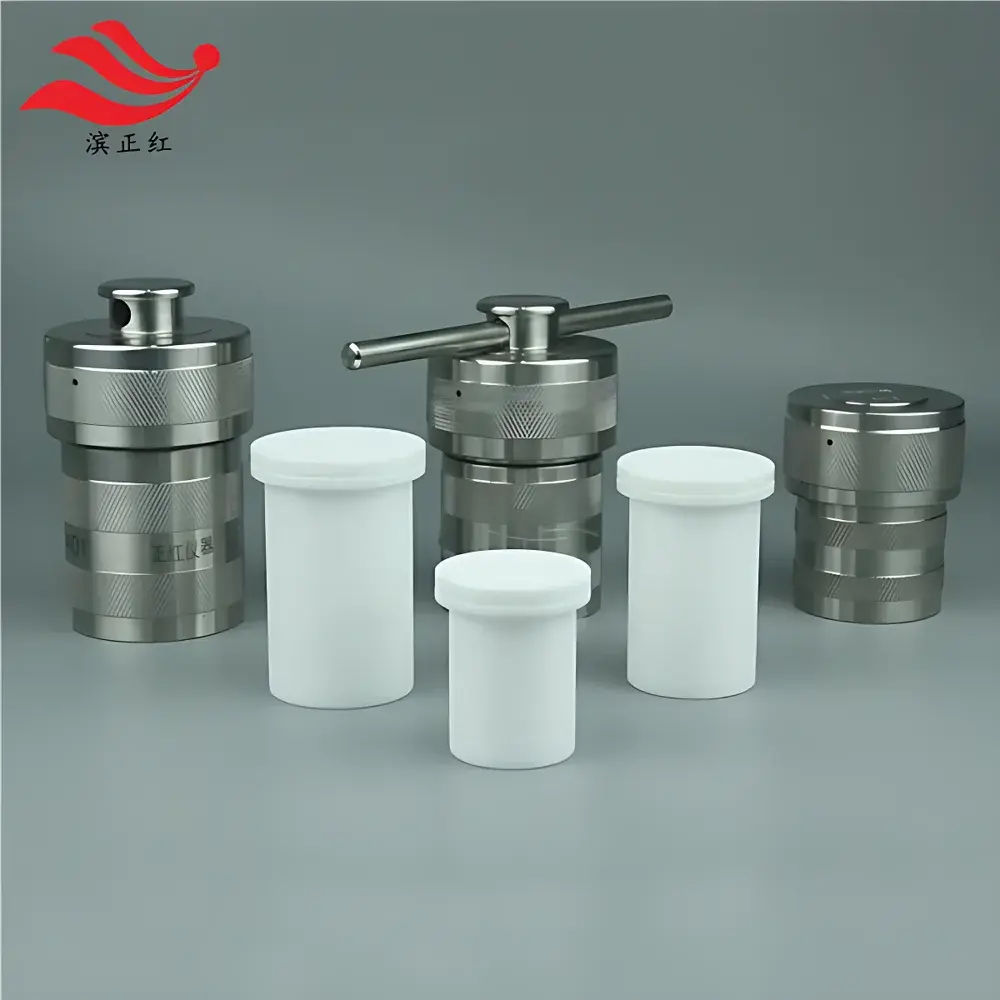

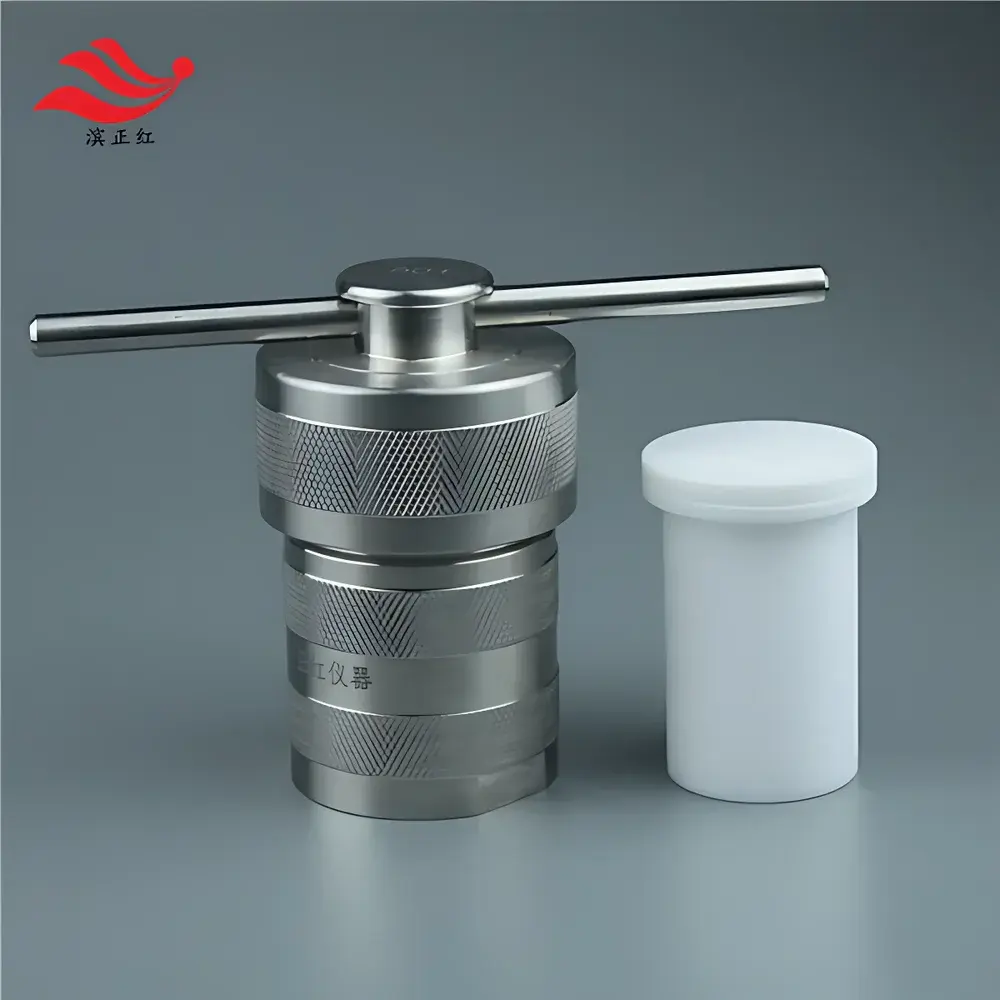

The Binzhenghong ZH-60mL Sealed High-Pressure Digestion Vessel is an engineered PTFE-lined pressure-resistant reaction vessel designed for closed-vessel acid digestion of refractory environmental matrices—particularly soil, sediment, and geological samples—prior to inorganic elemental analysis by atomic absorption spectroscopy (AAS), inductively coupled plasma optical emission spectrometry (ICP-OES), or inductively coupled plasma mass spectrometry (ICP-MS). Based on the principle of controlled high-temperature, high-pressure acid decomposition under inert atmosphere, the ZH series enables complete mineralization of silicate-bound, organic-complexed, and oxide-phase heavy metals—including Cu, Zn, Pb, Cr, Cd, As, and Hg—using aggressive reagent systems such as HNO₃–HF–H₂O₂. Its sealed architecture prevents volatile element loss (e.g., Hg, As species), minimizes contamination from ambient particulates, and eliminates acid fume exposure—thereby meeting core safety and data integrity requirements of ISO 17025-accredited environmental testing laboratories.

Key Features

• PTFE inner cup with precision-machined dovetail groove and conical bottom design ensures complete sample recovery and facilitates post-digestion residue collection;

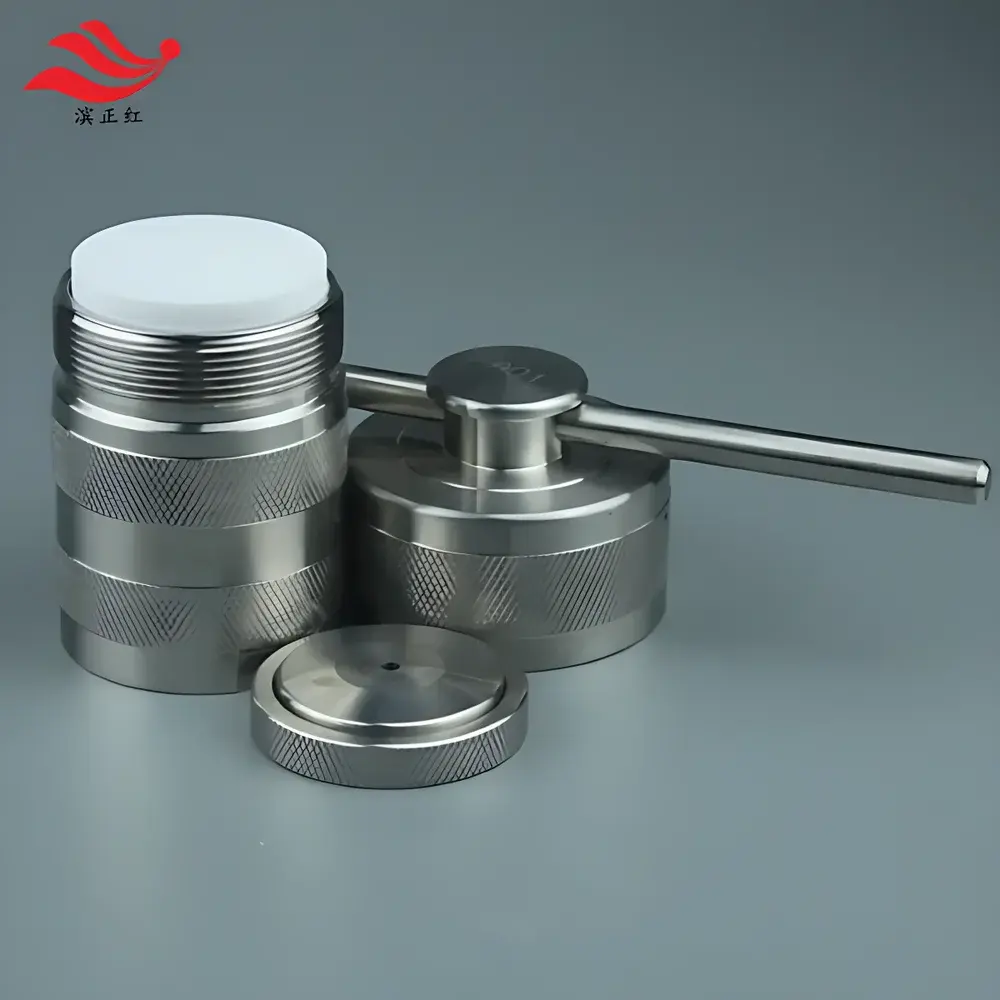

• Integrated pressure-relief micro-vent in the lid cap provides passive overpressure protection: under thermal runaway conditions, deformation is confined to the inner cup while the outer PEEK or fiberglass-reinforced polymer housing remains structurally intact;
• Optimized wall thickness and geometric tolerance support stable operation up to 160 °C and 10 bar internal pressure—validated for extended 9-hour static heating protocols per EPA Method 3052 and GB/T 17141-1997;
• Ultra-low trace metal background (≤0.1 ng/g for Pb, Cd, Cr): certified via blank digestion tests using ultrapure reagents and Class 100 cleanroom assembly;
• Laser-engraved sequential numbering on both inner and outer vessels enables rotational usage tracking, extending service life and ensuring batch-to-batch reproducibility;
• Interchangeable inner cup option available in premium-grade imported PTFE (ASTM D4894-compliant), offering enhanced resistance to HF permeation, thermal creep, and mechanical deformation at elevated temperatures.

Sample Compatibility & Compliance

The ZH-60mL vessel is validated for digestion of soils with high clay/silica content (up to 70% SiO₂), organic-rich sediments (TOC >15%), and calcareous matrices. It conforms to the procedural requirements of multiple regulatory frameworks: EPA SW-846 Method 3052 (microwave-assisted acid digestion), ISO 11466 (heavy metals in soils), and China’s HJ 491-2019 (determination of copper, zinc, lead, nickel, cadmium, and chromium in soil by flame AAS). When used with documented SOPs—including full reagent blanks, certified reference materials (e.g., GBW07405, SRM 2710a), and duplicate digestions—the system supports GLP-compliant reporting and satisfies audit readiness criteria under CNAS-CL01 and FDA 21 CFR Part 11 for electronic record integrity.

Software & Data Management

As a passive labware component, the ZH-60mL vessel does not incorporate embedded electronics or firmware. However, its standardized dimensions (60 mL nominal volume, 48 mm outer diameter, 92 mm height) ensure compatibility with major benchtop digestion workstations—including Anton Paar Multiwave PRO, CEM Mars 6, and PerkinElmer Titan MPS—enabling seamless integration into LIMS-driven workflows. All digestion parameters (temperature ramp profiles, hold times, cooling rates) are programmable and auditable via instrument software; raw spectral data from downstream AAS/ICP instruments may be linked to vessel lot numbers for full traceability. Binzhenghong provides a QC certificate of conformance with each shipment, including batch-specific blank test reports and dimensional inspection records.

Applications

Primary applications include regulatory monitoring of contaminated land (brownfield assessment), agricultural soil health screening (EU Directive 2006/121/EC), mining impact studies (tailings leachate characterization), and method validation for national standard methods (e.g., NY/T 1121.2-2022). The vessel is routinely employed by provincial environmental monitoring centers, third-party testing labs accredited to CNAS, and university research groups conducting speciation studies (e.g., Cr(III)/Cr(VI) differentiation after selective extraction). Its robustness in high-HF protocols also supports rare earth element (REE) analysis in geochemical surveys and forensic soil provenancing.

FAQ

What is the maximum recommended operating temperature and pressure?

The ZH-60mL vessel is rated for continuous use at ≤160 °C and peak pressures ≤10 bar when following validated digestion protocols with HNO₃–HF–H₂O₂ mixtures.

Can the inner cup be autoclaved between uses?

Yes—PTFE inner cups tolerate repeated autoclaving at 121 °C for 20 minutes; however, HF-exposed vessels require thorough rinsing with 1% NH₄OH followed by DI water before sterilization.

Is this vessel compatible with microwave digestion systems?

It is designed for conventional oven-based static digestion (e.g., drying oven, block heater); for microwave applications, consult Binzhenghong’s parallel ZH-MW series with reinforced RF-transparent housings.

How many digestion cycles can one vessel set endure?

Under proper handling (no thermal shock, no mechanical impact, no dry heating), the outer vessel maintains structural integrity for ≥200 cycles; inner cups are consumables with typical lifespan of 30–50 digestions depending on acid strength and temperature profile.

Does Binzhenghong provide method validation support?

Yes—application notes, certified blank data, CRM recovery tables (NIST SRM 2709a, GBW07401), and SOP templates aligned with ISO/IEC 17025 are available upon request to qualified laboratories.
