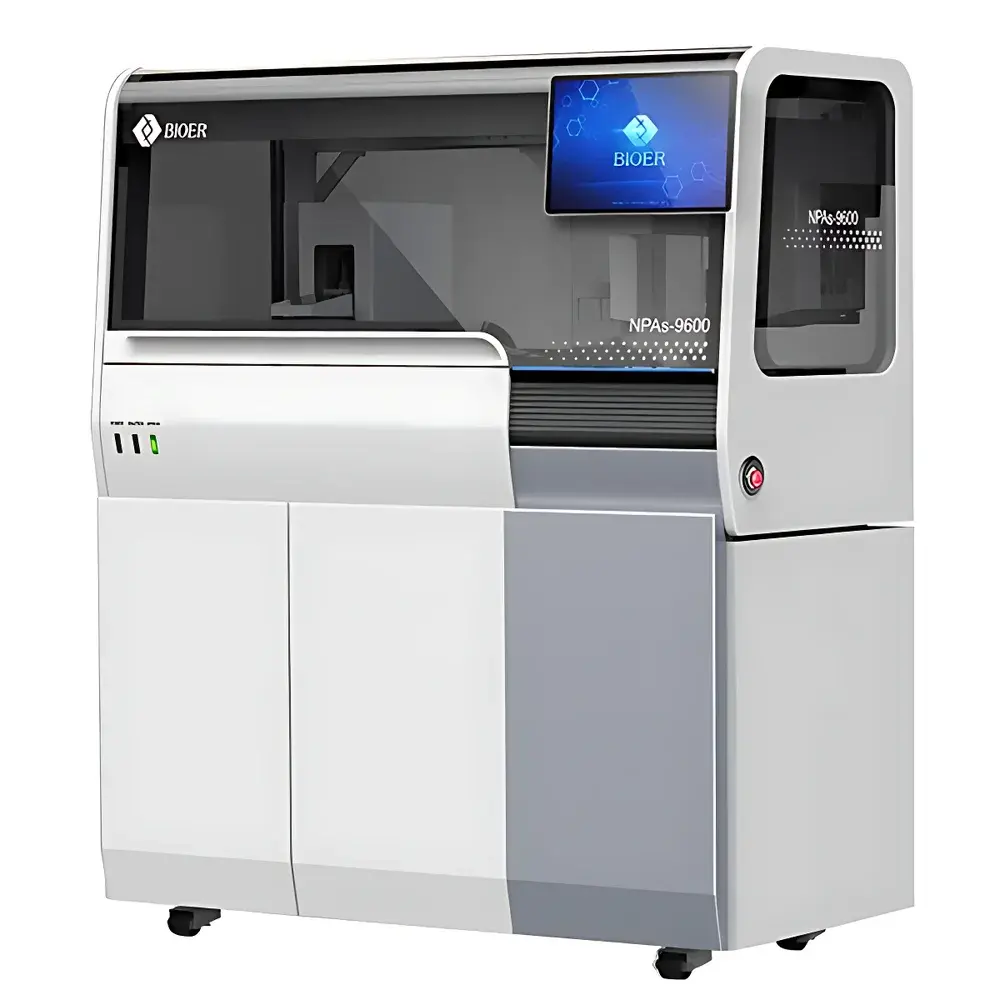

Bioer NPAs-9600 Automated Nucleic Acid Extraction and PCR Setup Workstation

Overview

The Bioer NPAs-9600 is a fully integrated, walk-away nucleic acid extraction and PCR setup workstation engineered for high-throughput molecular diagnostics laboratories, core facilities, and clinical research environments. It implements standardized magnetic bead-based solid-phase extraction principles—leveraging paramagnetic particle binding under controlled chaotropic salt and pH conditions—to isolate DNA and RNA from diverse biological matrices including whole blood, nasopharyngeal/oropharyngeal swabs, urine, and homogenized animal or plant tissues. Unlike modular or semi-automated platforms, the NPAs-9600 executes end-to-end sample processing: barcode-scanned tube loading, automated sample partitioning (if required), lysis, binding, washing, elution, and direct dispensing of purified nucleic acids into PCR-ready plates—including pre-aliquoted master mix preparation. Its architecture eliminates manual tube transfers and pipetting steps between purification and downstream amplification, significantly reducing hands-on time, inter-operator variability, and risk of carryover contamination.

Key Features

• True 96-sample walk-away operation: Accepts primary sample tubes in standard formats (e.g., 1.5 mL microcentrifuge tubes, 2.0 mL cryovials, 10 mL collection tubes); integrated linear barcode scanner reads tube IDs prior to processing, enabling full traceability.
• Sub-30-minute total cycle time: Achieves complete nucleic acid isolation and PCR plate setup for 96 samples within ≤30 minutes using Bioer-optimized reagent kits—meeting urgent diagnostic turnaround requirements without compromising yield or integrity.
• High-precision liquid handling: Dual independent pipetting channels with positive-displacement tips deliver volumetric accuracy of ±2% CV across the 20–1000 µL range; Z-axis positioning repeatability < ±0.1 mm ensures consistent tip immersion depth during bead resuspension and elution.
• Multi-layer contamination mitigation: Features an enclosed processing chamber equipped with 254 nm UV-C lamps (programmable pre- and post-run cycles), HEPA-filtered laminar airflow (ISO Class 5 equivalent), and real-time droplet capture via hydrophobic surface patterning and vacuum-assisted condensate removal.
• Intuitive human-centric interface: 12.1-inch industrial-grade capacitive touchscreen with gesture-enabled navigation, multilingual OS support (English, Spanish, French, Arabic), and context-sensitive help overlays—designed for operation by technicians with minimal bioinformatics training.

Sample Compatibility & Compliance

The NPAs-9600 supports broad-spectrum sample input without requiring pre-processing: untreated whole blood (EDTA/K2EDTA), dry or transport-media-soaked swabs (flocked or rayon), centrifuged urine supernatants, and mechanically lysed tissue homogenates. It complies with ISO 13485:2016 design controls for IVD instrumentation and incorporates audit-trail functionality aligned with GLP and CLIA laboratory standards. While not FDA 510(k)-cleared as an IVD device itself, its operational parameters are validated for use with CE-IVD–marked magnetic bead kits (e.g., QIAGEN QIAamp, Thermo Fisher KingFisher Flex-compatible chemistries). All process logs—including timestamped barcode scans, reagent lot tracking, error codes, and environmental sensor readings (temperature/humidity)—are exportable in CSV or PDF for regulatory review.

Software & Data Management

The embedded control software (v3.2+) provides role-based user access (Admin, Operator, Viewer), encrypted local storage of run records (retention configurable up to 12 months), and optional DICOM/SFTP integration for LIMS connectivity. Each run generates a digital certificate of performance containing eluate volume, estimated concentration (via integrated spectrophotometric QC module on optional add-on), and pass/fail flags against predefined QC thresholds. Audit trails meet 21 CFR Part 11 requirements for electronic signatures and data integrity—supporting e-signature workflows, password-protected configuration changes, and immutable log archiving.

Applications

• Clinical virology labs performing SARS-CoV-2, influenza, RSV, or HPV testing under emergency use authorizations (EUAs) or routine accreditation.
• Public health surveillance programs requiring rapid batch processing of environmental or wastewater samples.
• Pharmaceutical QC units validating biobank specimen integrity prior to NGS library prep.
• Academic core facilities supporting CRISPR screening, single-cell RNA-seq, or methylation array workflows where input consistency directly impacts assay sensitivity.
• Veterinary diagnostic centers processing avian, porcine, or bovine samples under OIE-compliant protocols.

FAQ

Does the NPAs-9600 require dedicated reagents or can it use third-party magnetic bead kits?
Yes—it is compatible with open-platform magnetic bead chemistries meeting standard binding/wash/elution buffer specifications (e.g., 1–5 M guanidine HCl, 70% ethanol washes, 10–50 µL low-ionic-strength elution buffers). Bioer provides protocol templates for >20 commercial kits.
Can the system be integrated into an existing laboratory automation framework (e.g., Hamilton STAR, Tecan Freedom EVO)?
It features RS-232, Ethernet, and USB host interfaces; API documentation and HL7/FHIR-compatible middleware are available under NDA for enterprise-level integration.
What maintenance is required to sustain optimal performance?
Daily decontamination via UV cycle; monthly calibration of pipetting channels using gravimetric verification; annual preventive maintenance including pump valve inspection and HEPA filter replacement—service contracts include remote diagnostics and SLA-governed response times.
Is technical support available outside mainland China?
Yes—Bioer maintains certified service partners in Southeast Asia, the Middle East, and Latin America; English-language remote assistance and on-site engineer dispatch are supported under regional warranty terms.
