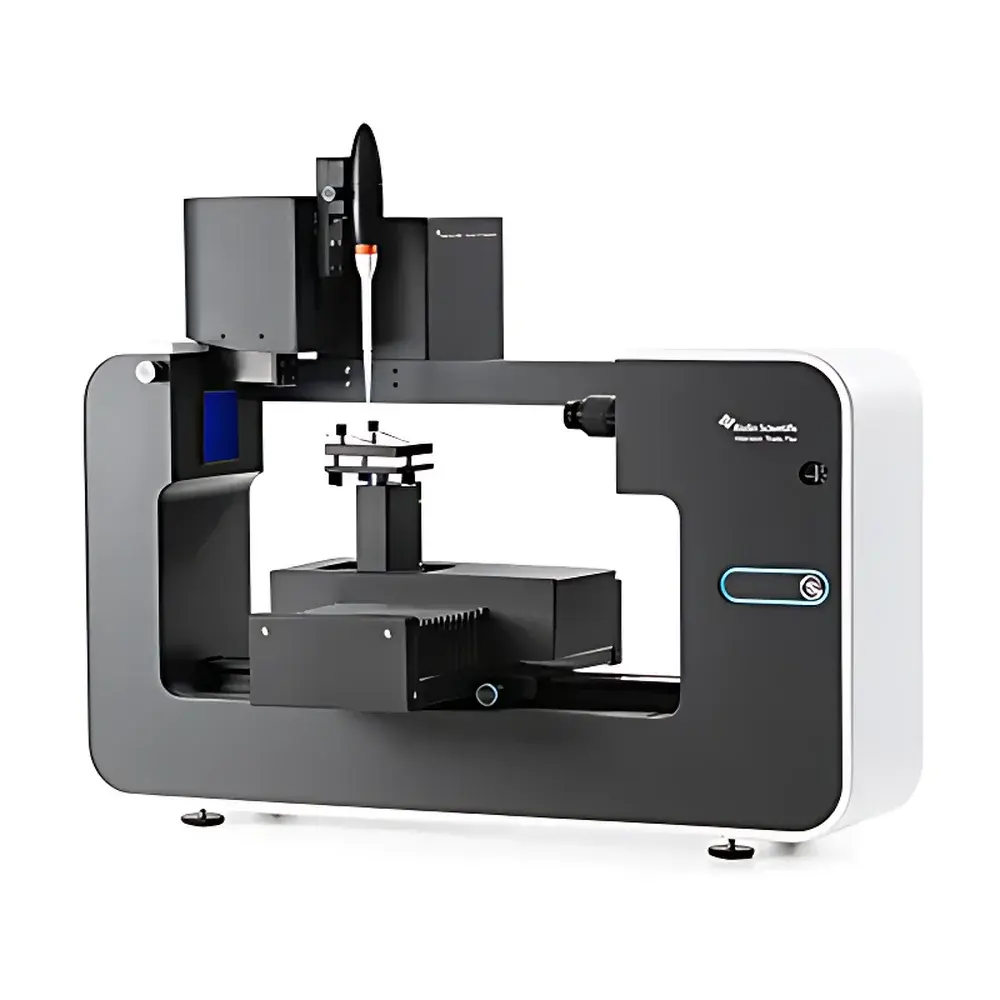

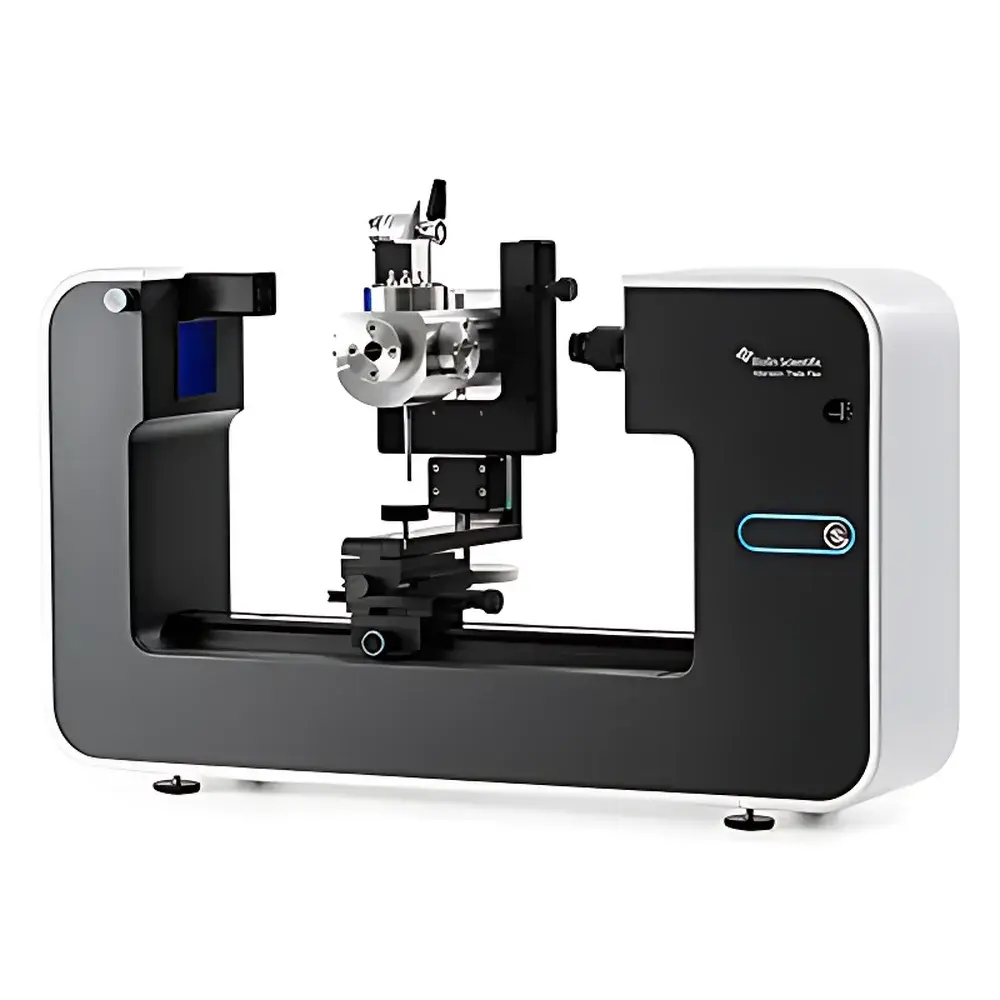

Biolin Scientific Attension Theta Flex Optical Contact Angle Analyzer

Overview

The Biolin Scientific Attension Theta Flex Optical Contact Angle Analyzer is a high-precision, modular benchtop instrument engineered for quantitative characterization of solid-liquid and liquid-liquid interfacial phenomena. Based on the optical sessile drop method—complemented by pendant drop, captive bubble, meniscus, and dynamic tilt methodologies—the Theta Flex quantifies contact angle, surface free energy (SFE), surface tension (ST), interfacial tension (IFT), and interfacial rheology (viscoelasticity) through rigorous image-based analysis of droplet contour geometry. Its measurement principle relies on solving the Young–Laplace equation to model capillary-driven droplet profiles under gravitational and intermolecular forces, enabling sub-pixel accuracy in contact angle determination and nanonewton-level resolution in interfacial stress quantification. Designed for both fundamental surface science research and regulated industrial quality assurance, the Theta Flex integrates advanced optics, thermally stable mechanics, and traceable calibration protocols to ensure long-term reproducibility across laboratories and production environments.

Key Features

• Full automation of sample positioning, liquid dispensing, imaging, and analysis—executed via single-click workflows in OneAttension software

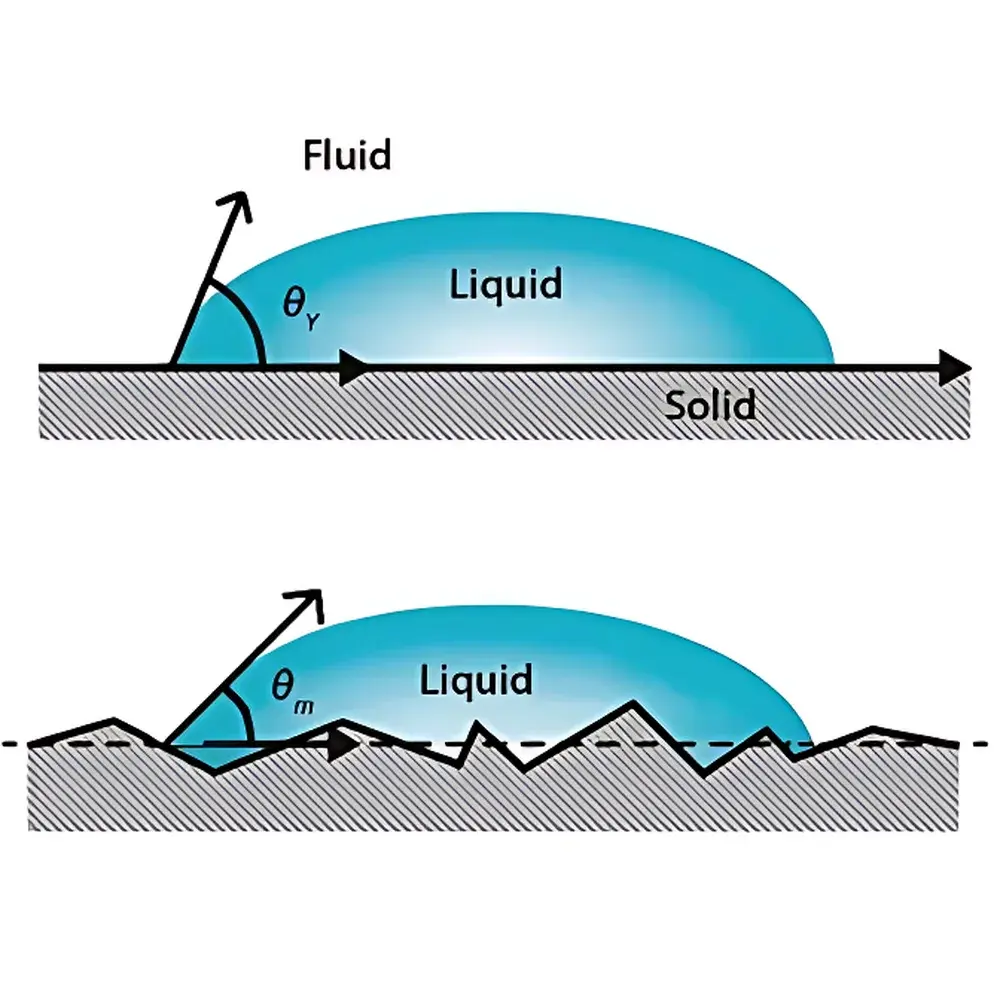

• Modular architecture supporting field-upgradable configurations: 3D topography module for roughness-corrected contact angle, high-pressure/high-temperature cell (up to 400 bar / 200 °C), oscillating droplet module (PD 200) for interfacial viscoelasticity, picoliter dispenser for micro-patterned or inkjet-relevant substrates, and environmental chamber for controlled humidity/temperature testing
• GigE-controlled high-speed camera (up to 3009 fps) with 1984 × 1264 resolution and motorized zoom optics (1.44–32.3 mm diagonal FOV)
• Monochromatic cold LED illumination minimizing sample evaporation and thermal drift during prolonged acquisition
• Multi-algorithm droplet fitting engine: Young–Laplace (primary for CA, ST, IFT, and modulus calculation), Bashforth–Adams (for low-gravity or ultra-low-tension systems), circular fit (rapid QA screening), and polynomial fit (non-axisymmetric or distorted interfaces)
• Comprehensive SFE modeling suite: Zisman, OWRK/Extended Fowkes, van Oss Acid–Base, Wu harmonic mean, Neumann’s Equation of State, and Schultz 1 & 2 methods

Sample Compatibility & Compliance

The Theta Flex accommodates rigid and flexible substrates up to 105 mm × 105 mm, including polymers, metals, ceramics, thin films, textiles, and biological membranes. Its non-contact optical methodology eliminates mechanical perturbation, preserving native surface chemistry and topography. All measurement protocols are fully traceable and repeatable under ISO 19403 (Contact angle measurements), ASTM D7334 (Surface energy of polymer coatings), and ISO 14782 (Determination of surface free energy). The system supports GLP and GMP compliance through OneAttension’s built-in audit trail, role-based user permissions (administrator, operator, viewer), electronic signatures, and secure data export (CSV, Excel, PDF, XML). Data integrity meets FDA 21 CFR Part 11 requirements for regulated pharmaceutical, medical device, and aerospace applications.

Software & Data Management

OneAttension v5.x is a platform-independent, Windows-native application combining intuitive workflow design with rigorous metrological control. It provides real-time visualization of contact angle evolution, continuous droplet volume monitoring, and synchronized parameter logging (time, temperature, pressure, humidity when equipped). Batch processing enables unattended static contact angle measurement across dozens of samples using programmable stage movement and auto-focus routines. Statistical reporting tools include Weibull distribution fitting, confidence interval estimation, and ANOVA-ready output. Raw image sequences and metadata are stored in vendor-neutral formats compliant with FAIR (Findable, Accessible, Interoperable, Reusable) data principles. Backups and version history are managed via integrated project archiving; all files support SHA-256 checksum verification for regulatory submission readiness.

Applications

• Surface functionalization validation in semiconductor wafer cleaning and photoresist development
• Hydrophobicity/hydrophilicity mapping of biomedical implants and wound dressings
• Coating adhesion prediction via surface energy heterogeneity analysis (e.g., plasma-treated PET films)
• Enhanced oil recovery (EOR) screening using high-pressure interfacial tension and dilatational rheology at reservoir conditions
• Formulation stability assessment of emulsions, foams, and Pickering systems
• Quality control of printed electronics—evaluating ink wettability on patterned substrates using picoliter dispensing
• Environmental material testing: biofouling resistance of marine coatings, icephobicity of aerospace surfaces

FAQ

What calibration standards are supported for contact angle verification?
Certified PTFE and silicon wafer reference slides (contact angles traceable to NIST SRM 2800 series) are recommended for daily verification. Biolin provides documented calibration procedures aligned with ISO/IEC 17025 laboratory accreditation requirements.
Can the Theta Flex measure advancing and receding contact angles without manual tilting?
Yes—using the optional automated tilt stage, the system executes dynamic contact angle measurements via programmable inclination (0–90°), capturing hysteresis loops with synchronized video capture and baseline correction.
Is interfacial rheology quantification validated against rheometric standards?
The PD 200 oscillating droplet module implements frequency-swept volume modulation (0.01–10 Hz) and fits complex interfacial modulus (E* = E′ + iE″) using the Lucassen–van den Tempel model, cross-validated against pendant drop oscillation standards per ISO 14782 Annex C.
How does the system handle highly volatile solvents during measurement?
The monochromatic LED illumination minimizes radiant heating, while optional environmental chamber integration allows nitrogen purging or controlled vapor saturation to suppress evaporation artifacts during extended acquisition.
Does OneAttension support automated report generation for regulatory submissions?
Yes—customizable templates generate PDF reports containing raw images, fitted contours, statistical summaries, instrument configuration logs, and electronic signatures, all compliant with ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data governance principles.
