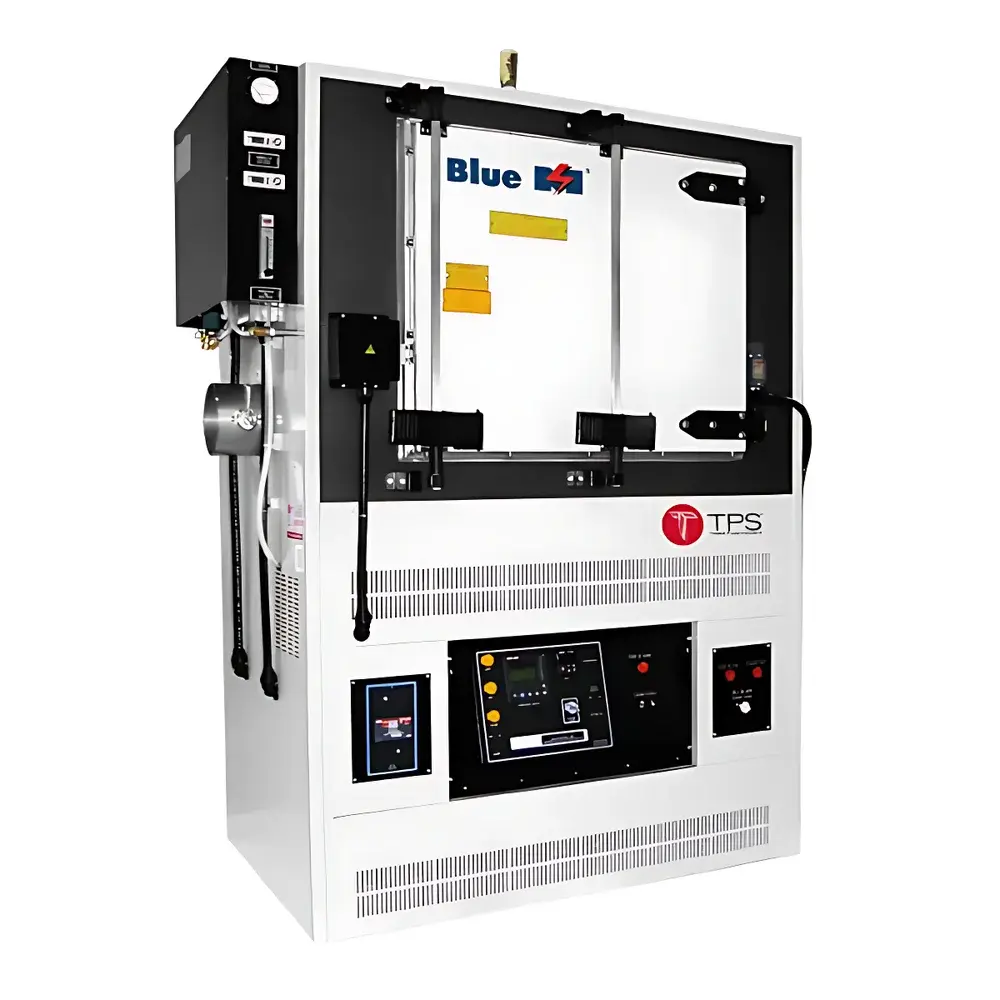

Blue M IGF-8880 Ultra-Temp® Inert Atmosphere High-Temperature Aging Oven for Photoresist Curing
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | IGF-8880 |
| Temperature Range | Ambient +15°C to 593°C (1099°F) |
| Temperature Uniformity | ±2% of setpoint |
| Temperature Stability | ±2% of setpoint |
| Temperature Deviation | ±0.5°C |
| Internal Chamber Dimensions (W×H×D) | 25 × 20 × 20 cm |
| Heating Element | Open-wire NiCr |
| Atmosphere Compatibility | N₂, Ar, He, CO₂, and forming gas (4% H₂ in N₂) |
| Safety Features | Door interlock, inert gas leak detection with heater shutdown, pressure monitoring, purge timer, pressure relief valve, water-cooled door (IGF-8880 & IGF-9980) |
| Insulation | 6-inch mineral wool |
| Door Seal | Blue M proprietary fiberglass gasket |
| Compliance | NFPA 86 Class B |
Overview
The Blue M IGF-8880 Ultra-Temp® Inert Atmosphere High-Temperature Aging Oven is an engineered thermal processing system designed specifically for controlled post-exposure bake (PEB) and hard-bake curing of semiconductor photoresists under inert or forming gas environments. Unlike standard convection ovens, the IGF-8880 integrates precision temperature control, hermetic chamber integrity, and real-time atmospheric management to meet the stringent thermal stability and oxidation prevention requirements of advanced lithography processes. Its operation is grounded in convective heat transfer within a sealed, pressurized cavity where uniform airflow—driven by a heavy-duty centrifugal blower—is maintained across the entire work area. The oven complies with NFPA 86 Class B standards for ovens handling inert and flammable-forming atmospheres, ensuring safe, repeatable thermal treatment of photomasks, wafers, and microelectronic substrates during critical process steps such as resist crosslinking, solvent removal, and residual stress mitigation.
Key Features
- Hermetically welded inner chamber constructed from high-purity stainless steel to eliminate outgassing and prevent migration of volatile decomposition products into insulation layers
- Water-cooled door assembly (standard on IGF-8880 and IGF-9980 models) enabling stable operation at maximum temperatures up to 593°C without thermal distortion or seal degradation
- Dual-stage inert gas management system with integrated mass flow controllers, digital pressure transducers, and automatic purge timing logic for reproducible atmosphere conditioning
- 6-inch thick mineral wool insulation combined with a double-wall cavity design that permits coolant circulation around the inert-gas chamber, minimizing thermal gradients and external surface temperatures
- Fail-safe safety architecture: door interlock disables heating and forced-air circulation upon opening; gas leak detection triggers immediate heater shutdown and audible/visual alarm
- Front-panel mounted instrumentation including analog/digital gas flow meters, chamber pressure gauge, purge cycle timer, and heater enable indicator lamp
- Heavy-duty open-wire NiCr heating elements mounted externally to maximize service life and minimize contamination risk inside the process zone
Sample Compatibility & Compliance
The IGF-8880 accommodates standard semiconductor substrates—including 100 mm, 150 mm, and 200 mm wafers—as well as photomasks, ceramic packages, and thin-film sensors. Its internal volume (11.0 ft³ / ~311 L) and optimized horizontal airflow pattern ensure uniform thermal exposure across multi-layer resist stacks and low-k dielectric films. The system is validated for use with nitrogen, argon, helium, carbon dioxide, and forming gas (4% H₂ in N₂), supporting both reductive stabilization and oxygen-free curing protocols required in EUV and DUV lithography workflows. All electrical and mechanical designs conform to NFPA 86 (2023 edition) Class B requirements for ovens operating under inert or low-flammability atmospheres. Optional documentation packages support IQ/OQ validation per ISO 9001 and SEMI S2/S8 guidelines, and the control architecture supports audit-ready data logging compatible with FDA 21 CFR Part 11–compliant systems when integrated with validated SCADA platforms.
Software & Data Management
The IGF-8880 operates via a dedicated analog/digital hybrid controller with front-panel push-button interface and LED indicators. While it does not include embedded PC-based software, its analog outputs (0–10 VDC or 4–20 mA) and dry-contact relays are fully compatible with third-party PLCs, DAQ systems, and MES integration frameworks. Temperature setpoints, ramp rates, soak durations, and gas purge cycles are manually programmed but stored with non-volatile memory retention. Optional RS-485 Modbus RTU communication modules enable remote parameter readback and status monitoring. For laboratories requiring full electronic recordkeeping, the oven can be paired with Blue M’s optional Data Logger Module (DLM-200), which records time-stamped temperature, pressure, and flow data at user-defined intervals (1–60 sec resolution) and exports CSV files compliant with GLP/GMP traceability standards.
Applications
- Post-exposure bake (PEB) of chemically amplified resists (CARs) in 193 nm and EUV lithography
- Hard-bake stabilization of negative-tone and positive-tone photoresists prior to etch or plating
- Thermal curing of spin-on glass (SOG), low-dielectric constant (low-k) films, and polyimide passivation layers
- Aging studies of MEMS packaging materials and wafer-level encapsulants under inert conditions
- Controlled oxidation suppression during annealing of metal-organic precursors in ALD/CVD pre-treatment
- Reliability testing of flexible electronics substrates requiring nitrogen-purged thermal cycling
FAQ
Is the IGF-8880 suitable for hydrogen-containing forming gas applications?
Yes—the IGF-8880 is certified NFPA 86 Class B for use with forming gas mixtures containing up to 4% H₂ balanced in nitrogen, provided proper ventilation, leak detection, and grounding protocols are implemented per local safety codes.
What is the maximum recommended continuous operating temperature?
The rated maximum continuous operating temperature is 593°C (1099°F); however, sustained operation above 500°C may reduce long-term heater and seal life and requires adherence to Blue M’s extended maintenance schedule.
Can the oven be integrated into a cleanroom environment?
Yes—its external surface temperature remains below 45°C under full-load operation due to the dual-wall cooling design, and optional HEPA-filtered air intake kits are available for ISO Class 5–7 cleanroom compatibility.
Does the system support programmable multi-step thermal profiles?
No—the base IGF-8880 uses manual setpoint control. For automated ramp-soak-cool sequences, integration with an external programmable controller or PLC is required using the available analog I/O and relay interfaces.
What validation documentation is supplied with the unit?
Each unit ships with a Factory Acceptance Test (FAT) report, calibration certificate for temperature sensors (NIST-traceable), NFPA 86 compliance statement, and electrical safety certification (ETL or UL 61010-1).
