Blue M Model 206/256/296/136/336/1046 Semiconductor Packaging Inert Atmosphere Drying Oven

Overview

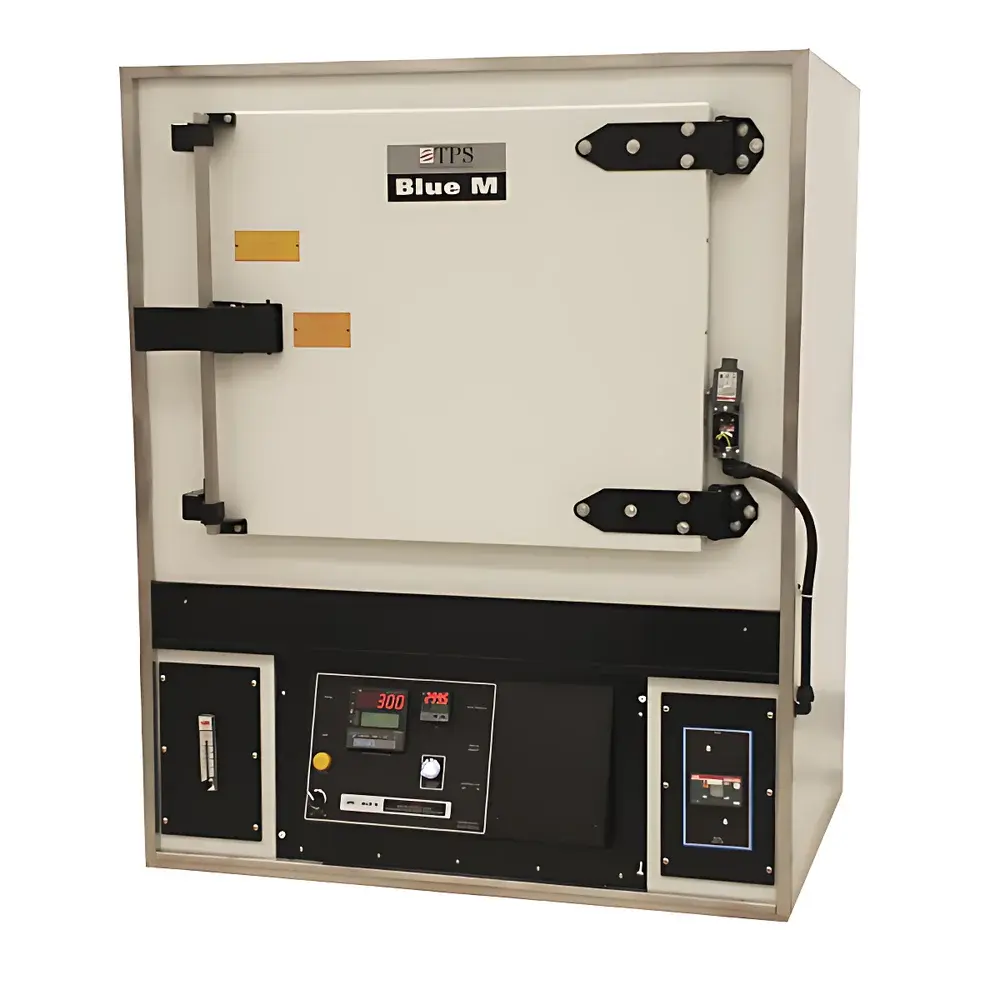

The Blue M Semiconductor Packaging Inert Atmosphere Drying Oven is an engineered thermal processing system designed specifically for high-reliability microelectronic packaging applications requiring oxygen-free, moisture-controlled, and thermally stable environments. Built upon Blue M’s legacy of precision laboratory ovens since 1930, this series employs forced-air convection heating within a fully welded 304 stainless steel chamber to achieve rapid thermal ramp rates (≤60 min to 300°C), exceptional temperature uniformity (±1% across working volume), and long-term stability (±0.5°C). Its core function is to enable controlled thermal treatments—including pre-bake, post-mold cure, silver epoxy curing, wafer drying, leadframe annealing, and photoresist hardbake—without oxidation, intermetallic growth, or moisture-induced delamination. The oven operates under inert gas purging (N₂, Ar, or forming gas), maintaining trace oxygen levels (<10 ppm typical with proper flow control and leak-tight construction), thereby meeting critical process requirements defined in J-STD-020, IPC-7095, and JEDEC standards for moisture sensitivity level (MSL) handling and die-attach integrity.

Key Features

• Fully welded 304 stainless steel interior chamber with seamless joints—eliminates crevices where contaminants or residual gases may accumulate and prevents gas migration into insulation layers.
• 4-inch thick mineral wool insulation with high-density compression—reduces thermal loss by >40% compared to standard fiberglass-insulated ovens and maintains consistent wall temperatures during extended dwell cycles.
• Blue M proprietary fiberglass door gasket system—provides repeatable sealing performance over thousands of open/close cycles, validated to retain purge integrity at pressures up to 0.5 psi differential.
• Heavy-gauge (16-gauge minimum) cold-rolled steel outer casing with electrostatic powder coating—ensures structural rigidity and corrosion resistance in cleanroom-adjacent or humid manufacturing environments.
• Dual-stage inert gas management: programmable high-flow purge mode (up to 600 SCFH) for initial atmosphere replacement, followed by low-flow maintenance mode (as low as 25 SCFH) to sustain inert conditions during thermal soak without excessive gas consumption.
• Integrated safety interlock system including door-mounted limit switch, overtemperature cutout (separate from main controller), and purge validation monitoring—compliant with UL 61010-1 and IEC 61000-6-4 electromagnetic compatibility requirements.

Sample Compatibility & Compliance

This oven supports a broad range of semiconductor packaging substrates and assemblies, including but not limited to: leadframe-based QFP/SOP packages, BGA and CSP devices, stacked-die MCMs, ceramic and organic substrates (e.g., BT, ABF), silicon wafers (up to 8-inch diameter), and flex circuit carriers. It accommodates both tray- and carrier-loaded configurations via adjustable shelf supports. All models meet ASTM E2234 (Standard Practice for Qualification of Thermal Processing Equipment), ISO 17025 traceable calibration protocols (with optional NIST-traceable sensor kits), and are compatible with GLP/GMP documentation workflows when paired with Blue M’s optional data logger and audit trail software. For FDA-regulated facilities, the oven’s programmable logic controller (PLC) architecture supports 21 CFR Part 11-compliant electronic signatures and event logging when integrated with validated third-party MES systems.

Software & Data Management

Equipped with Blue M’s Series 3000 digital microprocessor controller, the oven provides intuitive menu-driven programming for multi-segment ramp-soak profiles, real-time temperature graphing, and alarm history storage (≥1,000 events). Optional Ethernet or RS-485 interfaces enable remote monitoring and integration into factory-wide SCADA or MES platforms. Data export is supported via USB flash drive in CSV format, with timestamps synchronized to internal RTC (real-time clock) and traceable to UTC. Optional Blue M DataVault™ software adds automated report generation, user access control (role-based permissions), and electronic signature capture for SOP adherence—fully aligned with Annex 11 and ALCOA+ data integrity principles.

Applications

• Pre-mold moisture removal from plastic-encapsulated ICs prior to reflow soldering (per J-STD-033).
• Curing of conductive adhesives (e.g., Ag-filled epoxies, polyimides, siloxane-modified polyimides) used in die attach and underfill processes.
• Post-mold cure (PMC) of epoxy molding compounds to optimize mechanical strength and thermal cycling reliability.
• Photoresist pre-bake (soft bake) and post-exposure bake (PEB) for lithography processes involving organic polymer films.
• Wafer-level drying and annealing following wet cleaning or chemical vapor deposition (CVD) steps.
• Leadframe stress relief and oxide layer stabilization prior to wire bonding.

FAQ

What inert gases are compatible with this oven?
Nitrogen (N₂), argon (Ar), and forming gas (typically 95% N₂ / 5% H₂) are supported. All gas lines must be equipped with appropriate pressure regulators, flow meters, and check valves per NFPA 55 and CGA G-1 guidelines.
Is the oven suitable for Class 100 cleanroom installation?
Yes—when installed with optional HEPA-filtered recirculation air kits and grounded stainless steel exterior finish, it meets ISO 14644-1 Class 5 (Class 100) particulate requirements.
Can temperature uniformity be verified per ASTM E2234?
Absolutely—the chamber geometry and airflow design comply with ASTM E2234 Zone Classification Level 2 (±1% uniformity); validation kits with 9-point sensor arrays and certified calibration reports are available.
Does the oven support recipe-based operation for multiple product types?
Yes—up to 99 programmable profiles can be stored locally; each includes independent ramp rates, soak times, gas flow setpoints, and cooling parameters.
What is the recommended maintenance schedule?
Quarterly inspection of door gasket integrity and purge line filters; annual recalibration of temperature sensors and verification of overtemperature safety cutoff functionality per manufacturer’s service manual.
