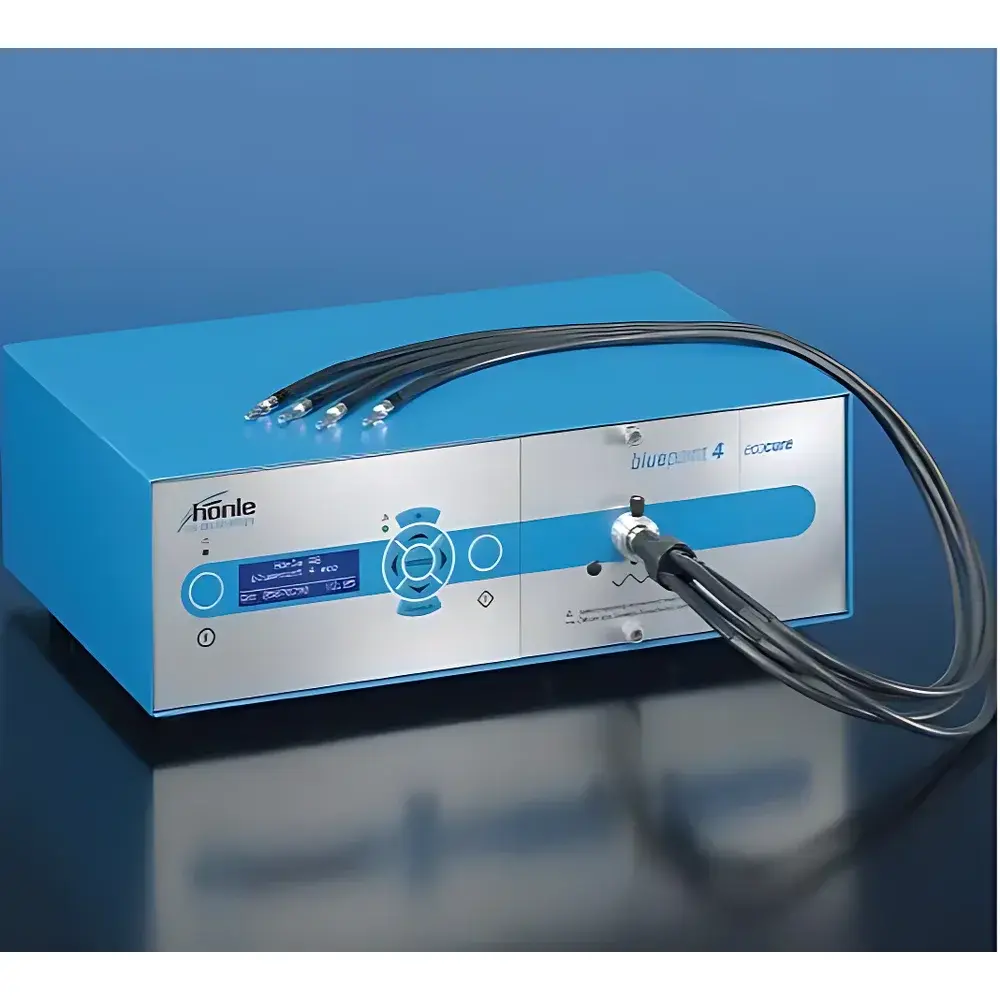

BLUEPOINT 4 ECOCURE UV Curing System by Hoenle

Overview

The BLUEPOINT 4 ECOCURE is a compact, high-intensity UV curing system engineered by Hoenle—a German manufacturer with over five decades of expertise in ultraviolet technology for industrial and scientific applications. Unlike conventional mercury-vapor lamps, this system employs optimized UV-A (365 nm) LED-based irradiation architecture, delivering stable spectral output without ozone generation, warm-up delay, or spectral drift. Its core principle relies on photochemical activation of UV-curable materials—including acrylates, epoxies, silicones, and hybrid formulations—enabling rapid polymerization at ambient temperature. Designed specifically for integration into packaging line R&D, micro-assembly workstations, and lab-scale process validation, the BLUEPOINT 4 ECOCURE supports reproducible, non-contact curing of adhesives, encapsulants, and coatings on substrates such as plastics, glass, metals, and ceramics. Its fixed-wavelength output ensures compliance with ISO 11607–2 requirements for medical device packaging validation and aligns with ASTM D4459 for accelerated UV exposure testing of polymeric materials.

Key Features

• Stable UV-A irradiance output at 365 nm (±5 nm bandwidth), calibrated per DIN 5032–7 and CIE S 012/E:2002 standards
• LED-based source with >10,000 hours rated lifetime—eliminating lamp replacement cycles and mercury disposal concerns
• Adjustable intensity control (0–100% in 1% increments) via front-panel digital interface or optional analog/digital I/O
• Integrated cooling fan and thermal management system ensuring consistent irradiance stability (< ±2% variation over 60 min)
• Compact benchtop footprint (220 × 180 × 140 mm) with ergonomic tilting stand and safety interlock switch
• Compliant with IEC 62471 (Photobiological Safety of Lamps) and CE-marked for Class 3R UV radiation devices

Sample Compatibility & Compliance

The BLUEPOINT 4 ECOCURE is validated for use with a broad spectrum of UV-curable chemistries used across regulated industries. In packaging applications, it enables reliable bonding of flexible laminates, blister foil seals, and tamper-evident closures where low-heat, solvent-free joining is mandatory. For electronics and medical device assembly, it cures optical adhesives (e.g., NOA61, LOCTITE 3311) and silicone gels without thermal stress-induced delamination. The system supports GLP-compliant documentation when paired with external radiometers (e.g., Gigahertz-Optik X1-1) and meets traceability requirements under ISO/IEC 17025 when used with calibrated measurement protocols. It is routinely employed in USP extractables studies and FDA 21 CFR Part 11–aligned workflows when integrated with audit-trail-capable software platforms.

Software & Data Management

While the BLUEPOINT 4 ECOCURE operates as a standalone unit, its analog 0–10 V input/output ports allow seamless integration with programmable logic controllers (PLCs), motion stages, or laboratory automation systems. Optional Hoenle UV-Log software (v3.2+) enables time-stamped irradiance logging, dose accumulation tracking (J/cm²), and CSV export for QA reporting. All data records include metadata such as operator ID, timestamp, exposure duration, and intensity setting—supporting 21 CFR Part 11 electronic signature readiness when deployed with validated user authentication and audit trail modules. Exported datasets are compatible with JMP, Minitab, and Python-based statistical process control (SPC) pipelines.

Applications

• Low-temperature bonding of plastic-to-plastic, plastic-to-glass, and metal-to-polymer assemblies in pharmaceutical primary packaging
• Curing of UV-transparent potting compounds during sensor module encapsulation for automotive and IoT devices
• Fluorescent dye excitation in quality control imaging stations (e.g., QC inspection of printed circuit board conformal coatings)
• Photo-initiated crosslinking of hydrogels and bio-inks in preclinical biomaterial development
• Accelerated photostability testing of inkjet-printed functional inks per ISO 105-B02 and ICH Q1B guidelines

FAQ

Is the BLUEPOINT 4 ECOCURE suitable for GMP environments?
Yes—when operated with documented calibration intervals, controlled environmental monitoring, and integrated into a validated process workflow, it meets core GMP Annex 15 and EU GMP Chapter 4 expectations for equipment qualification.
Can it be used with UV-sensitive biological samples?
It is not designed for live-cell irradiation; however, its narrowband 365 nm output is widely applied in fixed-tissue fluorescence imaging prep and photo-crosslinking of decellularized matrices under controlled dosimetry.
Does it require annual recalibration?
Hoenle recommends radiometric verification every 12 months using a NIST-traceable UV-A sensor; full recalibration is advised after any physical impact or sustained operation beyond 8,000 hours.
What safety certifications does it hold?
It carries CE marking under the EU Machinery Directive 2006/42/EC and the Electromagnetic Compatibility Directive 2014/30/EU, and conforms to EN 60335–1 for household and similar electrical appliances.
How does it compare to broadband UV mercury lamps?
It offers superior spectral consistency, zero warm-up time, no UV-C emission, and 70% lower energy consumption—making it ideal for cleanroom integration and sustainability-driven manufacturing initiatives.
