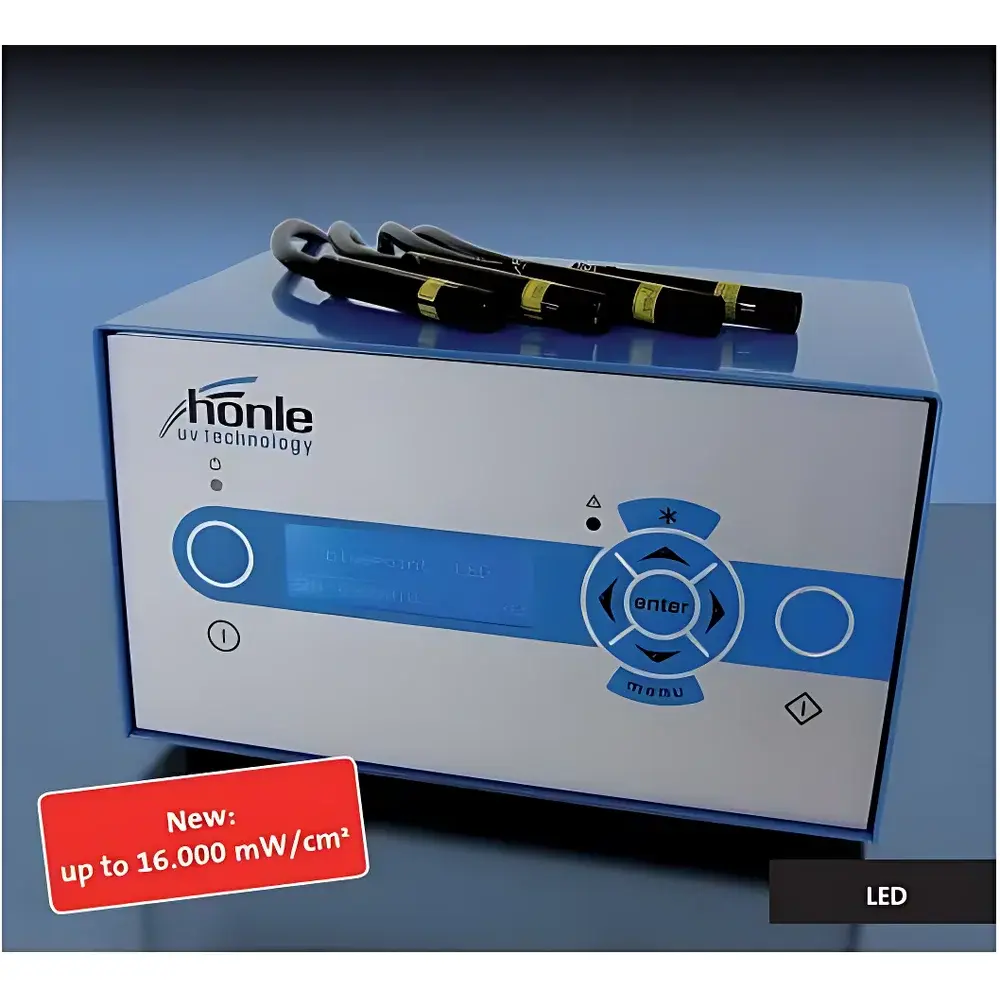

bluepoint LED UV Spot Curing System by Hönle

Overview

The bluepoint LED UV spot curing system is a precision-engineered, modular UV irradiation platform developed by Hönle—a German manufacturer with over 50 years of expertise in ultraviolet technology for industrial and scientific applications. Unlike traditional mercury arc or broad-spectrum UV lamps, the bluepoint LED utilizes high-efficiency, narrow-band UV light-emitting diodes to deliver stable, repeatable, and wavelength-specific irradiance at the point of application. Its core operating principle relies on solid-state photochemical activation: photons emitted at defined UV wavelengths (365–405 nm) initiate polymerization reactions in acrylate-based adhesives, coatings, and encapsulants—enabling rapid, localized curing without thermal stress or ozone generation. Designed specifically for integration into automated packaging lines, micro-assembly workstations, and cleanroom-compatible processes, the system meets stringent requirements for spatial accuracy, dose reproducibility, and operational reliability in regulated environments.

Key Features

• Modular architecture supporting up to four independently controllable LED heads—each with dedicated digital power regulation and real-time intensity feedback.
• Wavelength selection across four industry-standard UV bands: 365 nm (deep UV), 385 nm (high-reactivity), 395 nm (balanced penetration), and 405 nm (visible-edge UV)—all compliant with ISO 11664-3 spectral definitions.
• Zero warm-up delay: full-rated irradiance achieved instantaneously upon signal trigger—critical for high-throughput inline curing where cycle time consistency is governed by process timing tolerances.
• Passive thermal management: engineered aluminum heat sinks and optimized thermal interface design eliminate need for compressed air, water chillers, or fan-based cooling—reducing maintenance points and enhancing cleanroom compatibility (ISO Class 5–7).
• Integrated analog/digital I/O (0–10 V, TTL, RS-485) enables seamless synchronization with PLCs, motion controllers, and vision-guided robotic systems—supporting traceable, repeatable exposure protocols per ISO 15197 and ASTM D4292.
• L70 lifetime exceeding 20,000 hours ensures long-term radiometric stability, minimizing recalibration frequency and supporting GLP/GMP documentation requirements for qualification of UV-curing processes.

Sample Compatibility & Compliance

The bluepoint LED is compatible with a wide range of UV-curable materials used in packaging-related applications—including low-viscosity acrylate adhesives for blister seal integrity, UV-barrier lacquers for pharmaceutical cartons, and functional inks for tamper-evident labels. It supports standardized sample geometries from Ø0.5 mm to Ø12 mm spot diameters (dependent on lens configuration), with irradiance uniformity ≥90% across the central 80% of the beam profile (measured per ISO/IEC 17025-accredited methods). The system conforms to IEC 62471 (Photobiological Safety), CE marking (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), and RoHS 2011/65/EU. For regulated manufacturing, optional audit-trail logging and user-access control modules comply with FDA 21 CFR Part 11 data integrity requirements when integrated with validated software platforms.

Software & Data Management

Hönle’s optional UVControl software provides centralized configuration, real-time monitoring, and dose logging for multi-head installations. Each channel records cumulative radiant exposure (J/cm²), peak irradiance (mW/cm²), and temporal pulse profiles with timestamped metadata—exportable in CSV or XML formats for quality record retention. The software supports configurable alarm thresholds, automatic report generation per batch ID, and integration with MES/QMS systems via OPC UA or RESTful API. All calibration certificates (traceable to PTB, Germany) and firmware revision histories are embedded within the device’s secure memory, accessible only through authenticated administrative sessions.

Applications

• High-speed sealing of pharmaceutical blister packs using UV-triggered cold-seal adhesives—ensuring consistent bond strength without substrate deformation.
• Precision bonding of optical sensors and RFID tags onto flexible packaging substrates under laminar-flow conditions.
• Fluorescent marker activation for anti-counterfeiting features in luxury goods packaging—leveraging 365 nm excitation for invisible ink verification.
• In-line UV sterilization validation of packaging component surfaces prior to aseptic filling—using calibrated 254 nm-compatible variants (via optional accessory optics).
• Accelerated aging studies of UV-stabilized polymer films used in food-grade barrier packaging—under controlled spectral and dosimetric conditions.

FAQ

What is the typical irradiance output range per LED head?

Irradiance varies by wavelength and lens option—from 1.2 W/cm² (365 nm, collimated) to 8.5 W/cm² (405 nm, focused)—all specified at 10 mm working distance and measured with NIST-traceable spectroradiometers.
Can the bluepoint LED be integrated into existing PLC-controlled packaging machinery?

Yes. Standard 0–10 V analog input for intensity control and TTL-level trigger signals enable direct interfacing with Siemens S7, Beckhoff CX, and Allen-Bradley CompactLogix controllers.
Is spectral calibration performed at the factory?

Each unit ships with a full spectral irradiance calibration certificate issued by Hönle’s ISO/IEC 17025-accredited metrology lab, including uncertainty budgets per CIE S 026/E:2019.
Does the system support dose-controlled curing cycles?

Yes. Real-time integration of irradiance and exposure time enables closed-loop dose delivery (e.g., 5 J/cm² ±2%) with repeatability ≤±1.5% over 1,000 cycles.
Are replacement LED heads field-swappable?

Yes. Pre-aligned, plug-and-play LED modules require no optical re-alignment or recalibration after replacement—validated per Hönle’s internal MTBF protocol (≥50,000 cycles).
