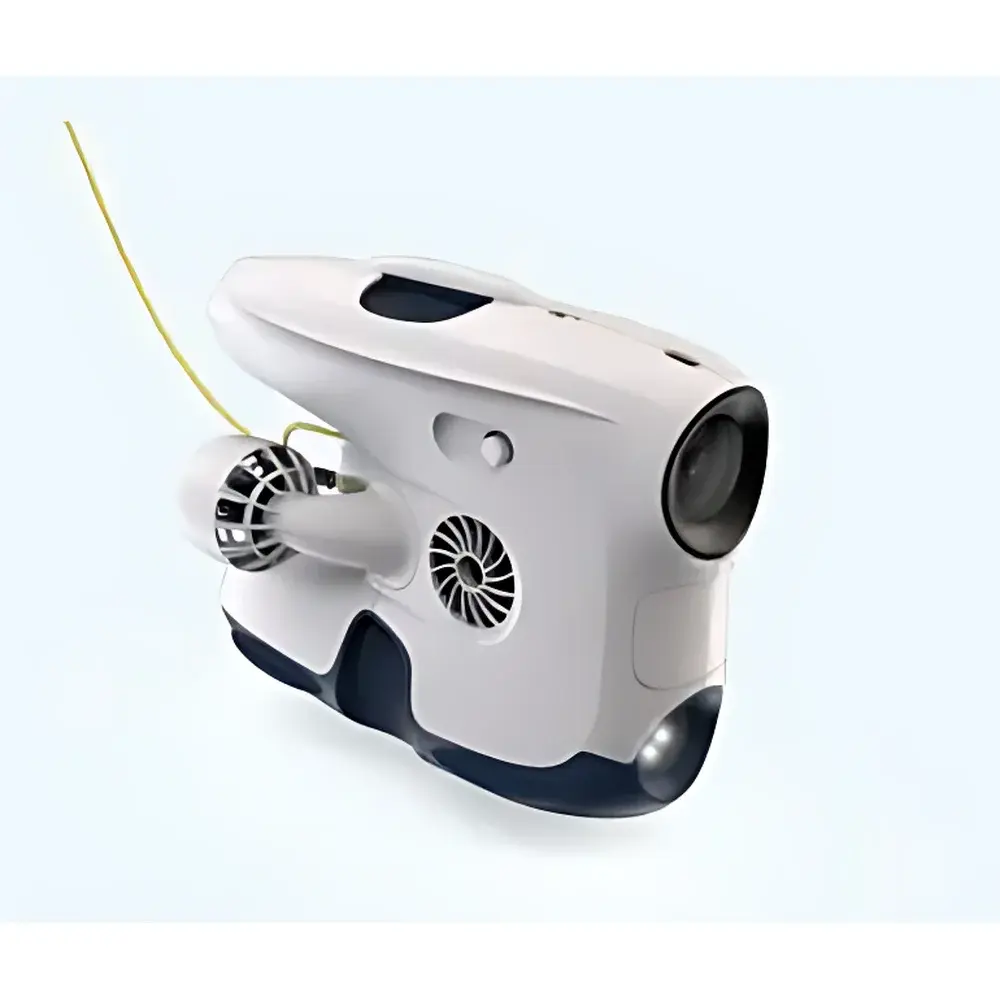

Blueye Pro Underwater Drone
| Origin | Norway |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Blueye Pro |
| Pricing | Available Upon Request |
Overview
The Blueye Pro is a professional-grade, tethered underwater drone engineered for high-fidelity visual inspection, scientific observation, and operational support in marine environments. Utilizing a robust tethered architecture with real-time HD video telemetry and precise thruster-based maneuverability, the system operates on the principle of remotely operated vehicle (ROV) dynamics—leveraging differential thrust control, inertial measurement unit (IMU)-assisted stabilization, and low-latency fiber-optic or hybrid copper-fiber tether communication. Designed for deployment from vessels, docks, or offshore platforms, the Blueye Pro delivers mission-critical situational awareness at depths up to 305 meters (1000 ft), meeting structural integrity and pressure-rating requirements aligned with ISO 13628-8 for subsea remotely operated equipment.
Key Features
- Full HD 1080p/30fps downward-tilting camera with 4x digital zoom and automatic white balance—optimized for turbid water conditions and variable lighting;
- High-output dual LED array delivering 3300 lumens total output with adjustable intensity and color temperature control (5000–6500 K);
- Four independently controlled brushless DC thrusters (350 W each), enabling six-degree-of-freedom (6-DOF) motion including surge, sway, heave, roll, pitch, and yaw;
- Depth-rated pressure housing certified to 305 m (1000 ft) with titanium alloy end caps and corrosion-resistant anodized aluminum chassis;
- Hot-swappable lithium-ion battery pack providing ≥120 minutes of continuous operation per charge, with integrated state-of-charge telemetry and thermal monitoring;
- Modular tether system supporting both standard 100 m and extended 200 m configurations; quick-release connectors enable field replacement of damaged sections without tooling;
- Propeller modules designed for rapid field exchange—no calibration required after replacement due to factory-trimmed thrust mapping;
- IP68-rated external interface ports for optional sensor integration (e.g., CTD, DVL, or multibeam sonar via RS-422/RS-485).
Sample Compatibility & Compliance
The Blueye Pro is compatible with a broad range of underwater operational contexts—including offshore energy infrastructure inspection (pipelines, jackets, subsea manifolds), aquaculture site monitoring, inland dam and reservoir assessment, archaeological survey, and environmental baseline studies. Its mechanical design conforms to IEC 60529 for ingress protection and meets the mechanical shock and vibration requirements specified in MIL-STD-810G Method 516.6. The system complies with CE marking directives (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), and its firmware architecture supports audit-ready logging for GLP-aligned data collection workflows. While not intrinsically explosion-proof, it may be deployed in non-hazardous zones per IEC 60079-0.
Software & Data Management
The Blueye mobile application (iOS and Android) provides full vehicle control, real-time telemetry overlay (depth, heading, battery status, tilt angle), and synchronized metadata tagging (GPS timestamp, vessel position via Bluetooth NMEA input). The companion Blueye Dive Buddy app enables secure multi-viewer streaming—up to 10 concurrent authenticated users—with configurable access levels (view-only or operator-capable). All video streams are encoded using H.264 Main Profile at bitrates scalable from 2 to 8 Mbps, recorded locally in MP4 format with embedded UTC timestamps and IMU-derived orientation data. Exported files include sidecar JSON logs compliant with ISO 19115-3 metadata schema for GIS integration. Firmware updates are delivered over-the-air (OTA) with cryptographic signature verification and rollback capability—supporting traceability per FDA 21 CFR Part 11 Annex 11 principles where applicable.
Applications
- Offshore oil & gas: Pre- and post-installation inspection of subsea structures, riser integrity assessment, and ROV-assisted intervention coordination;
- Renewable energy: Visual verification of monopile scour protection, turbine foundation condition, and cable burial depth;
- Aquaculture: Net integrity checks, biomass estimation support, and feed dispersion pattern analysis;
- Infrastructure: Inspection of bridge pilings, intake/outfall structures, submerged tunnels, and hydroelectric penstocks;
- Research & education: Field-based marine biology observation, benthic habitat mapping, and student-operated underwater robotics training;
- Public safety: Search-and-rescue pre-scanning in low-visibility freshwater environments and evidence documentation for forensic diving operations.
FAQ
What is the maximum operating depth of the Blueye Pro?
The Blueye Pro is rated for continuous operation at depths up to 305 meters (1000 feet), validated through hydrostatic pressure testing per ISO 6817.
Does the system support third-party sensor integration?
Yes—via standardized serial interfaces (RS-422/RS-485) and analog voltage inputs, enabling connection to CTD sensors, Doppler velocity logs, or single-beam echosounders.
Is the tether armored or neutrally buoyant?
Standard tethers are neutrally buoyant with polyurethane jacketing; armored variants with stainless steel braiding are available for high-abrasion environments such as harbor infrastructure work.
Can video recordings be geotagged?
Yes—when paired with a GPS-enabled surface unit or smartphone, all recordings embed NMEA 0183 GGA sentences synchronized to frame timestamps.
What regulatory standards does the firmware logging comply with?
The audit trail functionality supports ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and includes electronic signatures, user authentication, and immutable log archiving—aligned with FDA 21 CFR Part 11 and EU Annex 11 expectations for regulated use cases.
