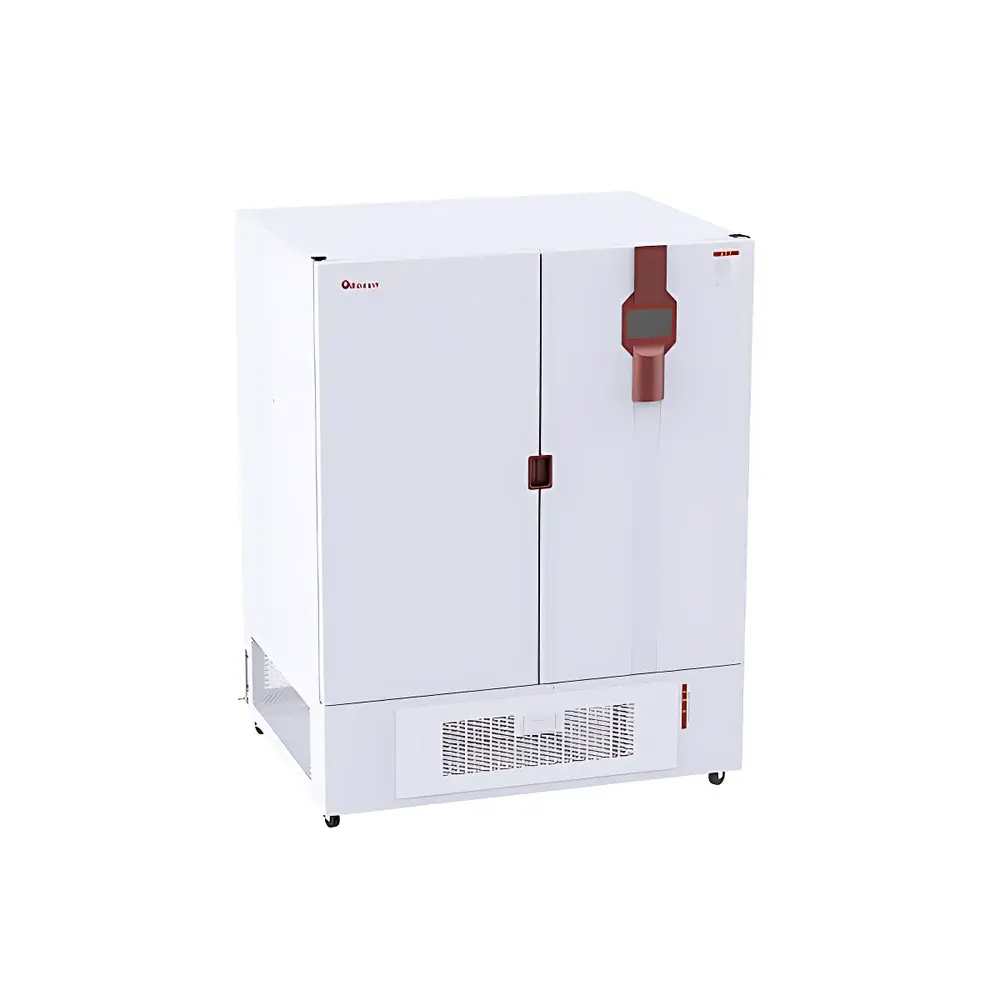

Boxun BYS800S Pharmaceutical Stability Testing Chamber
| Brand | Boxun |
|---|---|
| Origin | Shanghai, China |
| Model | BYS800S |
| Temperature Range | 0–85°C (dry), 10–60°C (with humidity control) |
| Temperature Resolution | 0.1°C |
| Temperature Uniformity (at 25°C) | ±1.5°C |
| Temperature Fluctuation (at 25°C) | ±0.5°C |
| Humidity Range | 20–98% RH |
| Humidity Fluctuation | ±5% RH |
| Chamber Volume | 800 L |
| Inner Dimensions (L×W×H) | 1200 × 610 × 1100 mm |
| External Dimensions (L×W×H) | 1362 × 980 × 1782 mm |
| Power Input | 3100 W |
| Programmable Stages | 30 segments, up to 99 cycles per segment |
| Data Storage Duration | ≥10 years (onboard non-volatile memory) |
| Interface Ports | 1× USB, 1× RS232, 1× RS485 |
| Standard Accessories | Mechanical door lock, embedded thermal printer, 4 adjustable drawer-type shelves (max. 12) |
| Optional Accessories | Additional shelves, FDA-compliant monitoring software, GMP-compliant monitoring software, GPRS SMS alarm module, 3Q validation documentation (IQ/OQ/PQ) |
Overview
The Boxun BYS800S Pharmaceutical Stability Testing Chamber is an engineered environmental simulation system designed to meet the stringent requirements of ICH Q1–Q5 guidelines for drug stability assessment. It provides precisely controlled, long-term temperature, relative humidity, and optional light exposure conditions—critical for conducting accelerated stability studies (e.g., 40°C/75% RH), intermediate conditions (30°C/65% RH), long-term storage testing (25°C/60% RH), and photostability evaluations per ICH Q5B and Q1B. The chamber employs a dual-door architecture with full-view tempered glass inner door and magnetic sealing to minimize parameter disturbance during observation, while its robust thermal-hygrometric architecture ensures compliance with pharmacopeial protocols including USP , EP 2.2.42, and JP 17. Its closed-loop control system maintains stable setpoints across extended durations—essential for regulatory submissions under FDA 21 CFR Part 11, EMA Annex 11, and WHO TRS 992.
Key Features
- 7-inch high-resolution capacitive touchscreen interface with intuitive navigation and real-time graphical display of temperature/humidity profiles.
- BRIGHT II adaptive control algorithm dynamically compensates for ambient fluctuations, load changes, and door-opening events—ensuring rapid recovery (<15 min to ±0.5°C after 30-sec door opening at 40°C/75% RH).
- 30-segment, 99-cycle programmable controller supporting complex test protocols—including ramp-hold sequences, stepwise stress transitions, and multi-condition cycling.
- Onboard non-volatile memory retains ≥10 years of time-stamped operational data (temperature, humidity, alarms, events) without reliance on external SD cards or network infrastructure.
- Comprehensive event logging records all user actions (parameter edits, login/logout, door operations) and system events (alarms, sensor faults, compressor status) with immutable timestamping—enabling full audit trail traceability.
- Five-level hierarchical permission management allows administrators to assign granular access rights across 14 distinct operational functions; each action is logged with operator ID and timestamp.
- Externally mounted surface-evaporation humidification system—separated from the main chamber—ensures low failure rate, consistent RH delivery, and simplified maintenance.
- Variable-speed centrifugal fan with manual airflow adjustment optimizes circulation uniformity across varying load configurations (0–12 shelves).
- Dual-stage frost-free refrigeration with inverter-driven compressor delivers stable cooling performance under non-extreme ambient conditions (up to 35°C ambient) and eliminates defrost cycles that disrupt test integrity.
- Integrated anti-fog inner door heating and dual condensate recovery system (inner door + chamber base) prevent moisture accumulation and support cleanroom-compatible operation.
Sample Compatibility & Compliance
The BYS800S accommodates diverse pharmaceutical sample formats—including vials, blister packs, syringes, powder containers, and primary packaging materials—within its 800 L stainless-steel chamber featuring radius-cornered interior walls and drawer-style adjustable shelves. Its validation-ready design supports full 3Q qualification (IQ/OQ/PQ) per ASTM E2500 and ISPE Baseline Guide principles. Optional GMP/FDA-compliant monitoring software enables electronic signature, role-based access control, and ALCOA+ data integrity features—including automated backup, change history, and electronic audit trails compliant with 21 CFR Part 11 Subpart B. The chamber meets ISO 14644-1 Class 8 cleanroom compatibility standards when operated with HEPA-filtered air recirculation (optional upgrade). All critical sensors (PT100 temperature, capacitive RH) are calibrated traceable to NIST standards, and calibration certificates are provided with 3Q documentation packages.
Software & Data Management
Data integrity is maintained through native onboard storage using industrial-grade EEPROM—immune to power loss or file corruption. Raw time-series data (min/max/avg per minute) and event logs export via USB in read-only .csv format with cryptographic hash verification to prevent tampering. The optional FDA Edition software adds secure remote monitoring, automated report generation (PDF/Excel), deviation alert escalation (email/SMS via GPRS module), and integration with LIMS or MES systems via Modbus TCP/RTU. Audit trail configuration complies with Annex 11 requirements: all data modifications are immutably recorded with before/after values, operator ID, timestamp, and reason-for-change field. Electronic signatures follow PKI-based authentication, and password policies enforce minimum length, complexity, and expiration intervals.
Applications
The BYS800S serves as a core platform for ICH-aligned stability programs: accelerated degradation kinetics analysis, shelf-life prediction modeling (Arrhenius-based), excipient compatibility screening, container-closure system evaluation, and photostability stress testing under UV/visible light (when equipped with optional ICH-compliant light source modules). It is routinely deployed in QC laboratories for batch release stability testing, in R&D for formulation optimization, and in manufacturing sites for ongoing stability monitoring per FDA Guidance for Industry (2022). Secondary applications include biologics storage condition validation, vaccine thermal mapping studies, and medical device packaging aging per ISO 11607-1.
FAQ
Does the BYS800S comply with 21 CFR Part 11 requirements?
Yes—when configured with FDA Edition software and enabled audit trail, electronic signature, and data integrity controls.
Can the chamber operate continuously at 60°C/95% RH?
No—maximum simultaneous temperature/humidity is 60°C/98% RH per specification; sustained operation above 50°C requires reduced RH setpoints to maintain sensor accuracy and condensation control.
Is validation support included with purchase?
Standard units ship with factory calibration certificates; optional 3Q validation packages (including protocol templates, executed reports, and IQ/OQ/PQ documentation) are available upon request.
What is the mean time between failures (MTBF) for the humidification system?
The external surface-evaporation humidifier demonstrates >15,000 hours MTBF based on accelerated life testing under continuous 95% RH operation.
How does the system handle power interruptions?
Upon power restoration, the controller resumes the last active program segment with automatic parameter revalidation and alarm suppression until stabilization criteria are met.
