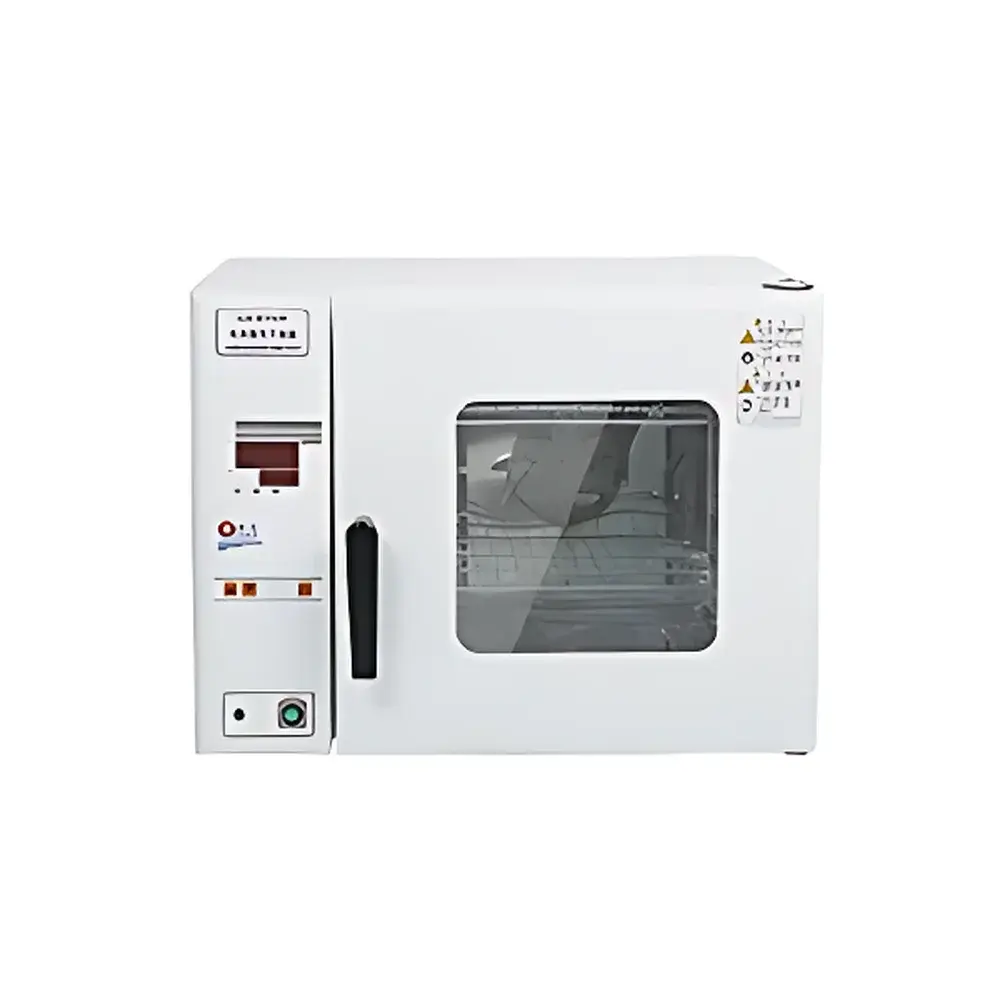

BOXUN GZX-9240MBE Forced-Air Constant-Temperature Drying Oven

Overview

The BOXUN GZX-9240MBE is a precision-engineered forced-air constant-temperature drying oven designed for routine thermal processing in quality control laboratories, academic research facilities, and industrial R&D environments. It operates on the principle of convective heat transfer via a high-efficiency axial fan-driven air circulation system, ensuring rapid thermal equilibration and uniform temperature distribution across the entire working chamber. Unlike natural convection ovens, the GZX-9240MBE employs a dedicated preheating cavity where ambient air is heated prior to entering the main chamber—minimizing cold spots and reducing thermal lag during ramp-up. Its operational range spans from ambient +5°C to 200°C, making it suitable for moisture removal, sample conditioning, polymer curing, powder drying, and paraffin wax melting applications in accordance with ASTM D1654, ISO 4618, and USP guidelines.

Key Features

• Microprocessor-based PID temperature controller with dual-display digital interface (setpoint & actual temperature), enabling precise setpoint adjustment in 1°C increments and real-time monitoring with ±1°C stability at 105°C.
• Mirror-finish SUS304 stainless steel interior with seamless corner radii (R ≥ 15 mm) for enhanced cleanability and corrosion resistance—compliant with GLP laboratory hygiene requirements.
• Forced-air circulation system featuring a shielded, low-noise AC motor and optimized aerodynamic impeller, delivering consistent airflow velocity (>0.5 m/s) and minimizing thermal stratification.
• Dual-stage rotational door lock mechanism paired with a high-compression silicone gasket ensures >95% sealing efficiency at elevated temperatures, verified per ISO 27874 leakage test protocols.
• High-density mineral wool insulation (≥100 mm thick) integrated into all six chamber walls provides thermal resistance (R-value > 2.8 m²·K/W), significantly reducing standby power consumption and surface temperature rise.
• Auto-recovery function retains user-defined parameters—including setpoint, timer value, and alarm thresholds—following unexpected power interruption or system reset.

Sample Compatibility & Compliance

The GZX-9240MBE accommodates standard laboratory glassware (e.g., Petri dishes, weighing bottles, crucibles) and industrial sample trays up to 300 mm in width. Its 234 L chamber volume supports batch processing of up to 10 adjustable shelves (standard configuration: 3 shelves), each rated for 15 kg static load. The oven meets IEC 61010-1:2010 safety standards for electrical equipment used in laboratory environments and conforms to electromagnetic compatibility (EMC) requirements per EN 61326-1. While not certified for explosion-proof operation, its design excludes ignition sources and complies with non-hazardous area classification per NEC Article 500.

Software & Data Management

This model operates as a standalone instrument without embedded data logging or network connectivity. However, it supports external validation and calibration workflows through traceable analog output (0–5 V DC proportional to chamber temperature) and optional RS-485 Modbus RTU interface (available via accessory module). All temperature-related events—including over-temperature alarms, timer completion, and door-open interruptions—are logged internally with timestamping for up to 1000 entries, retrievable via front-panel navigation. Audit trail functionality satisfies basic GLP documentation requirements, and parameter retention aligns with FDA 21 CFR Part 11 principles when paired with validated external recording systems.

Applications

• Moisture content determination per AOAC 950.46 and ISO 5519 for food, pharmaceutical, and agricultural samples.
• Thermal stabilization of reference standards and calibration materials prior to gravimetric or spectroscopic analysis.
• Drying of filter papers, chromatography media, and ceramic substrates in analytical chemistry workflows.
• Curing of epoxy resins, adhesives, and coating formulations under controlled time–temperature profiles.
• Pre-conditioning of hygroscopic materials (e.g., lithium-ion battery cathode powders) before electrochemical testing.
• Paraffin embedding and wax removal in histopathology laboratories following CAP-accredited protocols.

FAQ

What is the maximum recommended operating temperature for continuous use?
The GZX-9240MBE is rated for sustained operation at 200°C; however, prolonged exposure above 180°C may accelerate gasket aging and reduce long-term seal integrity.
Can this oven be used for sterilization or depyrogenation?
No—it lacks the temperature uniformity certification (±0.5°C), chamber pressure control, and validation support required for autoclave or dry-heat sterilization per ISO 17665 or USP .
Is the internal chamber volume verified per ISO 17025 calibration procedures?
Chamber volume is geometrically calculated from nominal internal dimensions; volumetric verification requires third-party metrology using calibrated displacement spheres or laser scanning.
Does the unit include a factory calibration certificate?
A basic conformity report referencing NIST-traceable reference thermometers is provided; full ISO/IEC 17025 calibration documentation is available upon request at additional cost.
Are replacement shelves and gaskets available as spare parts?
Yes—SUS304 shelves (part no. GZX-SH-304-600), high-temp silicone gaskets (GZX-GSK-200), and fan assemblies are stocked globally through authorized BOXUN service centers.
