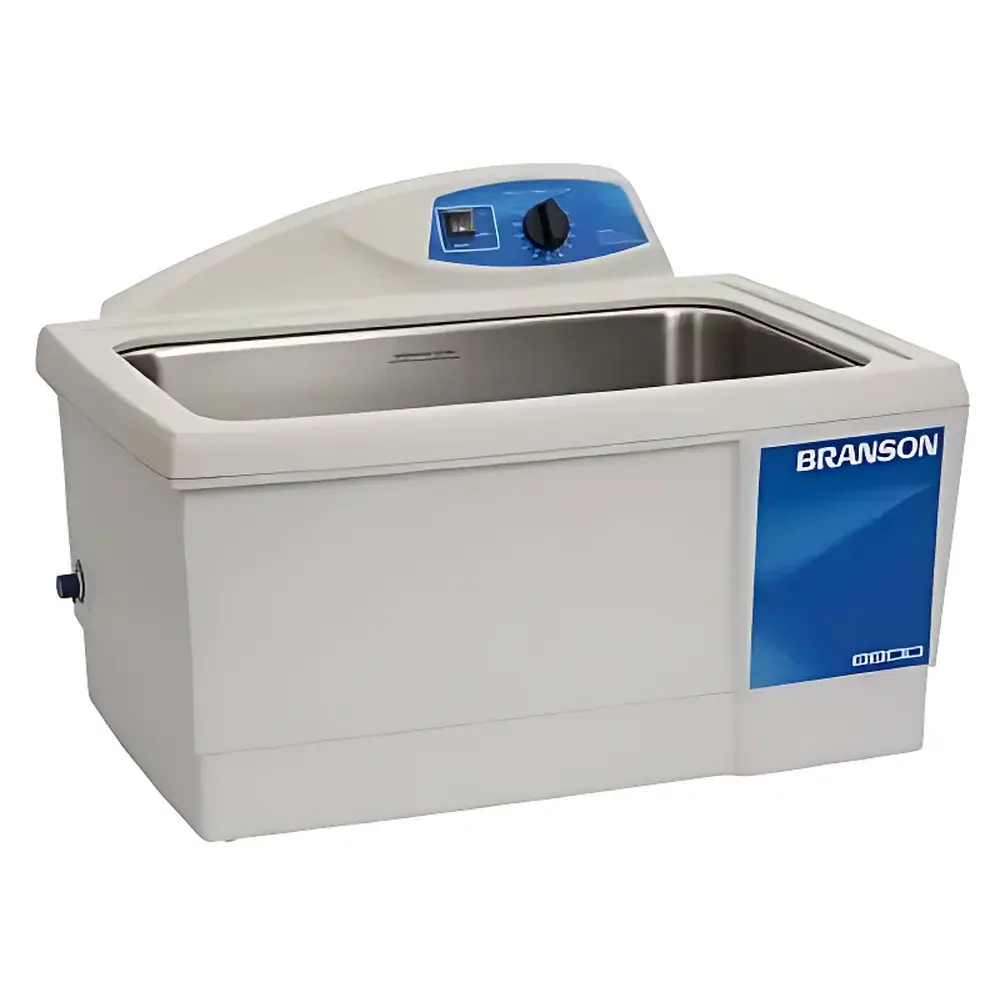

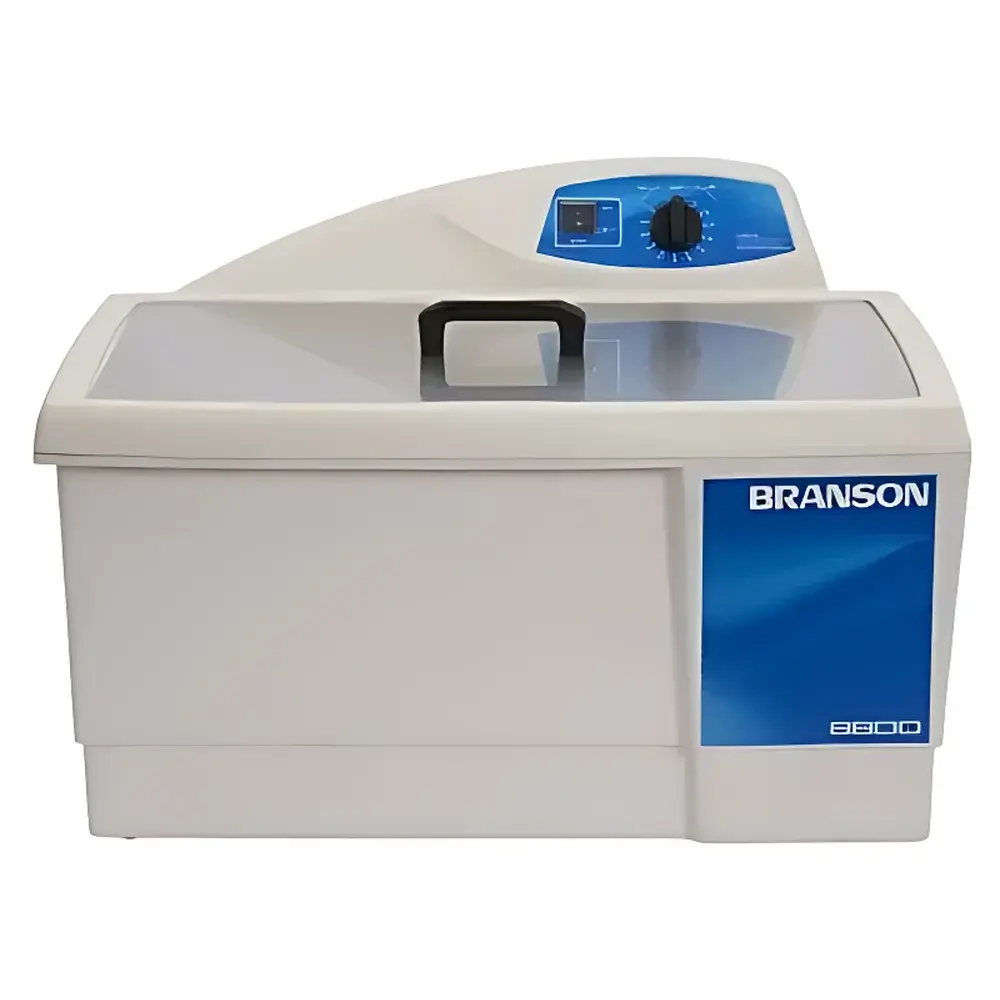

Branson M8800H-C Benchtop Ultrasonic Cleaner

Overview

The Branson M8800H-C is a high-reliability benchtop ultrasonic cleaner engineered for precision cleaning of delicate laboratory components, analytical instrumentation parts, surgical tools, optical lenses, and semiconductor wafers. It operates on the principle of cavitation—generated by high-frequency (40 kHz) acoustic energy transmitted through a liquid medium—producing micro-scale implosions that dislodge particulate contaminants, organic residues, and biofilms from surfaces without mechanical abrasion. Designed for consistent performance across variable load conditions, the M8800H-C integrates automatic power tracking and professional frequency sweeping to maintain stable energy delivery regardless of tank loading, solution composition, or temperature drift. Its robust architecture reflects decades of Branson’s engineering heritage in ultrasonic transduction and industrial cleaning system design.

Key Features

• Intelligent power-tracking circuitry ensures constant ultrasonic output intensity—even when bath volume, part geometry, or cleaning solution viscosity changes—enabling method reproducibility across multiple operators and shifts.
• Proprietary sweep-frequency modulation eliminates standing wave patterns, promoting uniform cavitation distribution throughout the 20.8 L stainless-steel tank (495 × 290 × 150 mm internal dimensions), critical for high-yield cleaning of heterogeneous sample sets.
• Langevin-type piezoelectric transducers—constructed with ceramic elements bonded to titanium alloy horns—deliver high electromechanical coupling efficiency and extended service life; mounted via advanced adhesive bonding to prevent delamination under thermal cycling.
• Chemically resistant polypropylene (PP) housing provides corrosion resistance against common solvents, aqueous alkaline detergents, and mild acidic solutions used in ISO 13485-compliant medical device reprocessing workflows.
• Digital timer with 1–99 minute resolution (replacing legacy mechanical timers) supports GLP-aligned protocol documentation; continuous mode available for extended soak cycles.
• Integrated heating system (560 W heater, max 69 °C) enables temperature-controlled cleaning protocols aligned with ASTM D4711 and USP guidelines for residue removal validation.
• Sound-dampening hinged lid doubles as a drip tray and incorporates a manual drain valve—facilitating rapid, spill-free solution exchange while reducing ambient noise to ≤55 dB(A) at 1 m distance.
• Vertical PCB orientation and elevated control panel (positioned above tank rim) minimize moisture ingress risk, enhancing long-term reliability in humid laboratory environments.
• Factory-calibrated fill line ensures optimal acoustic coupling and energy transfer efficiency—deviations beyond ±5 mm from this level significantly reduce cavitation density per ASTM E1415.

Sample Compatibility & Compliance

The M8800H-C accommodates a broad range of substrates including glassware (vials, cuvettes, pipette tips), metal components (stainless steel forceps, endoscope parts), ceramics, silicon wafers, and polymer-based microfluidic devices. Its non-contact cleaning mechanism preserves dimensional integrity and surface finish of precision-machined optics and MEMS assemblies. All units comply with electromagnetic compatibility (EMC) and safety standards mandated for laboratory equipment in North America and the EU: UL 61010-1, CSA C22.2 No. 61010-1, EN 61000-6-3/-4, and IEC 61000-3-2. Full TÜV Rheinland certification confirms conformity with low-voltage directive 2014/35/EU and RoHS 2011/65/EU. Units are supplied with traceable factory calibration records and support IQ/OQ documentation packages for regulated environments operating under FDA 21 CFR Part 11, ISO/IEC 17025, or GMP Annex 15 requirements.

Software & Data Management

While the M8800H-C operates via an embedded microcontroller interface (no PC connectivity), its digital control logic logs operational parameters—including elapsed time, set temperature, and active power level—for internal audit trail generation. All parameter changes are timestamped and retained in non-volatile memory for post-run review. Optional external data loggers (e.g., certified thermocouple arrays + USB DAQ systems) may be integrated to capture real-time bath temperature profiles during thermal validation studies. The unit’s deterministic behavior—validated per IEC 60601-1-11 for ancillary lab equipment—supports inclusion in computerized system validation (CSV) frameworks where manual entry into LIMS or ELN systems is required.

Applications

• Cleaning HPLC/GC autosampler vials, syringe filters, and column frits prior to chromatographic analysis
• Preparation of TEM/SEM specimens by removing carbon contamination and polishing debris
• Decontamination of reusable surgical instruments in research animal facilities (per AVMA guidelines)
• Removal of photoresist residues and etch byproducts from photomasks and wafer carriers
• Restoration of antique optical components and museum-grade instrumentation without surface alteration
• Validation of cleaning efficacy per ISO 15883-5 for heat-sensitive reusable medical devices

FAQ

Does the M8800H-C support remote monitoring or Ethernet connectivity?
No—this model features a standalone digital interface optimized for local operation and regulatory simplicity. For networked environments, Branson offers the CPX series with RS-232/USB and optional Ethernet modules.
What is the recommended maintenance interval for transducer performance verification?
Branson recommends annual verification using calibrated hydrophone measurements per ASTM E1000, or quarterly visual inspection of tank weld integrity and lid seal condition.
Can deionized water alone be used without detergent additives?
Yes—cavitation occurs in pure water, though addition of low-foaming, non-ionic surfactants (e.g., Branson EC, pH 7–9) enhances removal of hydrophobic organics per ASTM F3127.
Is the heating function programmable independently of ultrasonication?
Yes—users may activate heating-only mode for pre-warming baths or post-clean drying cycles without ultrasonic activation.
How does the unit handle cold-start conditions below 10 °C ambient temperature?
The control system performs automatic warm-up stabilization before enabling full-power output, ensuring transducer impedance matching remains within ±5% tolerance across 5–40 °C ambient ranges.
