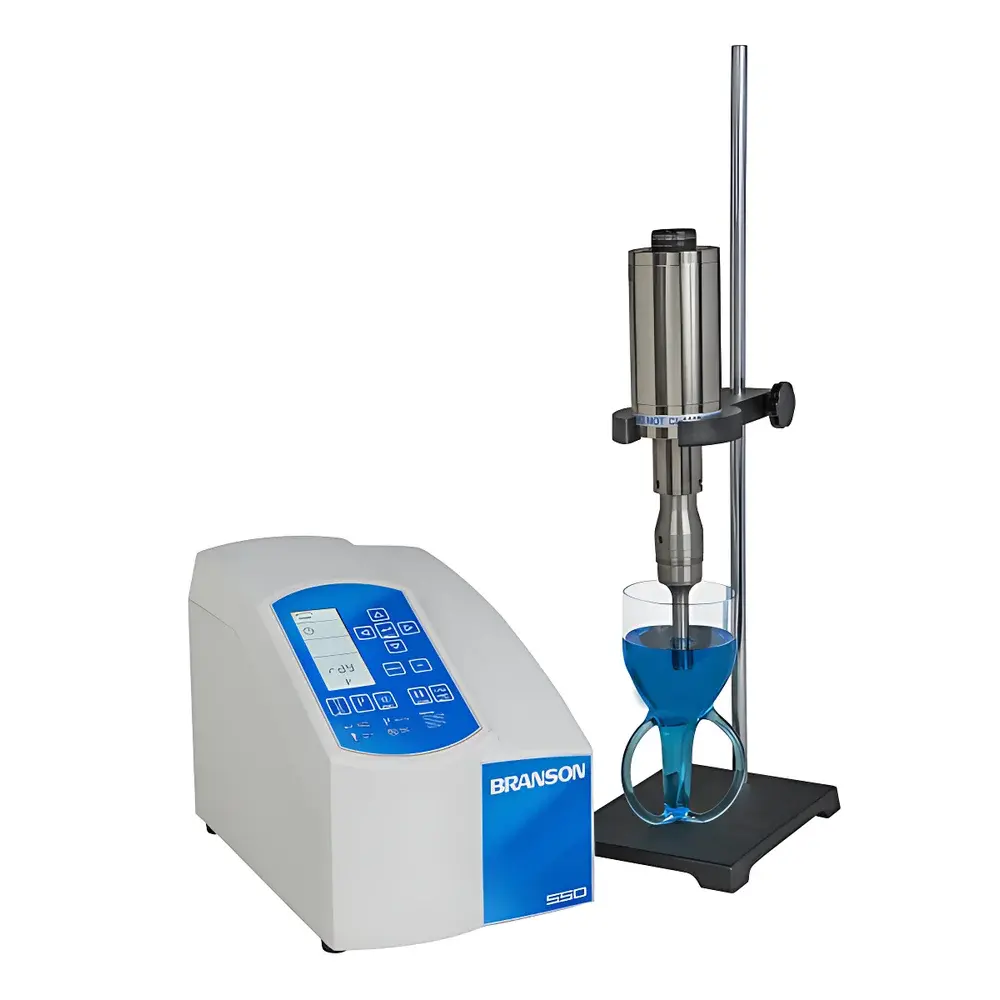

Branson Sonifier SFX550 Ultrasonic Cell Disruptor

Overview

The Branson Sonifier SFX550 is a precision-engineered ultrasonic cell disruptor designed for reproducible, controllable lysis of biological samples in research and quality control laboratories. Based on piezoelectric transduction at a fixed resonant frequency of 20 kHz, the instrument generates high-intensity acoustic cavitation within liquid media—inducing localized shear forces, microstreaming, and transient hot spots that effectively disrupt cellular membranes, organelles, and inclusion bodies without compromising macromolecular integrity. Unlike thermal or mechanical homogenization methods, ultrasonic disruption delivers rapid, scalable, and chemically non-invasive sample preparation suitable for downstream applications including protein extraction, nucleic acid isolation, nanoparticle dispersion, and subcellular fractionation. The SFX550 integrates a high-efficiency vertical-mount transducer with titanium alloy probe technology (7–4 Ti), ensuring minimal heat generation during operation and eliminating the need for external coolant circulation under standard duty cycles.

Key Features

• Digital amplitude control (10–100% in 1% increments) enabling precise energy delivery across diverse sample viscosities and compositions
• Three operational modes: Time-controlled, Energy-controlled (1–999,999 J), and Intelligent Temperature-controlled (requires optional temperature probe)
• Real-time monitoring of output power, cumulative energy, elapsed time, and sample temperature (when equipped)
• Programmable workflow memory supporting up to 20 user-defined protocols with parameter recall and audit-ready execution logs
• Sub-millisecond pulse resolution (minimum pulse duration: 0.01 s) for fine-tuned duty cycle management and thermal mitigation
• Dedicated low-amplitude mode for microprobe applications (e.g., 3 mm probes), extending probe service life and minimizing sample foaming
• Intuitive membrane keypad interface with backlit LCD display—designed for glove-compatible operation and GLP-compliant documentation
• Integrated safety interlocks, automatic over-temperature/overload shutdown, and CE/UL-listed electrical architecture

Sample Compatibility & Compliance

The SFX550 accommodates volumes from 200 µL (microcentrifuge tubes) to 1000 mL (beakers or jacketed vessels), compatible with aqueous buffers, organic solvents (e.g., ethanol, chloroform), and viscous lysates containing glycerol or sucrose. Standard probe configurations include 13 mm (1/2″) and 19 mm (3/4″) tapered titanium horns; optional accessories include cup horns, multi-probe adapters, and acoustic isolation chambers meeting ISO 10816-3 vibration emission standards. The system complies with IEC 61000-6-3 (EMC emissions), IEC 61000-6-2 (immunity), and UL 61010-1 for laboratory equipment safety. When configured with timestamped protocol logging and user-access controls, it supports alignment with FDA 21 CFR Part 11 requirements for electronic records and signatures in regulated environments.

Software & Data Management

While the SFX550 operates as a standalone benchtop instrument, its embedded firmware supports traceable data capture—including start/stop timestamps, energy delivered (J), peak power (W), average amplitude (%), and real-time temperature (°C). All 20 stored protocols retain full parameter sets (mode, duration, amplitude, pulse interval, ramp settings) and can be exported via USB flash drive in CSV format for integration into LIMS or ELN systems. Optional Branson Insight™ PC software (sold separately) enables remote parameter configuration, batch report generation, and trend analysis across multiple instruments—facilitating SOP adherence and cross-laboratory method transfer per ISO/IEC 17025 guidelines.

Applications

• Cell lysis for recombinant protein purification (E. coli, yeast, mammalian suspension cultures)
• Chromatin shearing in ChIP-seq and ATAC-seq library preparation
• Disruption of Gram-positive bacteria and fungal cell walls
• Nanoparticle deagglomeration and uniform dispersion in colloidal formulations
• Preparation of subcellular fractions (mitochondria, nuclei, microsomes) with minimal proteolytic activation
• Homogenization of tissue biopsies and plant extracts for metabolomics profiling
• Emulsification of lipid-based drug delivery systems (e.g., liposomes, nanoemulsions)

FAQ

Is the SFX550 compliant with Good Laboratory Practice (GLP) documentation requirements?
Yes—when used with enabled protocol logging and user authentication features, the instrument supports ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate) required under GLP and GMP frameworks.
Can the SFX550 be integrated into automated liquid handling workflows?
It does not feature native robotic interface ports (e.g., RS-232, Ethernet), but analog trigger inputs allow basic start/stop synchronization with third-party automation platforms using TTL-level signals.
What maintenance is required for the titanium probe?
Probes should be inspected visually before each use for pitting or erosion; cleaning with mild detergent and sonication in distilled water is recommended—avoid abrasive scrubbing or autoclaving.
Does the SFX550 require external cooling during extended runs?
No—its high-efficiency transducer design minimizes self-heating; however, for >5-minute continuous operation above 70% amplitude, use of an ice-water bath or recirculating chiller is advised to maintain sample integrity.
Are calibration certificates available for regulatory submissions?
Factory calibration reports (traceable to NIST standards) are provided with each unit; annual recalibration services are offered through Branson-certified service centers globally.
