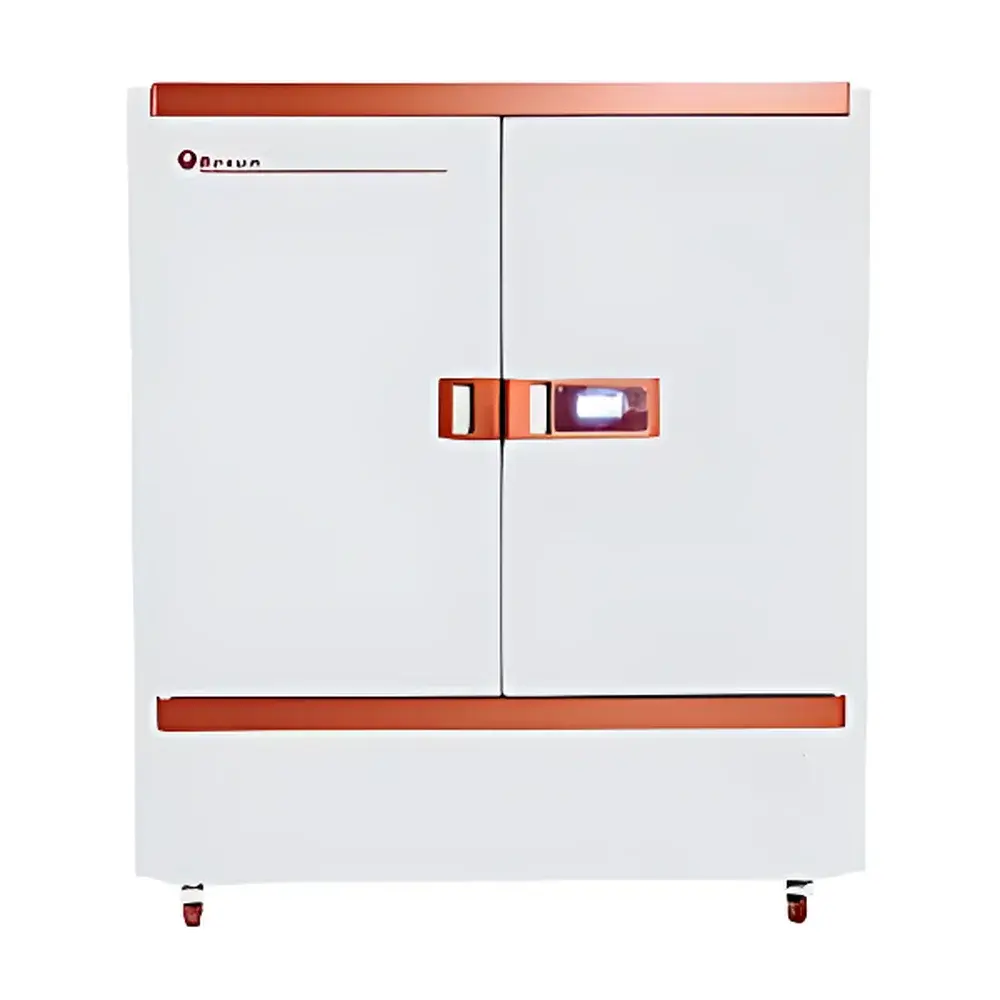

Brookfield BXY-1000 Pharmaceutical Stability Testing Chamber

Overview

The Brookfield BXY-1000 Pharmaceutical Stability Testing Chamber is a precision-engineered environmental simulation system designed to meet the stringent requirements of ICH Q1–Q5 guidelines for drug stability assessment. It operates on a dual-control principle—simultaneously regulating temperature, relative humidity, and optional light exposure—to replicate defined storage conditions required for accelerated, intermediate, long-term, and stress testing protocols. The chamber employs a high-efficiency variable-frequency refrigeration system coupled with a C.H. (Circulating Heat) thermal recovery architecture, enabling rapid stabilization after door openings and minimizing thermal overshoot during setpoint transitions. Its robust stainless-steel inner chamber, double-glazed observation door, and sealed insulation structure ensure long-term operational integrity under continuous 24/7 operation—critical for studies spanning months or years.

Key Features

• 4.3-inch TFT LCD touchscreen interface with 16-bit true-color display and Windows CE-based embedded OS, supporting intuitive navigation and multi-level password protection (including screen lock and parameter edit lock)
• Fuzzy PID control algorithm with programmable 30-segment, 99-cycle scheduling—each segment configurable for duration (1–9999 h), target temperature (0–70 °C), and humidity (30–95 %RH)
• Imported energy-efficient hermetic compressor, high-static-pressure centrifugal fan, and capacitive polymer humidity sensor (±2 %RH accuracy) for stable, low-drift environmental control
• Onboard data logging capacity of 250,000 timestamped entries (temperature, humidity, alarms, operator actions); real-time access to latest 1600 records via display
• Comprehensive safety architecture: independent over-temperature cutoff, door-open detection, low-water-level alarm, sensor fault diagnostics, and automatic shutdown on critical failure
• Dual communication interfaces (USB 2.0 and RS485) for local data export and integration into centralized lab management systems; supports Modbus RTU protocol
• Standard mechanical door lock and embedded thermal printer for immediate hard-copy reporting of current status or event logs

Sample Compatibility & Compliance

The BXY-1000 accommodates diverse pharmaceutical sample formats—including blister packs, vials, syringes, sachets, and bulk powders—across up to 16 adjustable stainless-steel shelves (standard: 8). Its internal airflow design ensures uniform distribution without turbulence-induced desiccation or condensation artifacts. The chamber conforms to key regulatory frameworks: it supports execution of ICH Q1A(R2), Q1B, Q5C stability protocols; its data integrity features align with FDA 21 CFR Part 11 requirements when used with validated FDA/GMP monitoring software; and full 3Q (IQ/OQ/PQ) documentation packages—including traceable calibration certificates for temperature (0 °C, 60 °C, 121 °C) and humidity (15 °C/40 %RH, 20 °C/60 %RH, 30 °C/80 %RH)—are available upon request to satisfy GMP audit readiness.

Software & Data Management

Data export is performed directly via USB—capturing both environmental time-series records and instrument event logs (power-on/off, parameter changes, alarm triggers) with ISO 8601 timestamps. Optional FDA- or GMP-compliant remote monitoring software enables centralized supervision across multiple chambers, role-based user access control, electronic signatures, and automated report generation in PDF or CSV format. Wireless temperature/humidity data loggers (optional) provide independent verification for mapping studies and can be calibrated per ISO/IEC 17025-accredited procedures. All logged data retain full audit trail functionality, including user ID, action type, and timestamp—essential for GLP and GMP compliance.

Applications

The BXY-1000 serves as a core platform for stability-indicating studies mandated by global health authorities, including shelf-life determination, excipient compatibility screening, packaging integrity evaluation under climatic stress, and photostability testing (when equipped with UV/visible light modules). It is widely deployed in QC laboratories of API manufacturers, formulation development units, contract research organizations (CROs), and regulatory submission support teams. Its reproducible performance across extended durations supports submissions to EMA, PMDA, Health Canada, and WHO prequalification programs.

FAQ

Does the BXY-1000 comply with ICH Q1 guidelines for long-term stability testing?

Yes—the chamber maintains specified temperature and humidity tolerances per ICH Q1A(R2) Annexes, with documented uniformity and fluctuation performance validated at standard test points.
Can the system generate 21 CFR Part 11–compliant electronic records?

When paired with the optional FDA edition monitoring software and configured with audit trail, electronic signature, and permission controls, it meets core Part 11 requirements for record retention and integrity.
Is third-party calibration and qualification support available?

Yes—Brookfield-certified service engineers provide on-site IQ/OQ execution, and accredited calibration certificates for temperature and humidity sensors are supplied with optional wireless loggers.
What is the maximum shelf load capacity and weight rating per shelf?

Each stainless-steel shelf supports up to 15 kg uniformly distributed; total payload capacity is 240 kg across 16 shelves.
How does the C.H. Circulating Heat system improve energy efficiency?

By recapturing and redistributing residual heat from the refrigeration cycle and chamber walls, the C.H. system reduces reheating demand during temperature recovery, lowering average power consumption by up to 18% compared to conventional designs.
