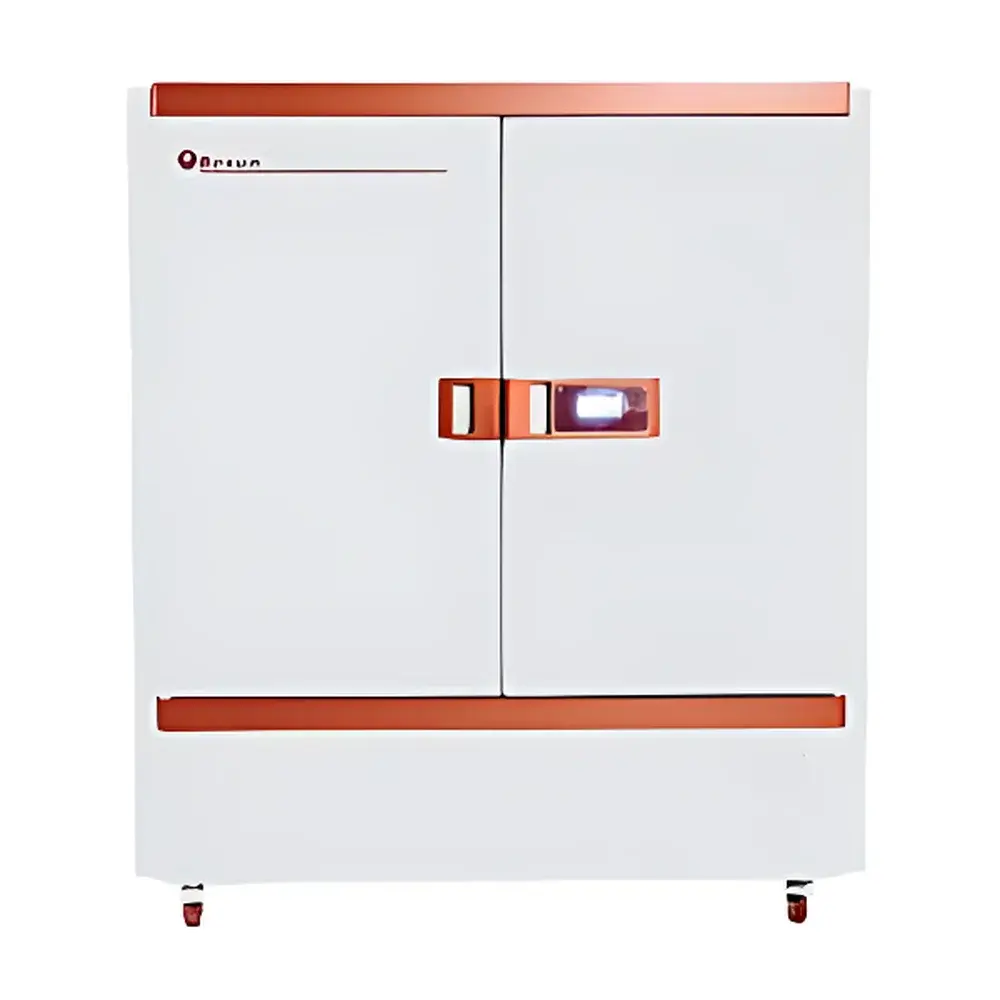

Brookfield BXY-1600 Pharmaceutical Stability Testing Chamber

Overview

The Brookfield BXY-1600 Pharmaceutical Stability Testing Chamber is an ISO 14644-1 and ICH Q1-compliant environmental simulation system engineered for long-term, accelerated, and stress-condition stability studies of pharmaceutical products in accordance with ICH guidelines (Q1A–Q1E), USP , and WHO TRS 953 Annex 2. It provides precise, reproducible control of temperature (0–70 °C), relative humidity (30–95 %RH), and optional photostability conditions—enabling regulatory-grade storage, real-time aging, and forced degradation testing under GLP- and GMP-aligned operational frameworks. Its dual-chamber thermal architecture, combined with the proprietary C.H. (Circulating Heat) recirculation system, minimizes thermal inertia and improves energy efficiency by recovering residual heat from the condenser and redistributing it during heating phases. The unit operates on a deterministic Windows CE-based embedded platform, supporting audit-trail-enabled parameter logging, event-driven alarms, and time-stamped data integrity—all critical for 21 CFR Part 11 compliance when paired with optional FDA/GMP monitoring software.

Key Features

• Fuzzy PID control algorithm with 30-segment, 99-cycle programmability—each segment configurable for duration (1–9999 h), setpoint ramping, and hold conditions.
• 4.3-inch TFT 16-bit true-color LCD touchscreen interface with password-protected screen lock and customizable user access levels.
• Variable-frequency refrigeration system enabling rapid recovery (<15 min) of temperature and humidity setpoints after door opening.
• Imported high-efficiency scroll compressor, low-noise centrifugal fan, and capacitive humidity sensor (±2 %RH accuracy over 30–95 %RH range).
• Onboard data logger storing up to 250,000 timestamped records; real-time display of latest 1600 entries including T/RH, alarm status, and operational events.
• Dual-interface connectivity: USB port for direct data export (CSV/Excel-compatible) and RS485 for integration into centralized lab management systems (LIMS/SCADA).
• Mechanical door lock + electromagnetic interlock preventing unauthorized access; integrated thermal printer for immediate hard-copy reporting of chamber status and alarms.
• Comprehensive fault detection: over-temperature cutoff, door-open alert, low-water warning, humidity sensor failure diagnostics, and automatic shutdown with persistent log entry.

Sample Compatibility & Compliance

The BXY-1600 accommodates diverse sample formats—including vials, blister packs, syringes, ampoules, and bulk powder containers—across eight standard stainless-steel shelves (expandable to sixteen). Its internal chamber (1363 × 800 × 1500 mm) meets ICH Q5C recommendations for airflow uniformity and spatial gradient control. All materials in contact with the test environment comply with USP Class VI biocompatibility standards. The system supports full qualification per ASTM E2500 and ISPE GAMP5 principles, with optional IQ/OQ/PQ documentation packages—including calibrated reference points at 0 °C, 60 °C, and 121 °C for temperature, and triple-point RH validation (15 °C/40 %RH, 20 °C/60 %RH, 30 °C/80 %RH). Optional wireless temperature/humidity loggers include NIST-traceable calibration certificates and post-processing software compatible with CSV, PDF, and XML export for regulatory submission.

Software & Data Management

The embedded operating system logs all operational parameters—including setpoints, actual readings, alarm triggers, menu modifications, and power cycles—with microsecond-level timestamps. Data exports via USB retain full metadata (operator ID, event type, severity level, and root cause code). When configured with the optional FDA Edition monitoring software, the system delivers electronic signatures, role-based permissions, automated backup, and 21 CFR Part 11–compliant audit trails—including immutable record retention, change history, and reason-for-change fields. GMP Edition software adds batch-specific reporting templates aligned with Annex 11 requirements and integrates seamlessly with enterprise LIMS platforms via OPC UA or HL7 protocols.

Applications

• ICH Q1A(R2) accelerated stability testing (40 °C/75 %RH, 30 °C/65 %RH)
• Long-term real-time storage (25 °C/60 %RH, 30 °C/65 %RH)
• Intermediate condition assessment per Q1B
• Photostability screening (optional UV/visible light modules)
• Forced degradation studies under elevated T/RH stress
• Excipient compatibility testing and formulation robustness evaluation
• Reference standard storage under controlled ambient conditions
• QC release testing environment simulation for shelf-life assignment

FAQ

Does the BXY-1600 meet ICH Q1 requirements for stability testing?
Yes—the chamber’s temperature uniformity (±2 °C), humidity stability (±5 %RH), and programmable multi-segment profiles fully support ICH Q1A–Q1E protocols.
Can the system be validated for GMP environments?
Yes—optional IQ/OQ/PQ documentation, traceable calibration certificates, and FDA/GMP monitoring software enable full compliance with EU Annex 15 and FDA guidance on computerized system validation.
Is remote monitoring supported out of the box?
Standard RS485 enables local network integration; GPRS SMS alert module and cloud-ready monitoring software are available as factory-installed options.
What data security measures are implemented?
All logged data includes cryptographic time stamps; USB exports preserve SHA-256 checksums; optional software enforces AES-256 encryption for stored and transmitted records.
Are third-party temperature/humidity loggers compatible?
Yes—the RS485 interface supports Modbus RTU protocol, allowing interoperability with validated wireless loggers from Vaisala, Omega, or ELPRO when configured per 21 CFR Part 11 Annex A.
