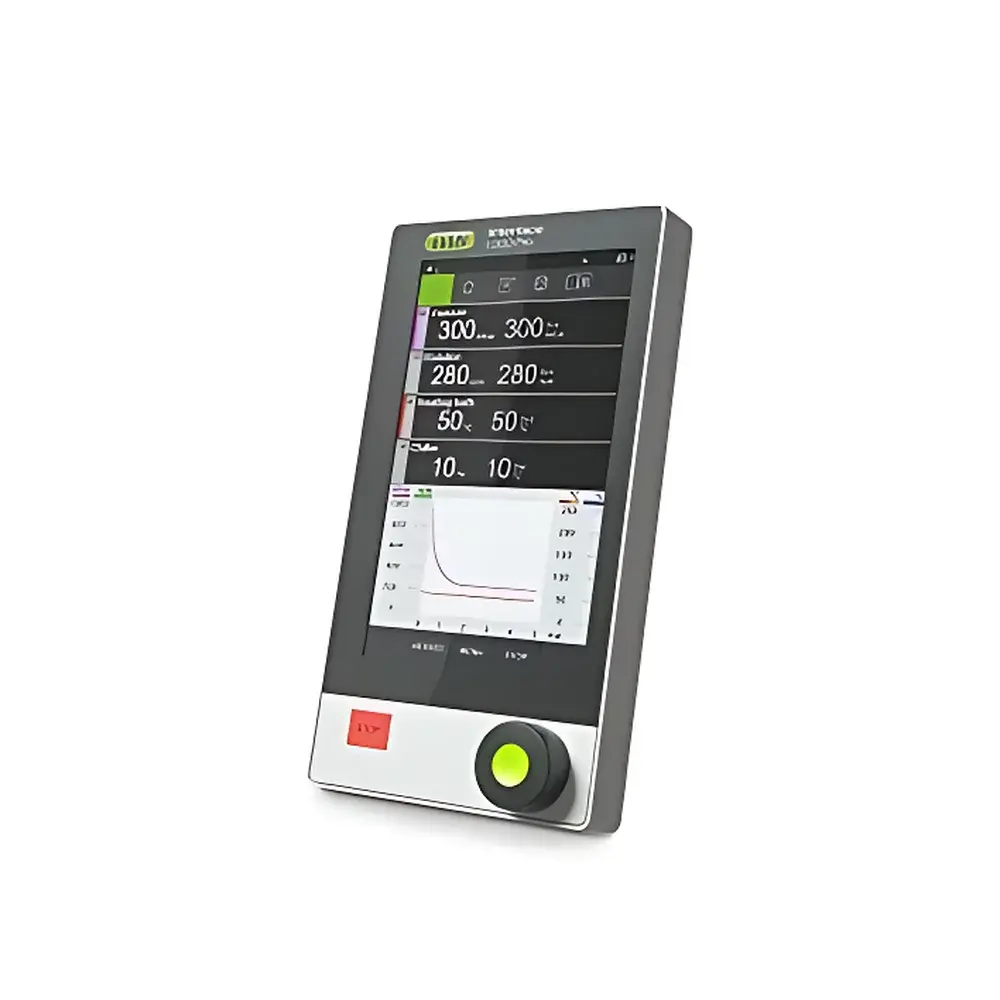

BUCHI I-300 Pro Vacuum Control Interface

Overview

The BUCHI I-300 Pro Vacuum Control Interface is a dedicated central process management unit engineered for full integration with the Rotavapor® R-300 rotary evaporation system. Unlike standalone vacuum gauges, the I-300 Pro functions as an intelligent, real-time control hub—orchestrating pressure, temperature (bath, coolant, vapor), rotation speed, and system coordination across vacuum pumps, condensers, heating baths, and optional accessories. Its capacitive ceramic (alumina-based) sensor enables absolute pressure measurement with high long-term stability and zero drift, operating over a full range of 1400–0 mbar (hPa), with active control spanning 1100–1 mbar. Designed for precision solvent recovery, concentration, and lyophilization-adjacent drying workflows, the interface supports both manual operation and fully automated sequences governed by predefined or user-customized methods—making it suitable for regulated environments where traceability, repeatability, and audit readiness are critical.

Key Features

• 7.0-inch high-contrast TFT touchscreen with intuitive icon-driven navigation and four dedicated function keys for rapid access to stop, pause, mode selection, and emergency venting (P↑)
• Dynamic distillation logic: Initiates controlled vacuum ramping even before bath or coolant reach setpoints—enabling faster process start-up while maintaining solvent integrity
• Integrated method library with 43 preloaded solvents (supporting 11 languages); users may extend the database with custom entries including boiling point, vapor pressure curves, and safety thresholds
• Drying mode with programmable bidirectional rotation reversal at defined intervals—optimized for uniform moisture removal from crystalline or viscous solids
• ECO mode automatically deactivates heating bath and chiller after configurable idle time, reducing energy consumption without compromising process continuity
• Overpressure protection: Automatic venting when system pressure exceeds 1400 mbar safeguards glassware, seals, and pump integrity
• Real-time graphical display of pressure, temperature, rotation, and status icons for peripheral devices (vacuum pump, chiller, foam sensor, valve position)
• Remote monitoring and control via BUCHI’s official Rotavapor App (iOS, Android, Windows), delivering push notifications for process events (start/stop/emergency abort) and live parameter streaming

Sample Compatibility & Compliance

The I-300 Pro interfaces exclusively with BUCHI’s R-300 platform and compatible peripherals—including V-800/V-810 vacuum pumps, F-305/F-315 chillers, and optional foam sensors (F-340). Its GL14 vacuum port ensures standardized mechanical coupling with BUCHI glassware and vacuum lines. From a regulatory perspective, the interface supports Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP)-aligned workflows through timestamped, exportable process logs stored on removable SD cards. All data records include metadata such as operator ID (if configured), method name, start/stop timestamps, and deviations—facilitating compliance with FDA 21 CFR Part 11 requirements when deployed in validated environments. CE and CSA certifications confirm electromagnetic compatibility and electrical safety per EN 61326-1 and UL 61010-1 standards.

Software & Data Management

Process data—including pressure, temperature, rotation speed, valve states, and alarm events—are continuously logged at user-selectable intervals (default: 1 second) and archived in CSV format on the internal 1 GB SD card. Logs are structured for direct import into LIMS or statistical analysis platforms (e.g., JMP, MATLAB, Python pandas). The Rotavapor App provides synchronized cloud-free local viewing, enabling off-instrument review without proprietary software dependencies. Firmware updates are delivered via SD card or USB-to-Ethernet gateway (optional), ensuring version control and change documentation. Audit trails capture all parameter modifications, method selections, and manual interventions—supporting root-cause analysis during investigations or regulatory inspections.

Applications

• High-yield solvent removal under optimized vacuum profiles for natural product extraction and API purification
• Thermally sensitive compound concentration using dynamic pressure ramping to prevent bumping or decomposition
• Controlled drying of amorphous powders, polymers, or catalysts via timed rotation reversal and staged vacuum release
• Method development and transfer across laboratories using reproducible, parameter-locked protocols
• Training and operational standardization through guided method setup with contextual prompts and validation checkpoints
• Unattended overnight runs enabled by AutoDest sensor integration and foam detection—minimizing operator presence while maximizing throughput

FAQ

Is the I-300 Pro compatible with non-BUCHI rotary evaporators?
No. It is engineered exclusively for seamless hardware and protocol-level integration with the Rotavapor R-300 platform and certified BUCHI peripherals.
Can pressure data be exported in real time to a SCADA or LabVIEW system?
Yes—via Modbus TCP/IP (optional Ethernet module) or analog 0–10 V output (with external DAQ), supporting third-party automation frameworks.
Does the I-300 Pro support multi-user authentication or role-based access control?
Not natively; however, method locking and SD card-based log segregation enable procedural accountability in shared-lab settings.
What is the recalibration interval for the capacitive pressure sensor?
BUCHI recommends annual verification against a NIST-traceable reference standard; field zeroing is supported via built-in calibration routine.
How does the foam detection feature integrate with the I-300 Pro’s control logic?
When paired with the F-340 foam sensor, the interface triggers immediate inert gas injection (via solenoid valve) and pauses vacuum draw—resuming only after foam subsides and user confirmation or timeout expiration.
