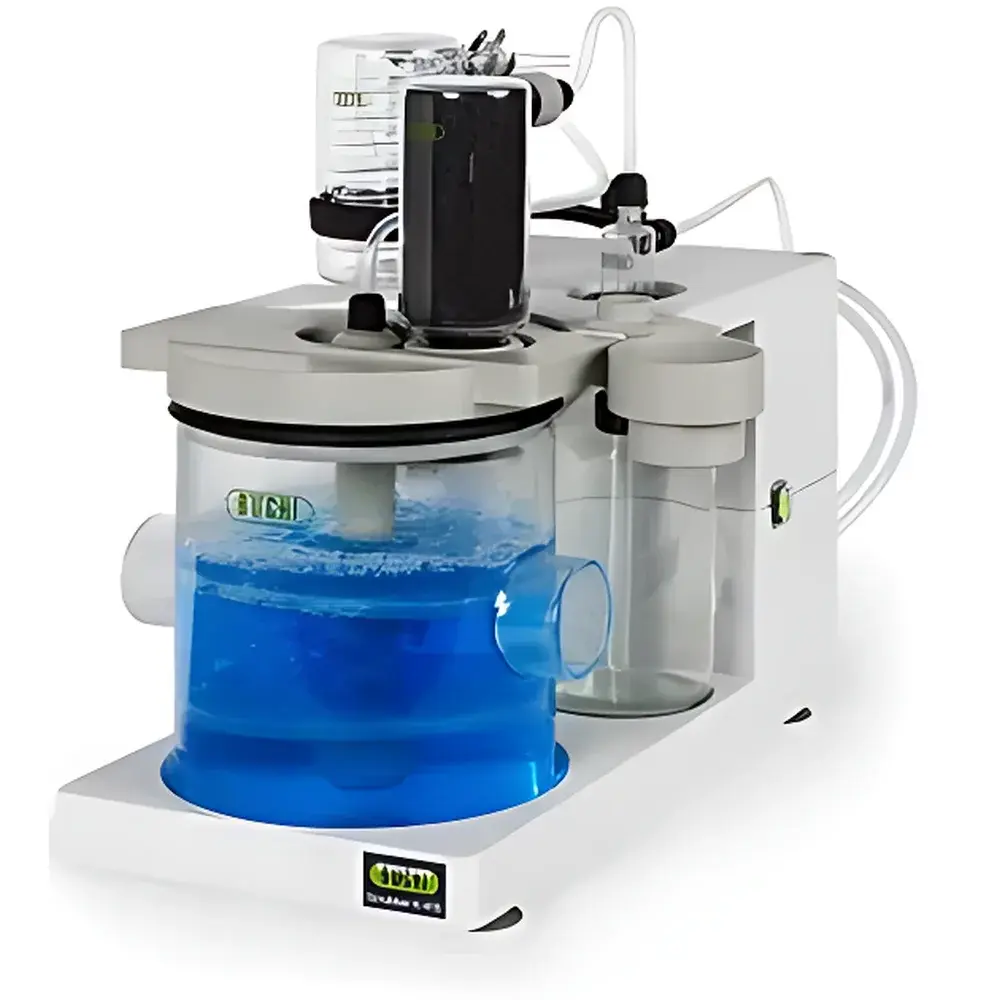

BUCHI K-415 Exhaust Gas Scrubber
| Brand | BUCHI |
|---|---|
| Origin | Switzerland |
| Manufacturer | BUCHI AG |
| Type | Imported |
| Model | K-415 |
| Pricing | Available Upon Request |
Overview
The BUCHI K-415 Exhaust Gas Scrubber is an engineered, multi-stage wet scrubbing system designed for safe and efficient treatment of hazardous off-gases generated during laboratory digestion, distillation, and digestion-based elemental analysis—particularly in Kjeldahl nitrogen determination, heavy metal digestion, and acid reflux applications. Operating on the principle of counter-current gas–liquid contact, the K-415 integrates four sequential purification stages: (1) pre-condensation of vapors, (2) acid/base neutralization via chemically tailored scrubbing solutions, (3) adsorption of residual organic or inorganic compounds using high-surface-area media, and (4) redox treatment for reactive or recalcitrant species such as NOx, Cl2, or H2S. Unlike single-stage scrubbers, the K-415’s modular cascade architecture ensures >99% removal efficiency for common process gases—including HCl, HNO3, HF, SO2, NH3, and formaldehyde—while minimizing reagent consumption and wastewater volume through intelligent flow management and thermal recovery.
Key Features
- Four-stage purification sequence: condensation → neutralization → adsorption → redox, each stage independently optimized for chemical specificity and residence time
- Integrated ECO module with automatic cooling water control—reduces water consumption by up to 70% compared to conventional continuous-flow scrubbers
- Full digital integration with BUCHI digestion systems (e.g., K-435, K-439): enables synchronized start/stop, real-time status feedback, and automated reagent dosing based on digestion cycle parameters
- Vortex disc technology in Stage 2 enhances gas–liquid interfacial area by >400%, ensuring rapid and stoichiometric neutralization even under variable gas flow rates (10–60 L/min)
- Corrosion-resistant construction: all wetted parts fabricated from PTFE-lined stainless steel (AISI 316L), borosilicate glass, and EPDM-free fluoropolymer seals compliant with DIN 12878 and ASTM D1193 Type II water specifications
- Adjustable vacuum draw (5–45 mbar) with integrated pressure monitoring and automatic flow compensation to maintain consistent gas residence time across operating conditions
Sample Compatibility & Compliance
The K-415 is validated for use with aqueous and acidic digestates (H2SO4, HNO3, HClO4, HF mixtures), alkaline digestions (NaOH/KOH fusion), and volatile organic matrices (e.g., phenol-formaldehyde resins, chlorinated solvents). It meets ISO 17025:2017 requirements for ancillary equipment used in accredited testing laboratories and supports GLP/GMP workflows through audit-ready operational logs. When paired with BUCHI’s Kjeldahl systems, it fulfills USP , AOAC 984.27, and EPA Method 351.2 criteria for total Kjeldahl nitrogen (TKN) analysis, where complete vapor-phase water absorption and ammonia retention are critical for quantitative accuracy. All scrubber configurations comply with EN 14175-3 (fume hood performance) and OSHA 1910.1200 (Hazard Communication Standard) for operator exposure control.
Software & Data Management
The K-415 operates as a standalone unit or as a networked node within BUCHI’s LabX® software platform. LabX provides centralized configuration, remote diagnostics, and electronic record generation—including timestamped event logs (start/stop, reagent level alerts, pressure deviations), digital signatures per 21 CFR Part 11, and exportable CSV reports for regulatory submissions. Each scrubbing cycle generates a unique ID-linked data package containing inlet/outlet gas composition estimates (calculated from flow, temperature, and solution pH trends), cumulative water usage, and neutralization efficiency metrics derived from conductivity and titrimetric endpoint tracking. No local data storage is performed; all records are encrypted and transmitted over TLS 1.2–secured connections.
Applications
- Total Kjeldahl Nitrogen (TKN) analysis—complete capture of NH3(g) and H2O(g) during steam distillation without condensate loss
- Heavy metal digestion (Cd, Pb, As, Cr) in environmental soil and sludge samples per EPA SW-846 Methods 3050B/3051A
- Phosphorus determination via perchloric acid digestion with ClO2 and Cl2 abatement
- Organic matrix destruction in pharmaceutical excipients and polymer additives under cGMP-controlled environments
- HF-based etching and silicate dissolution in geological sample preparation, with fluoride ion containment and CaF2 precipitation control
FAQ
What types of scrubbing solutions are compatible with the K-415?
Standard configurations support 2–4% NaOH (for acidic gases), 5% H2SO4 (for basic gases like NH3), and 3% KMnO4/H2SO4 (for redox-active species); custom solutions may be validated upon request.
Can the K-415 be used with non-BUCHI digestion instruments?
Yes—via analog 0–10 V or digital Modbus RTU interface; however, full automation (e.g., cycle-synchronized reagent dosing) requires native LabX integration.
How often must scrubbing solutions be replaced?
Replacement frequency depends on sample load and matrix; typical service intervals range from 8–40 digestion cycles, monitored automatically via pH/conductivity drift thresholds.
Is the K-415 certified for use in explosion-hazard areas?
No—the unit is rated for general laboratory use (IEC 61010-1, Class I, Pollution Degree 2); ATEX or UL-classified variants are not available.
Does the system require external ventilation or ducting?
Yes—a dedicated exhaust line to a central fume hood or external stack is mandatory; the K-415 does not include final atmospheric discharge hardware.
