Buehler ISOMET 5000 Automated Linear Precision Cutting System

Overview

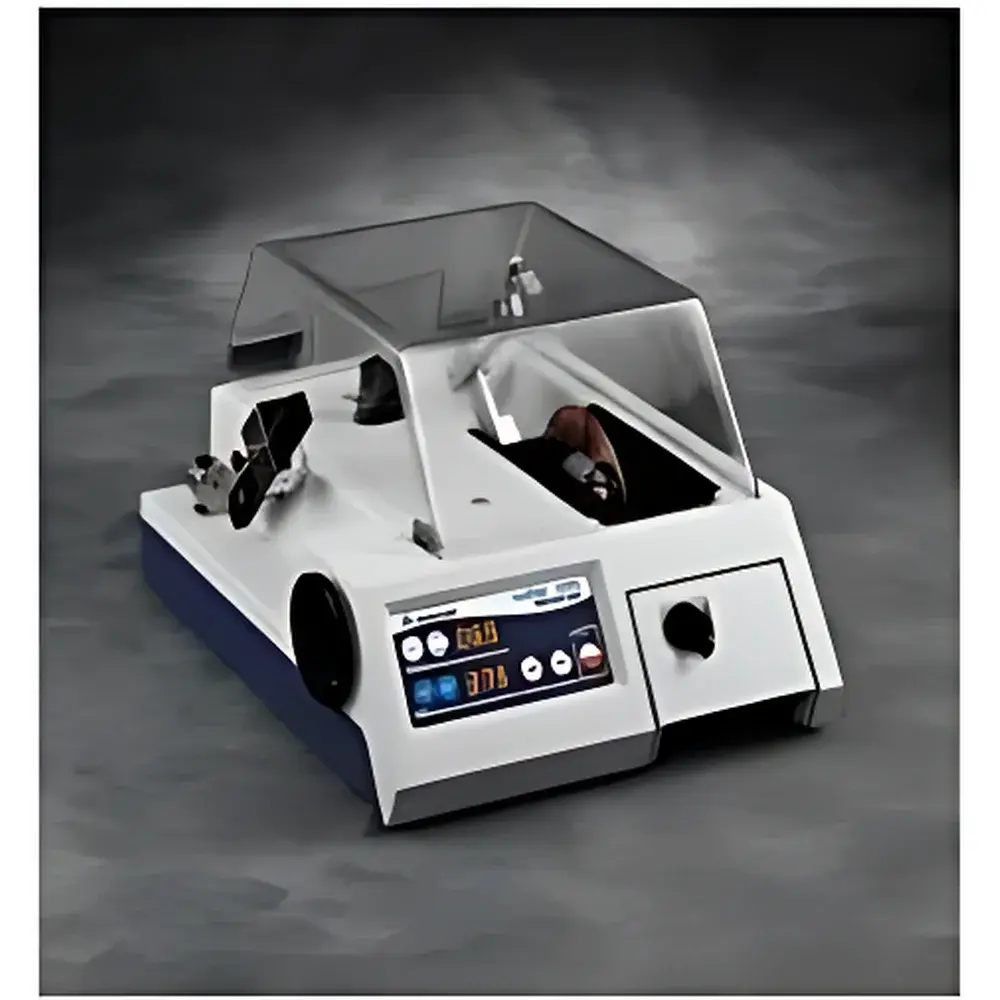

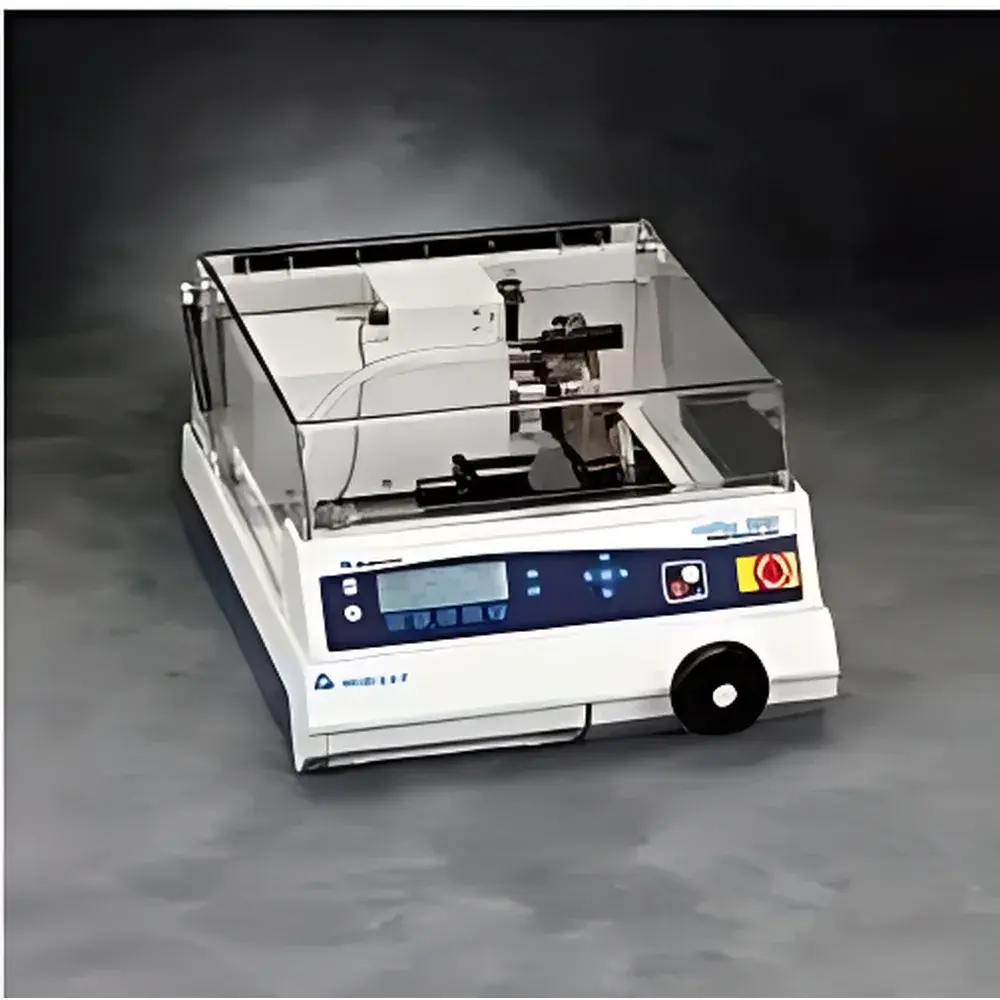

The Buehler ISOMET 5000 is an automated linear precision cutting system engineered for reproducible, high-fidelity sectioning of hard and brittle materials in metallurgical, geological, electronic, and advanced materials laboratories. It operates on a linear motion principle—distinct from rotary or pendulum-based cutters—delivering consistent blade engagement angle and feed rate across the entire cut path. This architecture minimizes thermal distortion, micro-cracking, and edge chipping, particularly critical when preparing samples for subsequent polishing, SEM/EBSD analysis, or quantitative metallography. Designed and manufactured in the United States, the ISOMET 5000 meets rigorous engineering standards for mechanical stability, vibration damping, and long-term dimensional integrity—ensuring repeatable section thickness and planarity over thousands of cuts.

Key Features

• Linear motion control with servo-driven feed mechanism ensures constant blade-to-sample contact geometry and eliminates arc-induced taper or bowing.
• High-resolution sample positioning stage with ±2 µm repeatability enables precise registration for serial sectioning, serial block-face imaging, or multi-layer cross-sectional analysis.
• Variable-speed motor (200–5000 rpm) accommodates a broad spectrum of abrasive and diamond blades—from resin-bonded SiC wheels to sintered diamond segments—optimized for aluminum alloys, ceramics, composites, PCBs, and hardened steels.
• Closed-loop recirculating coolant system maintains stable temperature at the cut interface, suppresses dust generation, and extends blade life while complying with OSHA and ISO 8502-3 particulate exposure guidelines.
• Twenty-five programmable operation profiles store speed, feed rate, stroke depth, dwell time, and coolant activation logic—supporting standardized workflows under GLP, ISO/IEC 17025, or internal QA protocols.
• Integrated safety interlocks include door position sensing, emergency stop circuitry compliant with IEC 60204-1, and automatic blade brake engagement upon cycle completion.

Sample Compatibility & Compliance

The ISOMET 5000 accepts specimens up to 150 mm in length, 50 mm in width, and 13 mm in height—or cylindrical samples up to Ø50 mm—making it suitable for standard metallographic mounts, as-cast ingots, additively manufactured tensile coupons, and encapsulated geological cores. Its rigid cast-iron base and reinforced gantry minimize deflection during high-force sectioning of tungsten carbide or silicon nitride. The system conforms to ASTM E3-22 (Standard Guide for Preparation of Metallographic Specimens), ISO 14487 (Microscopy — Preparation of Cross Sections), and supports traceability requirements under FDA 21 CFR Part 11 when paired with validated Buehler OmniMet software (audit trail, electronic signature, and user access controls).

Software & Data Management

Operation is managed via an intuitive touchscreen HMI with real-time feedback on motor load, coolant flow rate, and cycle progress. All 25 preset programs are editable offline and backed up via USB export. When integrated with Buehler’s OmniMet LIMS-ready platform, the ISOMET 5000 logs timestamped metadata—including operator ID, program name, blade serial number, cumulative cut count, and thermal history—for full chain-of-custody documentation. Raw positional data and cycle logs are exportable in CSV or XML format for integration into enterprise quality management systems (QMS) or statistical process control (SPC) dashboards.

Applications

• Precision sectioning of turbine blade coatings prior to FIB-SEM lamella preparation.
• Serial slicing of battery electrode stacks for cross-sectional porosity mapping.
• Controlled-depth cutting of ceramic matrix composites for interfacial bond strength evaluation.
• Routine sectioning of embedded PCBs for solder joint integrity assessment per IPC-A-610.
• Preparation of thin-section geologic samples meeting ASTM D3282 standards for petrographic analysis.
• High-reproducibility cuts for reference material certification in NIST-traceable calibration labs.

FAQ

What types of blades are compatible with the ISOMET 5000?

The system accepts standard arbor-mounted diamond and abrasive blades with diameters from 75 mm to 200 mm and arbor sizes of 12.7 mm or 20 mm.
Does the ISOMET 5000 support remote monitoring or network connectivity?

Yes—via optional Ethernet interface and Buehler’s OmniMet Connect module, enabling centralized fleet monitoring, predictive maintenance alerts, and firmware updates.
Can the ISOMET 5000 be used for low-speed precision cuts on soft polymers or biological tissues?

While optimized for hard materials, low-rpm operation (200–800 rpm) with fine-grit resin-bonded wheels enables controlled sectioning of cured epoxies, PMMA mounts, and mineralized tissue blocks—provided appropriate coolant formulation and feed rate are selected.
Is validation documentation available for GMP or regulated environments?

Buehler provides IQ/OQ documentation templates, installation qualification checklists, and performance verification protocols aligned with ASTM E2917 and ISO/IEC 17025 requirements.
What maintenance intervals are recommended for sustained accuracy?

Daily coolant level and filter inspection; bi-weekly guide rail lubrication; annual calibration of the positioning encoder and torque sensor by certified Buehler service engineers.
