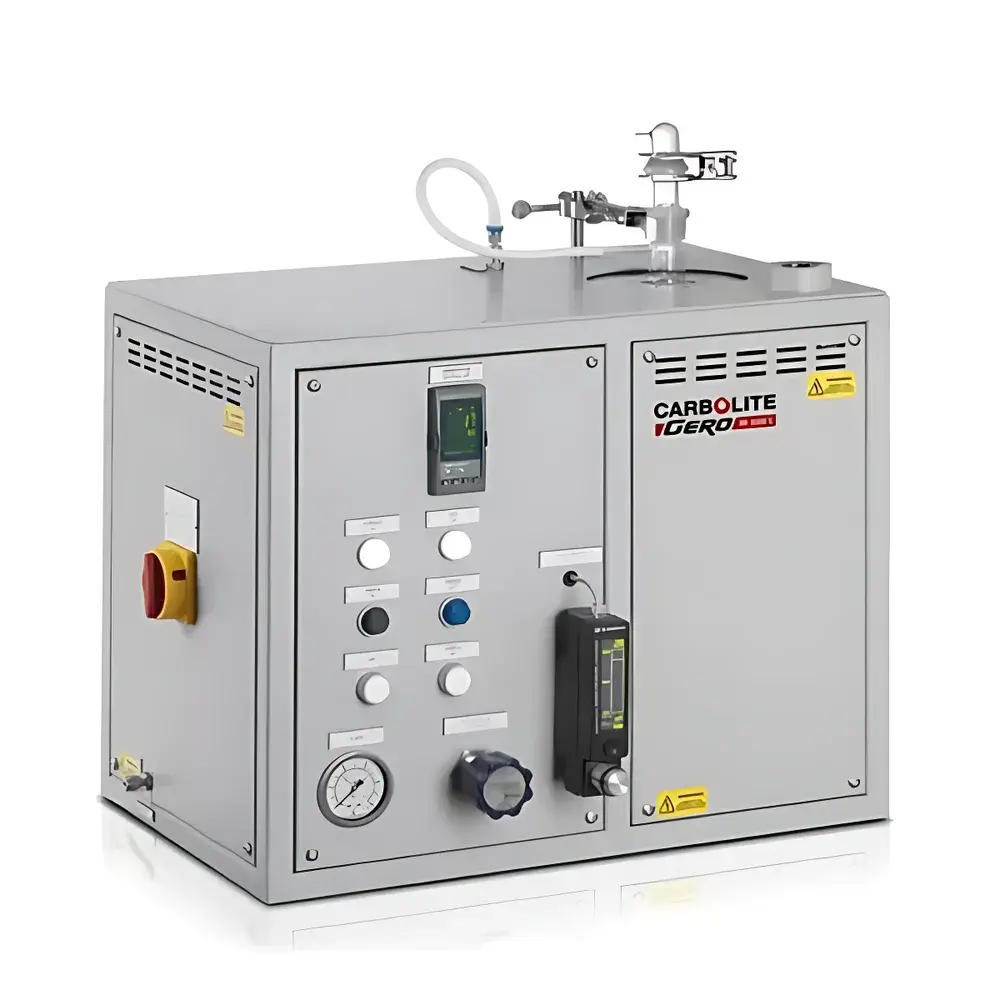

Carbolite Gero CRF/1 CO₂ Reactivity Testing Furnace

Overview

The Carbolite Gero CRF/1 CO₂ Reactivity Testing Furnace is a purpose-built, single-zone vertical tube furnace engineered for standardized determination of carbon reactivity to carbon dioxide — a critical quality parameter in the production of anode-grade calcined petroleum coke for aluminum electrolysis. It operates on the principle of controlled thermal oxidation under precisely regulated CO₂ atmosphere, quantifying mass loss via gravimetric analysis following the stoichiometric reaction: C + CO₂ → 2CO. This method directly correlates with anode consumption behavior in industrial Hall–Héroult cells. The CRF/1 complies fully with ISO 12981-1 and BS 6043-2.20.1, delivering traceable, reproducible results required for raw material certification and process qualification in carbon manufacturing facilities.

Key Features

• Single-zone heating architecture with 220 mm active heating length and exceptional vertical temperature uniformity (±1 °C at 1000 °C), validated per ASTM E220 and IEC 60584-2;
• Dual-quartz-tube reactor system: outer preheating tube directs CO₂ flow downward, then upward through the sample bed in the inner reaction tube — ensuring thermal equilibration prior to contact with the coke;
• Integrated high-accuracy mass flow controller calibrated for CO₂ at 50 L/h, supporting automated 100-minute exposure cycles without manual gas adjustment;
• Eurotherm 3508 digital temperature controller with programmable ramp/soak profiles, real-time data logging, and independent overtemperature cut-off circuit (Class 2 safety per EN 60519-2);
• Robust insulation using high-purity ceramic fiber modules, minimizing thermal inertia and enabling stable 1000 °C operation at only 1000 W input power;
• Acoustic alert system triggered upon reaching setpoint temperature, signaling readiness for sample loading — eliminating operator timing errors;
• Quartz reaction tube fitted with sintered quartz porous disc to support uniform 5 g coke sample (1–1.4 mm particle size) at geometric center of heated zone.

Sample Compatibility & Compliance

The CRF/1 is exclusively designed for standardized testing of calcined petroleum coke specimens conforming to ISO 12981-1 sampling and sizing requirements. Sample preparation follows strict procedural controls: dried, sieved, and weighed to ±0.001 g precision prior to insertion into the quartz reaction tube. The furnace’s thermal profile and gas dynamics are validated to ensure compliance with the mass-loss measurement protocol defined in BS 6043-2.20.1. All electronic controls meet CE marking requirements (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU) and support audit-ready documentation for GLP and GMP environments. Optional integration with certified balance interfaces enables direct digital mass data transfer to compliant laboratory information management systems (LIMS).

Software & Data Management

While the CRF/1 operates as a standalone instrument with front-panel control, its Eurotherm 3508 controller supports RS485 Modbus RTU communication for external data acquisition. Users may log temperature profiles, alarm events, and cycle timestamps via third-party SCADA or LIMS platforms. Firmware includes configurable data retention (up to 1000 cycles), event-driven logging (e.g., “setpoint reached”, “gas flow initiated”, “cycle complete”), and password-protected parameter editing — satisfying traceability requirements under FDA 21 CFR Part 11 when paired with validated software infrastructure. No proprietary software is bundled; all configuration and monitoring rely on open industrial protocols.

Applications

• Quality assurance of calcined petroleum coke supplied to primary aluminum smelters;
• Development and validation of alternative carbon feedstocks (e.g., biochar-derived anodes);
• Research into coke microstructure–reactivity relationships via controlled thermal history studies;
• Inter-laboratory round-robin testing programs requiring metrological equivalence across ISO 12981-1 accredited facilities;
• Supporting carbon material certification for ASME BPVC Section II, Part D and EN 15306 compliance dossiers.

FAQ

What standards does the CRF/1 furnace comply with?
It is fully compliant with ISO 12981-1 and BS 6043-2.20.1 for CO₂ reactivity testing of calcined coke.
Is the furnace suitable for continuous operation at 1000 °C?
Yes — its high-grade insulation and optimized thermal design permit sustained 1000 °C operation with minimal drift and no duty-cycle limitation.
Can the gas flow rate be adjusted beyond 50 L/h?
The integrated mass flow meter is factory-calibrated for 50 L/h CO₂; recalibration or replacement is required for alternate flow rates.
Does the CRF/1 include a built-in balance or weigh station?
No — gravimetric measurement requires external analytical balance (0.1 mg resolution recommended) and manual pre-/post-test weighing per standard procedure.
How is temperature uniformity verified during calibration?
Uniformity is confirmed using multi-point Type K thermocouple mapping per ASTM E220 Annex A2, with verification points at furnace center, top, bottom, and radial positions within the reaction zone.
