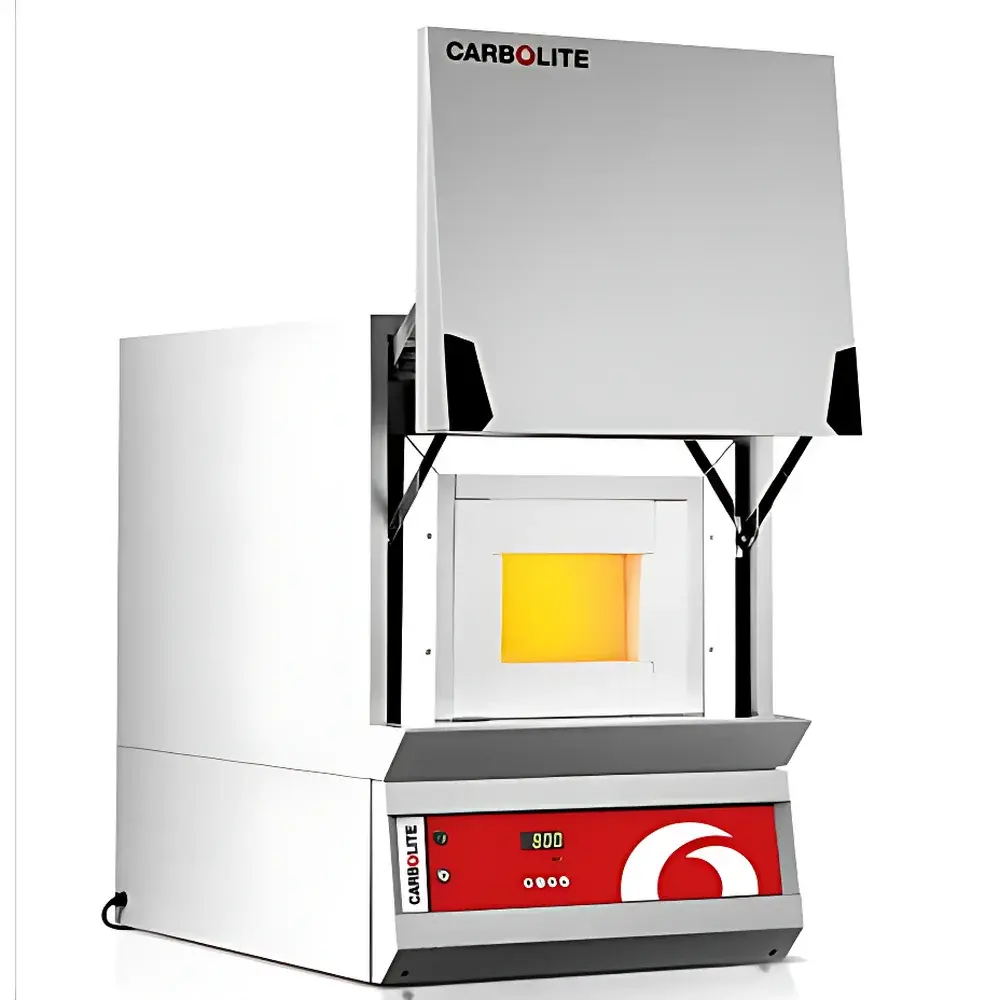

Carbolite Gero GSM 11/8 High-Resistance Muffle Furnace

Overview

The Carbolite Gero GSM 11/8 is a high-integrity box-type muffle furnace engineered for precise, repeatable ashing of samples exposed to aggressive chemical environments. Unlike conventional muffle furnaces with metallic or alumina-lined chambers, the GSM 11/8 employs a monolithic fused quartz inner chamber—hermetically sealed and externally heated via resistance wire windings. This architecture eliminates direct contact between heating elements and corrosive volatiles (e.g., H₂SO₄, HNO₃, HCl vapors), thereby extending component service life and preserving thermal stability during prolonged high-temperature cycles. The furnace operates on the principle of radiant and conductive heat transfer within a thermally insulated cavity, delivering exceptional temperature uniformity (±1 °C at 1100 °C) across the full working volume—critical for quantitative residue analysis in environmental, pharmaceutical, and metallurgical laboratories.

Key Features

• Fused quartz chamber: Chemically inert to strong mineral acids and oxidizing agents; prevents cross-contamination in trace metal or SiO₂/Al₂O₃ residue quantification.
• Externally wound resistance heating: Eliminates internal element exposure to corrosive atmospheres; enables stable operation up to 1100 °C without degradation of heating integrity.
• Low-thermal-mass ceramic fiber door: Reduces standby energy loss and accelerates cool-down cycles while maintaining structural rigidity under thermal cycling.
• Precision digital PID controller with ramp-soak programming: Supports multi-step thermal profiles compliant with standardized ashing methods (e.g., AOAC 942.05, EPA Method 3050B).
• Robust stainless-steel outer casing with reinforced insulation: Meets IEC 61000-6-2 EMC immunity requirements and UL 61010-1 safety standards for laboratory equipment.

Sample Compatibility & Compliance

The GSM 11/8 is validated for ashing organic matrices—including biological tissues, polymers, soils, and pharmaceutical excipients—in the presence of acid digestion residues. Its fused quartz chamber ensures compatibility with sulfuric, nitric, and hydrochloric acid fumes generated during open-vessel pre-ashing steps. The furnace supports GLP/GMP-aligned workflows through configurable audit-trail logging (when integrated with optional Carbolite Gero DataLogger software) and satisfies key regulatory references: ASTM E1655 (standard practice for ash content determination), USP (ash residue testing), and ISO 21527-1 (microbiological analysis—dry ash method). No internal refractory bricks or cementitious linings are used, eliminating risk of silicate leaching into ash residues.

Software & Data Management

While the base GSM 11/8 operates via front-panel interface, it is fully compatible with Carbolite Gero’s optional PC-based control suite (GeroControl v4.x). This software provides real-time temperature graphing, automated profile execution, and export of timestamped CSV logs—including ramp rates, dwell times, and deviation alerts. All data records comply with FDA 21 CFR Part 11 requirements when deployed with user authentication, electronic signatures, and immutable audit trails. Integration with LIMS platforms is supported via Modbus RTU or Ethernet/IP protocols, enabling centralized calibration management and preventive maintenance scheduling per ISO/IEC 17025 clause 6.4.10.

Applications

• Quantitative ash residue analysis in food safety testing (AOAC 942.05, ISO 2172)
• Preparation of ash-free filters for gravimetric particulate matter analysis (EPA Method 201A)
• Thermal conditioning of catalyst supports prior to BET surface area measurement
• Residue characterization in polymer additive screening (ISO 3451-1)
• Pharmaceutical residual solvents and inorganic impurity profiling per ICH Q3D guidelines
• Metallurgical flux ash correction in ore assay workflows (ASTM E88)

FAQ

Is the fused quartz chamber replaceable as a field-serviceable component?
Yes—the quartz liner is designed as a modular insert with standardized flange geometry and can be replaced without recalibration or furnace disassembly.
Can inert gas purging be implemented without modifying the standard configuration?
The optional gas inlet port (GSM-GAS) allows controlled N₂ or Ar flow directly into the quartz chamber; no external manifold or pressure regulation is required for standard purge applications.
Does the furnace support programmable cooling rates?
Cooling is passive by design; however, optional forced-air cooling modules (GSM-COOL) enable defined ramp-down profiles from 1100 °C to 100 °C in ≤25 minutes.
What calibration documentation is supplied with the instrument?
Each unit ships with a UKAS-accredited temperature uniformity report (per BS EN 60079-0 Annex E) and a factory-as-found calibration certificate traceable to NPL standards.
Is the GSM 11/8 suitable for halogenated sample ashing (e.g., PVC, flame-retardant polymers)?
Yes—quartz resists hydrogen halide corrosion; however, use of dedicated vented hoods and alkali scrubbers is recommended per ISO 11843-4 for halogen capture and operator safety.
