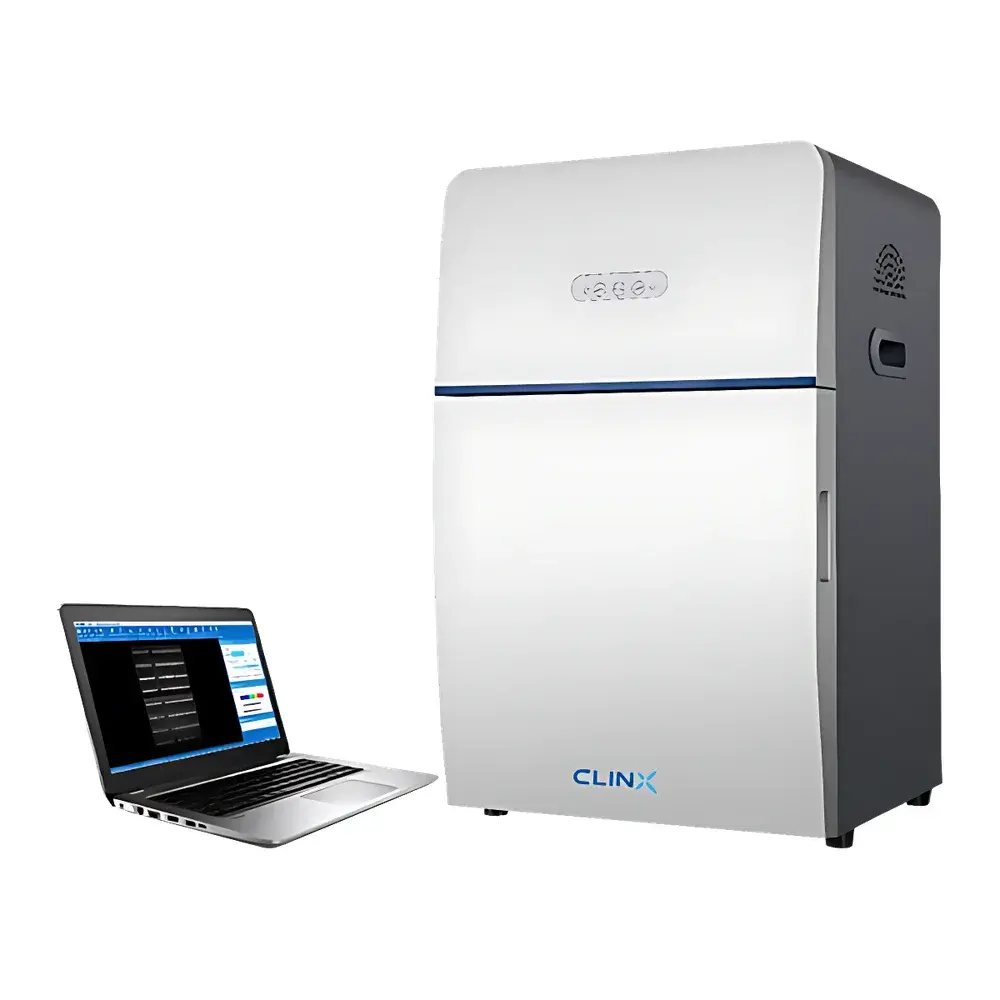

ChemiScope 6200 Touch Multifunctional Chemiluminescence Imaging System

Overview

The ChemiScope 6200 Touch is a high-performance, multifunctional chemiluminescence and fluorescence imaging system engineered for quantitative analysis of nucleic acids, proteins, and post-translational modifications in life science laboratories. It operates on the principle of photon capture via a thermoelectrically cooled scientific-grade CCD sensor, enabling low-light detection with minimal dark current noise—critical for high-sensitivity chemiluminescent applications such as Western blotting, ELISA, and reporter gene assays. Unlike conventional gel documentation systems, the ChemiScope 6200 Touch integrates hardware-level auto-exposure control, real-time background subtraction, and dynamic range optimization up to 4.8 million gray levels (16-bit), ensuring linear signal quantification across wide intensity spans without saturation or clipping.

Key Features

• 6-megapixel monochrome CCD sensor with Peltier cooling to –30 °C below ambient, reducing thermal noise and supporting long exposure times (up to 60 min) for ultra-low-abundance target detection.
• Motorized F/0.8 wide-aperture lens with autofocus and macro capability—optimized for maximum photon collection efficiency and uniform field illumination across 20 × 20 cm imaging area.
• Modular light source architecture: switchable UV transilluminator (302 nm), blue LED (470 nm), and white LED epi- and trans-illumination—automatically recognized and configured by the system upon tray insertion.

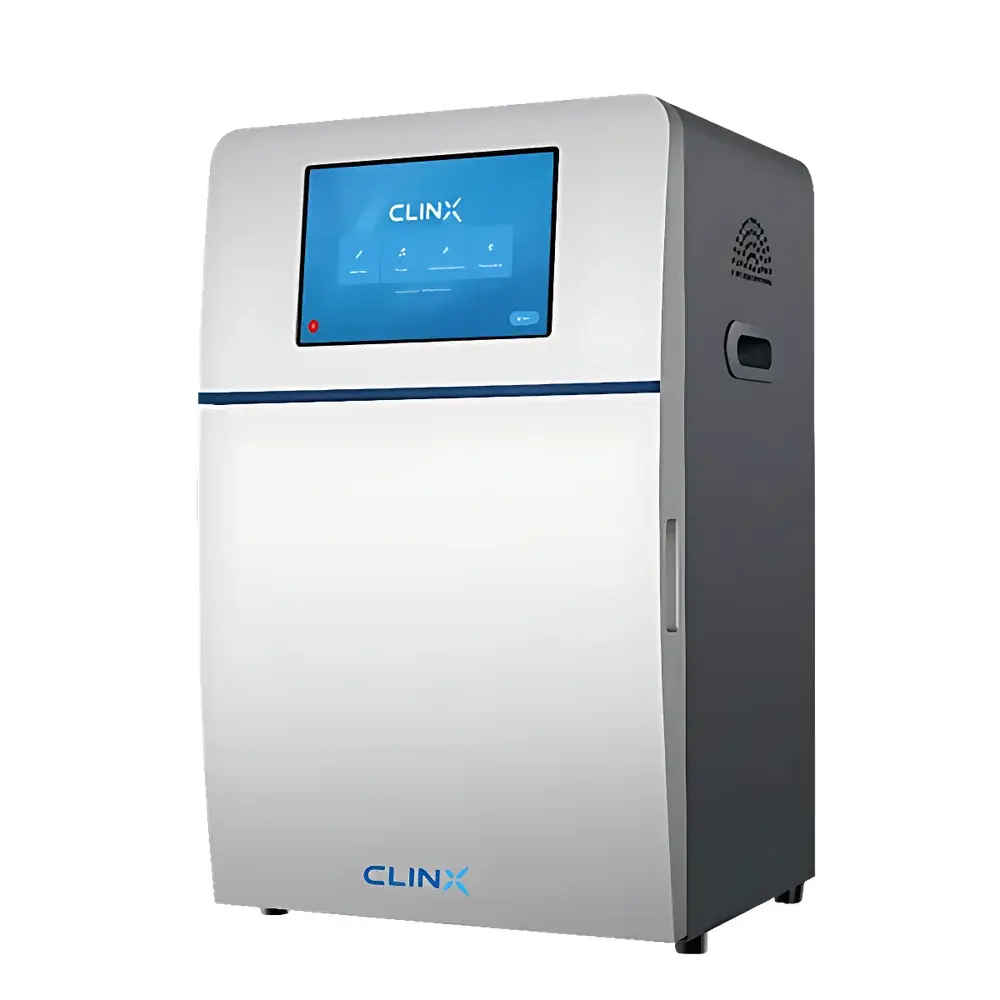

• Touch-enabled 12.1-inch capacitive display with glove-compatible interface; fully integrated into CLINX ImageStudio Pro software for one-click acquisition, annotation, and export.
• Auto-marker overlay function: detects and superimposes color-coded molecular weight ladders directly onto acquired images using pre-loaded ladder libraries (e.g., Precision Plus Protein Dual Color, PageRuler Prestained), eliminating manual alignment errors.
• Robust mechanical design with UV-shielded enclosure, interlocked safety door, and EMI-filtered power supply—certified to IEC 61010-1 for laboratory equipment safety.

Sample Compatibility & Compliance

The ChemiScope 6200 Touch accommodates standard electrophoresis formats including mini-gels (8 × 10 cm), midi-gels (13.5 × 10 cm), and large-format gels (20 × 20 cm), as well as blots (PVDF, nitrocellulose), microplates (96-/384-well), and tissue sections. All optical components comply with EN 62471 (photobiological safety) and are calibrated per ISO/IEC 17025 traceable protocols. The system supports 21 CFR Part 11–compliant workflows through optional digital signature modules, electronic audit trails, user access tiers, and immutable acquisition metadata (timestamp, exposure time, lens aperture, binning mode, gain setting). It is validated for use in GLP and GMP environments where instrument qualification (IQ/OQ/PQ) and revalidation cycles are required.

Software & Data Management

CLINX ImageStudio Pro v5.x provides a unified platform for image acquisition, processing, and quantitative reporting. Key capabilities include band/spot densitometry with background subtraction (rolling ball, morphological), lane normalization, ratio analysis, and export to CSV, TIFF, PNG, or PDF with embedded EXIF metadata. Batch processing supports multi-condition comparisons (e.g., dose-response curves, time-series blots). Raw data files (.cif) retain full 16-bit depth and are compatible with third-party analysis tools including ImageJ/Fiji, GraphPad Prism, and Proteome Discoverer. All processing steps are logged with operator ID, timestamp, and parameter settings—enabling full reproducibility and regulatory submission readiness.

Applications

• Quantitative Western blot analysis with chemiluminescent substrates (e.g., Luminata Forte, ECL Prime)
• DNA/RNA gel documentation under UV and SYBR-safe-compatible blue light
• Fluorescent multiplex detection using Cy2/Cy3/Cy5, Alexa Fluor, or IRDye conjugates
• Colony and plaque imaging in microbiology and virology assays
• Chemiluminescent ELISA and cell-based reporter assays (luciferase, β-galactosidase)
• Protein interaction studies via co-immunoprecipitation followed by chemiluminescent detection

FAQ

What is the maximum exposure time supported by the cooled CCD?
Up to 3600 seconds (60 minutes) with active cooling at –30 °C, enabling detection of extremely weak chemiluminescent signals.
Does the system support dual-color near-infrared fluorescence?
No—the ChemiScope 6200 Touch does not include NIR laser excitation sources or dedicated NIR filters; it is optimized for visible and UV-excited fluorescence (e.g., GFP, Cy3, Alexa 488) and chemiluminescence.
Can raw image files be exported without compression?
Yes—acquired images are saved in lossless 16-bit TIFF or proprietary .cif format with full metadata, preserving quantitative integrity for downstream analysis.
Is validation documentation available for regulated labs?
Yes—CLINX provides IQ/OQ protocols, calibration certificates, and 21 CFR Part 11 readiness assessment reports upon request for qualified purchasers.
How is focus consistency maintained across multiple users or experiments?
The motorized F/0.8 lens stores focus presets per application type (e.g., “Western Blot”, “DNA Gel”), and all focus positions are logged with each acquisition for traceability.
