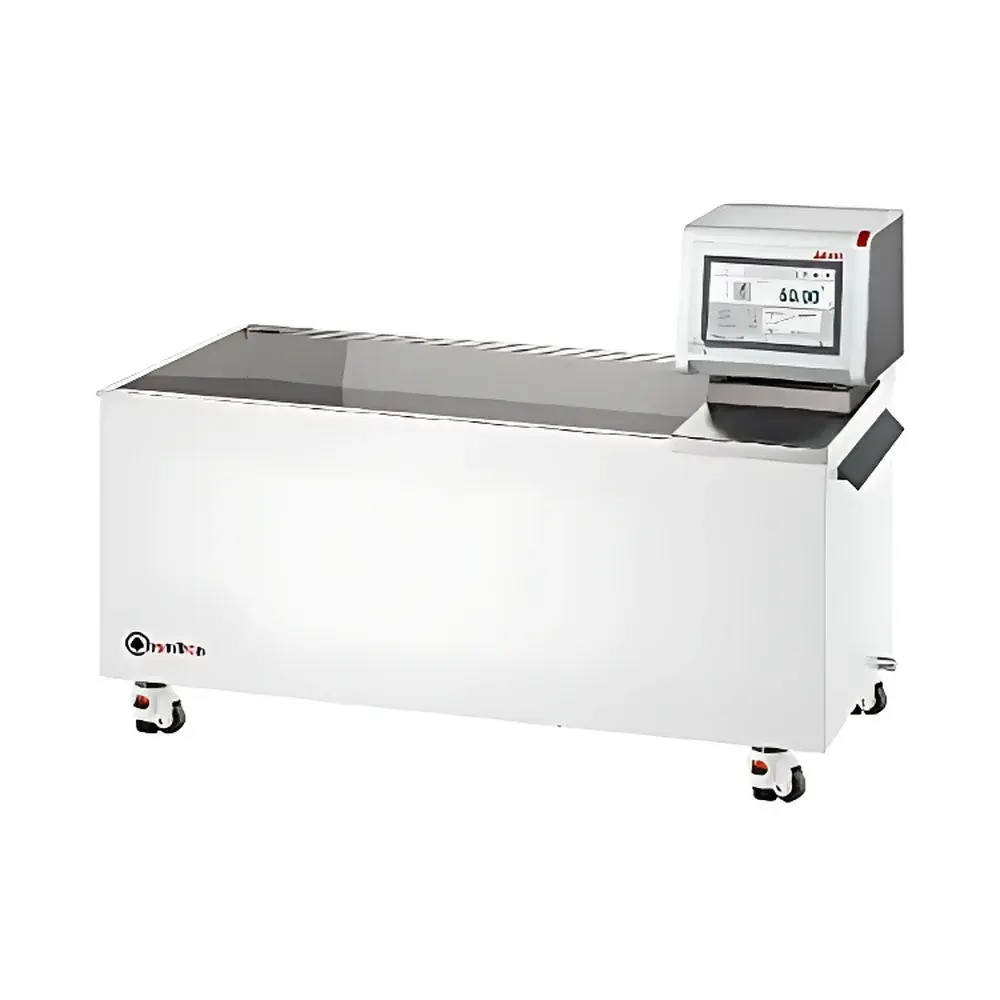

ChemTron JU4S-A Series Stainless Steel Circulating Bath

Overview

The ChemTron JU4S-A Series Stainless Steel Circulating Bath is a high-performance, laboratory-grade temperature control system engineered for precise thermal management of external equipment and sample environments. Built on a robust AISI 304 stainless steel chassis, this series integrates refrigeration and heating capabilities within a single compact architecture to deliver stable, uniform temperatures across an exceptionally wide operational range—from −20 °C to +200 °C. Unlike conventional water baths limited to ambient or modestly elevated temperatures, the JU4S-A leverages closed-loop circulation thermodynamics and PID-controlled compressor-heater synergy to maintain setpoint accuracy within ±0.05 °C under dynamic load conditions. Its design conforms to core principles of thermal equilibrium engineering, enabling reliable heat transfer via forced convection—critical for applications demanding reproducible thermal profiles in reaction calorimetry, viscometry, spectroscopy cell conditioning, and chromatographic column ovens. The bath operates as a standalone thermal reservoir or interfaces seamlessly with external devices through its dual-port recirculation manifold, supporting both internal immersion and external jacketed system integration.

Key Features

• Wide temperature span: −20 °C to +200 °C, achieved via integrated refrigeration circuit and high-efficiency resistive heating elements
• Stainless steel construction (standard AISI 304; optional AISI 316 or PTFE-coated variants for aggressive chemical environments)
• Dual-mode circulation: configurable internal bath circulation and external loop recirculation (max flow rate up to 20 L/min depending on model)
• Modular scalability: fifteen standardized models (JU4S-A-01 through JU4S-A-15) covering bath volumes from 5 L to 200 L
• Optimized thermal inertia: low-mass tank geometry and high-surface-area heat exchangers ensure rapid temperature ramping and minimal overshoot
• External controller interface: designed for native interoperability with JULABO PRESTO, F26, or TR series temperature controllers (not included), supporting analog 0–10 V or digital RS485 communication protocols
• Enhanced safety architecture: overtemperature cutoff, low-level fluid sensor, dry-run protection, and refrigerant leak detection per IEC 61000-6-4 EMC standards

Sample Compatibility & Compliance

The JU4S-A Series accommodates diverse experimental configurations—including glassware immersion, jacketed reactors, condenser cooling, and inline process loops—without compromising thermal fidelity. All models comply with EN 61010-1:2019 for electrical safety in laboratory equipment and meet CE marking requirements for the European Economic Area. While the bath itself is not certified to ISO/IEC 17025 or GLP as a measuring instrument, its thermal stability and repeatability support method validation under ASTM E2877 (Standard Guide for Thermal Stability Testing), USP (Thermal Analysis), and ISO 17025-accredited laboratories when paired with traceable external calibration. Optional accessories—including multi-hole insulated lids, PTFE-coated test tube holders, adjustable bore adapters, and condenser clamping kits—extend usability across analytical, synthetic, and quality control workflows while preserving containment integrity.

Software & Data Management

The JU4S-A functions as a hardware platform optimized for integration into regulated environments. When operated with compatible JULABO controllers (e.g., PRESTO A40 or F26), it supports full audit trail functionality compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, user access levels, and immutable event logging. Temperature profiles, alarm history, and system diagnostics are exportable in CSV or XML format for LIMS integration. No proprietary software is bundled; instead, ChemTron provides documented API specifications and Modbus TCP register maps to facilitate custom SCADA or MES deployment. Firmware updates are delivered via secure USB key with SHA-256 checksum verification—ensuring version control and cybersecurity alignment with IEC 62443-3-3.

Applications

• Calibration of temperature-sensitive detectors (e.g., RTDs, thermistors, IR sensors) across extended ranges
• Thermal preconditioning of polymer samples prior to DSC or TGA analysis
• Temperature stabilization of HPLC autosamplers, detector cells, and column heaters
• Controlled-rate heating/cooling cycles in kinetic studies and accelerated aging tests
• Cooling of exothermic reactions in jacketed glass reactors (up to 50 L working volume)
• Environmental simulation for material stress testing under thermal cycling protocols (e.g., IPC-9701)
• Support of ASTM D2857 (FTIR spectrophotometry) and ISO 6271 (viscosity measurement) sample conditioning requirements

FAQ

Is the JU4S-A bath supplied with a built-in temperature controller?
No—the JU4S-A is a controller-ready bath system. It requires an external temperature controller (e.g., JULABO PRESTO or F-series) for operation. This modular approach ensures compliance flexibility and field-upgradeability.
Can the bath operate continuously at +200 °C using water as the heat transfer fluid?
No—water is unsuitable above ~95 °C at atmospheric pressure. For operation above 100 °C, use silicone oil, glycol-water mixtures, or specialized high-temperature heat transfer fluids validated for thermal stability and flash point safety.
What is the maximum external loop pressure rating?
The standard recirculation ports are rated to 3 bar (43.5 psi) at 200 °C. Higher-pressure configurations require factory modification and pressure-certified fittings.
Are calibration certificates included with shipment?
Factory calibration data (as-found/as-left reports) are provided for each unit. NIST-traceable calibration certificates are available upon request as a value-added service.
Does ChemTron offer GMP-compliant documentation packages?
Yes—IQ/OQ protocol templates, risk assessments (FMEA), and URS alignment documents can be supplied for pharmaceutical and biotech installations subject to regulatory audit.
