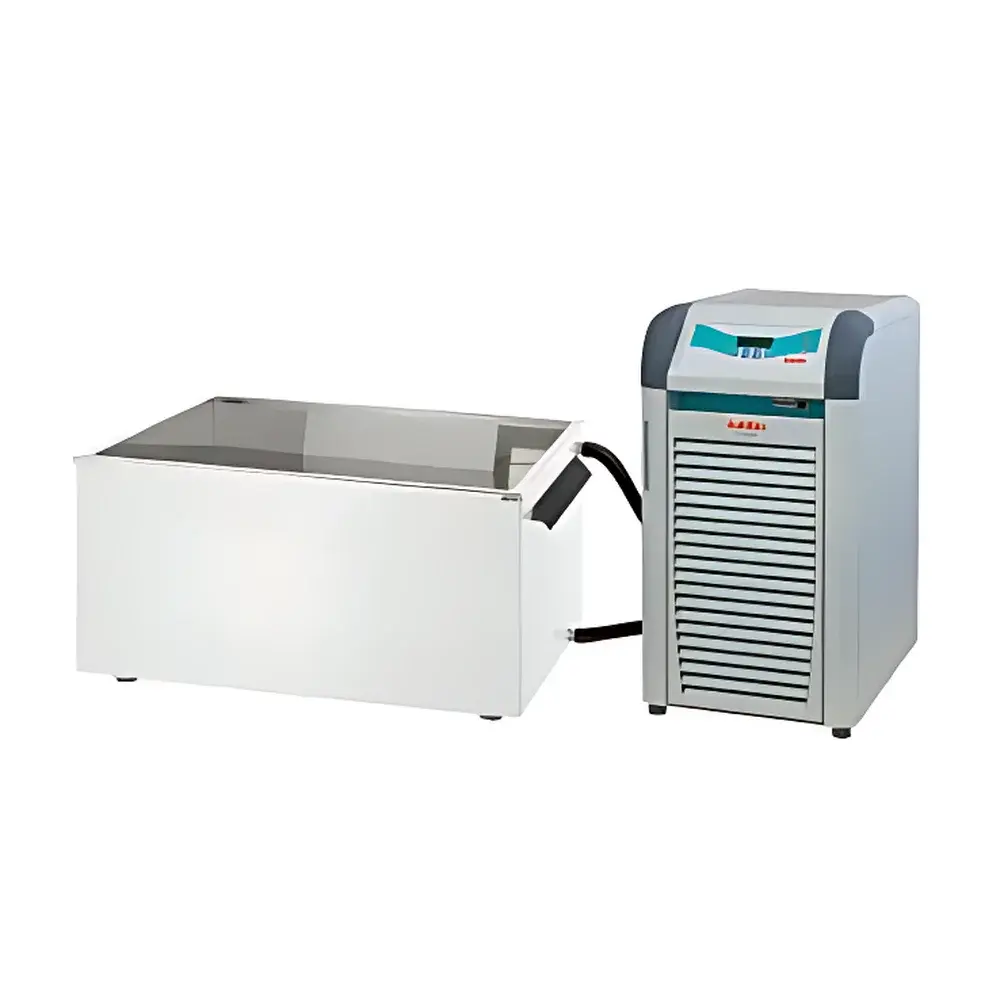

ChemTron JUS4S-B Series Jacketed Circulating Bath

Overview

The ChemTron JUS4S-B Series Jacketed Circulating Bath is a precision-engineered thermal management system designed for demanding laboratory applications requiring stable, uniform, and controllable temperature environments. Unlike standard immersion baths, the JUS4S-B employs a double-wall jacketed construction where thermal fluid—typically silicone oil, glycol-water mixtures, or specialized heat transfer media—is circulated through the annular space between the inner bath chamber and outer jacket wall. This design enables highly efficient heat exchange, minimizes thermal gradients across the working volume, and eliminates dead zones within the bath cavity. The system operates on a closed-loop refrigeration and heating principle, integrating a compressor-based cooling circuit with a high-efficiency resistive heating element and PID-controlled temperature regulation. Its operational range spans from −40 °C to +200 °C (models JUS4S-B-01 and B-02) or −40 °C to +150 °C (JUS4S-B-03), making it suitable for low-temperature cryogenic studies, high-temperature polymerization reactions, and intermediate-range calibration protocols.

Key Features

• High-integrity 316L stainless steel bath chamber—resistant to corrosion, thermal shock, and long-term exposure to aggressive solvents and reactive media
• Jacketed architecture with ≤4 bar pressure rating—enables compatibility with external circulators (e.g., JULABO F-series, FL-series, CS-series) for extended thermal control flexibility
• Internal and external circulation capability—supports both direct bath immersion and external process loop integration via standardized G1/2″ or G3/4″ fittings
• Uniform temperature field distribution—achieved through optimized jacket flow geometry and internal baffle design; typical axial/radial uniformity ±0.1 °C at steady state
• Optional surface treatments—including electropolished finish, anodized oxide coating, or PFA lining—for enhanced chemical resistance in pharmaceutical or semiconductor R&D environments
• Modular accessory support—compatible with custom lid assemblies, probe holders, stirrer mounts, and sample immersion fixtures per ISO/IEC 17025-compliant setup requirements

Sample Compatibility & Compliance

The JUS4S-B series accommodates a broad spectrum of sample formats: glass reactors (1–20 L), jacketed reaction vessels, calorimetry cells, viscometer jackets, and optical cuvette holders. Its inert 316L construction ensures compatibility with aqueous, organic, and halogenated solvent systems. All models comply with IEC 61010-1 safety standards for laboratory equipment and are CE-marked. When integrated with validated external chillers or heaters (e.g., JULABO FL4003 or CS-50), the full system supports audit-ready operation under FDA 21 CFR Part 11 and EU Annex 11 frameworks—provided software-enabled electronic records, user access controls, and change-tracking logs are implemented via compatible supervisory control platforms.

Software & Data Management

While the JUS4S-B bath itself features an embedded digital controller with real-time temperature display, setpoint programming, and alarm thresholds, full data traceability requires integration with external SCADA or LIMS-compatible systems. ChemTron recommends pairing with JULABO’s COBRA software suite or third-party OPC UA-enabled platforms for automated logging, trend analysis, and electronic signature workflows. All temperature profiles—including ramp rates, hold durations, and deviation alerts—can be exported in CSV or PDF format for regulatory submission. Audit trail functionality—including operator ID, timestamp, parameter changes, and event acknowledgments—is achievable when connected to compliant host systems supporting ALCOA+ principles.

Applications

• Calibration of temperature-sensitive instrumentation (thermocouples, RTDs, infrared sensors) per ASTM E74 and ISO/IEC 17025 requirements
• Thermal stability testing of active pharmaceutical ingredients (APIs) and excipients under ICH Q1A(R3) guidelines
• Controlled-rate cooling/heating of catalytic reactors during kinetic studies
• Temperature conditioning of optical components prior to interferometric measurement
• Environmental stress screening of microelectronic packaging materials per JEDEC JESD22-A104
• Supporting rheological measurements by maintaining precise jacket temperatures for rotational or capillary viscometers

FAQ

What is the maximum allowable bath fluid temperature for JUS4S-B-03?

The JUS4S-B-03 model is rated for continuous operation up to +150 °C—this limit accounts for long-term seal integrity and thermal expansion behavior of the jacket assembly.
Can the bath operate without an external chiller?

Yes—the integrated refrigeration-heating unit enables standalone operation within its specified temperature range; however, external circulators extend cooling capacity and improve thermal response time for large-volume or high-heat-load applications.
Is PFA coating available as a factory option?

Yes—PFA lining is offered as a configurable upgrade for all JUS4S-B variants and includes full weld-joint coverage and post-coating adhesion validation per ASTM D4541.
Does the system support RS485 or Ethernet communication?

The base controller does not include built-in serial or network ports; however, optional analog 0–10 V or 4–20 mA output modules are available for PLC interfacing, and third-party gateway adapters enable Modbus RTU or TCP integration.
What documentation is provided for IQ/OQ validation?

ChemTron supplies a Factory Acceptance Test (FAT) report, material certifications (EN 10204 3.1), and a configurable User Requirement Specification (URS) template to support site-specific Installation Qualification (IQ) and Operational Qualification (OQ) protocols.
