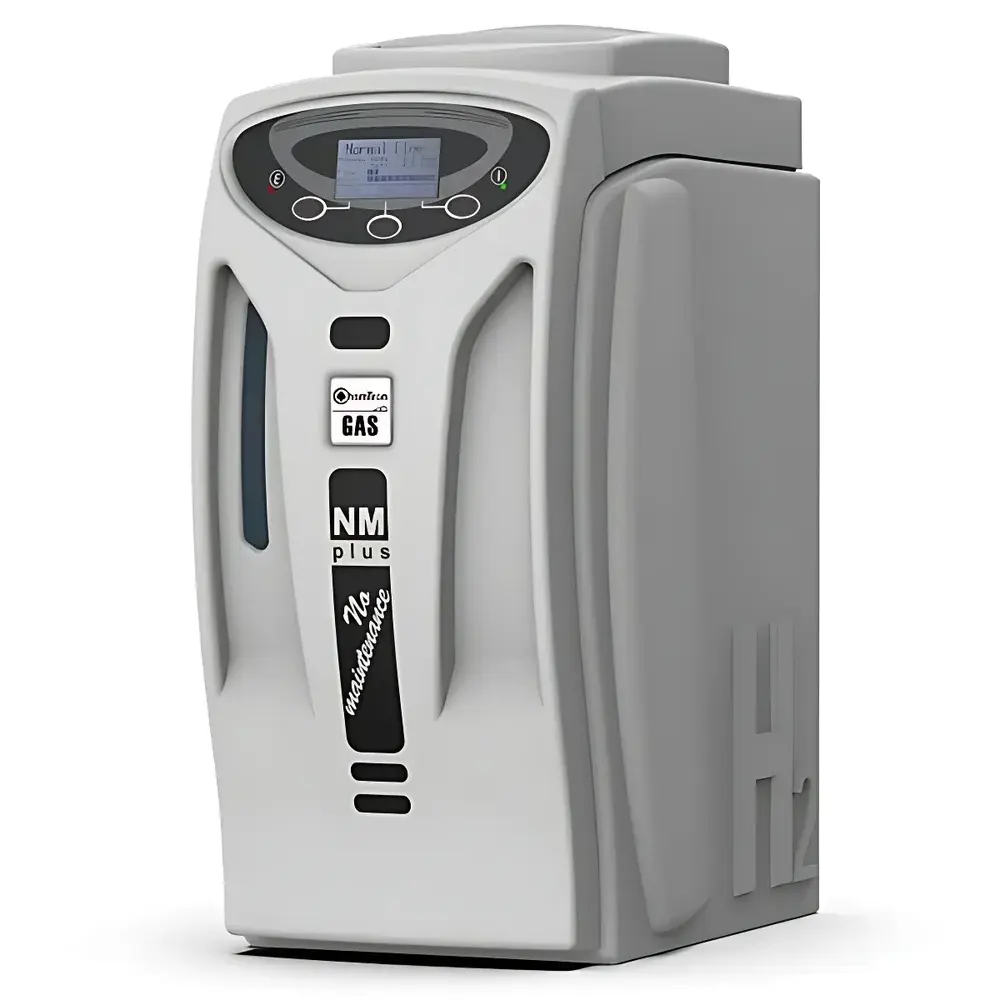

ChemTron NMH2-500 Plus Hydrogen Generator

Overview

The ChemTron NMH2-500 Plus Hydrogen Generator is an engineered solution for laboratories requiring continuous, ultra-high-purity hydrogen gas without the operational constraints and safety liabilities associated with compressed gas cylinders. Utilizing proprietary CPEM (Catalyzed Proton Exchange Membrane) and CCELL (Corrosion-resistant Cell Core Electrolyzer) technology, this generator produces hydrogen via electrolysis of high-resistivity deionized water (≥5 MΩ·cm), eliminating the need for caustic electrolytes or regenerative desiccants. The core measurement principle relies on controlled direct-current electrolysis across a platinum- and platinum-alloy-coated polymer membrane, enabling stoichiometric H₂ generation with minimal thermal byproduct and zero water waste. Designed for integration with analytical and process instrumentation—including GC, GC-MS, ICP-MS, fuel cell test stations, and catalytic hydrogenation reactors—the NMH2-500 Plus delivers consistent flow and pressure stability under dynamic load conditions, supporting both carrier and combustion gas applications in regulated environments.

Key Features

• Ultra-high hydrogen purity certified at 99.99996% (6.6 N), verified by independent third-party analysis per ISO 8573-1 Class 1 solid particle and Class 2 moisture specifications
• CCELL electrolyzer constructed entirely from medical-grade titanium alloy, ensuring chemical inertness, long-term structural integrity, and zero metal ion leaching into the gas stream
• Dual-stage purification architecture: static hydrophobic membrane drying (Stage II) followed by dual cold-regenerative purifiers (Stage III), delivering sub-ppb O₂ and H₂O residuals
• Real-time multilevel safety monitoring: internal/external leak detection, water conductivity sensing (<1 µS/cm threshold), CCELL voltage/temperature profiling, seismic/vibration shutdown, and overpressure venting at outlet
• Low-hazard design: total internal gas volume <50 mL—well below the 4% lower explosive limit (LEL) threshold—even under worst-case rupture scenarios
• Intelligent power management: 75 W nominal consumption with adaptive current control to match demand; no standby energy waste during idle periods
• Integrated 128×64 pixel LCD touchscreen with tactile buttons, displaying real-time pressure, water quality metrics, system diagnostics, and alarm history

Sample Compatibility & Compliance

The NMH2-500 Plus is compatible with all major gas chromatography platforms (Agilent, Thermo Fisher, Shimadzu, PerkinElmer), ICP-MS systems requiring ultra-low background H₂, and electrochemical testing rigs. It meets CE, CSA, and FCC electromagnetic compatibility and safety directives. Its architecture supports compliance with GLP and GMP workflows through audit-ready event logging, user-access-level controls, and optional 21 CFR Part 11–compliant PC software (with electronic signatures and change tracking). All materials contacting the gas path comply with USP Class VI biocompatibility standards and ASTM F800 for cleanroom-compatible polymers. No hazardous chemicals are consumed or stored on-site, simplifying EHS documentation and reducing regulatory reporting burden.

Software & Data Management

Optional PC-based control software enables remote configuration, live parameter visualization (flow, pressure, temperature, water resistivity), and historical trend analysis with CSV export. The software supports multi-unit cascade operation: up to eight NMH2-500 Plus units can be synchronized via RS-485 or Ethernet, with automatic load-balancing—if one unit enters maintenance mode, others dynamically redistribute flow to maintain uninterrupted supply to connected GCs. Firmware updates are delivered free-of-charge throughout product lifecycle. Audit trails record all operator actions, system alarms, and calibration events with timestamp, user ID, and IP address metadata—fully traceable for FDA, ISO 17025, or ISO 9001 assessments.

Applications

• GC and GC-MS carrier and detector fuel gas—eliminates baseline drift and filament oxidation caused by trace oxygen or moisture
• ICP-MS hydrogen reaction gas mode for polyatomic interference removal (e.g., ArO⁺, ArN⁺)
• Hydrogenation reactor feedstock in pharmaceutical and fine chemical synthesis, where catalyst poisoning from CO or hydrocarbons must be avoided
• Fuel cell performance validation under controlled H₂ stoichiometry and dew point
• FTIR and Raman spectroscopy purge gas for moisture-sensitive optics
• High-sensitivity residual gas analysis (RGA) calibration standards requiring certified purity and low particulate count

FAQ

What water quality is required for optimal operation?
Deionized water with resistivity ≥5 MΩ·cm is recommended; the system includes inline conductivity monitoring and will halt electrolysis if input water exceeds 1 µS/cm (equivalent to <1 MΩ·cm).

Can the NMH2-500 Plus operate unattended for extended periods?
Yes—designed for 24/7 continuous duty with automatic low-level water refill (optional external reservoir kit) and self-diagnostic fault isolation.

How does the cold-regenerative purification compare to palladium-based systems?
Cold-regeneration avoids irreversible palladium embrittlement, offers >10,000 hours of stable performance without replacement, and maintains consistent purity even under fluctuating inlet humidity or trace VOC exposure—critical in fragrance and flavor labs.

Is external plumbing or gas cabinet integration required?
No—compact footprint (230 × 355 × 410 mm) and Swagelok® 1/8″ outlet allow benchtop placement adjacent to GC or MS instruments, eliminating costly central gas distribution infrastructure.

What warranty and service support is included?
Standard coverage: 3 years comprehensive (2+1) for main unit, 5 years (2+3) for CCELL electrolyzer, plus lifetime annual on-site preventive maintenance by ChemTron-certified engineers.
