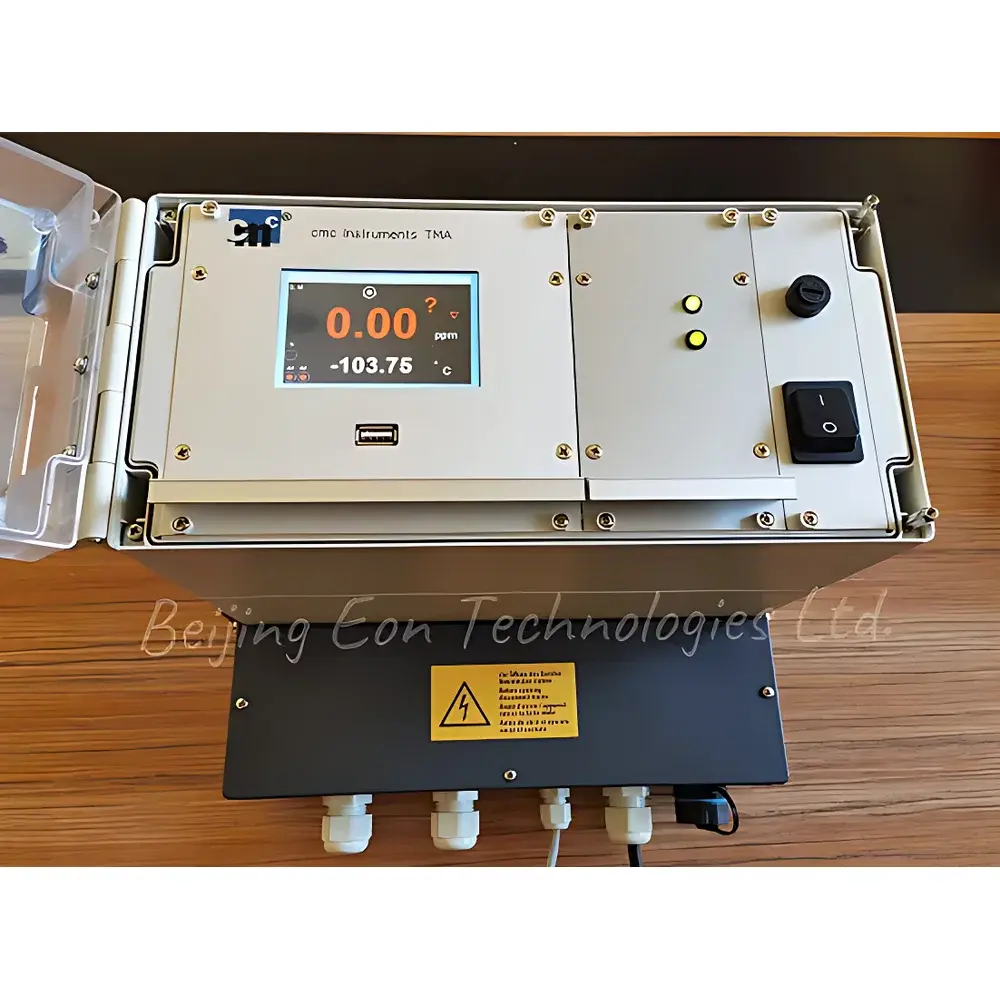

CMC TMA-204-W-Ex P₂O₅ Electrolytic Trace Moisture Analyzer

Overview

The CMC TMA-204-W-Ex is a certified intrinsically safe, in-line trace moisture analyzer engineered for continuous, absolute measurement of water vapor concentration in aggressive and flammable process gases. It operates on the well-established phosphorus pentoxide (P₂O₅) electrolytic principle — a primary standard method recognized for its metrological traceability and zero drift over time. Unlike optical or capacitive techniques, this method quantifies moisture via stoichiometric electrolysis: water molecules transported across a hygroscopic P₂O₅ film are decomposed into hydrogen and oxygen at precisely controlled electrode potentials. The resulting electrolytic current is directly proportional to the mass flow of water entering the sensor cell, enabling true quantitative analysis without calibration drift. Designed for hazardous area deployment (ATEX/IECEx Zone 0/1), the TMA-204-W-Ex meets stringent safety requirements while maintaining analytical integrity in demanding chemical, semiconductor, energy, and specialty gas production environments.

Key Features

• Intrinsically safe design compliant with ATEX II 1G Ex ia IIC T4 Ga and IECEx Ex ia IIC T4 Ga for Zone 0 installation
• P₂O₅ sensor architecture with dual parallel electrodes (Pt or Rh wire) coated with ultra-thin, stabilized phosphoric acid (H₃PO₄) film
• True absolute measurement — no span or zero calibration required; sensor regeneration possible in situ via controlled reverse polarization
• Sub-second T₉₀ response (<1 s) and rapid T₅₀ (<8 s) ensure real-time process feedback for critical drying and purification control loops
• Auto-ranging capability across four user-selectable spans: 0–10 ppm, 0–100 ppm, 0–1000 ppm, and 0–2500 ppm v/v
• Integrated Zener safety barrier eliminates need for external isolators; simplifies system integration and reduces loop commissioning time
• Touchscreen HMI with configurable language support (including English, German, French, and Chinese) and embedded diagnostics
• Self-diagnostics at power-on and continuous monitoring of sensor health, electrolyte saturation, and electrical integrity

Sample Compatibility & Compliance

The TMA-204-W-Ex demonstrates exceptional compatibility with high-purity and chemically reactive gases, including but not limited to He, Ar, Kr, Xe, N₂, O₂, H₂, D₂, CO₂, CH₄, natural gas, SF₆, freons, C₂H₂, PH₃, HBr, O₃, and corrosive species such as Cl₂, HCl, SO₂, and H₂S. Its P₂O₅ sensor remains stable in these matrices due to the inert glass cell construction and non-catalytic electrode configuration. Exceptions include gases that react irreversibly with phosphoric acid (e.g., strong alkalis or reducing agents under specific conditions). The analyzer conforms to NAMUR NE 43 and NE 21 signal standards and supports compliance with ISO 8573-1 (compressed air purity), ASTM D6667 (moisture in gaseous hydrocarbons), and IEC 61511 for functional safety in SIS applications. All firmware and data handling adhere to principles aligned with FDA 21 CFR Part 11 for audit-trail readiness in regulated manufacturing.

Software & Data Management

The embedded microprocessor executes real-time signal conditioning, temperature compensation, and linearization using factory-characterized sensor coefficients stored in EEPROM. Data output includes fully scaled 4–20 mA analog signals (HART-compatible upon request), two programmable relay outputs for alarm or interlock functions, and RS-485 Modbus RTU interface for SCADA integration. Local data logging (up to 30 days at 1-min intervals) is supported via internal flash memory. Configuration and trending are accessible via the intuitive touchscreen interface or remotely through standard industrial protocols. All parameter changes, alarm events, and sensor status transitions are timestamped and retained — supporting GLP/GMP documentation requirements and facilitating root-cause analysis during quality investigations.

Applications

• Monitoring moisture breakthrough in molecular sieve dryers and membrane separation units
• Final product verification in bulk electronic-grade gas supply (e.g., ultra-high-purity N₂ for lithography tool purge)
• Real-time control of HF and HCl etch gas lines in semiconductor fab tool interfaces
• Quality assurance of SF₆ insulation gas in high-voltage switchgear
• Moisture surveillance in chlorine liquefaction and caustic scrubbing systems
• Validation of dryer performance in LNG export terminals and biogas upgrading facilities
• Trace moisture certification for medical oxygen and helium breathing mixtures per ISO 8573-1 Class 1–2

FAQ

Is the P₂O₅ sensor subject to poisoning by acidic or oxidizing gases?
No — the sensor’s glass cell and noble-metal electrodes are chemically inert toward most corrosive gases, including Cl₂, HCl, SO₂, and H₂S. Long-term stability has been validated in continuous operation within these matrices.
Does the analyzer require periodic recalibration?
Not for routine operation. As a primary measurement method, it does not rely on reference standards. Only verification against a known moisture source (e.g., NIST-traceable permeation tube) is recommended annually for QA/QC audits.
Can the TMA-204-W-Ex be installed directly in-line without sample conditioning?
Yes — it is designed for direct wet-gas sampling at 0.1–0.5 barg pressure and 5–50 °C. No external filters, coolers, or pressure regulators are required if process conditions remain within specification.
What maintenance is required?
Minimal. Routine tasks include periodic inspection of inlet filter (if used), verification of cable integrity, and optional sensor regeneration every 12–24 months depending on total moisture load.
Is Modbus TCP supported?
Standard communication is RS-485 Modbus RTU. Modbus TCP is available via optional Ethernet gateway module (CMC EGM-100) for seamless DCS integration.
