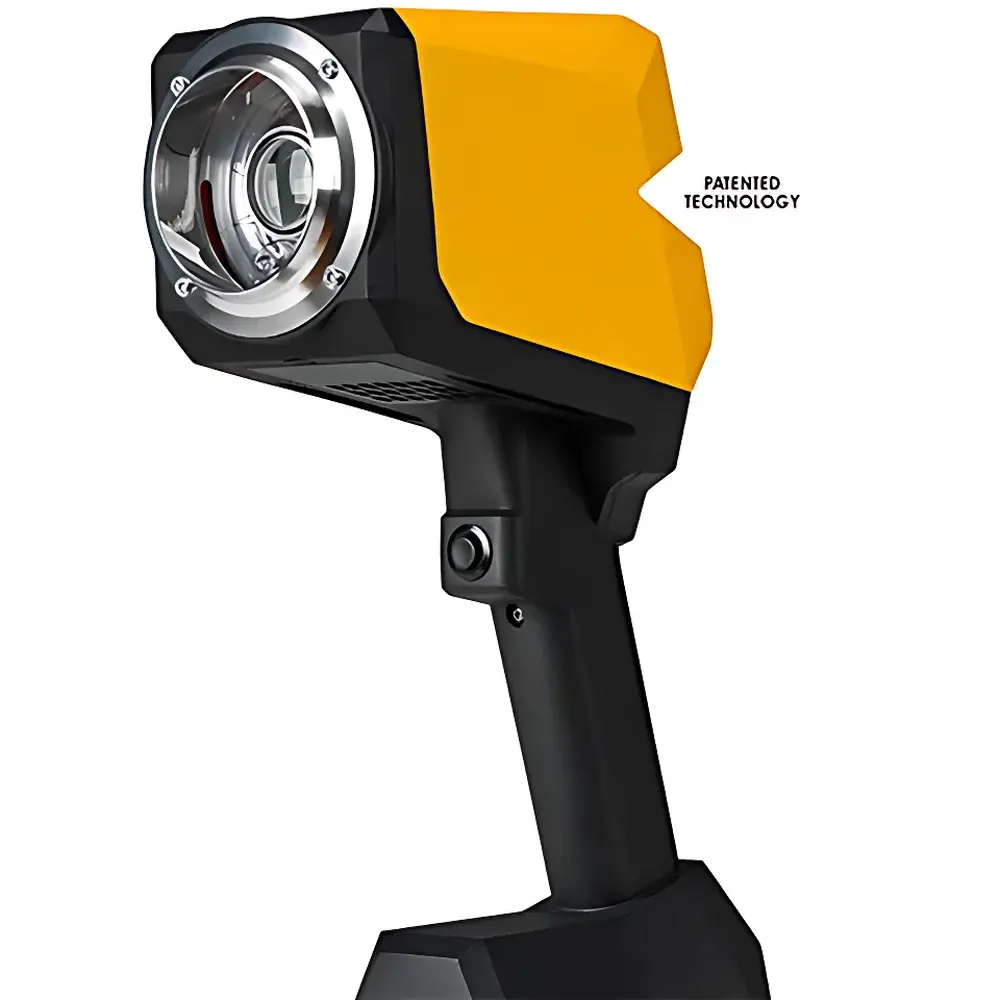

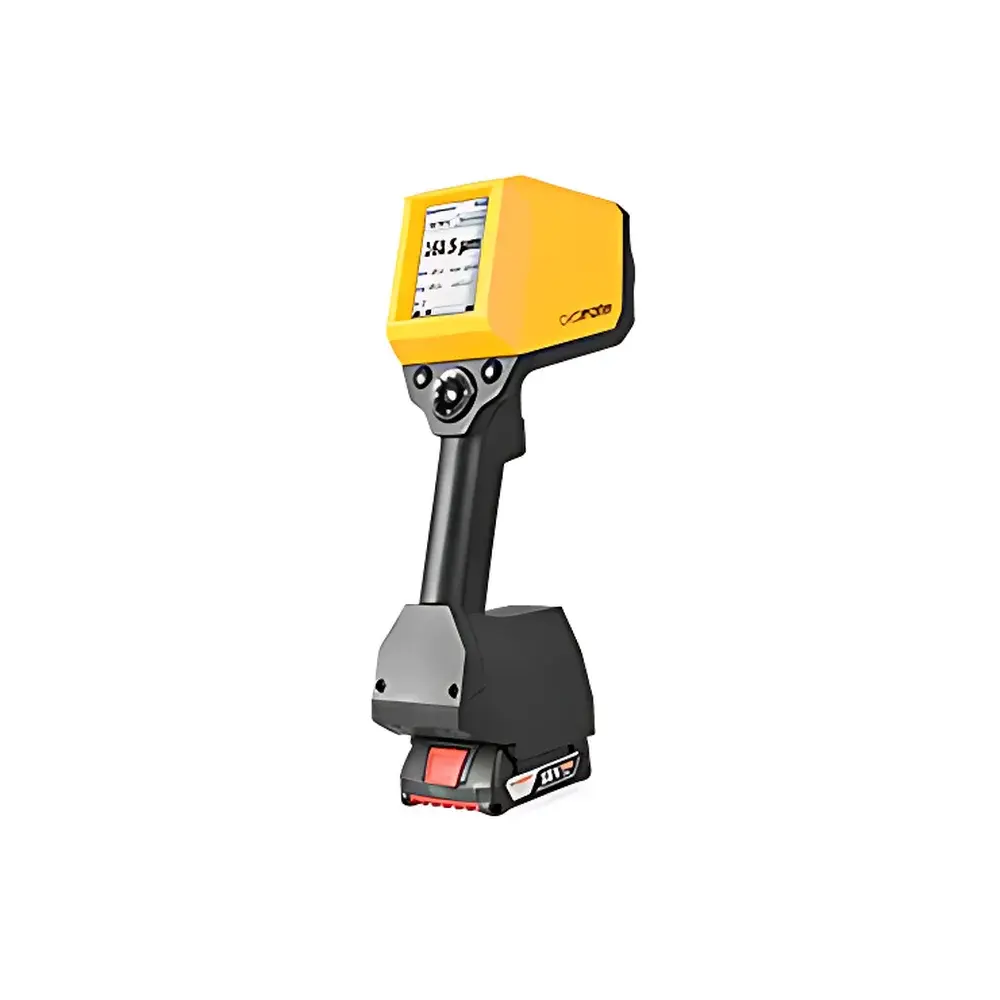

Coatmaster Flex Handheld Non-Contact Wet Film Thickness Gauge

Overview

The Coatmaster Flex Handheld Non-Contact Wet Film Thickness Gauge is an industrial-grade optical metrology instrument engineered for real-time, non-destructive thickness measurement of uncured and partially cured coatings—without physical contact or process interruption. Unlike conventional eddy current, magnetic induction, or beta-backscatter gauges, the Coatmaster Flex employs the patented Advanced Thermooptical (ATO) method: a calibrated pulsed flash lamp irradiates the coating surface, inducing a transient thermal response; high-speed infrared thermography captures the time-resolved surface temperature decay, which correlates directly with thermal diffusivity—and thus, coating thickness—across diverse material systems. This principle enables quantitative wet-film measurement on substrates where traditional methods fail: curved, textured, or electrically non-conductive surfaces (e.g., CFRP, glass, rubber), and coatings with high pigment loadings or extreme gloss/opacity (including pure white and black finishes). Its deployment occurs at the earliest feasible process stage—immediately post-application, pre-bake—making it integral to predictive quality control in automotive OEM, aerospace finishing, industrial wood coating, and precision electronics encapsulation lines.

Key Features

• True non-contact operation at standoff distances of 2–15 cm, eliminating risk of surface damage, contamination, or measurement artifact from probe pressure
• Simultaneous capability for wet film (1–400 µm), dry film (1–1000 µm), and uncured powder (1–400 µm) quantification on a single platform
• Rugged handheld ergonomics: 1.3 kg mass, IP54-rated enclosure, and intuitive touchscreen interface optimized for glove-compatible operation in production environments
• Real-time measurement output within 0.25 seconds per reading, with repeatability better than ±1% relative standard deviation under controlled conditions
• Unrestricted substrate adaptability—including conductive (steel, aluminum), non-conductive (polymer composites, ceramics), and flexible (rubber, elastomer) base materials
• Color-agnostic performance validated across CIE L*a*b* gamut extremes, enabling consistent readings on metallic, pearlescent, and matte-black finishes without calibration adjustment

Sample Compatibility & Compliance

The Coatmaster Flex delivers traceable thickness data across heterogeneous industrial coating systems: aqueous and solventborne liquid paints, UV-curable resins, thermosetting powder formulations, electrodeposited primers (e-coats), structural adhesives, lubricant films, and thermal-sprayed metallic layers. It supports compliance-driven workflows by generating audit-ready metadata—including timestamp, GPS coordinates (optional), operator ID, ambient temperature/humidity logs, and full spectral thermal decay curves—for alignment with ISO 9001, IATF 16949, and FDA 21 CFR Part 11 requirements. While not a certified reference standard, its measurement traceability is established via NIST-traceable blackbody calibration sources and cross-validated against gravimetric and cross-section SEM techniques per ASTM D7091 Annex A2. The device’s ATO physics model inherently excludes ionizing radiation, hazardous solvents, or mechanical wear—ensuring OSHA-compliant operation in confined spaces and cleanrooms.

Software & Data Management

Embedded firmware supports local storage of ≥10,000 measurements with full thermal signature archives. Via integrated Wi-Fi or Ethernet, raw data streams to the Coatmaster Cloud Platform—a secure, ISO 27001-certified infrastructure offering role-based access control, automated report generation (PDF/CSV), and dynamic SPC dashboards. Trend analysis tools compute Cp/Cpk indices, detect drift in application consistency, and flag outliers against user-defined specification limits. RESTful APIs and OPC UA connectivity enable bidirectional synchronization with MES (e.g., Siemens Opcenter, Rockwell FactoryTalk) and ERP systems (SAP S/4HANA, Oracle Cloud), allowing real-time feed of thickness metrics into batch records, shift performance KPIs, and predictive maintenance triggers. All cloud interactions enforce TLS 1.3 encryption and support customer-managed certificate authority integration.

Applications

• Automotive body shop: In-line verification of e-coat uniformity on complex BIW geometries prior to curing—reducing rework by up to 30% and optimizing paint consumption
• Aerospace component finishing: Thickness mapping of thermal barrier coatings on turbine blades without thermal shock or surface marking
• Architectural aluminum extrusion: Monitoring powder coat build on multi-angle profiles during conveyorized curing
• Medical device manufacturing: Validated measurement of biocompatible polymer coatings on stainless steel implants pre-sterilization
• Renewable energy: Quality assurance of anti-corrosion epoxy coatings on offshore wind tower segments before field assembly

FAQ

Does the Coatmaster Flex require substrate-specific calibration?
No. The ATO method relies on first-principles thermal modeling rather than empirical correlation; only one universal factory calibration is performed per unit, with no routine recalibration needed under stable environmental conditions.
Can it measure on moving parts?
Yes—its 0.25 s acquisition window and ±70° angular tolerance allow reliable readings on conveyors operating at ≤1.2 m/s, provided motion blur is minimized via synchronized triggering or stabilized mounting.
Is cloud connectivity mandatory for basic operation?
No. Standalone mode provides full measurement functionality, local data export via USB-C, and offline report generation. Cloud features are optional enhancements for enterprise-scale analytics.
How does it handle highly reflective or transparent coatings?
The ATO method is insensitive to optical reflectance or transmittance because it measures thermal inertia—not light absorption or scattering—making it uniquely suitable for clear coats, fluoropolymers, and metallized films.
What maintenance is required?
Annual verification using Coatmaster’s certified reference standards is recommended; no consumables, lasers, or radioactive sources are employed—resulting in near-zero operational downtime over a 10-year service life.
