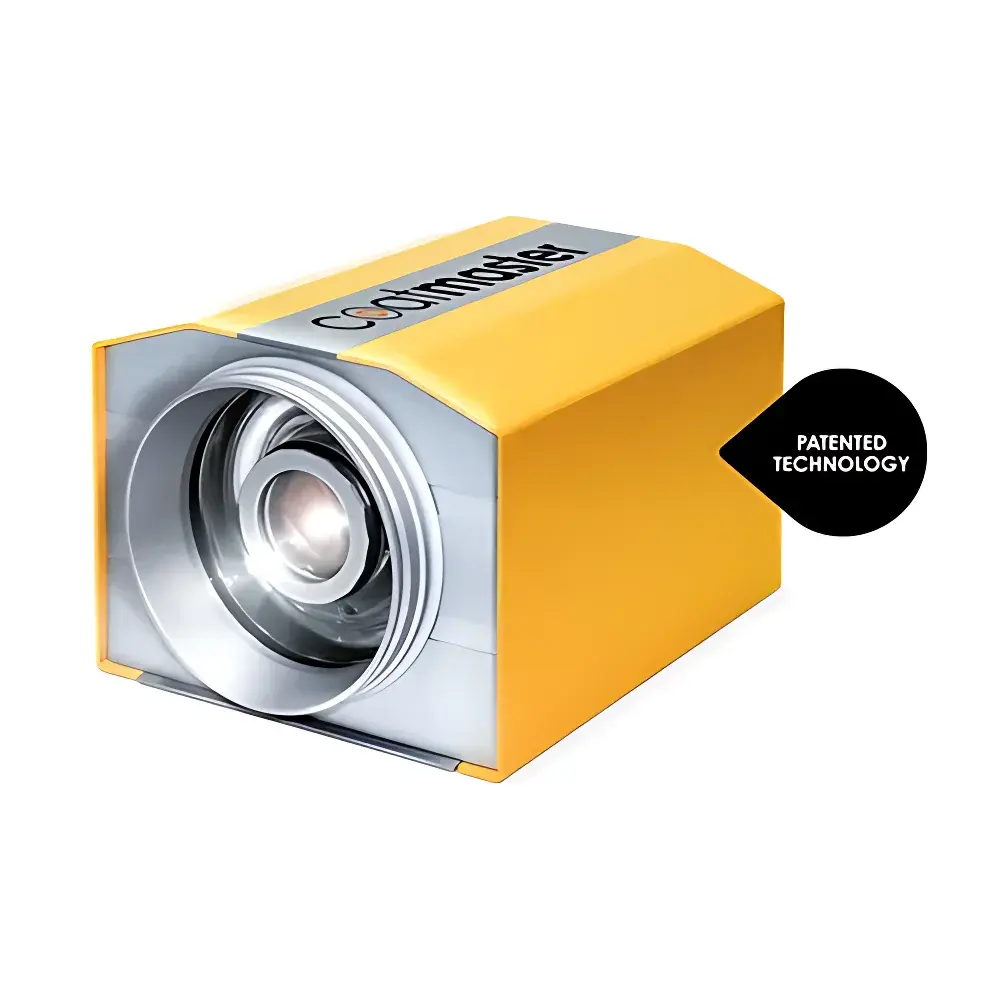

Coatmaster Photothermal Infrared Coating Thickness Gauge

Overview

The Coatmaster Photothermal Infrared Coating Thickness Gauge is a non-contact, non-destructive measurement system engineered for real-time, in-line thickness characterization of organic and inorganic coatings on conductive and non-conductive substrates. It operates on the photothermal infrared (PTIR) principle: a short, calibrated light pulse irradiates the coating surface, inducing transient thermal excitation; a high-speed, calibrated infrared detector captures the resulting surface temperature decay profile at standoff distance. The temporal evolution of surface temperature — governed by one-dimensional heat diffusion through the coating layer and into the substrate — is uniquely dependent on coating thickness, thermal diffusivity of both coating and substrate, and interfacial thermal resistance. A proprietary physics-based inversion algorithm processes the full dynamic temperature curve to extract absolute coating thickness without empirical calibration against reference standards. This fundamental thermophysical approach eliminates dependence on measurement angle, standoff distance, or surface geometry — enabling robust thickness quantification on curved, recessed, angled, or micro-structured surfaces where conventional contact or eddy-current methods fail.

Key Features

• True non-contact operation: No mechanical contact, no surface preparation, no risk of coating damage or contamination.
• Geometry-insensitive measurement: Valid on flat, convex, concave, bent, or textured surfaces — including small-diameter tubes, threaded components, and injection-molded parts.
• Real-time in-line capability: Integrates seamlessly into conveyorized or robotic coating lines for 100% process monitoring and closed-loop feedback control.
• Wet-film & dry-film compatibility: Measures uncured liquid coatings (e.g., paints, adhesives, lacquers) and fully cured films with equal accuracy — enabling predictive dry-film thickness estimation from wet-film data.
• Multi-material support: Validated on polymer coatings, powder coatings, thermal spray deposits (e.g., WC-Co, CrC-NiCr), adhesive layers, and lubricant films across metallic, plastic, ceramic, and composite substrates.
• High repeatability: Typical standard deviation < ±0.5 µm under controlled environmental conditions (ISO 5725-2 compliant verification protocol).

Sample Compatibility & Compliance

The Coatmaster system supports thickness measurement across a broad range of industrial coating systems, including solvent-borne and water-based paints, UV-curable resins, epoxy primers, polyurethane topcoats, hot-melt adhesives, and plasma-sprayed ceramics. It complies with ISO 2808 (paints and varnishes — determination of film thickness), ASTM D7091 (standard practice for nondestructive measurement of dry film thickness of nonmagnetic coatings applied to ferrous metals and nonconductive coatings applied to non-ferrous metals), and supports GLP/GMP documentation requirements via audit-trail-enabled software. All firmware and algorithms are developed and validated in accordance with IEC 61508 (functional safety of electrical/electronic/programmable electronic safety-related systems) principles for industrial instrumentation.

Software & Data Management

The Coatmaster Control Suite provides comprehensive instrument control, real-time visualization of thermal decay curves, statistical process monitoring (SPC), and automated report generation. Data export adheres to ASTM E1382 (standard guide for computerized data acquisition in materials testing) and supports CSV, XML, and SQL database integration. Full 21 CFR Part 11 compliance is available with optional electronic signature modules, role-based access control, and immutable audit trails for traceability in regulated environments (e.g., automotive Tier-1 suppliers, medical device coating facilities). Historical measurement logs include timestamp, operator ID, environmental metadata (ambient temperature/humidity), and raw thermal transients for forensic reanalysis.

Applications

• Powder coating lines: Early-stage thickness verification reduces overspray and lowers material consumption by up to 25%, minimizing rework and energy use during curing.
• Aerospace component finishing: Accurate measurement of thermal barrier coatings (TBCs) on turbine blades and vanes without disassembly or masking.
• Automotive body shop QC: In-line validation of e-coat, primer, and topcoat layers on complex sheet metal geometries prior to baking.
• Medical device manufacturing: Thickness control of biocompatible polymer coatings (e.g., parylene, silicone) on stents, catheters, and implants — critical for regulatory submissions (FDA 510(k), ISO 13485).
• Electronics encapsulation: Non-invasive verification of conformal coating uniformity over solder joints and fine-pitch PCB features.
• Adhesive bonding: Quantification of bond line thickness in structural assemblies (e.g., aluminum–carbon fiber joints) to ensure mechanical integrity per Boeing BAC 5400 or Airbus AITM standards.

FAQ

Does the Coatmaster require physical contact with the sample?
No — it is a fully non-contact system relying on photothermal excitation and infrared thermography.
Can it measure on curved or irregular surfaces?
Yes — its angle- and distance-invariant design enables accurate measurement on radiused, bent, threaded, or micro-structured surfaces.
Is calibration required for each new substrate or coating type?
No — the physics-based algorithm uses known thermal properties (supplied via material library or user input) to solve the inverse heat conduction problem without per-material calibration.
What is the typical measurement speed?
Single-point acquisition time is ≤ 100 ms; line-scan mode achieves up to 1 kHz spatial sampling frequency for continuous web or conveyor monitoring.
Does ambient lighting affect measurement accuracy?
No — the system employs narrowband IR detection synchronized with the optical pulse, making it insensitive to ambient visible or NIR radiation.
