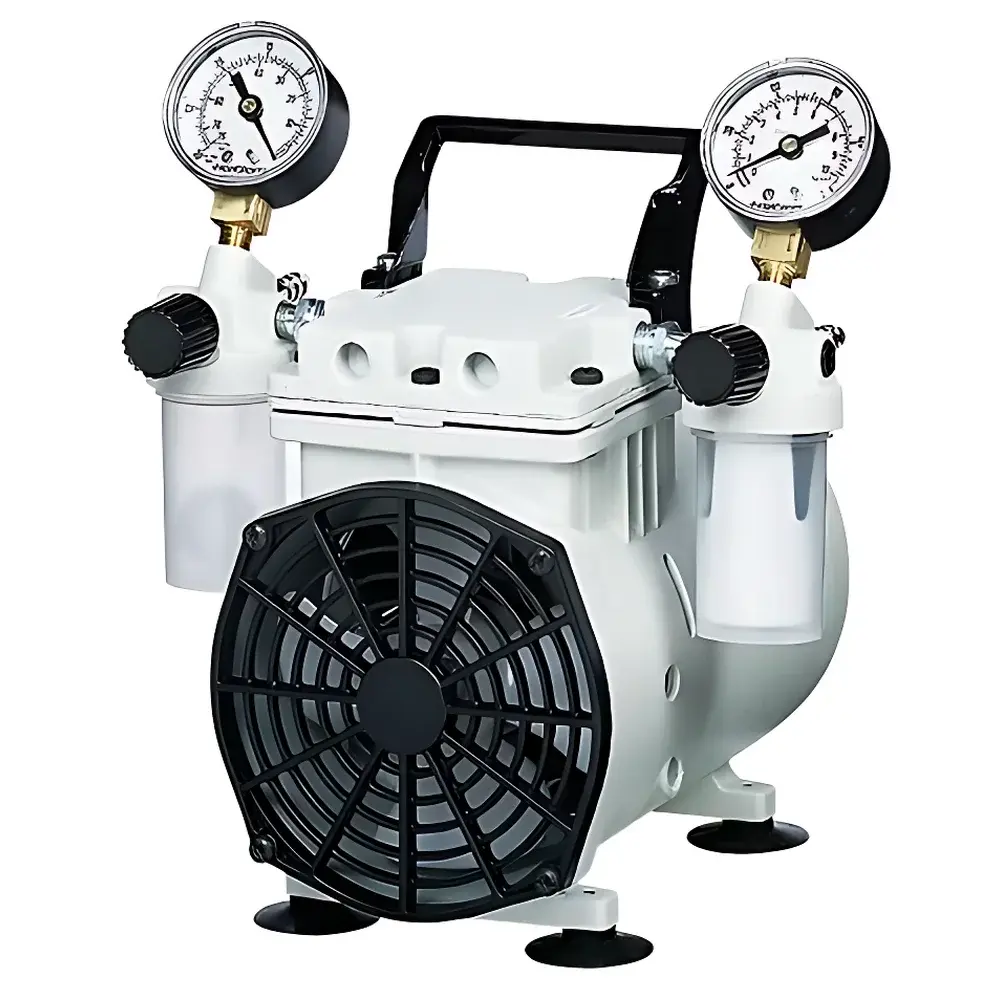

Cole-Parmer 79204-05 Standard-Load Dry Piston Vacuum Pump

Overview

The Cole-Parmer 79204-05 Standard-Load Dry Piston Vacuum Pump is an oil-lubricated, single-head positive-displacement vacuum pump engineered for reliable, low-maintenance operation in routine laboratory applications. Unlike oil-free diaphragm pumps, this piston design employs a precision-machined aluminum cylinder and stainless steel/PTFE-coated components to deliver consistent volumetric displacement and stable vacuum generation across extended duty cycles. Its operating principle relies on reciprocating piston motion within a sealed chamber to alternately expand (drawing gas in through the inlet) and compress (expelling gas via the exhaust), enabling controlled evacuation of air or inert gases from connected systems. The pump achieves an ultimate vacuum of 100 Torr (26.0″ Hg) — sufficient for filtration, solvent removal, degassing of aqueous solutions, and desiccation protocols where deep vacuum is not required. Designed for life science environments, it incorporates integrated safeguards including a water trap to prevent liquid ingress and an acoustic muffler to maintain ambient noise levels at ≤62 dB(A), supporting compliance with ISO 14040-based lab ergonomics guidelines.

Key Features

• Oil-lubricated piston mechanism ensures high volumetric efficiency and long service life under continuous standard-load conditions
• Anodized aluminum housing, stainless steel valving, and PTFE-sealed wetted surfaces provide chemical resistance to water vapor and non-aggressive gases
• Integrated water trap (included) prevents condensate or accidental liquid aspiration from reaching internal components
• Adjustable vacuum control knob and analog vacuum gauge enable real-time, manual regulation of suction pressure without external controllers
• Low-noise operation (62 dB(A)) achieved via mechanical damping and exhaust muffling — suitable for shared benchtop use
• Standard 1/4″ barbed inlet port accommodates Tygon® 1/4″ ID vacuum tubing (e.g., Cat. No. 06414-20); Schuko plug included for 230 VAC, 50 Hz mains compatibility
• Comprehensive service kit (Cat. No. 79204-11) contains replacement gaskets, valves, and piston rings to support in-house maintenance per GLP-aligned preventive servicing schedules

Sample Compatibility & Compliance

This pump is validated for use with aqueous, saline, and buffer-based samples commonly encountered in cell culture, microbiology, and analytical sample preparation workflows. It is explicitly incompatible with organic solvents (e.g., acetone, ethanol), acidic vapors (e.g., HCl, acetic acid), or alkaline vapors (e.g., ammonia, NaOH solutions), as these may degrade sealing materials or corrode internal metal surfaces. All wetted materials comply with USP Class VI biocompatibility requirements for short-term contact with biological media. While not certified to ISO 8573-1 for compressed air purity, its oil-lubricated architecture meets ASTM D2622–22 specifications for hydrocarbon-free exhaust in non-critical vacuum applications. The unit carries CE marking for EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

Software & Data Management

The 79204-05 operates as a stand-alone analog instrument without digital connectivity or embedded firmware. Vacuum level is monitored visually via the integrated analog gauge; no data logging, USB interface, or software integration is provided. For laboratories requiring audit trails under FDA 21 CFR Part 11 or ISO/IEC 17025, external validation must be performed using calibrated pressure transducers and time-stamped acquisition systems. Maintenance records — including service kit usage and calibration of the vacuum gauge against NIST-traceable standards — should be retained per institutional GLP/GMP documentation policies.

Applications

• Routine vacuum filtration of cell suspensions, culture media, and particulate-laden buffers using Buchner or Hirsch funnels
• Removal of dissolved oxygen from cell culture media prior to sterile filtration
• Desiccation of lyophilization pre-formulations and moisture-sensitive reagents
• Evacuation of desiccators and glove boxes during storage of hygroscopic compounds
• Supporting vacuum-assisted pipetting and aspiration in automated liquid handling workstations
• Pre-vacuum conditioning of porous membranes and chromatography columns

FAQ

Can this pump be used for rotary evaporation?
No. Its ultimate vacuum (100 Torr) is insufficient for efficient solvent removal under reduced pressure; rotary evaporators require ≤10 Torr performance.
Is the pump compatible with vacuum ovens?
Yes, for low-temperature drying applications where vacuum levels above 50 Torr are acceptable; verify oven seal integrity and thermal load limits before integration.
What maintenance intervals are recommended?
Inspect and replace the water trap cartridge every 3 months; perform full service (piston ring, valve plate, lubricant) annually or after 2,000 operating hours, whichever occurs first.
Does the unit include overload protection?
Yes — built-in thermal cut-off interrupts power if motor temperature exceeds 110°C, resetting automatically upon cooldown.
Can I retrofit a digital vacuum controller?
Not directly — the pump lacks electrical interfaces or feedback signals; external PID controllers require separate pressure transducers and solenoid valves mounted in-line.
