Cole-Parmer IAQ-Calc Indoor Air Quality Monitor Model 86384-05

Overview

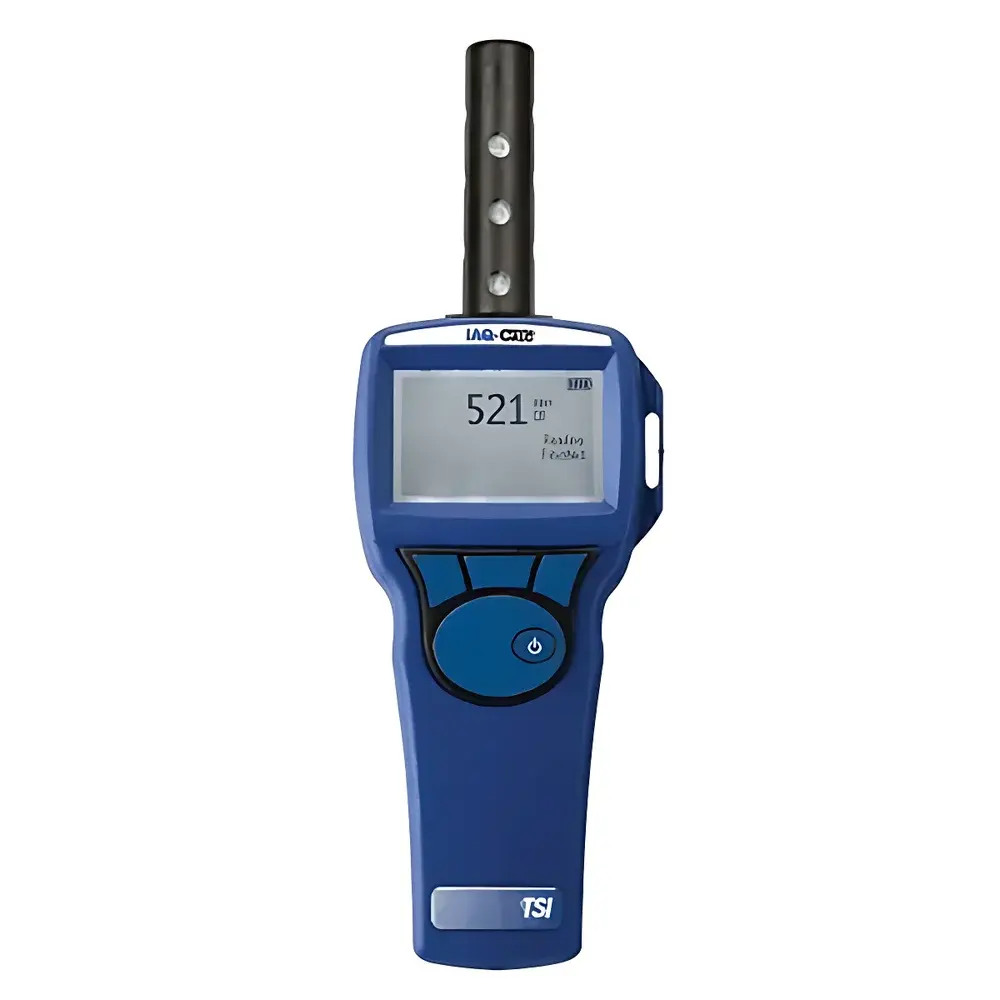

The Cole-Parmer IAQ-Calc Indoor Air Quality Monitor (Model 86384-05 and advanced variant 86384-15) is a portable, handheld instrument engineered for real-time assessment of critical indoor environmental parameters in commercial buildings, laboratories, healthcare facilities, and educational institutions. It employs non-dispersive infrared (NDIR) spectroscopy for CO₂ measurement—a method recognized for its long-term stability, minimal drift, and immunity to cross-sensitivity from common ambient gases. The 86384-15 variant extends capability with electrochemical sensing for carbon monoxide (CO), capacitive polymer-based relative humidity (RH) transduction, and precision thermistor-based temperature measurement. All sensors are factory-calibrated and supplied with NIST-traceable calibration certificates, ensuring metrological integrity for routine monitoring and compliance documentation.

Key Features

• Single-button navigation interface enabling rapid cycling through all active measurements without menu diving—optimized for field technicians performing walk-through audits.
• Low-drift NDIR CO₂ sensor with automatic baseline correction logic, delivering consistent accuracy across extended deployment intervals without frequent recalibration.
• Dual-line LCD display (86384-15) simultaneously showing CO₂, CO, RH, dry-bulb temperature, dew point, wet-bulb temperature, and % outdoor air—calculated in real time using ASHRAE-standard psychrometric algorithms.
• Onboard data logger storing up to 26,900 timestamped records (date, time, and all measured parameters), supporting longitudinal trend analysis and HVAC system performance verification.
• Battery-powered operation (4 × AA, included) ensures mobility across multi-zone facilities; optional 115 VAC adapter (standard with 86384-15) enables continuous benchtop use during commissioning or validation protocols.
• Robust housing rated for operation between 5–70 °C ambient temperature, suitable for both conditioned spaces and mechanical rooms with elevated thermal loads.

Sample Compatibility & Compliance

The IAQ-Calc series is designed for direct sampling of ambient indoor air—no external pumps, filters, or conditioning modules required. Its compact form factor allows insertion into diffusers, ducts (via optional probe extensions), and occupied zones per ANSI/ASHRAE Standard 62.1 ventilation rate procedure requirements. While not certified for hazardous area use (e.g., Class I Div 1), it meets general-purpose electrical safety standards for office and light industrial environments. Calibration traceability to NIST supports adherence to ISO/IEC 17025 documentation practices when used within laboratory quality management systems. Though not intrinsically safe, its CO measurement range (0–500 ppm) aligns with OSHA PEL (50 ppm TWA) and ACGIH TLV® thresholds for occupational exposure assessment.

Software & Data Management

Data retrieval and post-processing are facilitated via LogDat 2™ software (Windows-compatible, ≥Windows 3.1), which establishes USB communication with the device to download logged datasets with full temporal metadata. The LogDat 2 Companion for Excel add-in automates import into spreadsheet format and generates time-series charts—including overlay plots of CO₂ vs. occupancy proxies, RH hysteresis loops, and dew point excursions—without manual formatting. Audit trails include firmware version, calibration date, and operator ID fields (user-definable), supporting GLP-aligned recordkeeping. Export formats include CSV, TXT, and native .LDT for archival. No cloud dependency or subscription model: all processing occurs locally, preserving data sovereignty and simplifying FDA 21 CFR Part 11 compliance where electronic signatures and change control are implemented at the institutional level.

Applications

• Verification of demand-controlled ventilation (DCV) system response by correlating real-time CO₂ levels with damper actuation and supply airflow rates.
• Baseline IAQ surveys prior to LEED EQ Credit 1 certification or WELL Building Standard v2 Air Concept documentation.
• Post-renovation indoor air testing to confirm absence of CO leakage from combustion appliances or construction-related off-gassing.
• Educational demonstrations of psychrometrics, thermal comfort (PMV/PPD estimation), and ventilation efficiency metrics such as air changes per hour (ACH).
• Periodic health and safety inspections in call centers, server rooms, and cleanroom support areas where thermal load and occupant density drive air quality dynamics.

FAQ

Is the IAQ-Calc suitable for outdoor air quality monitoring?
No. It is specifically calibrated and validated for indoor ambient conditions (5–95% RH, 0–60 °C). Outdoor particulate loading, UV exposure, and extreme temperature gradients may compromise sensor longevity and accuracy.
Can the CO₂ sensor be field-recalibrated?
Yes—using fresh outdoor air (≈400 ppm CO₂) as a zero-reference point via the built-in auto-zero function. Full span calibration requires certified gas standards and is recommended annually or after physical shock.
Does the device meet ISO 16000-23 or EN 13725 requirements for VOC screening?
No. The IAQ-Calc does not measure volatile organic compounds. It addresses core IAQ parameters defined in ISO 16000-1 (CO₂, CO, RH, temperature) but lacks photoionization or metal oxide semiconductor detection capability.
What is the expected service life of the NDIR CO₂ sensor?
Under typical indoor operating conditions (continuous use, 25 °C, 50% RH), the NDIR cell maintains specification-grade performance for ≥10 years, supported by Cole-Parmer’s limited warranty and documented mean time between failures (MTBF) data.
Is the LogDat 2 software compliant with 21 CFR Part 11?
The software itself is not Part 11–validated out-of-the-box; however, its local file architecture, immutable audit logs, and user-access controls enable institutions to implement supplementary procedural and technical controls (e.g., electronic signatures, review workflows) to achieve compliance within their QMS framework.
