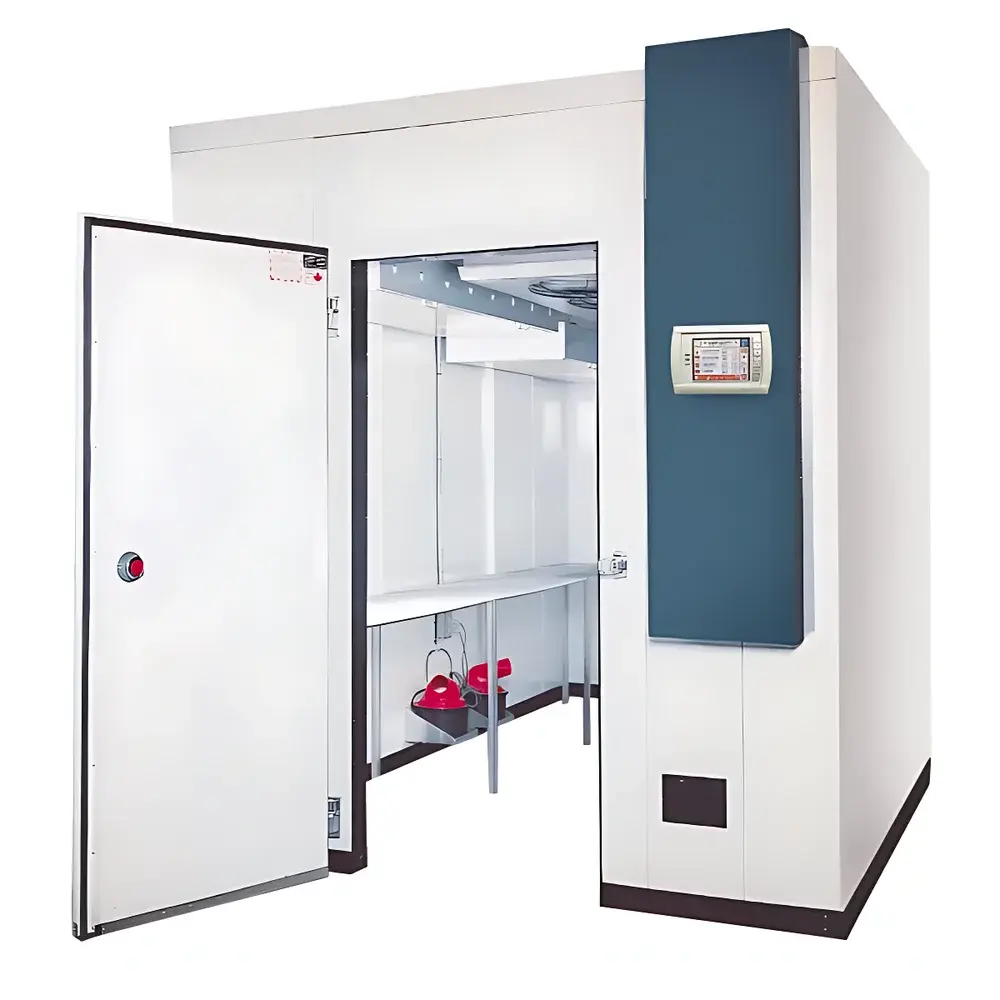

CONVIRON GR48 Walk-in Plant Growth Chamber

Overview

The CONVIRON GR48 Walk-in Plant Growth Chamber is a high-precision, fully integrated environmental control system engineered for reproducible, long-term plant phenotyping and physiological studies under tightly regulated conditions. Designed and manufactured in Canada, the GR48 employs a dual-mode air-handling architecture—combining ceiling-mounted laminar airflow distribution with a water-cooled condensing unit and bypass gas management—to ensure thermal stability, humidity fidelity, and photometric consistency across its 4.5 m² cultivation footprint. Its measurement foundation rests on real-time closed-loop feedback control of temperature, relative humidity, photosynthetic photon flux density (PPFD), and CO₂ concentration, all coordinated via the CMP6060 industrial PLC controller. Unlike consumer-grade or microprocessor-based incubators, the GR48 implements deterministic control logic compliant with GLP and GMP-aligned laboratory practices, supporting traceable parameter histories, audit-ready alarm logs, and configurable user access levels—all critical for regulatory submissions in agricultural biotechnology, crop science, and translational plant research.

Key Features

• Industrial-grade CMP6060 controller with Windows Embedded SE OS, enabling custom scripting, multi-language UI (English, French, Spanish), and seamless integration with third-party lab instrumentation via Modbus TCP/RTU.
• 7-inch capacitive touchscreen interface with pan-and-zoom functionality for trend visualization; supports simultaneous overlay of setpoints and actual values across up to five days of historical data.
• Modular lighting architecture: two adjustable 890 mm × 2440 mm lamp racks accommodating T5 fluorescent and halogen sources; optional ceramic metal halide high-intensity upgrade (650 µmol/m²/s at 1 m) with continuous dimming from 40–100% output.
• Thermal management system featuring magnetic-coupled proportional reversing valves, suction-pressure regulating valves (0–400 psig), and a 4-port liquid/gas separator—designed for >10-year compressor service life and <0.5°C temperature fluctuation during dynamic load transitions.
• Comprehensive environmental monitoring: local data logging every 30 seconds (or 18 seconds with remote acquisition module); alarm history retention for last 15 events; four-tier password protection (user/operator/admin/technician).
• Scalable infrastructure: optional remote air-cooled condenser (up to 15 m line length), dedicated UPS-compatible power conditioning, and field-upgradable firmware via USB—provided at no cost throughout product lifecycle.

Sample Compatibility & Compliance

The GR48 accommodates full-grown cereal and leguminous species—including rice, maize, soybean, and wheat—from seedling establishment through reproductive maturation. With optional height extension kits, it supports juvenile tree physiology studies up to 2.34 m canopy height. Its internal smooth-galvanized steel construction (24-gauge) and external powder-coated zinc substrate (26-gauge) meet ASTM B633 SC4 corrosion resistance requirements for humidified environments. All electrical components comply with CSA C22.2 No. 107.1 and IEC 61000-6-3 EMC standards. The chamber’s design enables validation per ISO 17025 for calibration traceability and supports 21 CFR Part 11 compliance when paired with CONVIRON’s validated software package—ensuring electronic records integrity, audit trails, and role-based electronic signatures for regulated trials.

Software & Data Management

Data acquisition and reporting are natively managed through the CMP6060’s embedded runtime environment. All sensor inputs—including thermistors, capacitive RH probes, quantum sensors, and NDIR CO₂ analyzers—are sampled synchronously and timestamped with millisecond precision. Trend graphs support cursor-based interrogation, differential delta analysis, and export to CSV or Excel formats. Remote network access (via optional Ethernet module) allows centralized supervision of multiple GR48 units using CONVIRON’s ChamberLink™ enterprise software—enabling cross-chamber comparative analytics, automated report generation, and integration with LIMS platforms via RESTful API. Audit trails log every parameter change, user login, alarm activation, and firmware update with immutable timestamps and operator IDs—fully satisfying GLP documentation requirements.

Applications

The GR48 serves as a foundational platform for controlled-environment agriculture (CEA) research, including photoperiodic response mapping, drought-stress phenotyping, CO₂ fertilization trials, and genotype-by-environment interaction (G×E) studies. Its uniform irradiance distribution and stable vapor pressure deficit (VPD) profile make it suitable for high-throughput screening of abiotic stress tolerance markers. Regulatory laboratories utilize the system for OECD TG 208 (terrestrial plant toxicity testing) and EPA OPPTS 850.4400 (plant metabolism studies). In breeding programs, the GR48 supports synchronized flowering induction in photoperiod-sensitive cultivars and facilitates year-round seed production independent of seasonal variability.

FAQ

What is the maximum plant height supported without modification?

The standard GR48 provides 2030 mm of unobstructed cultivation height; with the height extension kit installed, usable height increases to 2340 mm.

Can the controller interface be customized for non-standard experimental protocols?

Yes—the CMP6060 supports user-defined ladder logic and script-based control sequences via its open Windows Embedded SE environment and native USB programming interface.

Is remote monitoring and alarm notification available?

Optional email/SMS alert modules integrate with the controller’s event manager to dispatch notifications upon threshold breaches, power loss, or hardware fault detection.

Does the system support validation documentation for ISO/IEC 17025 accreditation?

CONVIRON provides IQ/OQ documentation packages, sensor calibration certificates (NIST-traceable), and installation qualification checklists upon request.

What maintenance intervals are recommended for critical subsystems?

Lamp replacement cycles are tracked automatically; compressor oil analysis is advised every 24 months; air filter inspection is scheduled quarterly per ASHRAE 52.2 guidelines.
