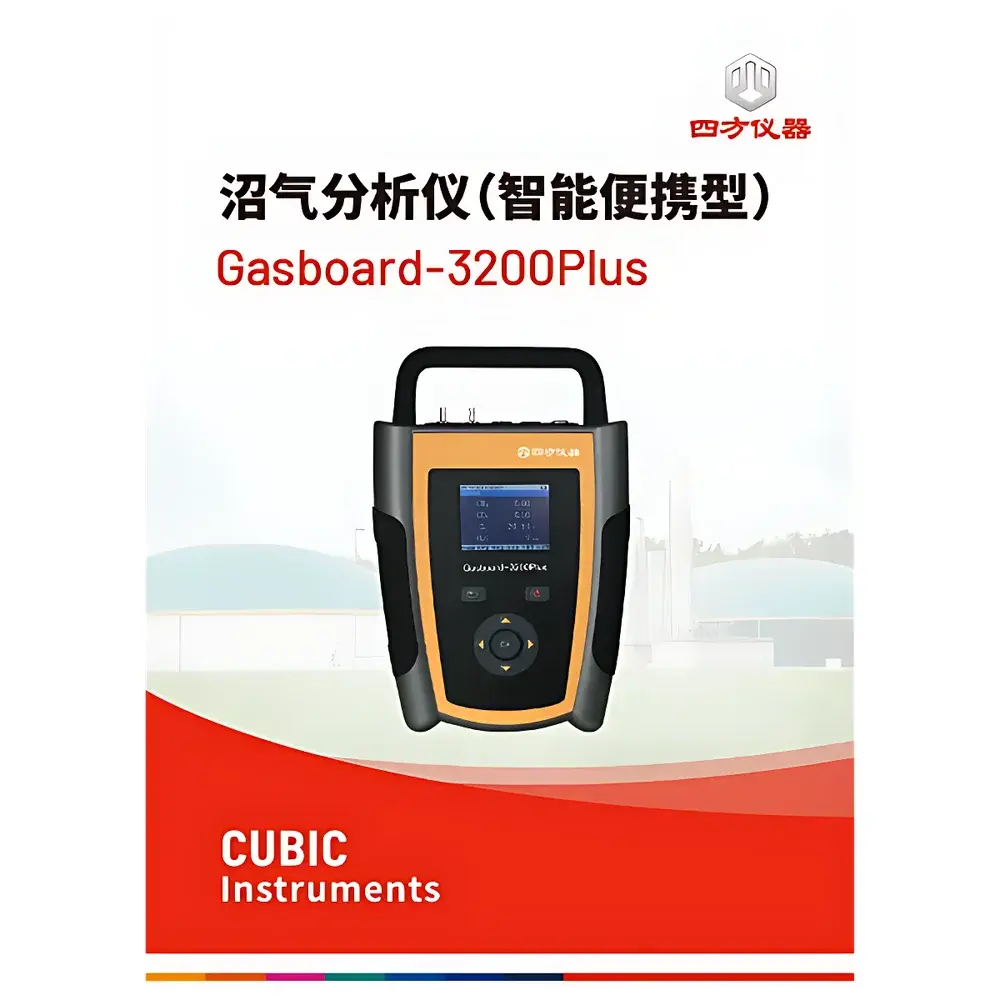

CUBIC Gasboard-3200Plus Portable Biogas Analyzer

Overview

The CUBIC Gasboard-3200Plus is a field-deployable, multi-parameter biogas analyzer engineered for real-time, in-situ quantification of key gaseous components in landfill gas, anaerobic digestion effluent, and wastewater treatment off-gas streams. It operates on dual-sensor architecture: non-dispersive infrared (NDIR) spectroscopy for high-selectivity, drift-resistant measurement of methane (CH₄) and carbon dioxide (CO₂), and electrochemical detection (ECD) for precise, low-power monitoring of hydrogen sulfide (H₂S) and oxygen (O₂). Unlike wet-chemistry or GC-based systems, the Gasboard-3200Plus requires no carrier gases, chemical reagents, or consumable optical filters—enabling maintenance-free operation over extended deployment cycles. Its compact form factor (75% volume reduction vs. predecessor models) and 60% weight reduction support both handheld field surveys and controlled-lab analysis of gas bag samples, meeting ISO 16000-22 and ASTM D5502-19 guidance for portable biogas composition verification.

Key Features

• Modular sensor architecture ensures zero cross-interference between CH₄, CO₂, H₂S, and O₂ channels—validated per IEC 61000-4-3 immunity testing for industrial electromagnetic environments.
• Dual-channel ECD sensors for O₂ and H₂S incorporate temperature-compensated diffusion barriers and integrated reference electrodes, delivering stable baseline performance across ambient temperatures from –10 °C to +50 °C.
• Intelligent power management system includes soft-start circuitry and state-of-charge (SoC) estimation algorithms that prevent instrument operation below 10% battery capacity—preserving sensor calibration integrity and data continuity.
• On-device diagnostics continuously monitor sensor response time, zero drift, and signal-to-noise ratio (SNR), logging fault codes compliant with ISA-84.00.01 SIS diagnostic coverage requirements.
• Expandable configuration supports optional CO and H₂ electrochemical modules, enabling full biogas quality assessment per EN 16714-1:2016 specifications for biomethane upgrading facilities.
• Bluetooth 4.0 BLE interface enables secure, low-energy wireless telemetry to Android/iOS mobile applications, supporting configurable sampling intervals (1–60 s) and timestamped GPS-tagged location metadata.

Sample Compatibility & Compliance

The Gasboard-3200Plus accepts direct sampling from gas collection lines, Tedlar® bags, and stainless-steel canisters (with optional heated sample line kit for condensate-prone streams). Its inlet flow path features a particulate filter (5 µm rating), hydrophobic membrane (0.2 µm PTFE), and pressure-regulated sampling valve—meeting ISO 14644-1 Class 8 cleanroom compatibility for lab use. All measurement outputs comply with GLP data integrity standards: each stored record includes instrument ID, calibration date, operator ID (via PIN entry), and audit trail of parameter changes. Firmware supports 21 CFR Part 11–compliant electronic signatures when paired with authorized enterprise software platforms.

Software & Data Management

Internal firmware stores up to 10,000 timestamped measurement records (CH₄, CO₂, H₂S, O₂, ambient T/P) with automatic overwrite protection. Data export occurs via USB mass storage mode (CSV format) or Bluetooth sync to CUBIC’s BiogasLink™ desktop application—capable of generating ASTM D1945–22–aligned reports, trend charts, and batch-wise statistical summaries (mean, SD, CV%). The application enforces role-based access control (RBAC) and supports automated upload to SCADA or cloud-based environmental monitoring systems (e.g., Siemens Desigo CC, Schneider EcoStruxure).

Applications

• Landfill gas monitoring per EPA Method 2C and EU Landfill Directive 1999/31/EC—tracking CH₄ oxidation efficiency and flare compliance.
• Biogas upgrading plant feedstock qualification: real-time validation of CO₂ removal efficiency and H₂S scrubber breakthrough detection.
• Wastewater treatment plant digester headspace analysis for process optimization and corrosion risk assessment (per NACE SP0169).
• Academic and regulatory laboratory verification of gas bag samples collected under ISO 16000-22 protocols.
• Mobile emissions auditing for decentralized anaerobic digesters in agricultural and food processing sectors.

FAQ

What calibration gases are required for field recalibration?
Certified standard mixtures traceable to NIST SRMs: 50% CH₄ in N₂ (for CH₄ channel), 25% CO₂ in N₂ (for CO₂), 500 ppm H₂S in N₂ (for H₂S), and ambient air (for O₂ zero). Calibration frequency follows ISO 17025:2017—typically every 30 days or after exposure to >1000 ppm H₂S.
Can the instrument measure gas flow rate?
Not natively—but it integrates seamlessly with third-party handheld thermal anemometers (e.g., Testo 435 series) via analog voltage input; flow-corrected volumetric concentration calculations are supported in BiogasLink™ software.
Is explosion-proof certification available?
The base unit carries CE marking per ATEX Directive 2014/34/EU Category 3G (Zone 2)—suitable for non-hazardous areas adjacent to biogas infrastructure. Intrinsically safe (IS) variants (IECEx Zone 1) are available under custom order.
How is sensor longevity ensured in high-H₂S environments?
H₂S sensors feature gold-plated working electrodes and proprietary electrolyte formulation resistant to sulfide poisoning—validated for ≥2 years service life at continuous 500 ppm exposure per ASTM D7251 accelerated aging protocol.
