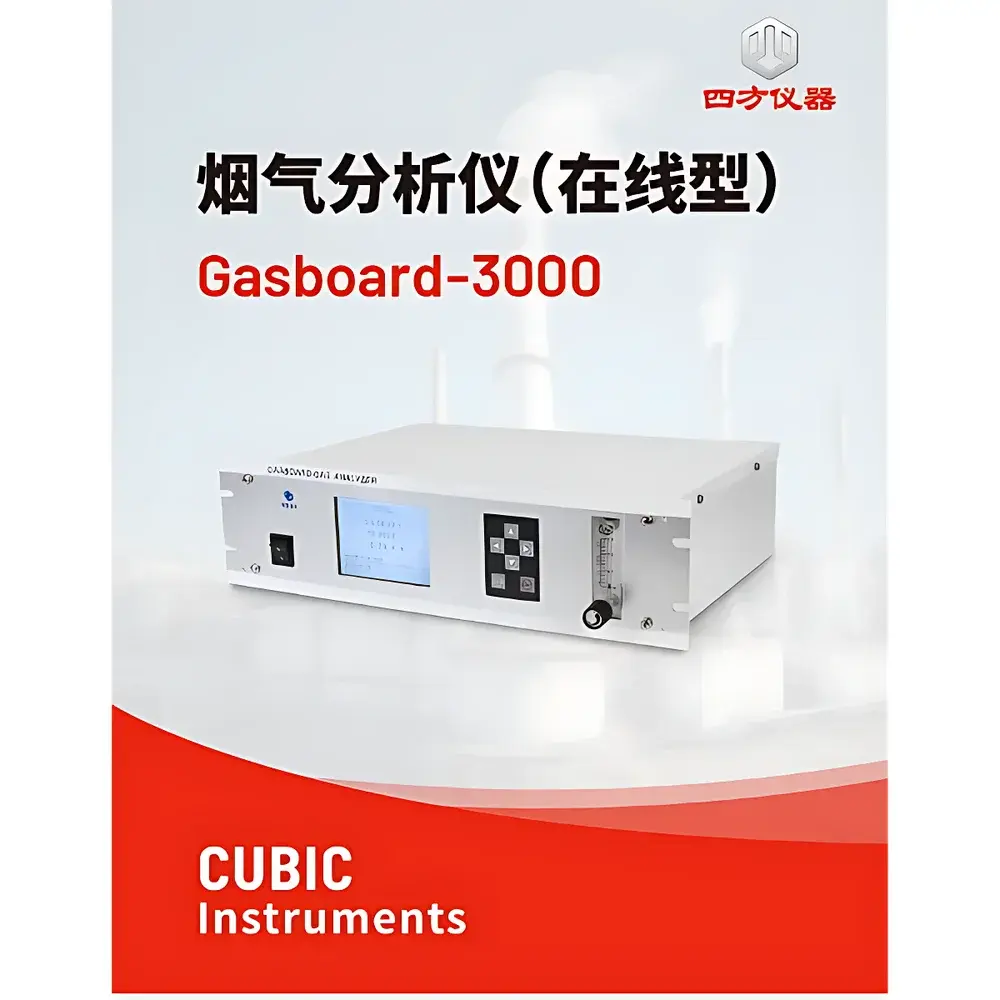

CUBIC INSTRUMENTS Gasboard-3000 Online Flue Gas Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3000 Online Flue Gas Analyzer is an industrial-grade, continuous emission monitoring system engineered for real-time, multi-component analysis of flue gas streams in fixed-source combustion applications. It employs dual-sensor architecture: non-dispersive infrared (NDIR) spectroscopy for quantitative detection of SO₂, NO, CO, and CO₂—gases exhibiting strong, spectrally distinct absorption bands in the mid-infrared region—and electrochemical detection (ECD) for precise O₂ measurement. This hybrid approach ensures high selectivity, minimal cross-sensitivity, and immunity to interference from water vapor in hot, humid flue gas—a critical performance attribute for stack-mounted or duct-integrated deployment. The analyzer operates under strict thermal and flow management protocols, maintaining stable optical path conditions and consistent diffusion kinetics across the electrochemical cell. Designed for unattended operation over extended intervals, it meets baseline requirements for compliance with national and regional continuous emission monitoring standards—including China’s HJ 75–2017 and HJ 76–2017—and serves as a foundational instrument for process optimization, environmental reporting, and regulatory verification.

Key Features

• Multi-gas NDIR + ECD architecture enabling simultaneous, independent quantification of SO₂, NO, CO, CO₂, and O₂ without spectral overlap or chemical cross-reactivity
• Robust sensor housing constructed entirely from corrosion-resistant materials—including 316L stainless steel and PTFE—suitable for direct installation in high-temperature, high-acid-gas environments up to 180 °C (with optional cooling module)
• Integrated zero-air pump and auto-calibration routine compliant with ISO 14956:2002 procedures for field-deployable traceability
• Optimized optical design delivering T90 response time <10 s for NDIR channels and <20 s overall system latency, supporting dynamic control loop integration
• Flow-insensitive measurement for SO₂, NO, and CO—eliminating need for precision mass flow controllers in upstream conditioning systems
• Real-time diagnostics via LCD interface including sensor health status, signal-to-noise ratio trends, and fault logging with timestamped event codes

Sample Compatibility & Compliance

The Gasboard-3000 accepts conditioned sample gas meeting EN 15267-3 and EPA Method 6C specifications: particulate-free (<0.1 µm filter), dew point <5 °C (achieved via chiller or permeation dryer), and hydrocarbon/oil content below 0.1 ppm. It complies with electromagnetic compatibility per IEC 61326-1:2020 and safety requirements per IEC 61010-1:2010. While not certified to UL 61010 or ATEX/IECEx for hazardous areas, its enclosure rating (IP65) supports indoor/outdoor cabinet mounting. Data integrity adheres to GLP-aligned audit trail principles: all calibrations, configuration changes, and alarm events are time-stamped and stored locally for ≥30 days. When integrated into centralized SCADA or DCS platforms via Modbus RTU (RS-485) or 4–20 mA analog output, it supports traceable data transmission per ISO/IEC 17025 documentation workflows.

Software & Data Management

The analyzer features embedded firmware supporting both standalone operation and networked supervision. Local configuration and historical trend review are accessible via front-panel LCD and keypad. For enterprise-level integration, optional PC-based software (Gasboard-Link v3.x) provides remote parameter setting, batch export of CSV-formatted concentration logs (with UTC timestamps), and configurable alarm thresholds with email/SMS notification via Ethernet gateway. All digital outputs include CRC-16 error checking; analog outputs are isolated and linearized per NIST-traceable calibration certificates. Firmware updates follow secure signed-package protocol, preserving configuration integrity during version migration. Audit logs record user login sessions, parameter modifications, and calibration history—supporting FDA 21 CFR Part 11 readiness when deployed in pharmaceutical or food-grade thermal processing facilities requiring validated emissions control.

Applications

• Continuous monitoring of SO₂ and NOₓ in coal-fired power plant flue ducts for FGD and SCR system feedback control
• CO surveillance in pulverized coal mills and coal silos to prevent spontaneous combustion and ensure explosion safety per NFPA 85 guidelines
• Combustion efficiency optimization via real-time O₂/CO ratio analysis in industrial boilers and kilns
• Stack compliance verification for municipal waste incinerators subject to EU Directive 2010/75/EU (IED) and China’s GB 13223–2011
• Process validation in cement clinker production lines where CO₂ concentration correlates directly with calcination efficiency
• Baseline emission profiling during commissioning and periodic QA/QC audits of thermal oxidation units

FAQ

What gases does the Gasboard-3000 measure, and what are their respective detection limits?
It measures SO₂, NO, CO, CO₂, and O₂. Detection limits are defined by resolution: 1 ppm for SO₂, NO, and CO; 0.01% volume for CO₂ and O₂.
Is the analyzer suitable for high-moisture flue gas without external drying?
Yes—the NDIR channels are intrinsically immune to water vapor interference due to spectral filtering and dual-wavelength compensation algorithms.
Can the Gasboard-3000 be integrated into a DCS using standard industrial protocols?
Yes—it supports Modbus RTU over RS-485 and analog 4–20 mA outputs with HART capability (optional), enabling seamless integration with Emerson DeltaV, Siemens PCS7, and Honeywell Experion DCS platforms.
How often is calibration required, and what reference standards are used?
Zero calibration is performed automatically every 24 hours using internal zero-air; span calibration is recommended quarterly using certified NIST-traceable gas mixtures (e.g., SO₂ in N₂, CO in air).
Does the device meet international certification requirements for continuous emission monitoring?
It fulfills functional and performance criteria outlined in EN 15267-3 and HJ 76–2017. Third-party type approval per MCERTS or TÜV is available upon request for site-specific validation.
