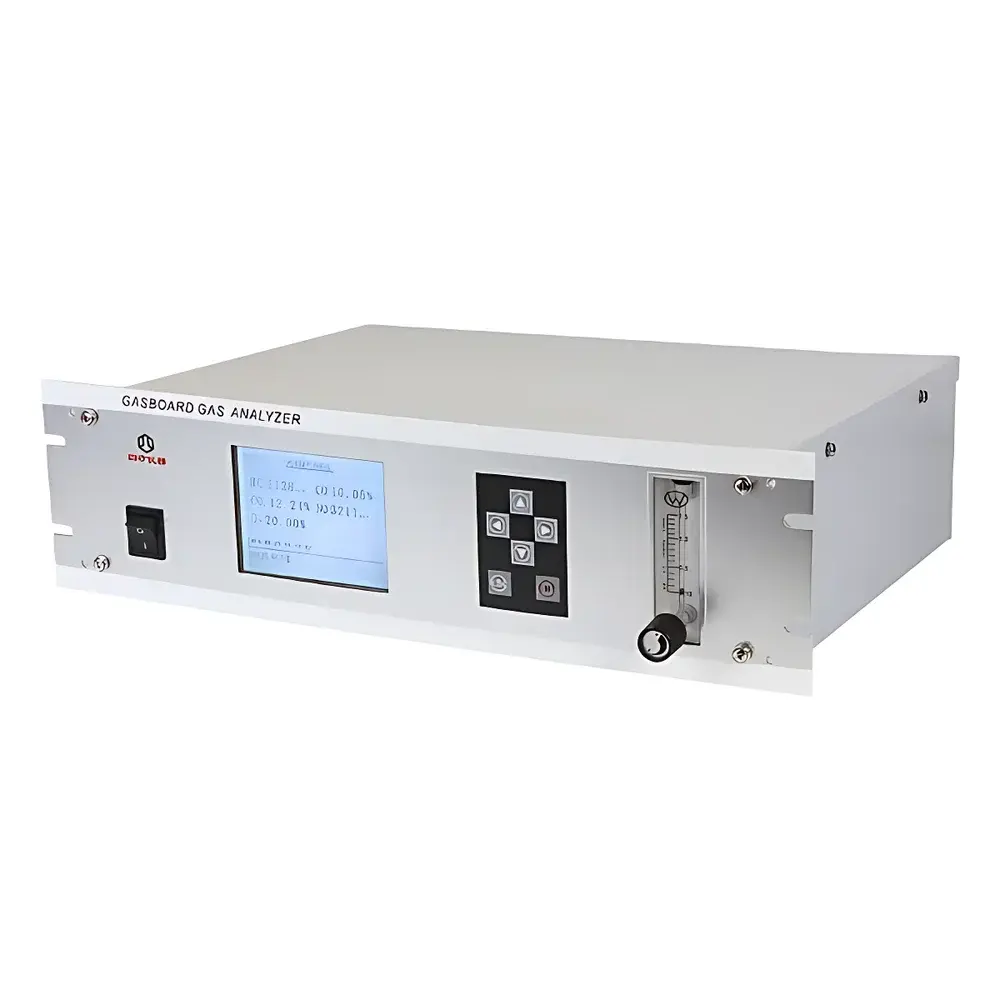

CUBIC INSTRUMENTS Gasboard-3000E Ultra-High-Precision Automotive Exhaust Gas Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3000E is an online automotive exhaust gas analyzer engineered for regulatory-grade emissions testing in inspection & maintenance (I/M) programs, vehicle manufacturing QA lines, and R&D laboratories. It employs dual-beam micro-flow NDIR spectroscopy — a proprietary optical architecture that enhances signal stability and minimizes baseline drift by actively compensating for thermal and mechanical perturbations. Unlike conventional single-beam NDIR systems, the Gasboard-3000E utilizes matched reference and measurement optical paths with temperature-stabilized micro-flow gas cells, enabling real-time, simultaneous quantification of carbon monoxide (CO), hydrocarbons (HC), carbon dioxide (CO₂), nitrogen oxide (NO), and oxygen (O₂) in undiluted or diluted exhaust streams. Its design meets the stringent Class 00 metrological requirements specified in GB 18285–2018 (“Limits and Measurement Methods for Pollutants from Light-Duty Vehicles”), including maximum permissible error, zero/span drift, and repeatability thresholds applicable to low-emission vehicle certification.

Key Features

• Dual-beam micro-flow NDIR sensor architecture with active thermal compensation for long-term baseline stability
• Integrated automatic temperature control system maintaining optical cell at constant 45 °C ±0.2 °C, eliminating ambient-induced calibration drift
• Optimized filter gas cell design minimizing spectral cross-sensitivity between CO, CO₂, HC, and NO bands
• Sub-ppm detection limit for HC (down to 4 ppm absolute error at low concentration) supporting Class 00 compliance
• Onboard self-diagnostic routines for optical path integrity, detector responsivity, and flow uniformity verification
• Rugged industrial enclosure rated IP54, suitable for continuous operation in workshop and roadside testing environments

Sample Compatibility & Compliance

The Gasboard-3000E accepts raw or diluted exhaust gas sampled via heated probe and PTFE-lined sampling line (standard 3 m length, optional extension up to 10 m). It supports both steady-state (e.g., idle, high-idle) and transient sampling modes per GB 18285–2018 Annex B protocols. All measurement algorithms and calibration traceability align with national metrological verification regulations JJG 976–2010 and JJG 1172–2020. The instrument’s firmware implements audit-ready data logging with timestamped calibration events, zero/span checks, and operator ID tagging — facilitating GLP-compliant recordkeeping and readiness for provincial environmental bureau audits. While not certified to ISO/IEC 17025 as a standalone testing laboratory, its metrological performance is validated against NIST-traceable gas standards (e.g., Scott-Marrin CRM mixtures) and conforms to the uncertainty budgeting framework required under China’s CNAS accreditation guidelines.

Software & Data Management

The analyzer operates with embedded Linux-based firmware and communicates via RS-232, RS-485, or Ethernet (Modbus TCP/RTU). The standard PC software package supports automated test sequence execution, real-time waveform visualization, and export of structured CSV/Excel reports compliant with MEE (Ministry of Ecology and Environment) reporting templates. Audit trail functionality records all parameter modifications, calibration actions, and user logins with immutable timestamps. Optional FDA 21 CFR Part 11-compliant version available upon request, featuring electronic signatures, role-based access control (admin/operator/maintainer), and encrypted database storage with daily backup scheduling. Raw spectral data (absorbance vs. wavenumber) is accessible via diagnostic port for third-party spectral modeling validation.

Applications

• Regulatory emissions testing at certified motor vehicle inspection stations (MVIS) across China
• In-line exhaust analysis during engine development and powertrain calibration at OEM facilities
• Post-repair verification in certified auto repair shops performing I/M compliance diagnostics
• Research on aftertreatment system efficiency (e.g., three-way catalyst conversion rates under varying λ conditions)
• Validation of portable emission measurement systems (PEMS) against reference bench instrumentation
• Training and proficiency testing for environmental monitoring personnel under provincial EPB supervision

FAQ

Does the Gasboard-3000E require periodic calibration with certified gas standards?
Yes. Initial calibration and annual verification must be performed using NIST-traceable or CNAS-accredited calibration gases meeting GB/T 5274–2018 specifications. Daily zero/span checks are mandatory prior to first use.
Can the analyzer measure NO₂ directly, or is it inferred from NO?
The Gasboard-3000E measures NO directly via its dedicated NDIR channel at 5.3 µm. NO₂ is not measured; users requiring NOₓ (NO + NO₂) must integrate with a chemiluminescence detector or apply stoichiometric correction based on catalytic converter efficiency assumptions.
Is the device compatible with existing I/M station management software platforms?
Yes. It supports standard Modbus RTU/TCP protocols and provides configurable ASCII command sets for integration with common Chinese I/M platform vendors (e.g., Zhongke Hengyuan, Shenzhen Yihua, Beijing Zhongche). Custom API wrappers available upon technical agreement.
What is the recommended maintenance interval for the optical module?
The dual-beam micro-flow cell requires cleaning every 6 months under normal workshop use (≤8 hrs/day). Full optical alignment verification is advised annually by authorized CUBIC service engineers using factory-certified collimation tools.
Does the analyzer meet EU or US EPA regulatory requirements?
No. The Gasboard-3000E is designed and verified exclusively for compliance with Chinese national standards (GB 18285, GB 3847). It is not type-approved under U.S. EPA 40 CFR Part 1065 or EU Regulation (EU) 2017/1151 and lacks CE marking for EMC/LVD directives.
