CUBIC INSTRUMENTS Gasboard-3000UV UV Absorption H₂S Analyzer

Overview

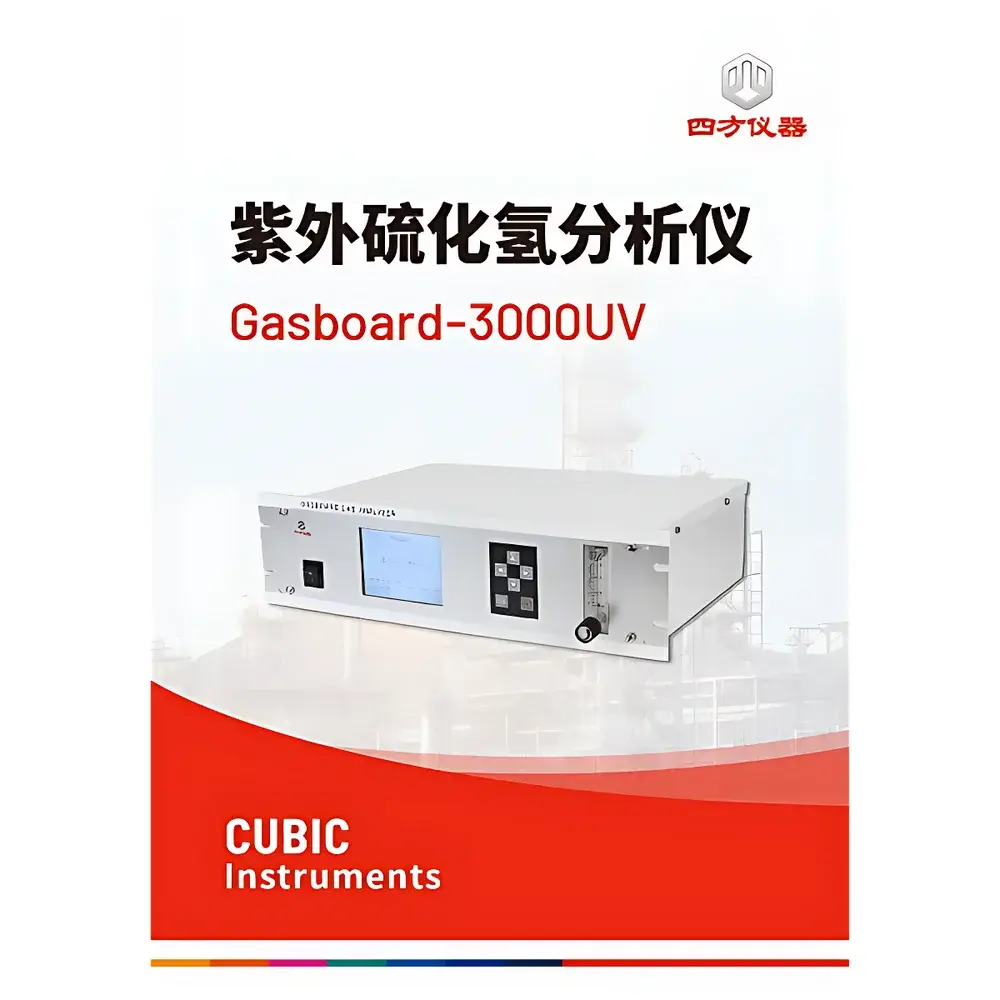

The CUBIC INSTRUMENTS Gasboard-3000UV is a dedicated ultraviolet (UV) absorption spectroscopy-based analyzer engineered for continuous, real-time quantification of hydrogen sulfide (H₂S) in industrial process and biogas streams. Unlike electrochemical sensors—prone to drift, limited lifetime, and cross-sensitivity to CO, SO₂, or humidity—or costly gas chromatography (GC) systems requiring periodic maintenance and offline sampling, the Gasboard-3000UV employs fixed-wavelength UV photometry at 200–220 nm, where H₂S exhibits strong, characteristic absorbance. This principle enables direct, interference-resistant measurement without consumables or reagents. The optical path is housed in a temperature-stabilized, corrosion-resistant flow cell constructed entirely from PTFE-coated stainless steel and quartz windows, ensuring long-term signal stability under aggressive biogas or syngas conditions. Designed for integration into distributed control systems (DCS) or SCADA networks, it operates unattended with built-in diagnostics and automated zero calibration—critical for compliance with continuous emission monitoring system (CEMS) expectations in regulated biogas upgrading and desulfurization applications.

Key Features

• UV absorption spectroscopy core: Non-destructive, reagent-free detection with inherent selectivity for H₂S in complex gas matrices
• Customizable range configuration: Standard 0–25,000 ppm; extended or reduced ranges available per application requirements (e.g., low-level monitoring at 0–100 ppm or high-concentration flare gas analysis)
• Corrosion-resistant wetted materials: All sample-contact surfaces utilize PTFE-lined 316L stainless steel and fused silica optics, compatible with wet, sour, and particulate-laden biogas
• Integrated auto-zero function: Onboard diaphragm pump draws ambient air through the optical cell at user-defined intervals (e.g., hourly), enabling drift compensation without manual intervention
• Dual analog and digital output: Simultaneous 4–20 mA current loop (HART-compatible) and isolated RS-485/RS-232 interfaces support Modbus RTU protocol for PLC integration
• Embedded self-diagnostics: Real-time monitoring of lamp intensity, detector signal-to-noise ratio, flow rate, and zero stability—logs fault codes compliant with IEC 61508 functional safety guidelines

Sample Compatibility & Compliance

The Gasboard-3000UV is validated for use with raw and conditioned biogas, landfill gas, digester off-gas, coke oven gas, and natural gas feedstocks containing up to 50% CH₄, 45% CO₂, and trace levels of NH₃, siloxanes, and volatile organic compounds (VOCs). It meets ISO 14687-2:2022 specifications for H₂S measurement in hydrogen fuel gas quality control and aligns with EN 16723-1:2016 requirements for biogas upgrading plant monitoring. While not certified to UL/ATEX standards out-of-the-box, its enclosure rating (IP65) and intrinsic safety-ready electrical architecture permit field installation in Zone 2 hazardous areas when paired with appropriate barrier systems. Sample conditioning—via refrigerated dryer, particulate filter, and coalescing membrane—is mandatory to satisfy the instrument’s inlet specification: dew point ≤ −10 °C, particle size < 0.3 µm, and oil aerosol concentration < 0.01 mg/m³.

Software & Data Management

Local operation is managed via a backlit monochrome LCD interface with intuitive menu navigation and real-time trend display (concentration vs. time). Configuration, calibration history, and diagnostic logs are accessible via USB port using proprietary PC software (Gasboard ConfigTool v3.2), which exports timestamped CSV files compliant with ASTM D7165-18 data formatting conventions. Remote access is supported through optional Ethernet module (not included), enabling secure HTTP/HTTPS read-only monitoring and firmware updates. Audit trail functionality records all parameter changes, zero calibrations, and alarm events with user ID and UTC timestamps—meeting GLP/GMP documentation prerequisites for regulated biogas-to-grid injection facilities subject to EPA 40 CFR Part 60 Subpart IIII or EU Directive 2009/28/EC reporting obligations.

Applications

• Real-time H₂S monitoring pre- and post-amine scrubbers, iron sponge beds, or biological desulfurization units in anaerobic digestion plants
• Continuous compliance verification for biogas upgrading facilities injecting purified biomethane into natural gas distribution networks
• Process optimization in municipal wastewater treatment plants tracking H₂S generation across digesters and sludge handling lines
• Quality assurance during landfill gas recovery operations where H₂S concentration dictates flare efficiency and corrosion risk
• Research-grade measurement in pilot-scale gas cleaning studies evaluating novel sorbent performance under dynamic loading conditions

FAQ

What gas conditioning is required prior to sample introduction?
A multi-stage conditioning system—comprising particulate filtration (0.3 µm), refrigerated drying (dew point ≤ −10 °C), and coalescing oil removal—is mandatory to prevent optical window fouling and ensure measurement integrity.
Can the Gasboard-3000UV operate continuously without manual zeroing?
Yes. Its integrated zero-air pump performs scheduled automatic zero calibration cycles, reducing operator dependency and maintaining baseline stability over extended unattended operation.
Is the analyzer compatible with Modbus TCP/IP networks?
The standard model supports Modbus RTU over RS-485. Modbus TCP/IP requires an external protocol converter or optional Ethernet communication module.
Does the device meet FDA 21 CFR Part 11 requirements for electronic records?
While the embedded audit trail satisfies core ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate), full Part 11 compliance requires implementation of organizational procedural controls, electronic signatures, and system validation—functions outside the instrument’s hardware scope.
What is the expected service life of the UV lamp and detector?
The xenon flash lamp has a rated lifetime of ≥ 2 × 10⁹ flashes (equivalent to >5 years at typical 1-sampling-interval duty cycle); the silicon carbide photodiode detector demonstrates no measurable degradation over 10 years under normal operating conditions.
