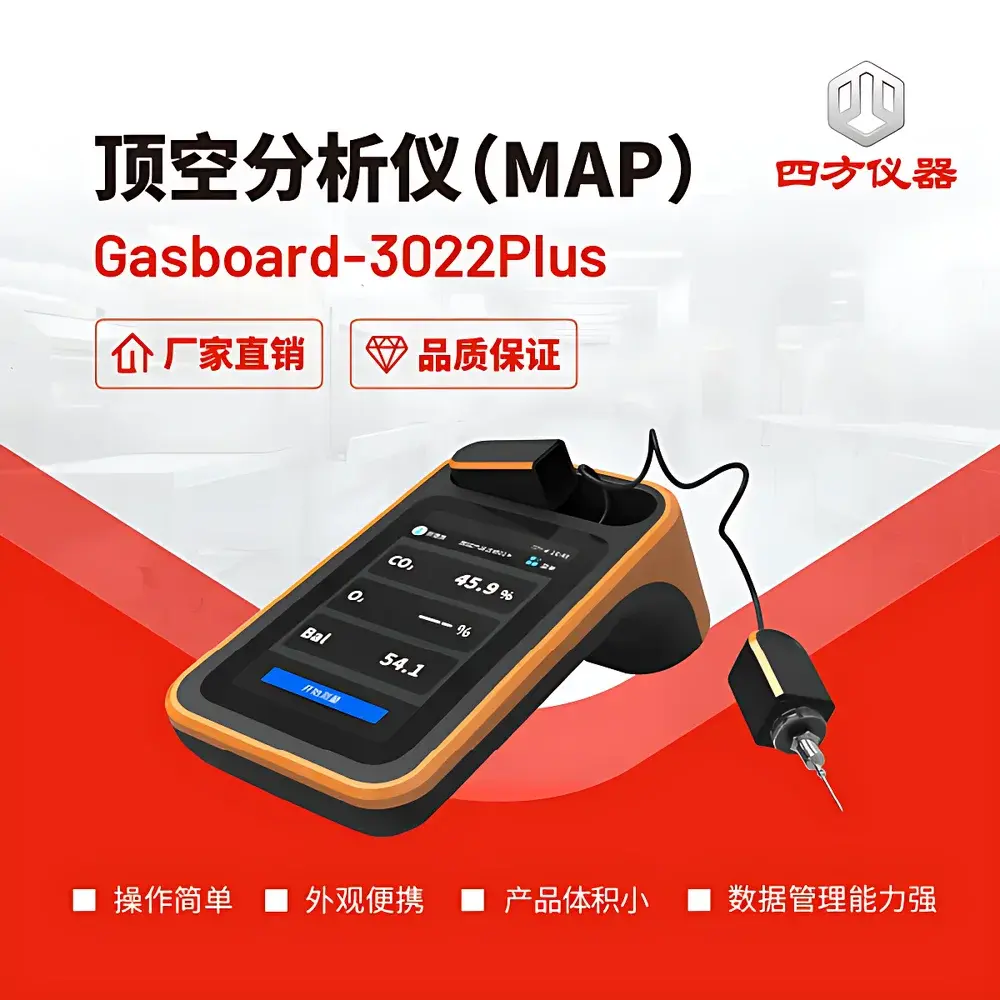

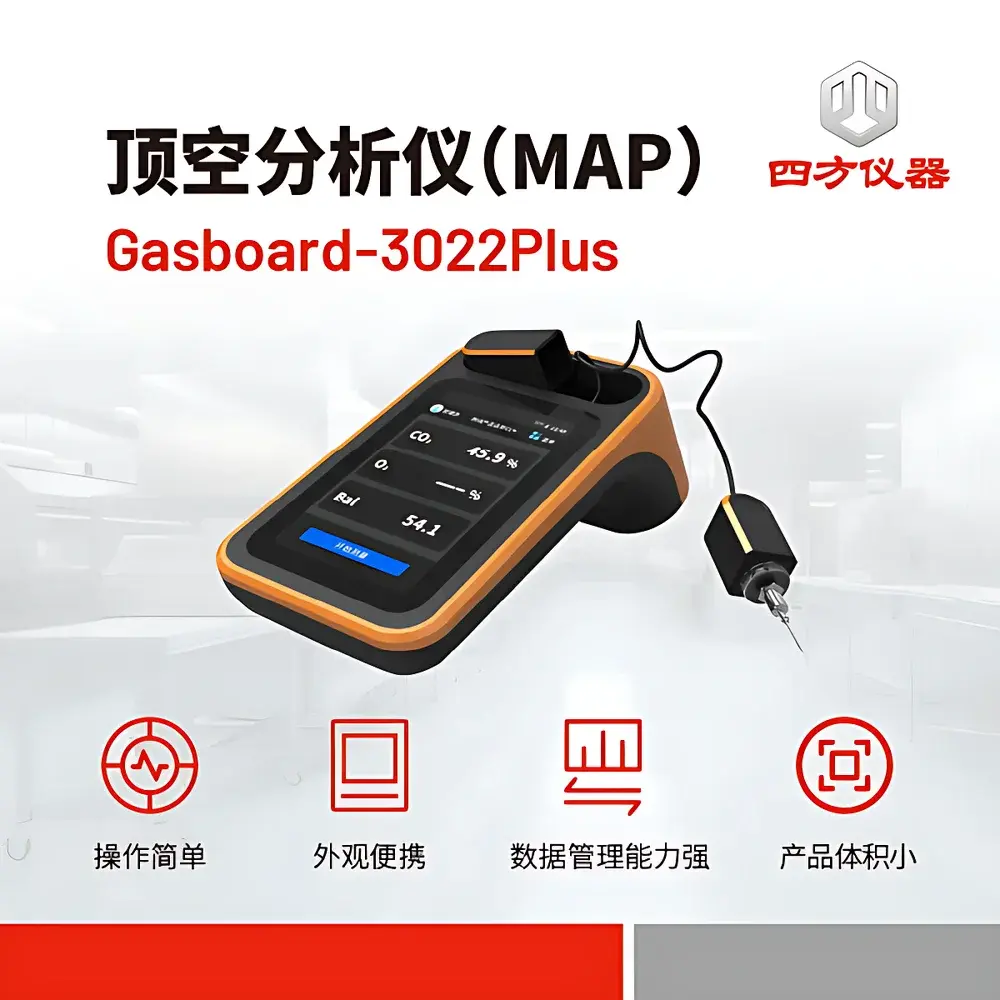

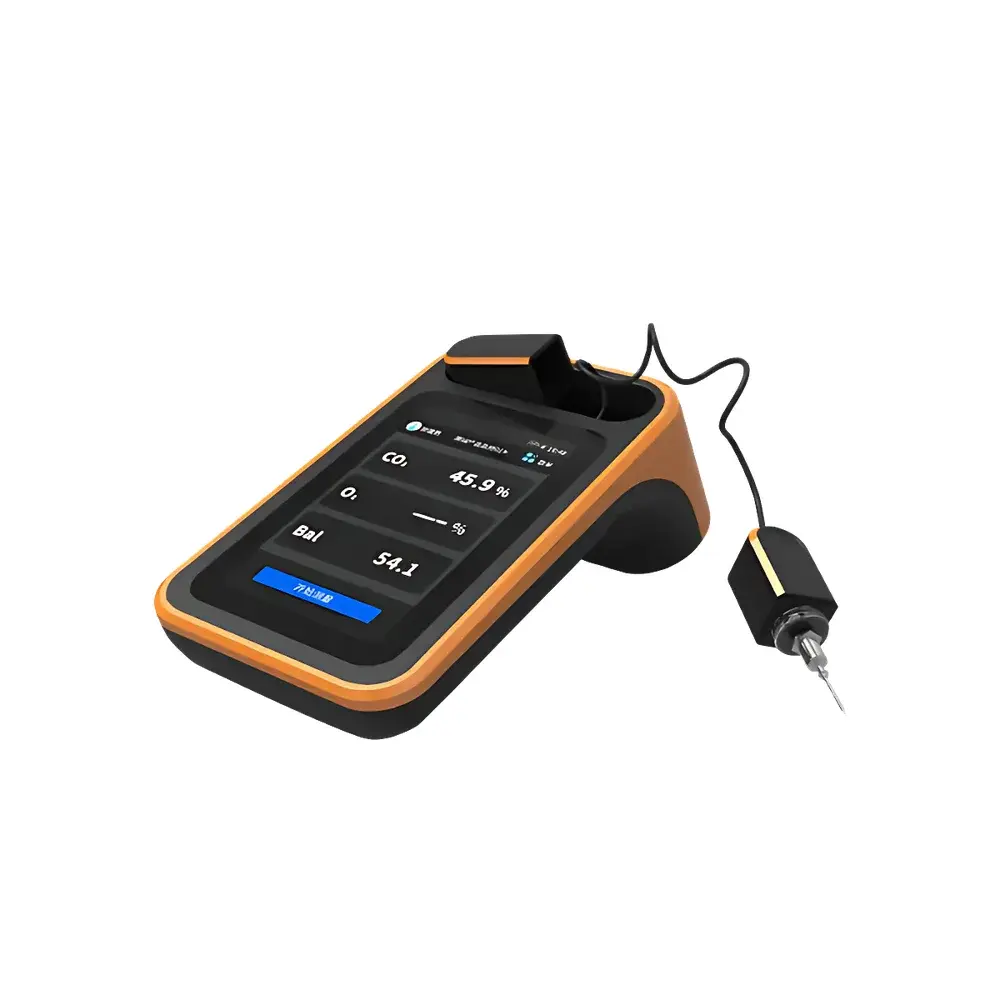

CUBIC INSTRUMENTS Gasboard-3022Plus Portable Headspace Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3022Plus is a handheld, dual-gas headspace analyzer engineered for rapid, non-destructive quantification of oxygen (O₂) and carbon dioxide (CO₂) concentrations in modified atmosphere packaging (MAP) used across food, pharmaceutical, and fresh produce industries. It employs two complementary, industry-validated sensing technologies: a high-stability zirconia-based electrochemical cell for O₂ detection and a temperature-compensated non-dispersive infrared (NDIR) sensor for CO₂. This hybrid architecture ensures robust performance across the full operational range—O₂ from 0 to 96% vol and CO₂ from 0 to 100% vol—while maintaining traceable accuracy under variable ambient conditions. Unlike benchtop gas analyzers requiring vacuum pumps or external calibration gases, the Gasboard-3022Plus performs direct headspace sampling via a single puncture using a sterile, disposable needle—eliminating cross-contamination risks and enabling on-line process verification at packaging stations, cold storage facilities, or distribution hubs.

Key Features

• Integrated dual-sensor platform: Zirconia O₂ sensor with extended service life (>2 years typical) and NDIR CO₂ module with automatic temperature and pressure compensation.
• Minimal invasive sampling: 5 mL headspace draw per measurement, completed in ≤7 seconds—optimized for low-volume sachets, vacuum-sealed trays, and flexible pouches.
• Android-based embedded OS with intuitive GUI: 5″ high-resolution capacitive touchscreen (720 × 1280) supports multi-language UI (English, Spanish, French, German, Chinese) and real-time graphing of concentration trends.
• Wireless and wired data integrity: Dual-mode connectivity via IEEE 802.11 b/g/n Wi-Fi (WPA2-PSK) and USB 2.0 host interface; all measurements timestamped, user-ID logged, and stored with audit trail metadata.
• Ergonomic portable design: Dimensions 104 × 187.5 × 72 mm; weight <650 g; integrated needle guard and sterile membrane holder prevent operator exposure and sample carryover.
• Field-ready power system: 7500 mAh rechargeable lithium-ion battery (3.7 V) supports ≥4 hours of continuous operation; full charge in <3.5 hours via universal AC adapter (US/EU/UK/SA plug options included).

Sample Compatibility & Compliance

The Gasboard-3022Plus is validated for use with standard MAP configurations including thermoformed trays, stand-up pouches, flow-wrap films, and rigid plastic containers. Its 5 mL minimum sampling volume accommodates packages as small as 30 mL total headspace. All sensors are factory-calibrated against NIST-traceable reference gases (O₂ in N₂, CO₂ in air), and calibration certificates comply with ISO/IEC 17025 requirements for field instruments. The device meets electromagnetic compatibility (EMC) and safety standards per FCC Part 15 Subpart B and RoHS Directive 2011/65/EU. While not certified to FDA 21 CFR Part 11 out-of-the-box, its data export protocols (CSV/Excel), user access control (PIN-protected admin mode), and immutable record timestamps support alignment with GLP and GMP documentation workflows when deployed within validated laboratory or production QA systems.

Software & Data Management

Data acquisition and reporting are managed through the proprietary CubicLink™ firmware, which supports configurable measurement templates, barcode-assisted sample ID entry (via integrated 5 MP camera), and real-time flow rate monitoring with audible/visual over-pressure alerts. Internal memory retains up to 100,000 test records—including raw sensor outputs, environmental parameters (temperature, relative humidity, barometric pressure), and operator annotations—with optional microSD card expansion for long-term archiving. Export formats include time-stamped CSV and PDF summary reports. Wi-Fi-enabled synchronization allows secure upload to LIMS or enterprise QA platforms using TLS 1.2 encryption; no cloud dependency required—local network deployment is fully supported.

Applications

• Real-time QC verification of MAP integrity during food packaging line start-up, changeovers, and periodic audits.
• Shelf-life studies: Monitoring O₂ ingress and CO₂ depletion kinetics in retail-ready packaging under accelerated aging conditions.
• Pharmaceutical blister pack validation: Confirming residual O₂ levels in inert-gas sealed unit-dose formats per USP guidance.
• Fresh-cut produce logistics: Field assessment of headspace composition in cold-chain transport containers to validate controlled atmosphere efficacy.
• R&D screening of novel barrier films, sealants, and active packaging materials under standardized test protocols (e.g., ASTM F2096, ISO 11607-2).

FAQ

Does the Gasboard-3022Plus require daily calibration?
No—zirconia O₂ and NDIR CO₂ sensors are factory-calibrated and stable for ≥6 months under normal use. A two-point verification (zero/span) is recommended before critical batches or after exposure to extreme environmental shifts.
Can it measure other gases such as N₂ or argon?
No—the instrument is specifically configured for O₂ and CO₂ only. Nitrogen and argon are inferred by difference (100% − [O₂ + CO₂]) and are not directly sensed.
Is the device suitable for use in humid or refrigerated environments?
Yes—it operates reliably between 0–40 °C and 5–90% RH (non-condensing), making it appropriate for walk-in chillers, cold rooms, and ambient warehouse settings.
How is data traceability ensured for regulatory submissions?
Each measurement includes embedded UTC timestamp, operator ID, GPS coordinates (optional via Wi-Fi triangulation), and environmental context—supporting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when integrated into documented QA procedures.
