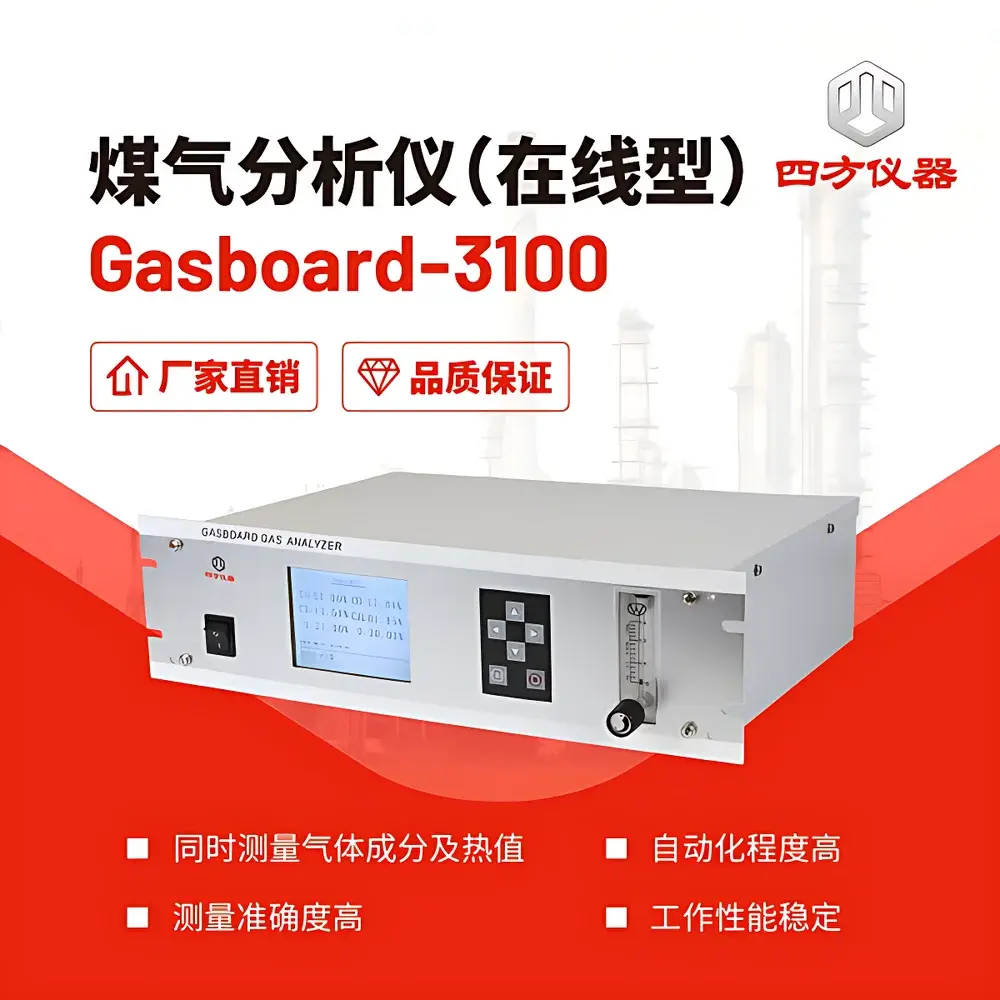

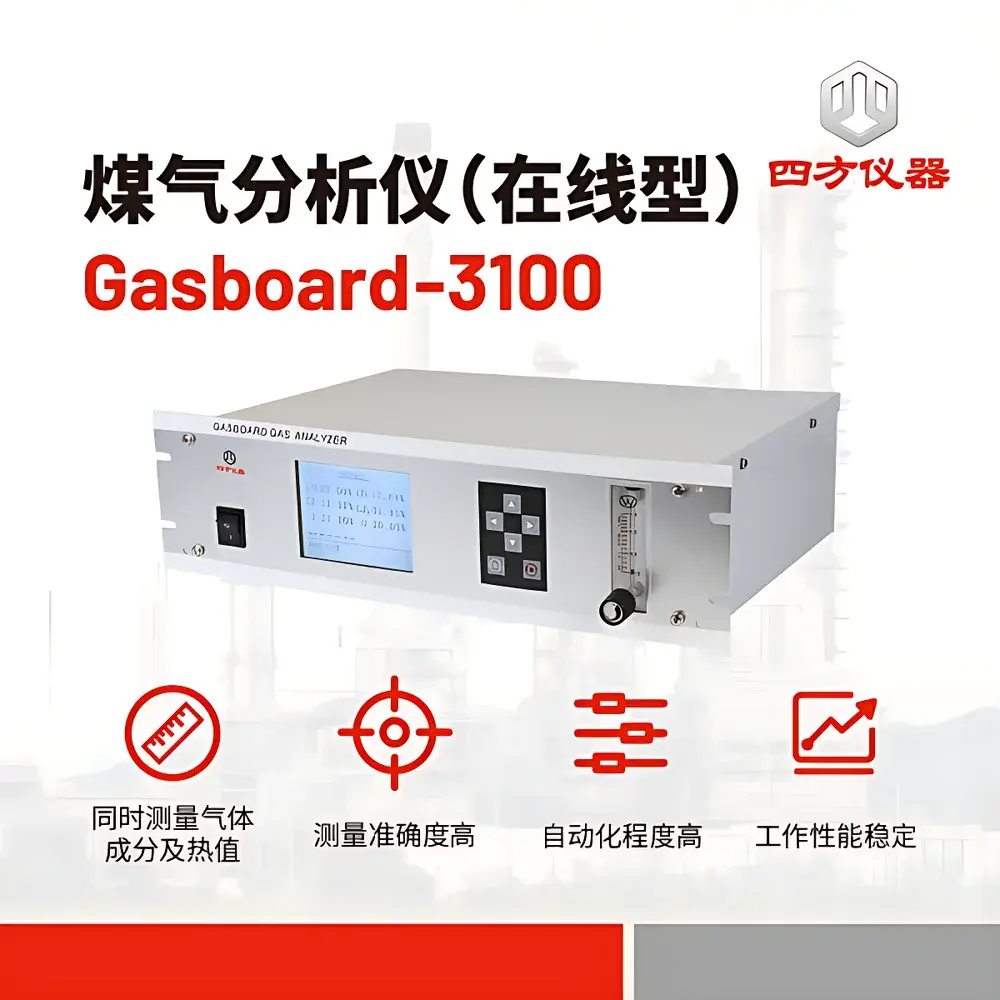

CUBIC INSTRUMENTS Gasboard-3100 Online Multi-Gas Analyzer with Calorific Value Calculation

Overview

The CUBIC INSTRUMENTS Gasboard-3100 is an industrial-grade online multi-gas analyzer engineered for continuous, real-time measurement of gas composition and calorific value in demanding process environments. It integrates three complementary analytical technologies within a single compact platform: non-dispersive infrared (NDIR) spectroscopy for hydrocarbons and carbon oxides, thermal conductivity detection (TCD) for hydrogen, and electrochemical detection (ECD) for oxygen. This hybrid architecture enables simultaneous quantification of up to eight gas species — CO, CO₂, CH₄, H₂, O₂, C₂H₂, C₂H₄, and CnHm (total non-methane hydrocarbons) — while computing higher heating value (HHV) and lower heating value (LHV) in kcal/m³ or MJ/m³ units. Unlike conventional combustion-based calorimeters, the Gasboard-3100 delivers thermodynamic-equivalent energy content via stoichiometric algorithms calibrated against certified reference gases and validated per ASTM D1826 and ISO 6976 methodologies. Its design targets stable operation under fluctuating sample flow (0.7–1.2 L/min) and inlet pressure (2–50 kPa), with all wetted parts constructed from corrosion-resistant 316 stainless steel and PTFE to withstand aggressive syngas, blast furnace gas, biogas, and coke oven gas matrices.

Key Features

• Multi-technology sensor fusion: NDIR (CO, CO₂, CH₄, C₂H₂, C₂H₄, CnHm), TCD (H₂), and ECD (O₂) ensure orthogonal selectivity and eliminate cross-sensitivity — e.g., CnHm does not interfere with CH₄ readings; CO/CO₂/CH₄ do not affect H₂ quantification.
• Integrated calorific value calculation: Real-time HHV/LHV computation compliant with ISO 6976:2016 and GB/T 11062–2013 standards, eliminating need for standalone bomb calorimeters.
• Thermally stabilized optical path: Active temperature control of NDIR modules mitigates drift induced by ambient fluctuations, supporting >12-month calibration stability under continuous operation.
• Robust sample conditioning interface: Built-in zero-air pump enables automated air-based baseline correction without external gas cylinders; optional heated sampling line and particulate/water/oil filtration modules available for raw biogas or coal gas applications.
• Dual-output architecture: Simultaneous analog (4–20 mA isolated channels) and digital (RS-485 Modbus RTU, RS-232) interfaces facilitate integration into DCS, SCADA, and MES systems with configurable alarm thresholds and data logging intervals.

Sample Compatibility & Compliance

The Gasboard-3100 is validated for use with complex, variable-composition industrial gases including blast furnace gas, coke oven gas, producer gas, landfill biogas, anaerobic digestion biogas, and syngas from biomass gasification. Sample requirements specify particulate-free, dew-point-controlled (< −10 °C), and oil-free conditions — achievable via integrated or external pre-treatment. All sensors comply with IEC 61508 SIL 2 functional safety principles for critical process monitoring. The analyzer supports audit-ready operation per GLP and GMP frameworks, with timestamped calibration logs, sensor health diagnostics, and user-accessible firmware versioning. While not intrinsically safe, it is suitable for Zone 2/Class I Div 2 environments when installed with appropriate barrier systems.

Software & Data Management

The embedded firmware provides local LCD-based configuration, real-time trend visualization, and diagnostic status reporting (e.g., sensor saturation, zero drift, flow deviation). Optional PC-based software (Gasboard Control Suite) enables remote parameter setup, historical data export (CSV/Excel), batch calibration management, and compliance reporting aligned with FDA 21 CFR Part 11 requirements — including electronic signatures, audit trails, and role-based access control. Data retention supports ≥30 days of second-by-second measurements at default 1 Hz sampling rate, extendable via external SD card or network storage.

Applications

• Metallurgical process optimization: Continuous monitoring of blast furnace top gas and coke oven gas for energy recovery, emission control, and furnace efficiency modeling.
• Renewable biogas upgrading: Real-time tracking of CH₄, CO₂, H₂S (via optional add-on), and HHV to guide membrane separation or amine scrubbing decisions.
• Gasification R&D: Quantitative analysis of syngas composition from pilot-scale biomass or coal gasifiers, supporting reaction kinetics validation and tar surrogate (CnHm) quantification.
• Academic combustion research: High-temporal-resolution sampling in burner test rigs and fluidized bed reactors where rapid T90 response (<15 s) ensures fidelity during transient flame events.
• Industrial safety interlocks: Dual-channel O₂ and H₂ monitoring for inerting control and explosion risk assessment in chemical synthesis units.

FAQ

What gas species does the Gasboard-3100 measure simultaneously?
It measures CO, CO₂, CH₄, H₂, O₂, C₂H₂, C₂H₄, and CnHm (non-methane hydrocarbons) in parallel, plus derived calorific value.
How is cross-interference minimized between hydrocarbon species?
NDIR channels employ narrow-band optical filters and proprietary spectral deconvolution algorithms; CnHm is measured using a dedicated wide-band NDIR channel insensitive to CH₄ absorption peaks.
Is field calibration required, and how often?
Zero calibration is automated using internal air pump; span calibration is recommended every 3–6 months depending on application severity, traceable to NIST-certified gas standards.
Can the analyzer operate unattended for extended periods?
Yes — designed for 24/7 operation with self-diagnostics, automatic zeroing, and fail-safe output signaling (e.g., 3.6 mA fault current) per IEC 61508.
Does it support regulatory reporting formats?
Raw data export includes ISO-standardized units and metadata; optional software generates EPA Method 3A, EN 15267, or China’s HJ 75–2017-compliant reports.
