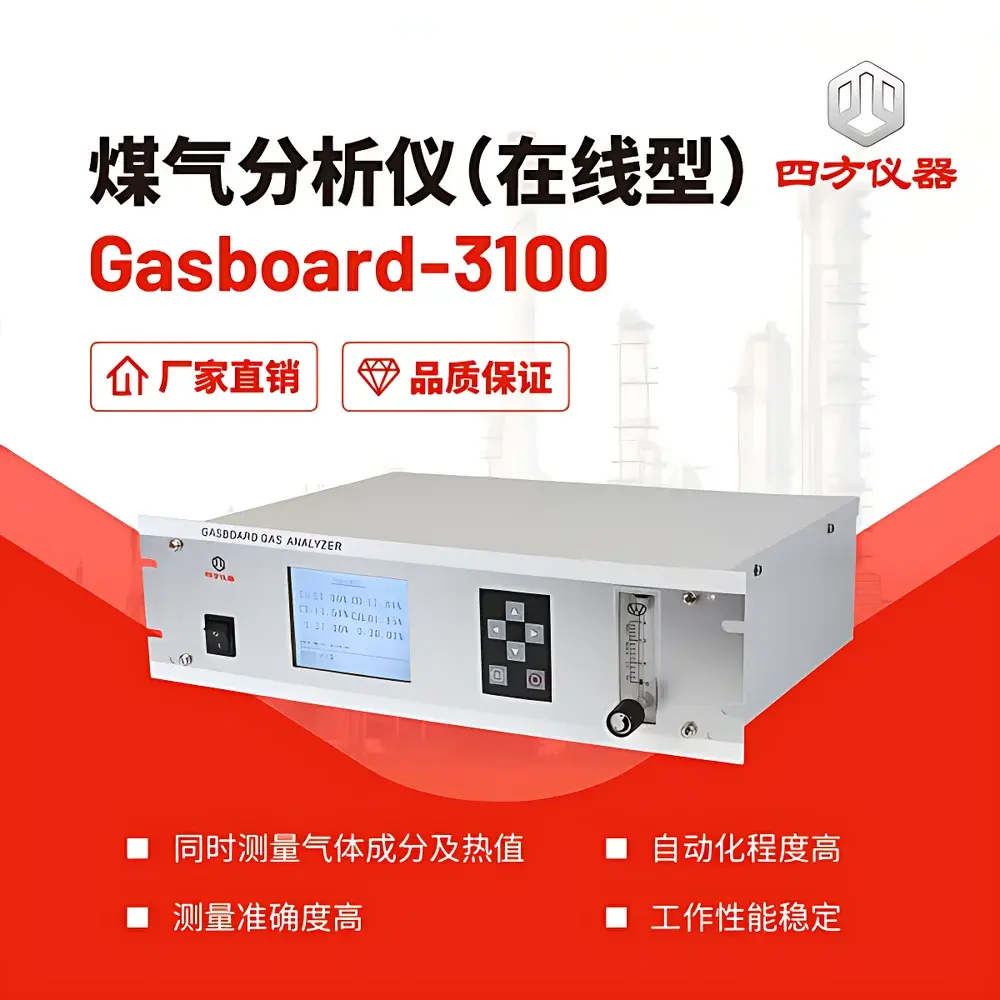

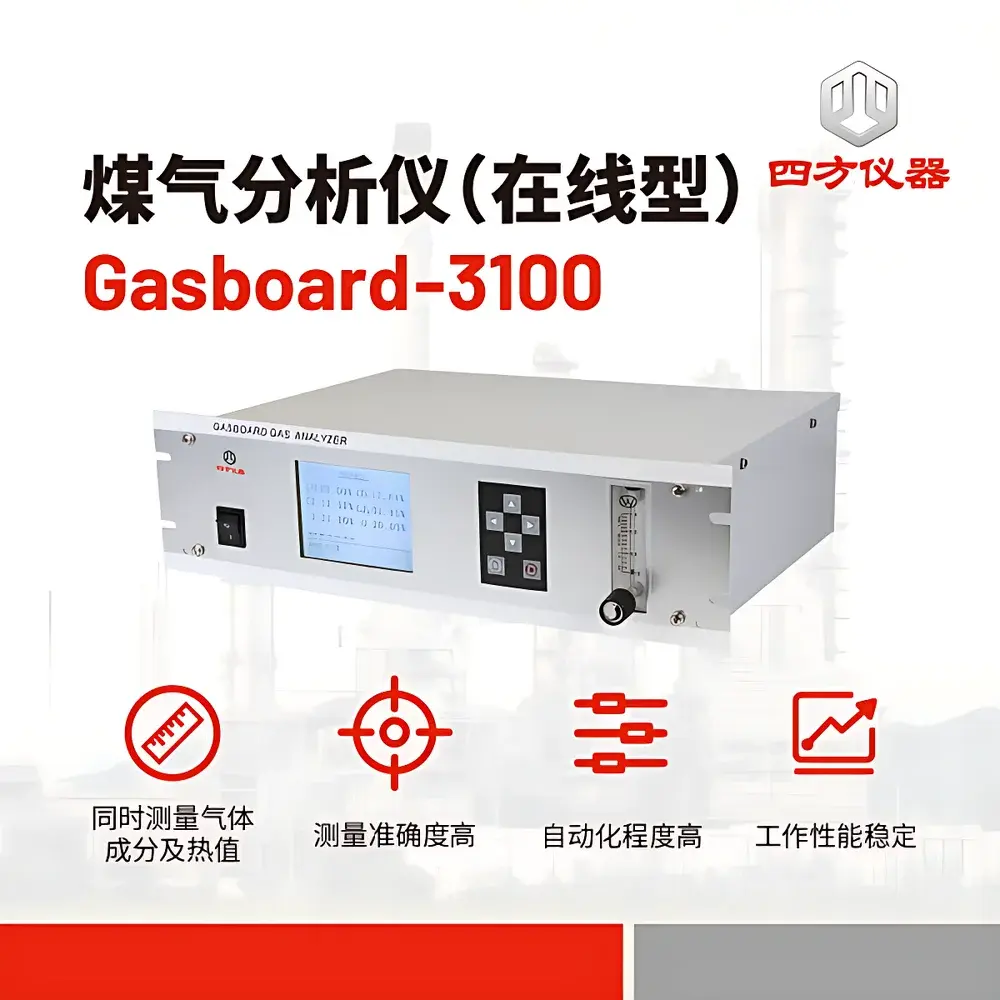

CUBIC INSTRUMENTS Gasboard-3100 Online Multi-Gas Analyzer with Calorific Value Calculation

Overview

The CUBIC INSTRUMENTS Gasboard-3100 is an industrial-grade online multi-gas analyzer engineered for continuous, real-time monitoring of combustible and inert gas compositions in process streams—particularly syngas, blast furnace gas, coke oven gas, biogas, and biomass-derived producer gas. It integrates three complementary sensing modalities within a single robust platform: non-dispersive infrared (NDIR) spectroscopy for CO, CO₂, CH₄, C₂H₂, C₂H₄, and total non-methane hydrocarbons (CnHm); thermal conductivity detection (TCD) for hydrogen (H₂); and electrochemical detection (ECD) for oxygen (O₂). Critically, the instrument computes gross calorific value (GCV) in real time using ASTM D3588-17 and ISO 6976-compliant algorithms, eliminating the need for separate bomb calorimetry or empirical combustion-based heat value measurement. Its architecture supports unattended operation in harsh industrial environments, with all wetted components fabricated from corrosion-resistant 316 stainless steel and PTFE to withstand acidic condensates, particulate-laden flows, and elevated operating temperatures typical of metallurgical and gasification processes.

Key Features

• Simultaneous quantification of up to eight gas species: CO, CO₂, CH₄, H₂, O₂, C₂H₂, C₂H₄, and CnHm (sum of non-methane hydrocarbons), with independent calibration paths ensuring minimal cross-sensitivity.
• Integrated calorific value calculation: automatic GCV output in both kcal/m³ and MJ/m³ units, traceable to ISO 6976:2016 and EN 15403:2006 standards for gaseous fuels.
• Zero-drift mitigation via built-in zero-air pump and automated air-based calibration sequence—no external calibration gas required for routine zero maintenance.
• Thermally stabilized NDIR optical path and TCD sensor housing, actively maintaining sensor temperature within ±0.1 °C to suppress ambient thermal drift and ensure long-term baseline stability.
• Dual analog (4–20 mA) and digital (RS-232/RS-485 Modbus RTU) outputs for seamless integration into DCS, SCADA, or PLC-based process control systems.
• Self-diagnostic firmware that continuously monitors sensor health, signal-to-noise ratio, optical path integrity, and flow consistency—generating actionable fault codes for predictive maintenance planning.

Sample Compatibility & Compliance

The Gasboard-3100 is validated for use with dry, particle-free, oil-free sample streams meeting ISO 8573-1 Class 4 purity requirements. Optional integrated sample conditioning—including heated filtration, coalescing water removal, and pressure regulation—is available to meet EN 15267-3 pre-treatment specifications for continuous emission monitoring systems (CEMS). All gas measurements comply with IEC 61298-2 for accuracy class and IEC 61508 SIL 2 functional safety requirements when deployed in safety-critical loops. The analyzer meets EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Data integrity protocols align with FDA 21 CFR Part 11 for electronic records and signatures where audit trails, user access controls, and data export validation are implemented via optional software modules.

Software & Data Management

The embedded firmware supports configurable alarm thresholds, trend logging at user-defined intervals (1 s to 1 h), and local data storage (≥30 days of 1-minute averaged values). PC-based configuration and diagnostics are performed via CUBIC’s proprietary GasVision™ software, which provides real-time waveform visualization, calibration history tracking, and report generation compliant with GLP and ISO/IEC 17025 documentation requirements. Data export formats include CSV, XML, and OPC UA for interoperability with LIMS and MES platforms. Remote firmware updates and parameter reconfiguration are supported over secure TLS-enabled Ethernet connections.

Applications

• Metallurgical process optimization: real-time monitoring of blast furnace top gas, coke oven off-gas, and converter gas for energy recovery and environmental compliance (e.g., EU Industrial Emissions Directive 2010/75/EU).
• Biogas upgrading and utilization: composition verification prior to membrane separation or pressure swing adsorption, and post-upgrade methane purity assurance per EN 16723-1.
• Gasification and pyrolysis R&D: high-frequency sampling during lab-scale and pilot-scale thermochemical conversion experiments to correlate feedstock composition with syngas yield and H₂/CO ratio.
• Combustion efficiency analysis: direct input to boiler and furnace control algorithms for stoichiometric air-fuel ratio adjustment and NOₓ minimization strategies.
• Quality assurance in municipal solid waste (MSW) and agricultural digesters: continuous verification of biogas consistency for grid injection or vehicle fuel certification (e.g., CEN/TS 15440).

FAQ

What gas species does the Gasboard-3100 measure simultaneously, and how is calorific value calculated?
It measures CO, CO₂, CH₄, H₂, O₂, C₂H₂, C₂H₄, and CnHm in parallel. GCV is computed using the higher heating value (HHV) summation method per ISO 6976, applying species-specific molar enthalpies of combustion and volumetric concentrations.
Does the analyzer require external calibration gases?
No—zero calibration uses ambient air drawn by the internal pump. Span calibration may be performed optionally with certified reference gases; however, factory-calibrated sensors maintain ±1% FS accuracy for ≥12 months under stable operating conditions.
Can the Gasboard-3100 operate in high-humidity or corrosive sample streams?
Only with appropriate sample conditioning: the base unit requires dew-point-controlled, particulate-filtered, and oil-free gas. Optional heated sample lines and acid-resistant filters extend suitability to raw biogas or coke oven gas applications.
Is the instrument suitable for hazardous area installation?
The standard model is rated for Zone 2/Class I Div 2 environments. A certified ATEX/IECEx explosion-proof variant (Gasboard-3100-XP) is available upon request.
How is data security and audit trail managed for regulated industries?
When configured with GasVision™ Enterprise Edition, the system enforces role-based access control, immutable electronic signatures, and time-stamped audit logs compliant with 21 CFR Part 11 Annex 11 and ISO/IEC 17025:2017 clause 7.11.
