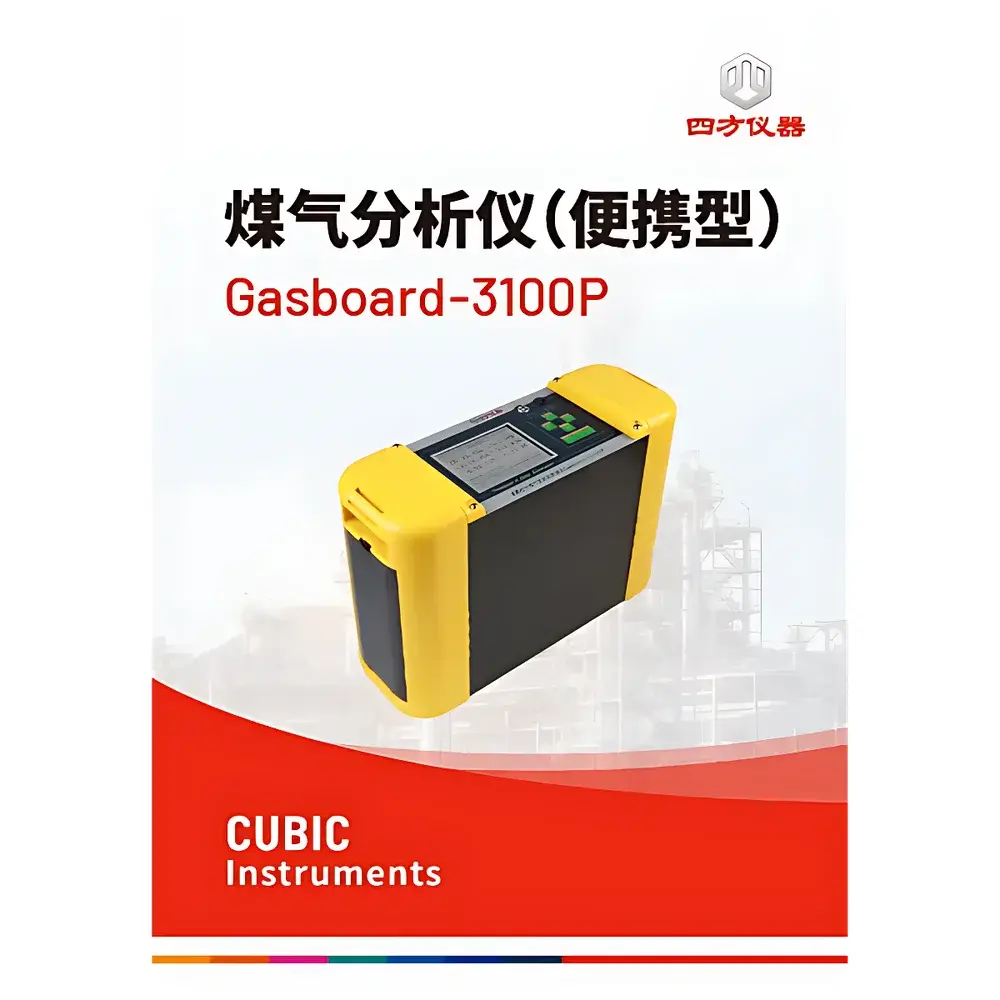

CUBIC INSTRUMENTS Gasboard-3100P Portable Biogas and Industrial Gas Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3100P is a field-deployable, multi-parameter gas analyzer engineered for precise, real-time compositional analysis and calorific value determination of industrial and biogenic gases. It integrates three complementary analytical technologies—non-dispersive infrared (NDIR) spectroscopy for CO, CO₂, CH₄, C₂H₂, C₂H₄, and total non-methane hydrocarbons (CnHm); thermal conductivity detection (TCD) for hydrogen (H₂); and electrochemical detection (ECD) for oxygen (O₂). This hybrid architecture enables simultaneous, interference-free quantification of up to eight gas species in a single sample stream, with no cross-sensitivity between key analytes (e.g., CnHm does not affect CH₄ measurement; CO/CO₂/CH₄ do not interfere with H₂ response). The instrument calculates gross calorific value (GCV) in real time using ASTM D3588-17 and ISO 6976-compliant algorithms, eliminating the need for standalone combustion calorimeters in routine process monitoring.

Key Features

• Multi-technology platform: NDIR (CO, CO₂, CH₄, C₂H₂, C₂H₄, CnHm), TCD (H₂), and ECD (O₂) ensure orthogonal detection principles and high selectivity.
• Real-time calorific value computation: Supports dual-unit display (kcal/m³ and MJ/m³) and adheres to internationally recognized thermodynamic models for gaseous fuels.
• Robust interference mitigation: Engineered optical filters and signal processing eliminate spectral overlap; flow-independent H₂ measurement ensures stability across variable sampling conditions (0.7–1.2 L/min).
• Portable ruggedized design: 9 kg unit with integrated rechargeable Li-ion battery, soft-start power management, and IP54-rated enclosure suitable for plant floor, landfill gate, or laboratory use.
• Onboard diagnostics and calibration support: Self-test routines verify sensor health, zero/span drift, and pump performance; supports traceable calibration using certified gas standards per ISO 17025 guidelines.
• Low operational cost: No consumables, reagents, or carrier gases required—contrasts with GC-based or Orsat methods that demand frequent maintenance and chemical handling.

Sample Compatibility & Compliance

The Gasboard-3100P is validated for dry, particle-free, oil-free gas streams typical of syngas, blast furnace gas, coke oven gas, biogas (post-scrubbing), and natural gas blends. Optional pre-conditioning modules (e.g., heated particulate filter, Nafion dryer) extend usability to raw biogas or wet process streams. All measurements comply with metrological requirements outlined in EN 15403 (biogas quality), ASTM D1945 (gas analysis by GC—used as reference method), and ISO 8573-1 (compressed air purity—adapted for sample conditioning validation). Data integrity meets GLP/GMP expectations via timestamped storage, user-accessible audit logs, and RS-232 output compatible with SCADA and LIMS integration.

Software & Data Management

Internal firmware stores ≥10,000 measurement records with date/time stamp, gas composition, GCV, and diagnostic flags. Data export is supported via RS-232 serial interface to PCs or central control systems using ASCII protocol (Modbus RTU optional upon request). No proprietary software installation is required—raw data files are CSV-compatible and structured for direct import into Excel, MATLAB, or industry-standard analytics platforms. Firmware updates are performed via USB or serial connection, with version history and checksum verification ensuring traceability per FDA 21 CFR Part 11 Annex 11 principles.

Applications

• Metallurgical and chemical plants: Continuous monitoring of blast furnace gas, converter gas, and coke oven gas for energy recovery optimization and safety compliance (LEL estimation).
• Biogas upgrading facilities: Real-time tracking of CH₄/CO₂ ratio, H₂S surrogate (via CnHm trend), and GCV to guide membrane separation or amine scrubbing control logic.
• Waste-to-energy and anaerobic digestion sites: Feedstock characterization, digester health assessment, and flare gas compliance reporting (e.g., EPA Method 25A equivalence).
• Academic and R&D laboratories: Combustion stoichiometry studies, catalyst evaluation under varying syngas compositions, and validation of kinetic models for gas-phase reactions.
• Gas distribution networks: Spot-checking of town gas blends, LNG vaporization off-gas, and pipeline injection point verification.

FAQ

What gas species can the Gasboard-3100P measure simultaneously?
It measures CO, CO₂, CH₄, H₂, O₂, C₂H₂, C₂H₄, and total non-methane hydrocarbons (CnHm) in one analysis cycle, plus derived gross calorific value.
Is external power required during field operation?
No—the unit operates fully on its internal rechargeable Li-ion battery for ≥6 hours at nominal flow; the 12.6 V external charger is used only for recharging between deployments.
How is measurement accuracy maintained over time?
Through factory calibration traceable to NIST-certified standards, user-performed zero/span checks with certified gases, and continuous self-diagnostic monitoring of detector baselines and pump vacuum levels.
Can the instrument handle raw biogas with moisture and H₂S?
Not directly—the sample must be filtered, dried, and desulfurized upstream; optional pre-treatment kits (heated filter + Nafion dryer) are available to condition such streams prior to inlet.
Does the device support regulatory reporting formats?
Yes—data output conforms to common industrial protocols (ASCII/RS-232), enabling seamless ingestion into EPA GHGRP, EU ETS, or ISO 50001 energy management systems with minimal middleware configuration.
