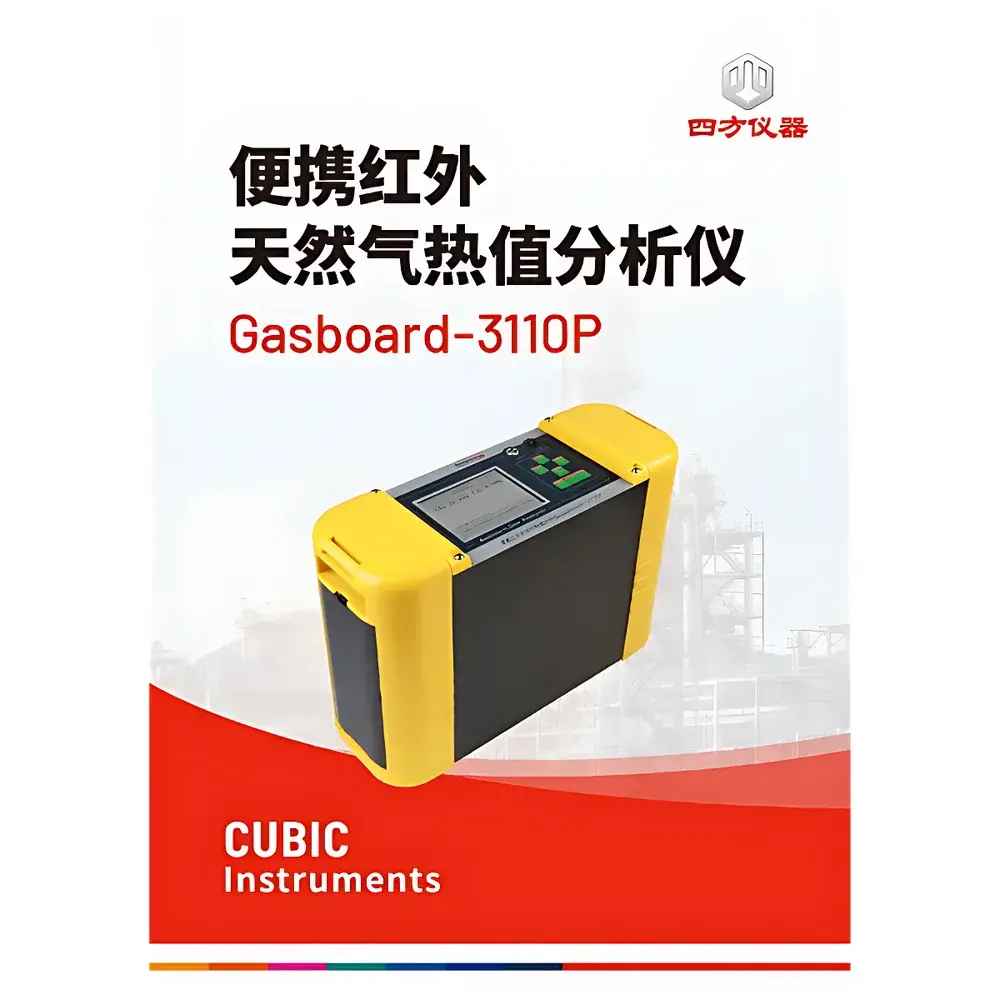

CUBIC INSTRUMENTS Gasboard-3110P Portable Biogas and Natural Gas Calorific Value Analyzer

Overview

The CUBIC INSTRUMENTS Gasboard-3110P is a portable, field-deployable calorific value analyzer engineered for real-time, multi-component gas analysis in biogas, natural gas, and coalbed methane applications. It employs proprietary non-dispersive infrared (NDIR) spectroscopy—based on Beer-Lambert absorption principles—to quantitatively determine volumetric concentrations of CH₄, CO₂, and higher hydrocarbons (CnHm, where n ≥ 2) simultaneously. Unlike combustion-based calorimeters or GC-based methods, the Gasboard-3110P calculates gross calorific value (GCV) in situ using ASTM D3588-17 and ISO 6976:2016-compliant thermodynamic algorithms, integrating measured component concentrations with standardized higher heating values (HHV) per mole. This eliminates reliance on physical combustion, enabling rapid, repeatable, and maintenance-free thermal energy assessment directly at the point of sampling—critical for pipeline injection compliance, biogas upgrading verification, and feedstock quality control.

Key Features

• Simultaneous NDIR-based quantification of CH₄ (0–100%), CO₂ (0–100%), and CnHm (0–10%) with cross-interference compensation algorithms validated per IEC 62409:2021 for multi-gas IR sensors.
• On-board calorific value computation: Automatically derives gross calorific value (MJ/m³ at 15 °C, 101.325 kPa) in real time using composition-derived stoichiometric coefficients—fully traceable to ISO 6976 Annex B.
• Portable architecture with integrated sample pump, pressure-regulated flow control (0.7–1.2 L/min), and inlet filtration (particulate ≤ 1 µm, dew point < −20 °C recommended).
• Built-in diagnostics: Continuous self-check of optical path integrity, detector stability, and zero/span drift; alerts trigger upon deviation exceeding ±0.5% F.S. over 24 h.
• Power management system: Rechargeable Li-ion battery (rated 8 h continuous operation at 1 L/min flow); soft-start circuitry prevents operation below 10.8 V to preserve sensor longevity and measurement fidelity.
• No consumables required: NDIR optics require no carrier gases, reagents, or column replacements—reducing total cost of ownership versus GC or Orsat methods.

Sample Compatibility & Compliance

The Gasboard-3110P is designed for dry, particle-free, oil-free gas streams meeting ISO 8573-1 Class 4 (solid particles ≤ 5 µm, pressure dew point ≤ +3 °C). It complies with EN 16726:2016 for biogas quality monitoring and supports regulatory reporting under EU Directive 2009/28/EC (Renewable Energy Directive). Data output adheres to Modbus RTU over RS-232 for integration into SCADA or DCS systems compliant with IEC 61850-7-420. While not certified for hazardous areas (ATEX/IECEx), it meets EMC directive 2014/30/EU and RoHS 2011/65/EU requirements. Calibration traceability follows ISO/IEC 17025:2017 via factory-certified reference gases (NIST-traceable CH₄/N₂, CO₂/N₂, C₂H₆/N₂ blends).

Software & Data Management

Internal firmware supports automatic logging of timestamped concentration and GCV records (up to 10,000 entries) with user-definable sampling intervals (1–300 s). Data export is supported via USB-C or RS-232 to PC-based software (Gasboard Manager v3.2), which enables CSV export, trend visualization, and audit trail generation compliant with FDA 21 CFR Part 11 (electronic signatures, operator ID, change history). No cloud connectivity or remote access is implemented—ensuring data sovereignty and alignment with GLP/GMP local-data-retention policies.

Applications

• Biogas upgrading plants: Real-time monitoring of CH₄ enrichment and CO₂ removal efficiency prior to grid injection.
• Natural gas distribution networks: Spot-checking Wobbe index and GCV at city gate stations per AGA Report No. 8.
• Liquefied petroleum gas (LPG) terminals: Verification of CnHm composition (propane/butane ratio) affecting combustion characteristics.
• Energy service companies (ESCOs): Field validation of fuel substitution ratios during boiler or turbine retrofit projects.
• Environmental laboratories: Supporting EPA Method 3C and ISO 10156-2 for flammability classification of landfill gas streams.
• Academic research: Kinetic studies of anaerobic digestion where rapid, non-destructive composition feedback informs process modeling.

FAQ

Does the Gasboard-3110P require periodic calibration with certified gas standards?

Yes—initial calibration and annual verification are recommended using NIST-traceable binary mixtures (e.g., CH₄/N₂, CO₂/N₂, C₂H₆/N₂) per ISO 14112. Zero calibration may be performed with certified nitrogen (99.999% purity).
Can the instrument measure hydrogen (H₂) or oxygen (O₂)?

No—H₂ and O₂ are not detectable by NDIR. For H₂-rich biogas streams, a complementary electrochemical or paramagnetic O₂ sensor is required.
Is the device suitable for continuous unattended operation?

It is rated for intermittent field use (≤ 8 h/day). For 24/7 monitoring, integration with an external power supply and automated sample conditioning system is advised.
How is moisture handled in the sample stream?

Condensate must be removed upstream using a Peltier chiller or permeation dryer; internal filters do not remove water vapor. Excess moisture causes optical scattering and erroneous CO₂ readings.
What is the uncertainty budget for GCV calculation?

Combined standard uncertainty is ±1.2% (k=2) under reference conditions, dominated by CH₄ and CnHm concentration uncertainties per ISO 6976 Annex D.
